Specifications
General
Sound Channels
2
Power Output
• Both Channels: 80 Watts
• Single Channel: 175 Watts
• Nominal Output Level: 735 mV
• Output impedance: 230 Ohms
• Single Channel: 175 Watts
• Nominal Output Level: 735 mV
• Output impedance: 230 Ohms
Power Consumption (Max)
500 W
Total Harmonic Distortion
0.003 %
Frequency Range (Hz)
20 Hz - 20,000 Hz
Video Compatibility
None
User Interface
On the receiver,On-screen:GUI
Additional Information
Suplied accessories: Remote control, 2 x AAA batteries, accessory power cable
Network
Bluetooth
Not applicable
Wi-Fi
No
MusicCast
No

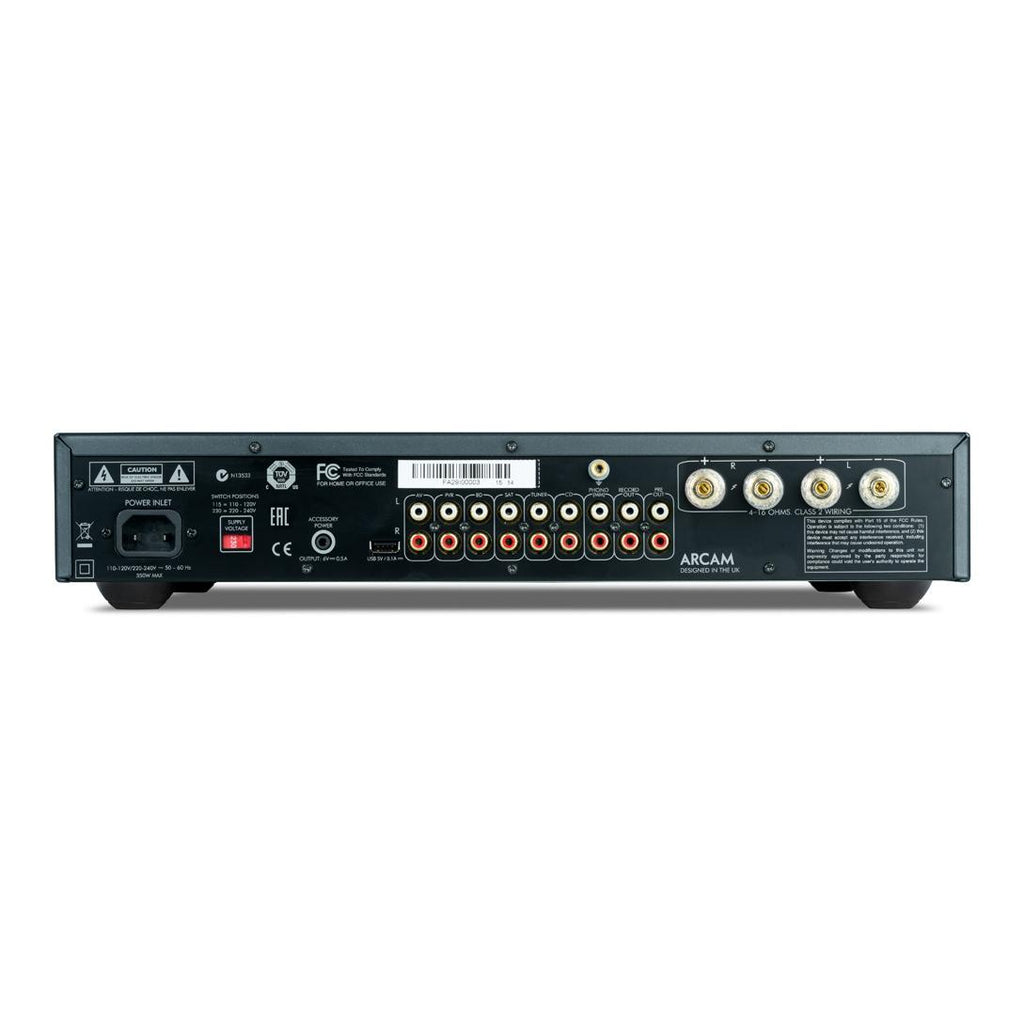

Inputs/Outputs
AM/FM
No
Phono Input
Yes
Composites Audio Inputs (Analog)
7
Composites Audio Outputs (Analog)
2
Headphone Output
Yes
Network
No
Sirius/Xm Radio Ready
No
RS-232
No
USB
No
Dimensions
Width
17.05 inch(es) / 43.3 cm
Height
3.35 inch(es) / 8.5 cm
Depth
10.83 inch(es) / 27.5 cm
Weight
20.28 lb(s) / 9.2 kg
Shipping Dimensions
Weight
23.59 lb(s) / 10.7 kg
