Specifications
General
Frequency Response
4.5 - 21,000 Hz
Electronic Features
Automatic de-equalization of signal fed into the high-level input; 31-band graphic equalizer; Cut-off frequency: 70 steps available from 10Hz to 20kHz.
Additional Information
Link amplifiers input; ARTTM automatic remote turn on/off circuit; Input sensitivity automatically adjusted for the main inputs; Automatic turn Off/On, if the DSP locks up; One high-level terminal input allowing momentary audio interrupt (with Mute IN) for use with mobile phone or navigation systems.
Package Content
DRC (digital remote control) control panel, printed quick start guide, 5.0 m / 196,85" AC Link (RJ-12) cable, 5.0 m / 196,85" AD Link (LAN class 5S - RJ45) cable, 3.0 m / 118,11" USB cable, four 4.2 x 38 mm self-tapping cross head fixing screws, 4.5 m / 177,16" DRC / ACLink cable, two fixing brackets; CD ROM with: Bit One software, USB-ACNet drivers, advanced manual (.pdf format), test tracks; DVD with test tracks encoded with dolby 5.1.

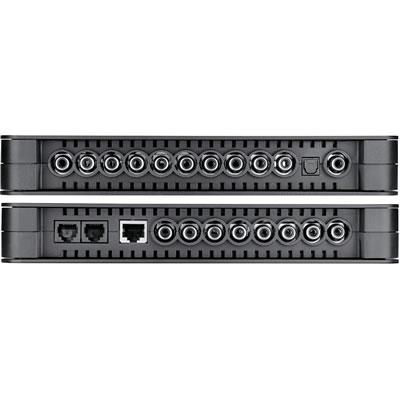

Inputs/Outputs
Aux In (L/R)
2
Coaxial In
1
Optical In
1
RCA In
6
RCA Out
0
Terminal In
8
Terminal Out
0
Dash Remote Out
Yes
USB
Yes
Dimensions
Width
8.86 inch(es) / 22.5 cm
Height
1.26 inch(es) / 3.2 cm
Depth
5.91 inch(es) / 15 cm
Weight
2.97 lb(s) / 1.345 kg
Shipping Dimensions
Weight
5 lb(s) / 2.27 kg
Warranty
Warranty
1 year
UPC
UPC#
8018823088459
