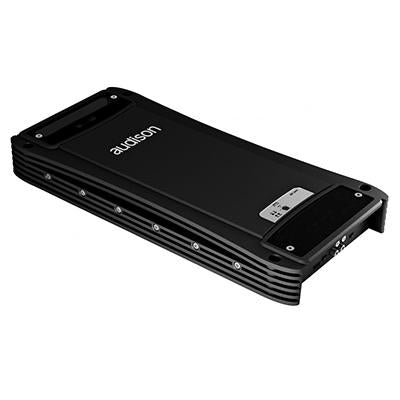

Audison Car Amplifiers 1-Channel AV uno

Store Only
AudisonSKU: AV uno
The AV uno is an amplifier featuring an innovative circuitry called POD (Power On Demand); it provides at the final... The AV uno is an amplifier featuring an innovative circuitry called POD (Power On Demand); it provides at the final stage in AB class a dynamic power that serves as a tracker to the signal to be amplified so as to increase efficiency and reduce the temperature. AV uno combines the plus points, in terms of audio quality and robustness, of the AB Class traditional amplifiers with the efficiency of the D Class amplifiers. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel and ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn't available from the source. AV uno is a mono amplifier designed to drive the subwoofer but also suitable for high power dual mono systems. View more
Specifications Documents
Specifications
General
Total Max Power
1700 W
RMS Power
700 W
Amplifier Class
AB
Load Impedance Capability
4 ohms
4 ohm Output Power
700 W
2 ohm Output Power
1300 W
1 ohm Output Power
1700 W
Crossover Frequencies
50 ÷ 150 Hz @ 24dB/Oct.
Total Harmonic Distortion
0.04 %
Inputs/Outputs
Speaker Level Inputs
Yes
Subsonic Filter
Yes
Cut-Off Frequency (Subsonic Filter)
50 Hz
Dimensions
Width
8.66 inch(es) / 22 cm
Height
2.28 inch(es) / 5.8 cm
Depth
8.66 inch(es) / 22 cm
Shipping Dimensions
Weight
15.87 lb(s) / 7.2 kg
Warranty
Warranty
1 Year
Documents
Owners Manual
Product Specifications
