Specifications
General
Maximum Power
210 W
RMS Power
70 W
Sensitivity
94 dB
Frequency Response
60 Hz - 23,000 Hz
Impedance
4 ohms
Type
2-way
Mounting Diameter
6.5 inch(es) / 16.51 cm
Mounting Depth
2.24 inch(es) / 5.69 cm
Features
Additional Information

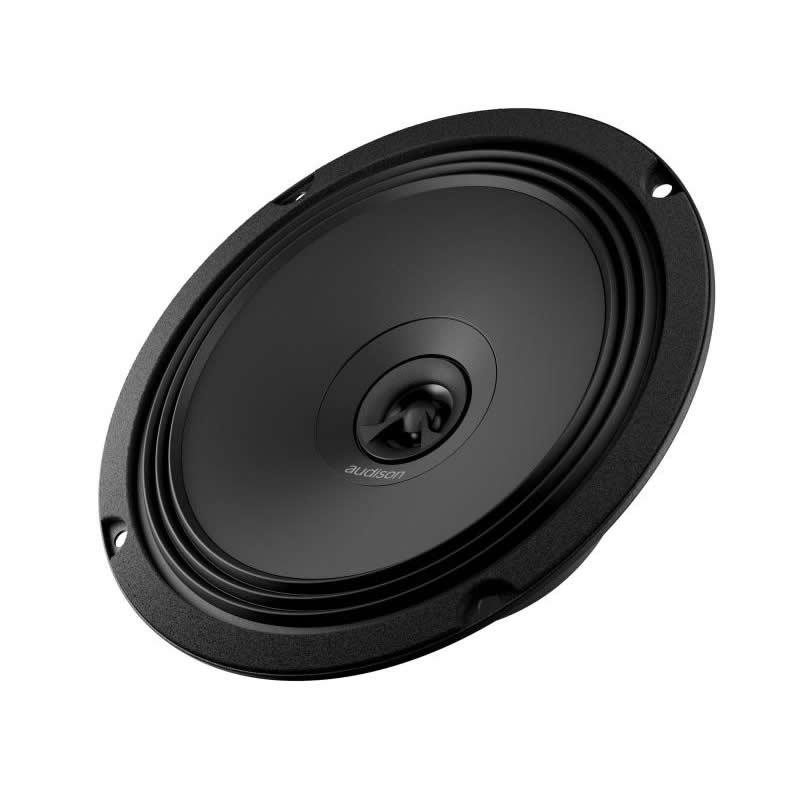

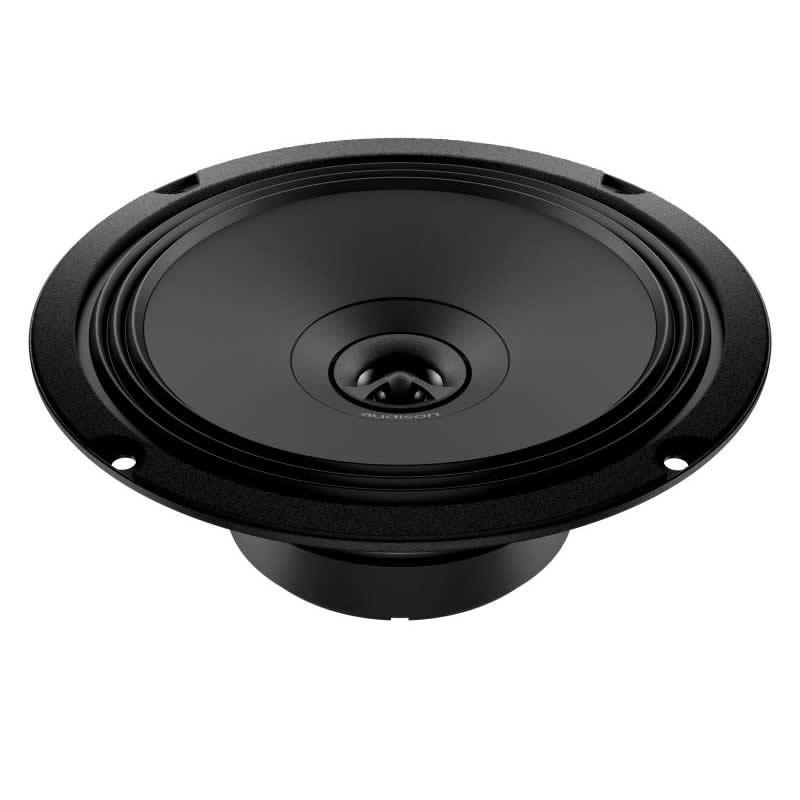

• Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system
• Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations
• 32 mm pure copper voice coil, for high power handling and outstanding low frequency control
• Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer
• TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow "Triple Wave" profile, for maximum excursion linearity
• Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations
• 32 mm pure copper voice coil, for high power handling and outstanding low frequency control
• Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer
• TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow "Triple Wave" profile, for maximum excursion linearity
Dimensions
Width
6.5 inch(es) / 16.51 cm
Height
6.5 inch(es) / 16.51 cm
Depth
2.36 inch(es) / 5.99 cm
Weight
1.92 lb(s) / 0.87 kg
