Features
Powerfully subtle.
For all its power, Edge W is remarkably detailed. The sound is finely balanced, with a musical depth and clarity that comes through with every note. It’s all down to how we chose the componentry inside – nothing was picked on price, specs or measured performance. We listened carefully. And created our system with components that simply sounded the best. The end result is a power amplifier that truly brings an original recording to life like no other.
Just 14 components in the signal path.
Although minimal in its exterior design, Edge W has some complex audio engineering inside. To remove the barriers between you and your music, we have worked hard to minimise the number of components in the signal path.
As a result, Edge W delivers a more faithful reproduction of the original recording; an impressively detailed three-dimensional sound, with striking staging and focus.
As a result, Edge W delivers a more faithful reproduction of the original recording; an impressively detailed three-dimensional sound, with striking staging and focus.
More musical detail.
We pioneered the use of toroidal transformers in amplifiers, which led to improved performance. In Edge we take this one step further, using opposing symmetry twin toroidal transformers. This cancels out electromagnetic interference whilst offering outstanding power and maintaining consistent tonality, no matter how loud it’s played.
Effortless power without distortion.
Using standard Class A amplifier technology wasn’t going to be efficient enough for Edge W. Instead we added a bias voltage to a traditional Class AB design, reducing distortion to inaudible levels. This unique configuration also produces less heat and makes the whole system much more effective.
Perfect partners.

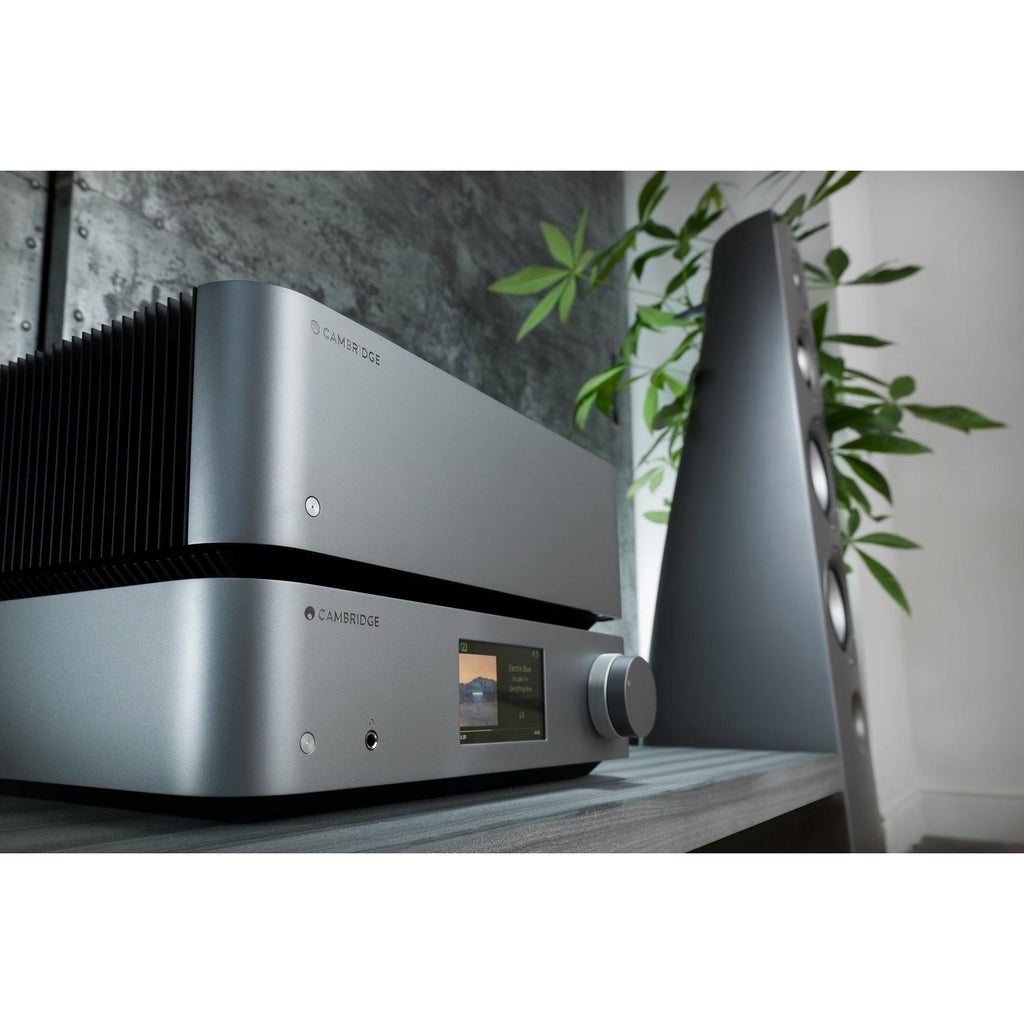

Edge systems are designed to work in perfect synchronisation. Match the Edge W with our most versatile Preamplifier Network player, Edge NQ, to create a hi-fi system with a sound, and a look, unlike anything else.
Specifications
General
Sound Channels
2
Power Output
100W RMS into 8 Ohms; 200W RMS into 4 Ohms
Power Consumption (Max)
1000 W
Total Harmonic Distortion
0.002 %
Frequency Range (Hz)
3 Hz - 80,000 Hz
Accessories
Included
Edge W Power Amplifier; 1.5M Power Lead; Edge Link Cable; Edge W User Manual
Dimensions
Width
18.1 inch(es) / 45.97 cm
Height
5.9 inch(es) / 14.99 cm
Depth
15.9 inch(es) / 40.39 cm
Weight
51.9 lb(s) / 23.54 kg
UPC
UPC#
813371025127
