Features
DTS:X
DTS:X™ immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. The improved immersion and heightened realism draw you into the world of your favorite movies. The included spatial remapping engine, DTS Neural:X™, gives your movie, game and music collections a new lease on life! DTS:X brings the theater home.
IMAX enhanced technology
Get the most premium at-home entertainment experience with IMAX Enhanced—the latest technology program from IMAX that sets a new standard for image, sound, scale and content quality. Watch clearer pictures and brighter images. Feel immersive, heart-pounding audio delivered by DTS. See more picture on the largest screens. And experience premium content digitally remastered by IMAX.
360 Reality Audio
360 Reality Audio is a new immersive music experience that uses Sony's 360 Spatial Sound technology. Individual Sounds such as vocals, chorus, piano, guitar, bass and even the sounds of the live audience can be placed in a 360 spherical sound field. With 360 Reality Audio, music has never been so immersive and so real.
Select Denon AV receivers are capable of 360 Reality Audio playback by connecting a 360RA streaming device via HDMI. Stay tuned for further updates!
HDMI Connectivity with ARC/eARC
Supports the latest technology on all HDMI inputs and output. ARC (Audio Return Channel) or eARC (Enhanced Audio Return Channel) makes playing TV audio through your AV receiver simple with just a single HDMI connection.
8K/HDCP 2.3
Enjoy pristine picture quality on your 8K TV or projector. 8K/60Hz pass-through and 8K upscaling on 1080p or 4K content are supported on all four HDMI inputs and one output. Supports HDCP 2.3, the latest copy protection standard, for peace of mind when streaming copy-protected content.
Dolby Vision
Dolby Vision is a stunning HDR imaging technology that brings extraordinary color, contrast, and brightness to the screen. Compatible with Dolby Vison so you can enjoy Dolby Vision content from a compatible source device and TV.
Audyssey premium suites of room correction technology
Denon AV receivers use the Audyssey suite of EQ software for simple, accurate set-up and calibration. With the supplied Audyssey measuring microphone, Audyssey measures all the speakers in your home theater and tunes the AV receiver to provide the smoothest, most optimal overall listening experience for your room. This AV receiver supports Audyssey MultEQ room correction technology. The other supported Audyssey features are Dynamic EQ, and Dynamic Volume.
Additional Features
Dolby Atmos®
Unleash a fully immersive 3D audio experience from Dolby Atmos content starting from a 5.1.2 speaker setup. Dolby Surround upmixer engages all speakers to create 3D audio sensation from legacy content. Dolby Atmos Height Virtualization Technology creates the sensation of overhead sound even without a 5.1.2 system. You can also enjoy Dolby Atmos music tracks available from Apple Music, Amazon HD, and TIDAL through a compatible streaming device.
Auro 3D® (Supports up to 7.1.4 or 5.1.6)
Auro 3D elevates the home theater experience to amazing new levels by delivering the excitement of three-dimensional sound for music, games, broadcasts, and films, putting you in a cocoon of lifelike sound. Turn your existing audio-visual collection into an Auro 3D experience, thanks to the Auro-Matic upmixing engine. Supports up to 7.1.4 or 5.1.6 Auro 3D speaker configurations with external two-channel amplifier.
Brilliant color from HDR 10+
Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through. HLG offers HDR technology over broadcast content. Both Dynamic HDR and HDR10+ use dynamic metadata to optimize shadows and highlights as screens change
Next-generation gaming.
Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) for smooth, lag-free gaming experience when connected with compatible gaming devices.
HEOS® Built-in
With HEOS Built-in, your AV receiver can stream music wirelessly across compatible HEOS components from a variety of free and premium streaming services. Consumers can also enjoy their favorite music in any room of the home wirelessly. Play the same song in every room or select a different song for each connected room via a variety of streaming sources. Add Denon Home speakers to more rooms and control it all with the HEOS app
Denon Setup Assistant
Award-winning guided Denon Setup Assistant provides simple, clear instructions to get started. Just connect your AV receiver to your TV and follow the instructions on the TV screen to connect your speakers, perform speaker measurements, and connect source devices. For additional convenience, the AV receiver renames HDMI inputs automatically when connected, or you can rename manually at your convenience
AL32 Processing Technology
AL32 Processing, a Denon proprietary analog waveform reproduction technology, supports up to 192 kHz sampling frequency and 32bit expansion on your receiver. The technology thoroughly suppresses noise associated with D/A conversion to reproduce low-level signals with optimum clarity and bring out all the delicate nuances of the music. AL32 Processing Multi-Channel means the technology is applied on all channels and all input sources.
Dirac Live Upgradability
The interaction between your sound system and the physical layout of your room has a huge impact on sound quality. Dirac Live® Room Correction applies state-of-the-art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance. Select Denon AV receivers support Dirac Live Upgradability. You can purchase a Dirac Live license key to unlock the functionality. Visit dirac.com/denon/ for more information. Upgradability will be supported via a future firmware update. Stay tuned!
Specifications
General
Sound Channels
15.4
Power Output
• 150 watts per channel (8 ohm, 20Hz - 20kHz, 0.05% 2ch Drive)
• 190 watts per channel (6 ohm, 1kHz, 0.7% 2ch Drive)
• 260 watts per channel (6 ohm, 1kHz, 10% 1ch Drive)
• 190 watts per channel (6 ohm, 1kHz, 0.7% 2ch Drive)
• 260 watts per channel (6 ohm, 1kHz, 10% 1ch Drive)
Power Consumption (Max)
900 W
Video Compatibility
8K
3D
Yes
Dolby Atmos
Yes
Additional Surround Formats
MP3, WMA, WAV, MPEG- 4/AAC, FLAC, and ALAC
Technologies
• Dolby Atmos®
• DTS:X
• IMAX Enhanced
• Auro 3D®
• 360 Reality Audio
• HDMI Connectivity with ARC/eARC
• 8K/HDCP 2.3
• Brilliant color from HDR 10+
• Dolby Vision
• Next-generation gaming
• HEOS® Built-in
• High-resolution audio
• Denon Setup Assistant
• Audyssey Premium Suites of Room Correction Technology
• AL32 Processing Technology
• Dirac Live Upgradability
• Wi-Fi
• Bluetooth
• DTS:X
• IMAX Enhanced
• Auro 3D®
• 360 Reality Audio
• HDMI Connectivity with ARC/eARC
• 8K/HDCP 2.3
• Brilliant color from HDR 10+
• Dolby Vision
• Next-generation gaming
• HEOS® Built-in
• High-resolution audio
• Denon Setup Assistant
• Audyssey Premium Suites of Room Correction Technology
• AL32 Processing Technology
• Dirac Live Upgradability
• Wi-Fi
• Bluetooth
Additional Information
• Auto Speaker Setup by Microphone: Audyssey MultEQ XT32, Dirac Live (upgrade)
• Front Display: 2-Line FLD
• GUI Languages: English, Japanese, French
• System Remote Control: RC-1250
• Power Consumption No-Sound (ECO on/off) in W: 70W/125W
• Standby Consumption in W: 0.1W
• CEC Standby Consumption in W: 0.5W
• Network Standby Consumption in W: Less than 2.0W
• Front Display: 2-Line FLD
• GUI Languages: English, Japanese, French
• System Remote Control: RC-1250
• Power Consumption No-Sound (ECO on/off) in W: 70W/125W
• Standby Consumption in W: 0.1W
• CEC Standby Consumption in W: 0.5W
• Network Standby Consumption in W: Less than 2.0W
Network
Bluetooth
Built-In
Wi-Fi
Yes

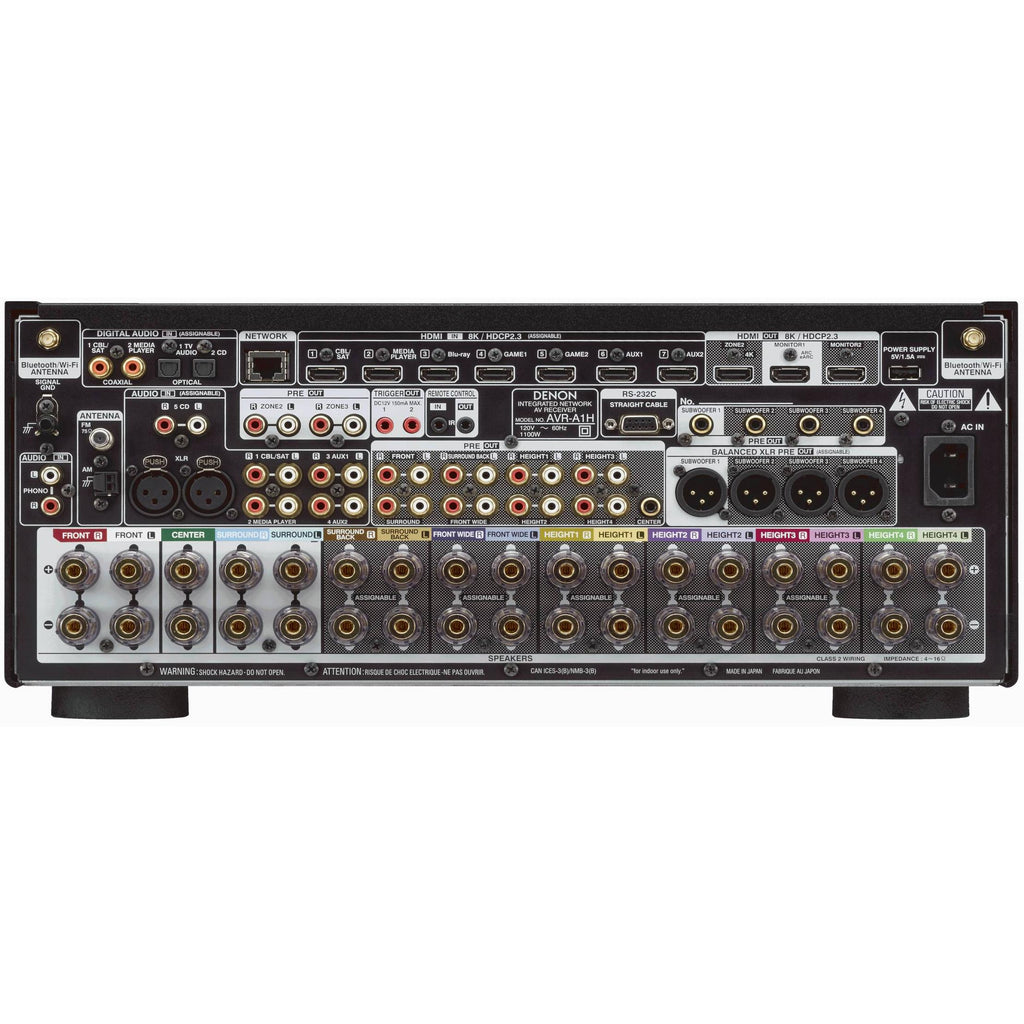

Inputs/Outputs
Information
• VIDEO: HDMI In/Out: 7/3
• AUDIO:
• Analog In/Out: 5 (1 × XLR) / 0
• Phono (MM) In
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: Analog / Digital: 2 / 0
• Multichannel Pre-Out: (17.4)
• Subwoofer Out: 4 (independent)
• AUDIO:
• Analog In/Out: 5 (1 × XLR) / 0
• Phono (MM) In
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: Analog / Digital: 2 / 0
• Multichannel Pre-Out: (17.4)
• Subwoofer Out: 4 (independent)
Dimensions
Width
17.1 inch(es) / 43.43 cm
Height
7.7 inch(es) / 19.56 cm
Depth
19.4 inch(es) / 49.28 cm
Weight
70.5 lb(s) / 31.98 kg
Shipping Dimensions
Weight
80.01 lb(s) / 36.29 kg
UPC
UPC#
747192137458
