Features
Powerful sound from an integrated amplifier (140W)
Engineered with premium Denon technologies, this amplifier drives two channels at 140W.
Faithful audio reproduction
Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.
Build integrity with selected components
With more than 110 years of audio excellence, Denon products are built to last.
High-power 140W integrated amplifier
Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.
Advanced AL32 Processing Plus
For digital input, this model employs the latest version of Denon's analogue waveform reproduction technology which utilizes unique data interpolation algorithms and also supports high-resolution 384-kHz/32-bit PCM signal input.
PMA- 1700NE USB-DAC
To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.

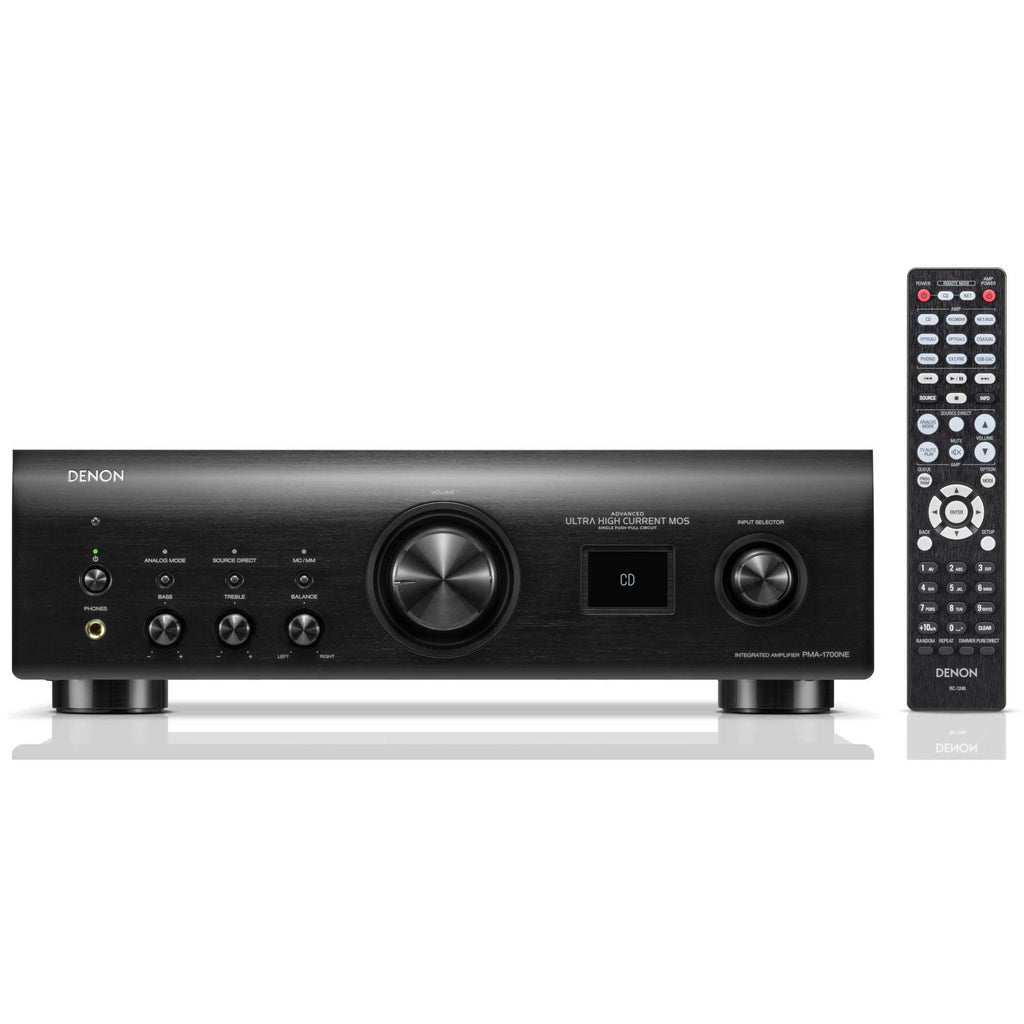

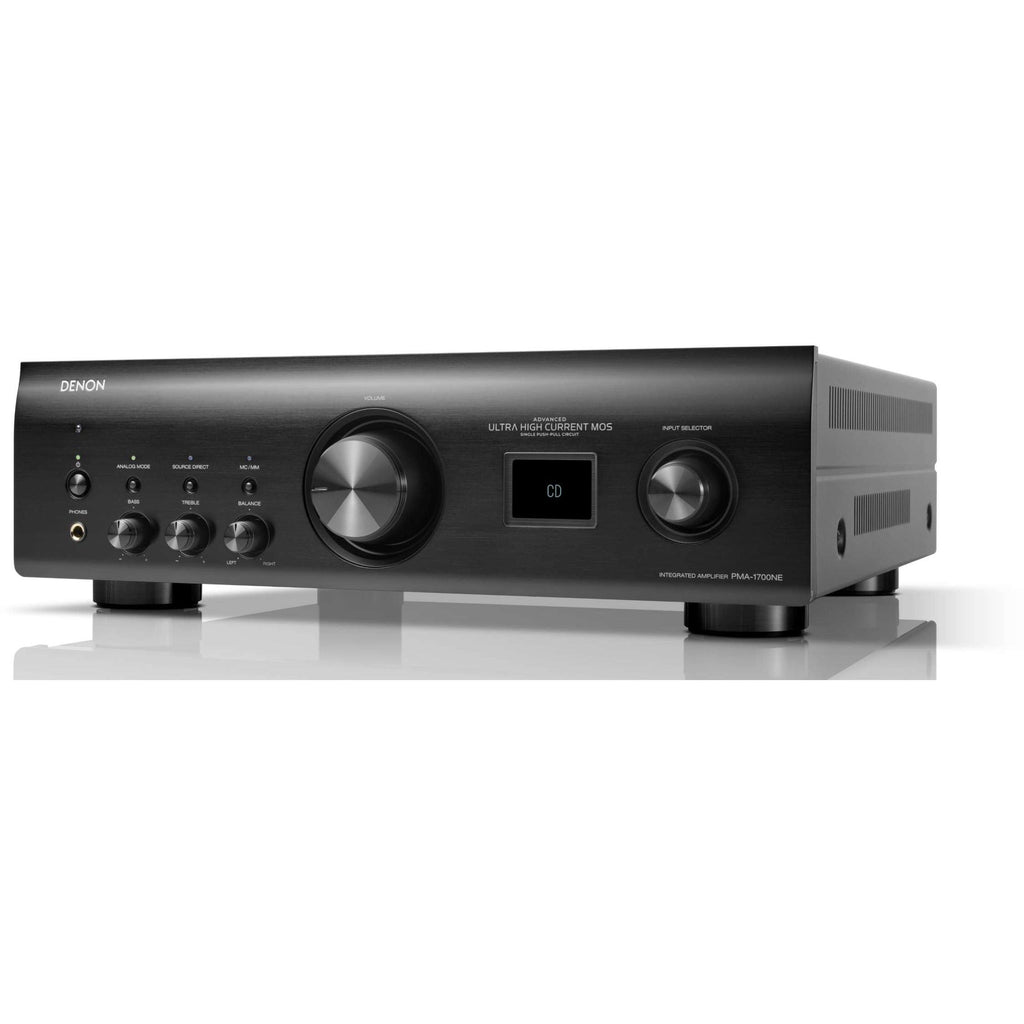

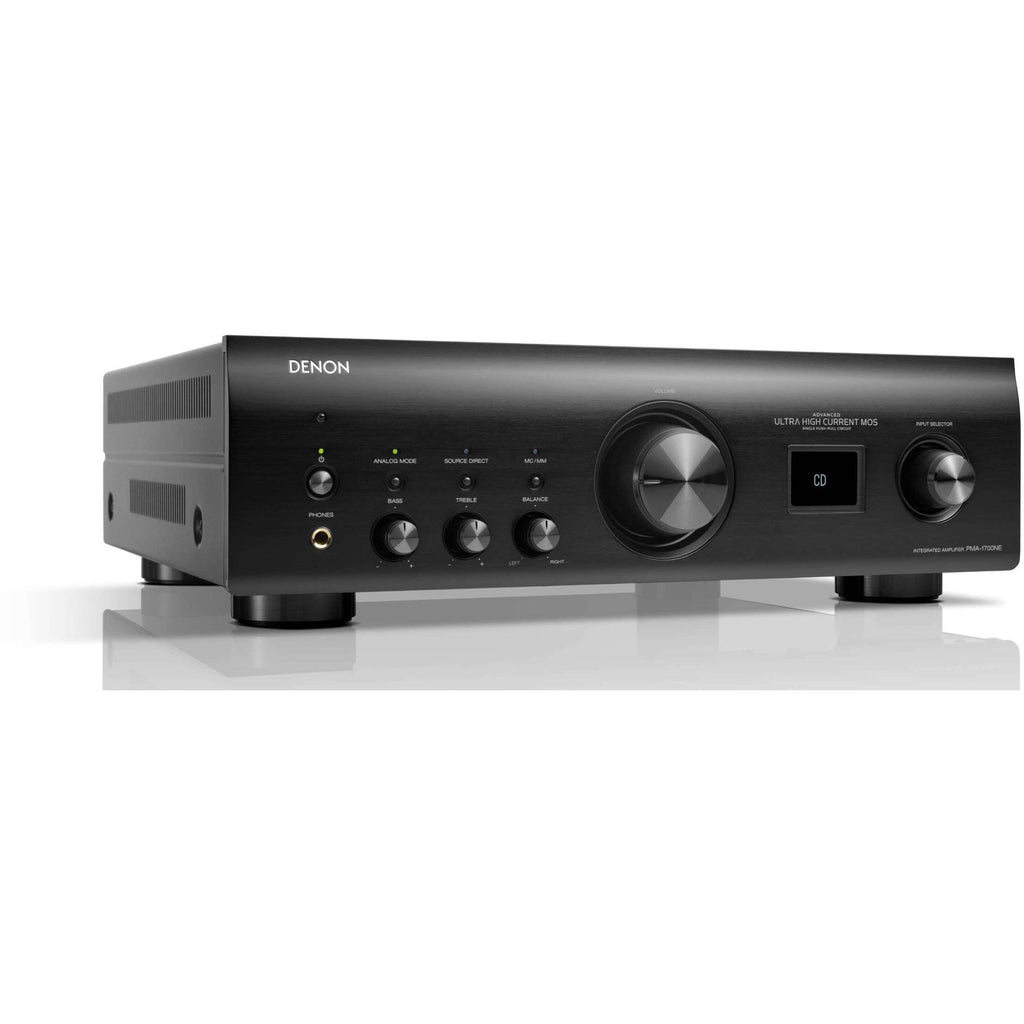

PMA-1700NE High-precision electrical controls
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.
Specifications
General
Sound Channels
2
Power Output
Rated Output Power: 70W + 70W (8ohm,20Hz-20kHz,THD0.07%), 140W + 140W (4ohm, 1kHz, THD0.7%)
Power Consumption (Max)
140 W
Total Harmonic Distortion
0.01 %
Frequency Range (Hz)
5Hz - 100kHz (0~ -3dB)
Additional Information
• Hi-Res Audio certified
• Advanced AL32 Processing Plus
• Built-in phono equalize

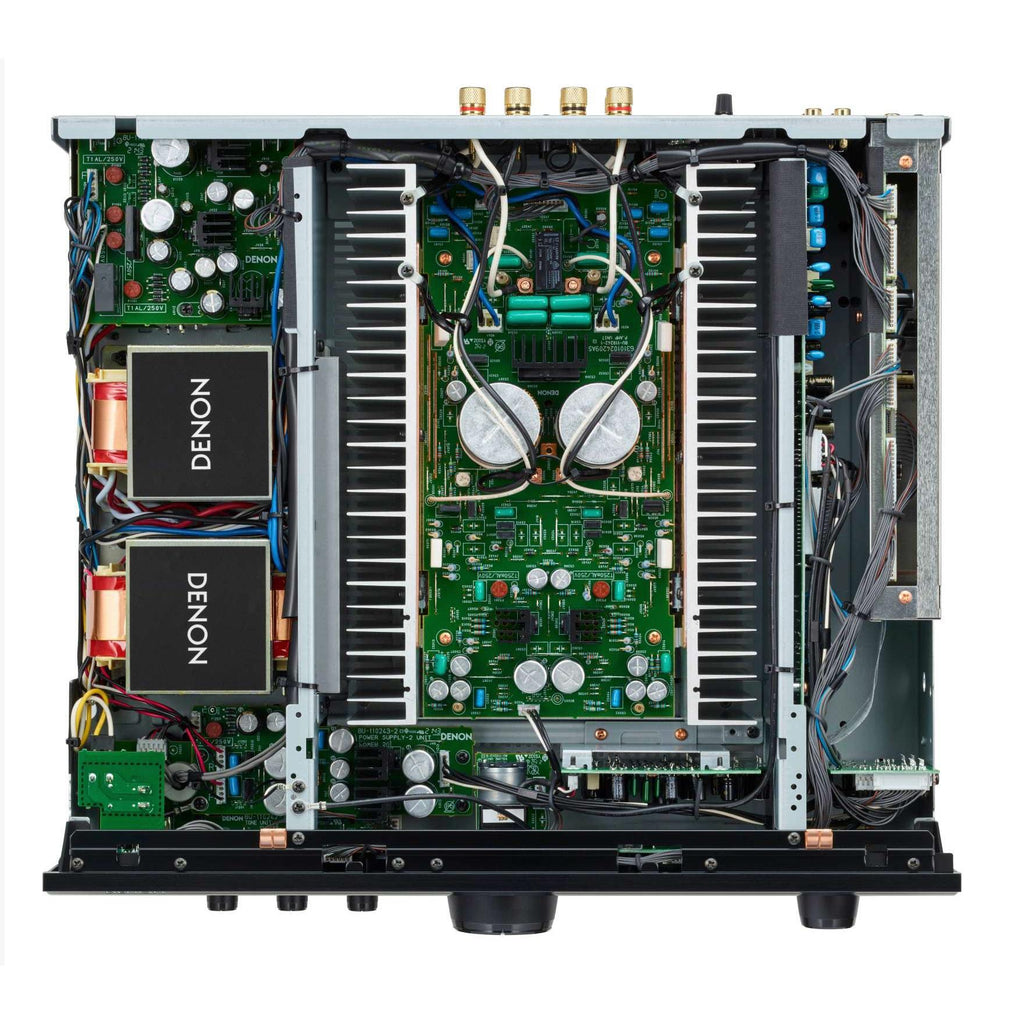

• Advanced ultra-highcurrent (UHC) single push-pull amplifier
• Advanced AL32 Processing Plus
• Built-in phono equalize
• Advanced ultra-highcurrent (UHC) single push-pull amplifier
Network
Wi-Fi
No

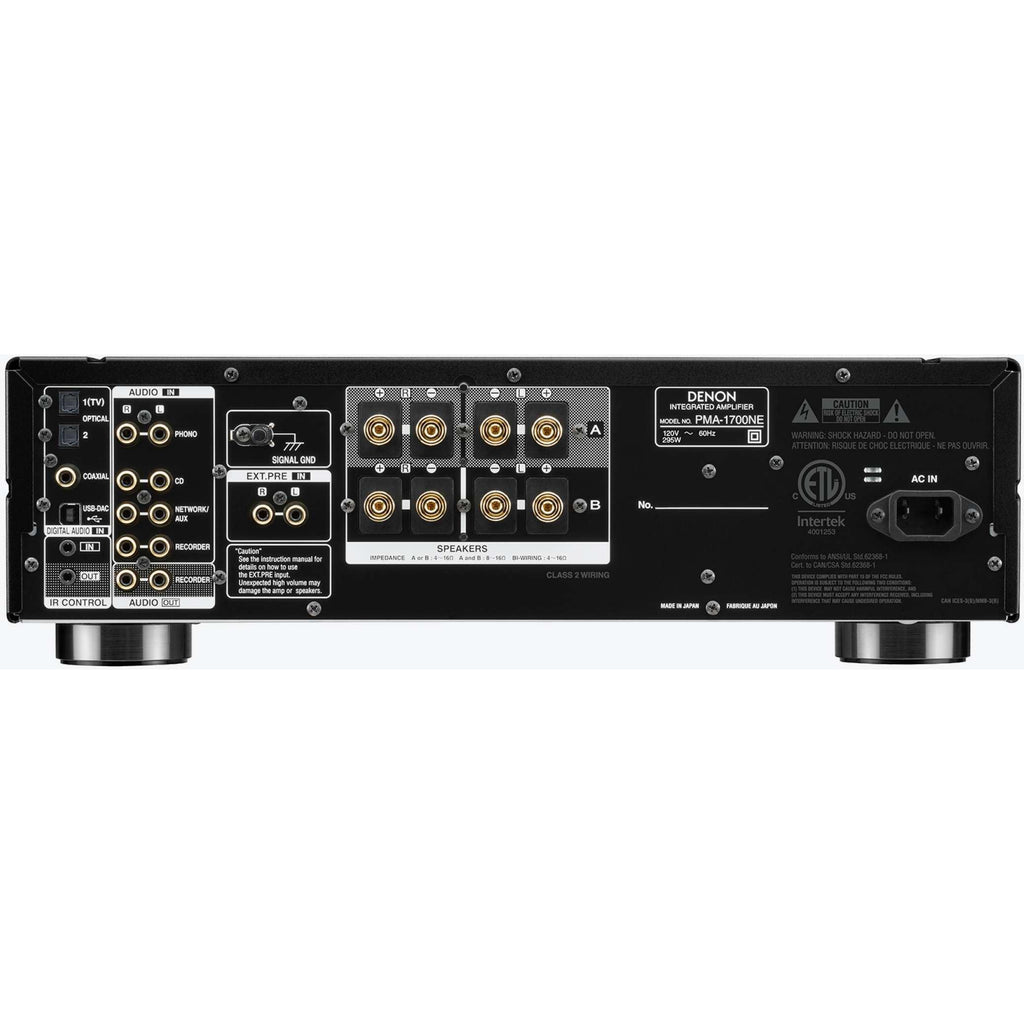

Inputs/Outputs
Information
• Phono Input (MM / MC) *default=MM
• Analog Input (include Phono) / REC Out (RCA): 4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER)
• Optical input / output (Maximum Support): 2 / 0 (192kHz/24bit)
• Coaxial input / output (Maximum Support): 1 / 0 (192kHz/24bit)
• Ext. Pre Input (Power Amp Direct) (Ext.Pre)
• 2 sets of Speaker Output (Bi-wiring)
• Headphone Output: 1 (Turn off the speaker when inserting headphone)
• Remote Control Bus Terminal (mini)
• AC Inlet
• USB B (USB DAC): 1 (Rear)
• Analog Input (include Phono) / REC Out (RCA): 4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER)
• Optical input / output (Maximum Support): 2 / 0 (192kHz/24bit)
• Coaxial input / output (Maximum Support): 1 / 0 (192kHz/24bit)
• Ext. Pre Input (Power Amp Direct) (Ext.Pre)
• 2 sets of Speaker Output (Bi-wiring)
• Headphone Output: 1 (Turn off the speaker when inserting headphone)
• Remote Control Bus Terminal (mini)
• AC Inlet
• USB B (USB DAC): 1 (Rear)
Dimensions
Width
17.1 inch(es) / 43.43 cm
Height
5.3 inch(es) / 13.46 cm
Depth
16.1 inch(es) / 40.89 cm
Weight
38.8 lb(s) / 17.6 kg
Shipping Dimensions
Width
21.6 inch(es) / 54.86 cm
Height
9.8 inch(es) / 24.89 cm
Depth
20.5 inch(es) / 52.07 cm
Weight
45 lb(s) / 20.41 kg
