Features

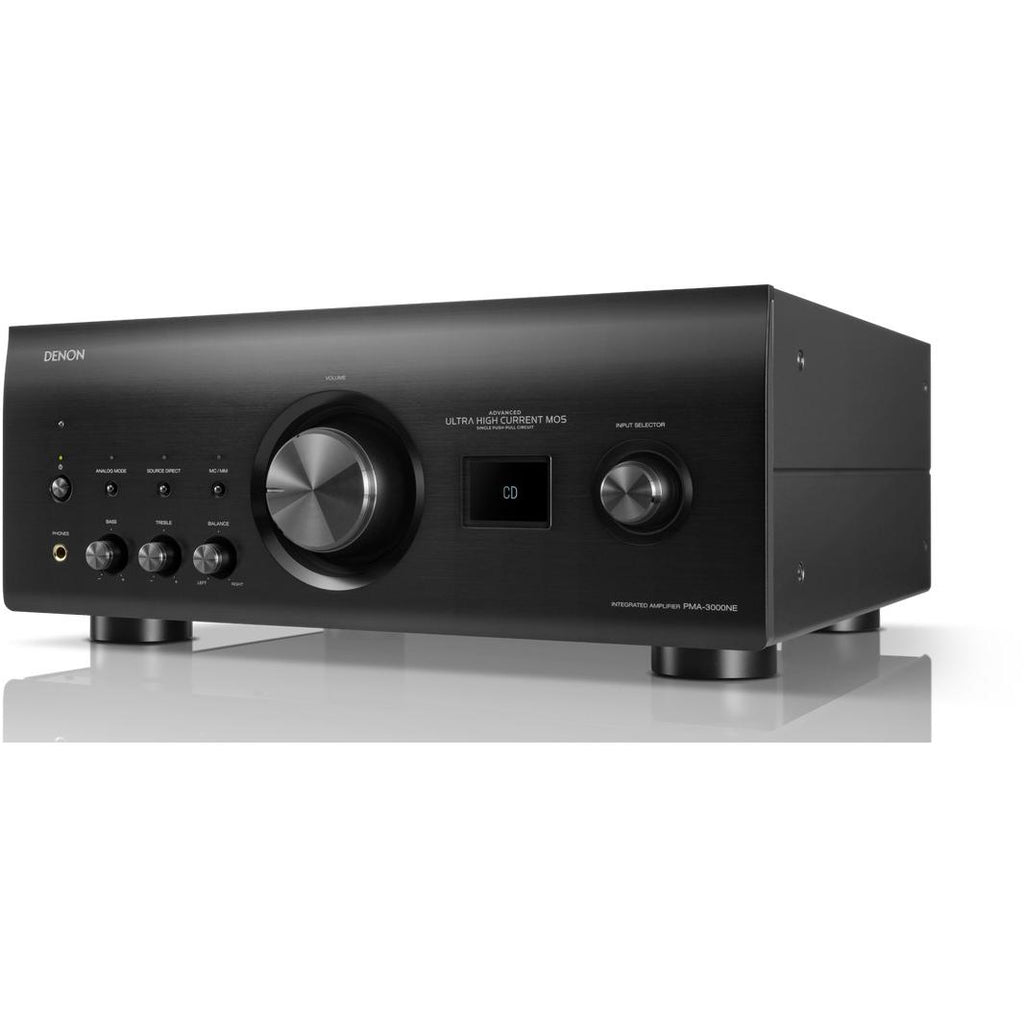

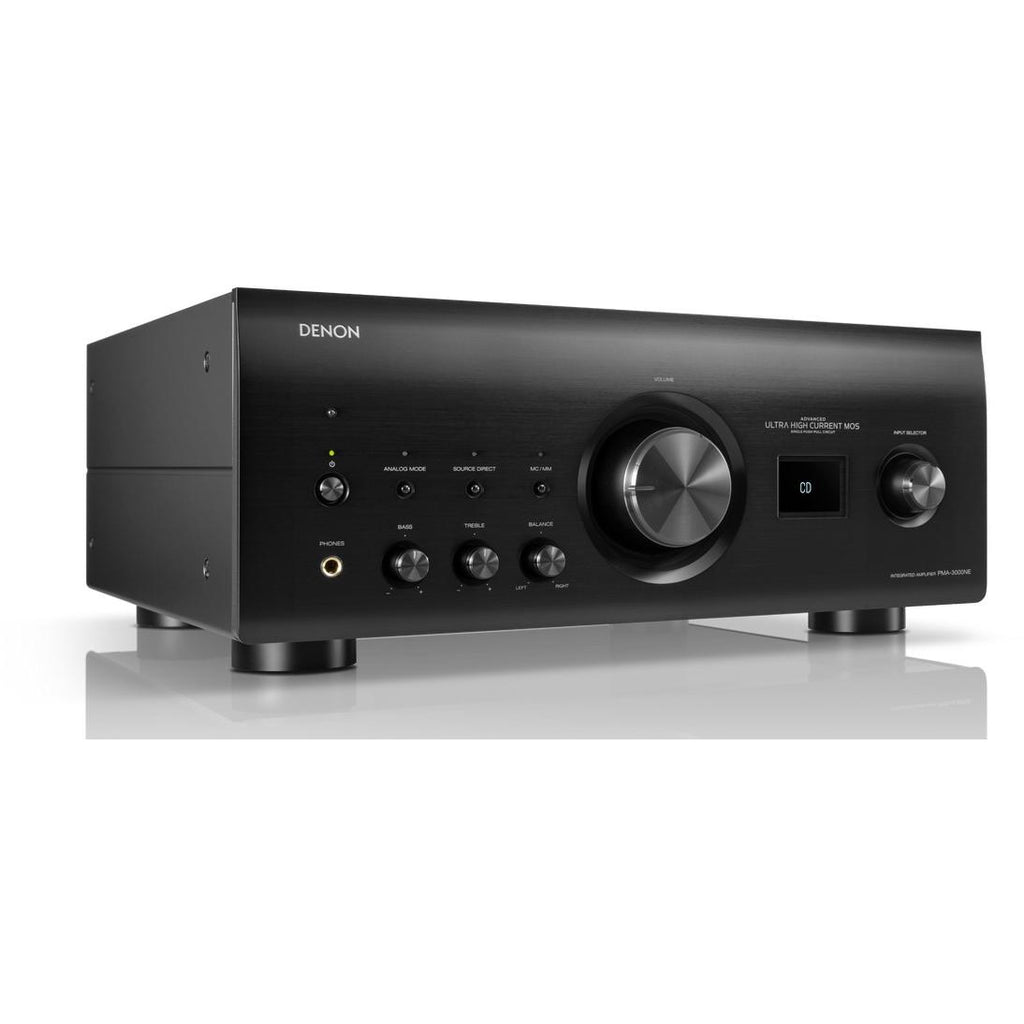

PMA-3000NE Audio excellence, redefined
With an advanced push-pull amplifier, sophisticated digital processing, and a robust phono stage, the PMA-3000NE delivers all of your favorite music with clarity and precision.
PMA-3000NE Drives even the most demanding speakers
A push-pull amplifier, delivering 80W/channel into 8 ohms and 160W/channel into 4 ohms, effortlessly accommodates a range of speaker types and impedances.
PMA-3000NE Seamlessly integrate high-resolution digital audio
Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32- bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound.
PMA-3000NE Unlock your vinyl collection’s full potential
The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.
PMA-3000NE Ultra AL32 Processing
Denon's Ultra AL32 Processing uses interpolation algorithms to produce highresolution output. Supporting input signals up to 384kHz/24-bit, it upsamples for smoother waveforms and improved sound reproduction.
PMA-3000NE Advanced amplifier design
The PMA-3000NE delivers 80W/channel into 8 ohms and 160W/channel into 4 ohms. Its UHC-MOS single push-pull circuit and differential 2-stage amplifier drive demanding speakers with exceptional clarity and linearity.
PMA-3000NE High-performance MM/MC phono stage
The PMA-3000NE's phono stage supports both MM and MC cartridges for truest vinyl reproduction in any setup. A high-gain design and “simple and straight” circuitry minimize distortion for pure, detailed sound.
PMA-3000NE Digital audio inputs
The PMA-3000NE’s versatile digital connections, including optical, coaxial, and USB Type B, support up to 384kHz/32-bit and 11.2MHz DSD audio.
PMA-3000NE Pure Analog mode
Pure Analog mode bypasses digital circuitry for a pure, all-analog sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.
Specifications
General
Sound Channels
2
Power Output
• 80W + 80W (8 ohm,20 Hz-20 kHz, THD 0.07%)
• 160W + 160W (4 ohm, 1 kHz, THD 0.7%)
• 160W + 160W (4 ohm, 1 kHz, THD 0.7%)
Power Consumption (Max)
400 W
Total Harmonic Distortion
0.01 %
Technologies
Ultra AL32 Processing
Additional Information
• Input Sensitivity: Phono input
• MM: 2.5 mV / 47 kohm
• MC: 200 V / 100 ohm
• Input Sensitivity: CD/Line/Recorder: 135 mV / 19 kohm
• Input Sensitivity: Power Amp input: 0.9V / 47 kohm (EXT. PRE)
• Signal to Noise Ratio: PHONO (MM): 89 dB, PHONO (MC): 74 dB, CD: 107 dB
• Power Amplifier Circuit UHC-MOS, Single Push Pull (7)
• Preamplifier Circuit: Variable Gain Preamplifier (OP AMP)
• Bass / Treble / Mid / Balance Control
• Source Direct
• Analog Amp Mode (button on front panel)
• DAC Circuit: ES9018K2M × 4
• DAC Master Clock Design
• Asyncronous mode (for USB-B input)
• PCM Sample Rate / Resolution: ~384 kHz/32-bit
• DSD Audio Streaming: ~11.2MHz
• MM: 2.5 mV / 47 kohm
• MC: 200 V / 100 ohm
• Input Sensitivity: CD/Line/Recorder: 135 mV / 19 kohm
• Input Sensitivity: Power Amp input: 0.9V / 47 kohm (EXT. PRE)
• Signal to Noise Ratio: PHONO (MM): 89 dB, PHONO (MC): 74 dB, CD: 107 dB
• Power Amplifier Circuit UHC-MOS, Single Push Pull (7)
• Preamplifier Circuit: Variable Gain Preamplifier (OP AMP)
• Bass / Treble / Mid / Balance Control
• Source Direct
• Analog Amp Mode (button on front panel)
• DAC Circuit: ES9018K2M × 4
• DAC Master Clock Design
• Asyncronous mode (for USB-B input)
• PCM Sample Rate / Resolution: ~384 kHz/32-bit
• DSD Audio Streaming: ~11.2MHz

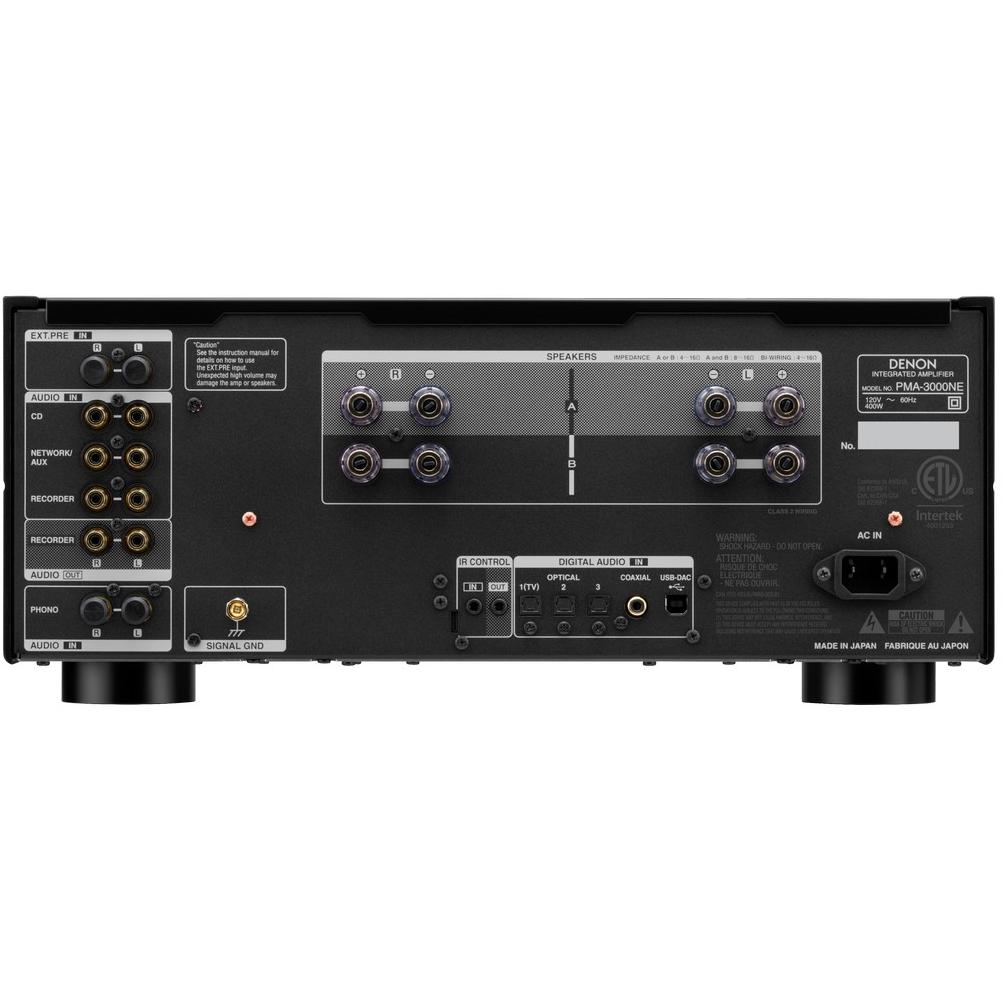

Inputs/Outputs
Information
• Phono Inputs (MM / MC) *default = MM
• Analog Input (include Phono) / REC Out (RCA): 4/1 (Gold Plated) (Brass Machining type for all CD/PHONO/AUX/RECORDER)
• Optical input / output (Maximum Support): 3 / 0 (192 kHz/24-bit)
• Coaxial input / output (Maximum Support): 1 / 0 (192 kHz/24-bit)
• Speaker Terminal: AVR-A1H type Gold Plated w/Cover
• Headphone Output: 1 (Turns off the speaker automatically when headphone is inserted)
• USB B (USB DAC): 1 (Rear)
• Analog Input (include Phono) / REC Out (RCA): 4/1 (Gold Plated) (Brass Machining type for all CD/PHONO/AUX/RECORDER)
• Optical input / output (Maximum Support): 3 / 0 (192 kHz/24-bit)
• Coaxial input / output (Maximum Support): 1 / 0 (192 kHz/24-bit)
• Speaker Terminal: AVR-A1H type Gold Plated w/Cover
• Headphone Output: 1 (Turns off the speaker automatically when headphone is inserted)
• USB B (USB DAC): 1 (Rear)
Accessories
Included

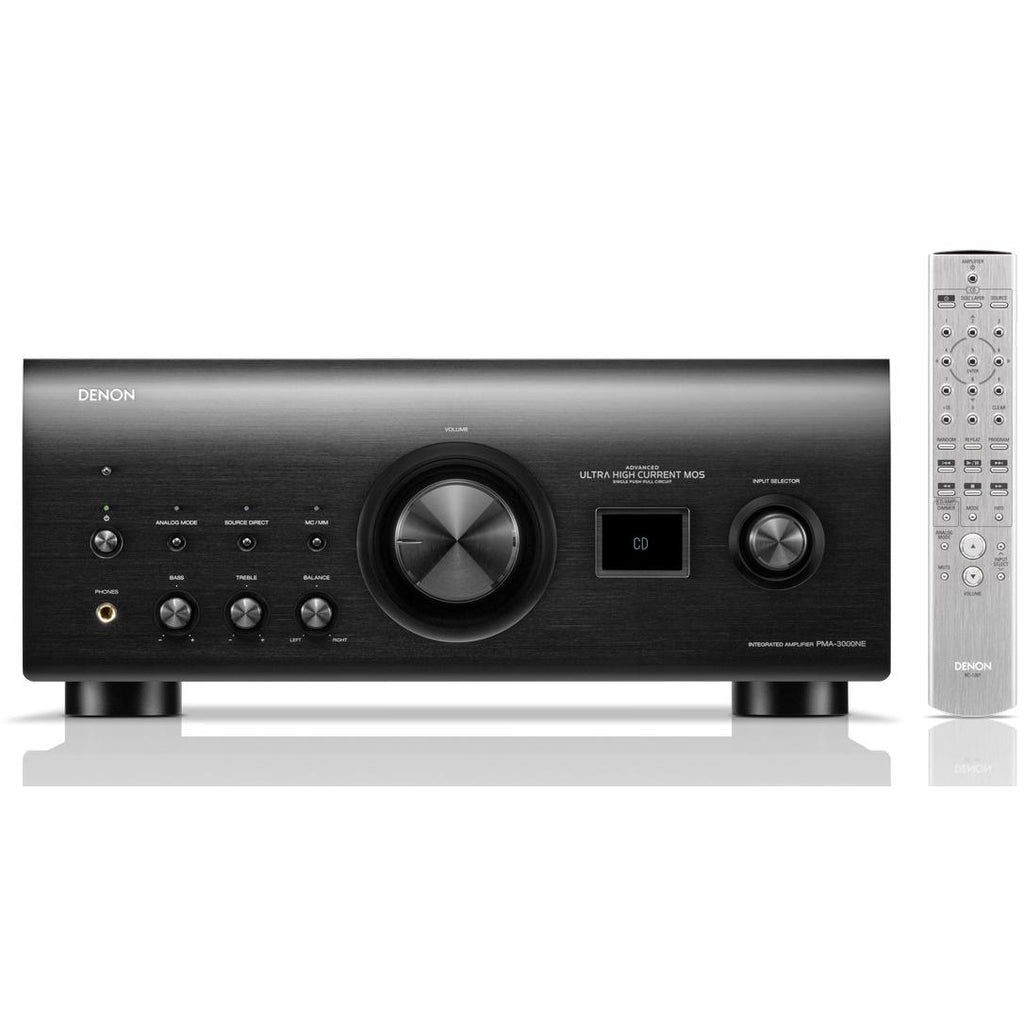

Remote Control
Dimensions
Width
17.09 inch(es) / 43.4 cm
Height
7.17 inch(es) / 18.2 cm
Depth
17.44 inch(es) / 44.3 cm
Weight
54.23 lb(s) / 24.6 kg
