Features
Breath New Life Into Legacy Sources.
This receiver features eight HDMI inputs and two outputs —including one input on the front panel —that support full 4K Ultra HD, HDR (High Dynamic Range), BT.2020, Wide Color Gamut and 4:4:4 Pure Color sub-sampling. HDCP 2.2 processing is available on all HDMI ports, and with two HDMI outputs, connecting a TV and projector in parallel is possible.
Next Generation Video Formats
This receiver supports High Dynamic Range (HDR) video format. It is even ready for Dolby Vision and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast, and color. HLG offers HDR technology over broadcast content.
Smart TV Connectivity
Control your receiver with your Smart TV remote via the HDMI CEC functionality associated with your Smart TV. Simply set "HDMI Control" to ON in your receiver, then set "Smart Menu" to ON and begin controlling your receiver with your TV remote. The Smart Menu home screen provides you quick access to source and surround mode selections, the AVR's setup menu and four Smart Selects.
Bluetooth Built-In
Your favorite tracks, at your fingertips. Stream music from your computer or smart devices with this receiver and built-in Bluetooth. It can remember up to eight paired Bluetooth devices, so invite family and friends to share their music and enjoy the audio quality of the receiver. To stream via Bluetooth, simply select the receiver from the Bluetooth menu on your smart device.
Denon Avr Remote App For Seamless Control
Better control in your back pocket. The Denon AVR Remote app for iOS and Android makes using this receiver even easier — adjust volume, turn it on or off, mute the music, select a source or switch to HEOS. Download the Denon AVR Remote app to your smartphone today.
Quick Selects For User-friendly Audio Tuning

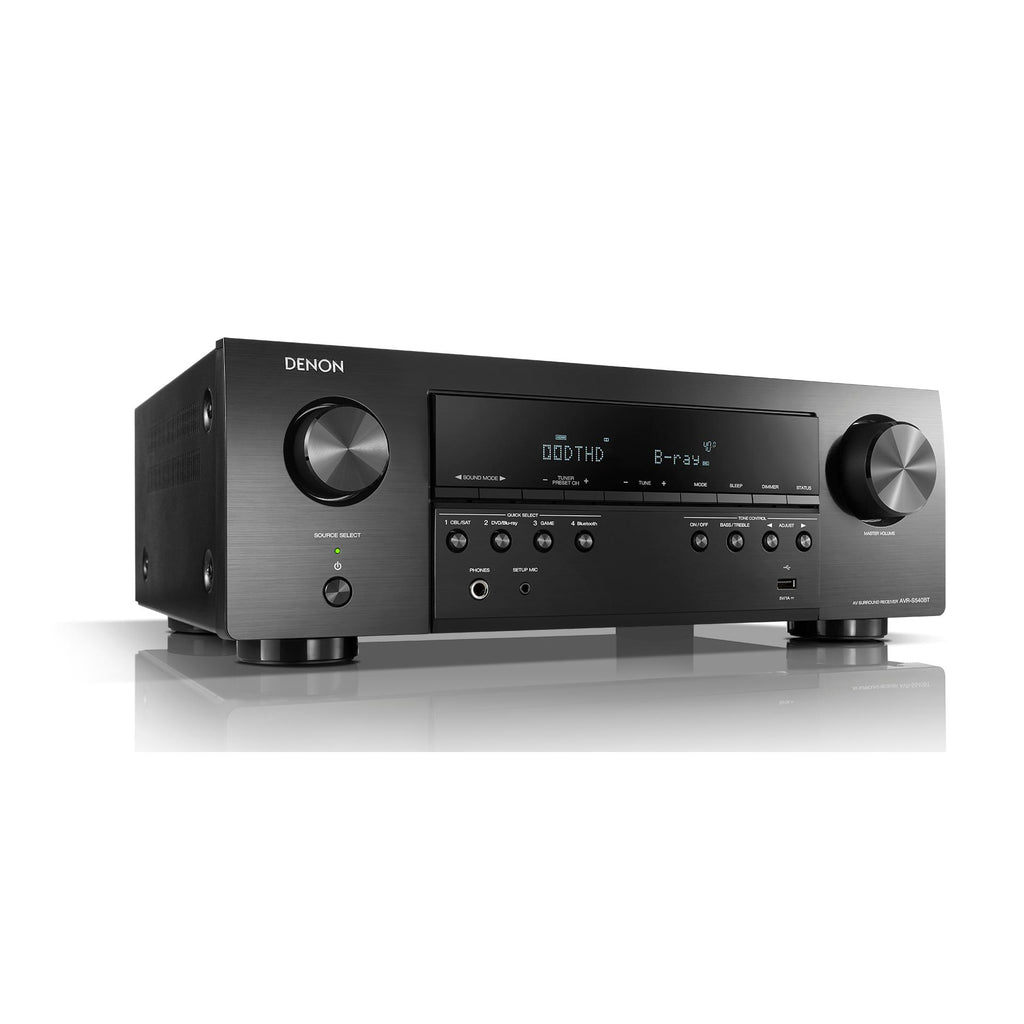

This receiver's front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-Ray, media players and more–and the receiver adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the AVR remote for faster control.
Specifications
General
Sound Channels
5.2
Power Output
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 70W
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 90 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 140 W
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 90 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 140 W
Power Consumption (Max)
310 W
Video Compatibility
4K
3D
Yes
Dolby Atmos
No
Additional Surround Formats
Dolby TrueHD
Numbers of Zones
1
User Interface
On-screen:GUI
Network
Bluetooth
Built-In
Wi-Fi
No

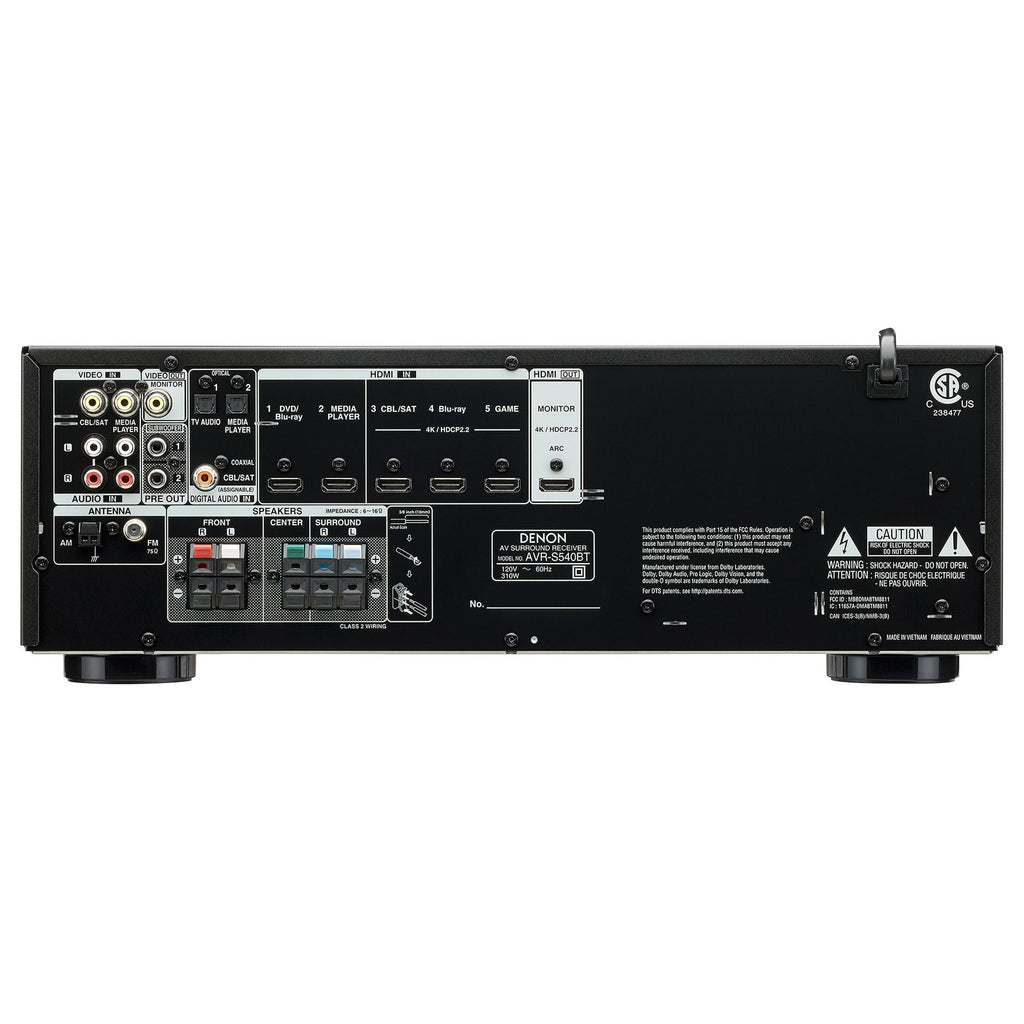

Inputs/Outputs
AM/FM
Yes
HDMI Inputs
5
HDMI Outputs
1
Composite Video Inputs
2
Composite Video Outputs
1
Composites Audio Inputs (Analog)
2
Optical Digital Inputs
2
Coaxial Digital Input
1
Headphone Output
Yes
Network
No
Sirius/Xm Radio Ready
No
RS-232
No
USB
Yes
Dimensions
Weight
16.8 lb(s) / 7.62 kg
