Features
4K PRO-UHD**
Advanced pixel-shifting technology works in parallel with three individual high-definition LCD chips to produce an exceptionally sharp 4K picture without sacrificing picture brightness.
** 4K Resolution Enhancement Technology shifts each pixel to produce an image on screen, up to the stated specification.
Epson® ZX Picture Processor
Our most advanced video processing technology to date, the proprietary 36-bit Epson ZX Picture Processor handles real-time color, contrast, HDR , frame interpolation and resolution enhancement to faithfully reproduce the source material the way it was intended to be shown
Laser Array Light Source
True multi-array laser diodes produce an ideal light source to power the unique 3-Chip 3LCD Projector Engine for quick turn-on, incredible picture brightness, black contrast and color accuracy
True 3-Chip 3LCD Projector Engine
Advanced 3LCD technology uses three individual LCD chips to continuously display 100% of the RGB color signal for every frame. This allows for outstanding color gamut while maintaining excellent brightness without any rainbowing or color brightness issues seen with other projection technologies.
Impressive HDR
Full 10-bit HDR color processing accepting 100% of the HDR source information to faithfully reproduce HDR, HDR10+ and HLG (Hybrid Log-Gamma) content for an exceptional visual performance. Real-time HDR curve adjustment allows for 16 steps of control to fine-tune the HDR performance regardless of the content.
Additional Features
Precision Shift Glass Plate Technology (3840 x 2160)
Unique digitally controlled Precision Shift Glass Plate precisely refracts pixel light to display a 3840 x 2160, 8.29-million-pixel image for an exceptionally sharp and clear 4K picture.
High Picture Brightness (2,700 lumens)
Impressive 2,700 lumens of color and 2,700 lumens of white brightness for an exceptional picture in virtually any theater environment – even in rooms with ambient light.
120 Hz Refresh Rate
Refresh rates up to 120 Hz allow for a smoother motion for supported content while providing the option for impressive Frame Interpolation for content below 120 Hz.
Specifications
General
Color
Black
Aspect Ratio
16:9
Resolution
3840 x 2160
Recommended Image Size
Size (Projected Distance) 50" to 300" (at 58" to 62'4")
Contrast Ratio
Up to and over 2,500,000:1, Auto Iris on
Color Wheel Speed
Full-color (up to 1.07 billion colors)
Lumens
2700
Lamp Life
20000 h
Features
Technologies
• Epson® ZX Picture Processor
• HDR10+
• UltraBlack™ Technology
• True Laser Diode Array
• Chip Design (Architecture) 3-Chip
• Kensington® security lock port
• HDR10+
• UltraBlack™ Technology
• True Laser Diode Array
• Chip Design (Architecture) 3-Chip
• Kensington® security lock port
3-LCD Technology
Yes
Additional Information
• RoHS compliant
• Recyclable product
• Epson America, Inc. is a SmartWay® Transport Partner
• Maximum Input Resolution 4096 x 2160
• Maximum Refresh Rate 120 Hz
• Supported Resolutions 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
• Driving Method Poly-silicon TFT Active Matrix, 0.74"-wide panel, 12-bit
• Epson VRX Lens 15-element precision glass structure (AGS)
• Type Powered focus/optical zoom/lens position
• Color Modes Dynamic, Vivid, Bright Cinema, Cinema, Natural, B&W Cinema
• Recyclable product
• Epson America, Inc. is a SmartWay® Transport Partner
• Maximum Input Resolution 4096 x 2160
• Maximum Refresh Rate 120 Hz
• Supported Resolutions 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
• Driving Method Poly-silicon TFT Active Matrix, 0.74"-wide panel, 12-bit
• Epson VRX Lens 15-element precision glass structure (AGS)
• Type Powered focus/optical zoom/lens position
• Color Modes Dynamic, Vivid, Bright Cinema, Cinema, Natural, B&W Cinema
Accessories
Included
• Ceiling mount
• Cable cover
• Power cord
• Remote control with (2) AA batteries
• Cable cover
• Power cord
• Remote control with (2) AA batteries
Optional
Replacement Air Filter ELPAF62 V13H134AB0

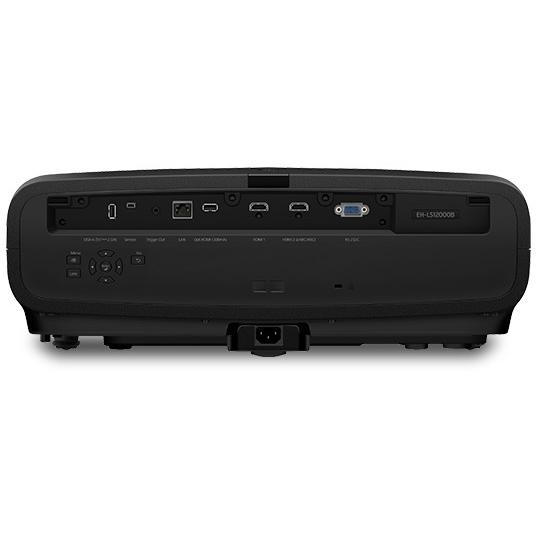

Inputs/Outputs
Information
• 2x HDMI® 2.1 (HDCP 2.3); one supporting eARC/ARC
• 1x USB Type-A (for optical HDMI cable, 300 mA maximum power supply only)
• 1x USB Type-A 5 V, 2.0 A for power and firmware
• 1x Mini USB (service only)
• 1x LAN RJ45
• 1x RS-232c
• 1x Trigger out (On, Off) 12 V DC, 200 mA maximum
• 1x USB Type-A (for optical HDMI cable, 300 mA maximum power supply only)
• 1x USB Type-A 5 V, 2.0 A for power and firmware
• 1x Mini USB (service only)
• 1x LAN RJ45
• 1x RS-232c
• 1x Trigger out (On, Off) 12 V DC, 200 mA maximum
HDMI Inputs
2
USB
• 1x USB Type-A (for optical HDMI cable, 300 mA
• maximum power supply only)1x USB Type-A 5 V, 2.0 A for power and firmware
• 1x Mini USB (service only)
• maximum power supply only)1x USB Type-A 5 V, 2.0 A for power and firmware
• 1x Mini USB (service only)
Outputs
1x Trigger out (On, Off) 12 V DC, 200 mA maximum
RS232
Yes
RJ45
Yes
Dimensions
Width
20.5 inch(es) / 52.07 cm
Height
7.6 inch(es) / 19.3 cm
Depth
17.6 inch(es) / 44.7 cm
Weight
28 lb(s) / 12.7 kg
Shipping Dimensions
Width
27.8 inch(es) / 70.61 cm
Height
16 inch(es) / 40.64 cm
Depth
21.9 inch(es) / 55.63 cm
Weight
50.79 lb(s) / 23.04 kg
Warranty
Warranty
3 Years
