Specifications
General
Maximum Power
260 W
RMS Power
130 W
Sensitivity
94 dB
Frequency Response
30 Hz - 24,000 Hz
Impedance
4 ohms
Type
3-way
Adjustable Crossover
No
Adjustable Tweeters
No
Components
No
Features
Additional Information

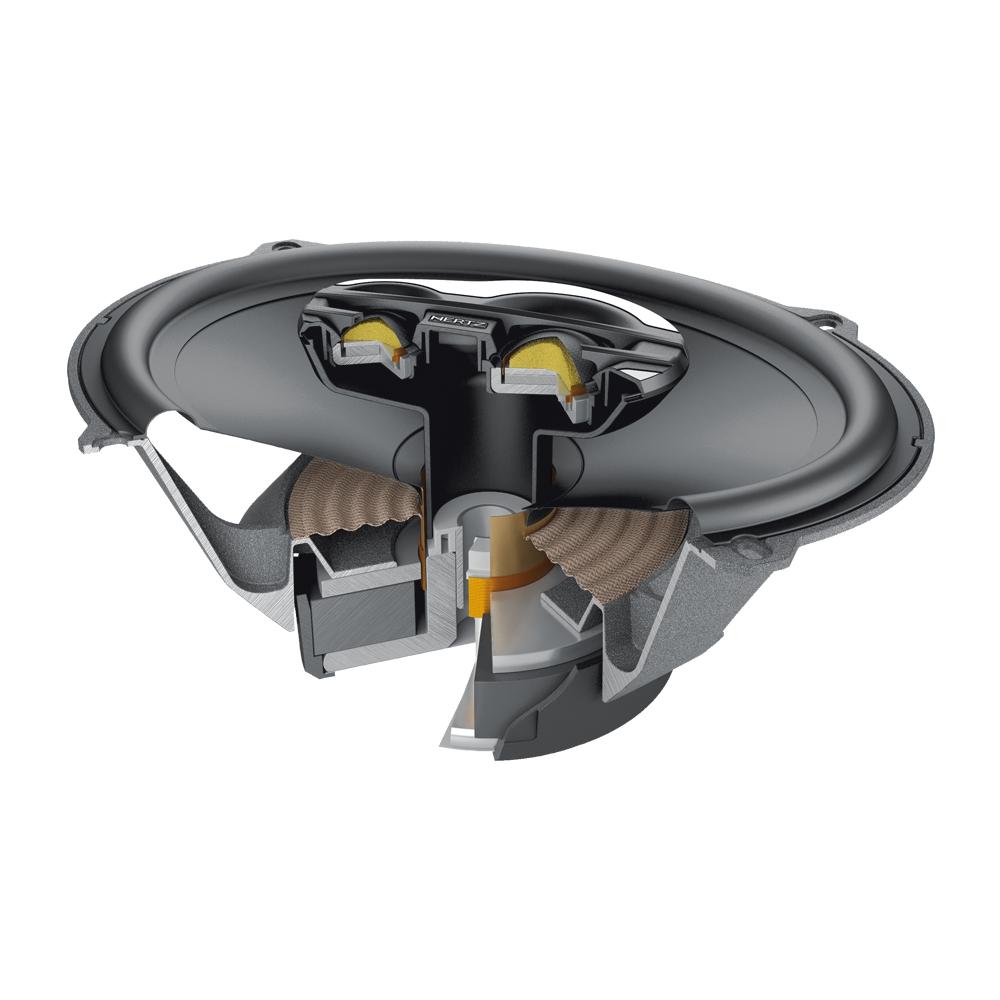

• 38 mm pure copper woofer voice coil wound on a Polyamide former for exceptional power handling and dynamic compression-free reproduction
• Pressed-pulp cone with cotton fibers material, combining stiffness and lightweight for a wide frequency response
• Large rubber surround designed for long throw and optimal sound damping
• Over-sized ferrite magnet combined with very low carbon content iron plates, for low distortion at high power levels
• Aerodynamic thus acoustically transparent aluminum alloy basket eliminates rear wave reflections
• Anti-vibration rubber magnet cover damps spurious vibrations
• 28mm voice coil Neodymium Tetolon fiber dome tweeter, for undistorted mid-frequency reproduction
• 20mm voice coil Neodymium Tetolon fiber dome super tweeter, to naturally compensate for drop-off in frequency response due to speaker horizontal installation
• Pressed-pulp cone with cotton fibers material, combining stiffness and lightweight for a wide frequency response
• Large rubber surround designed for long throw and optimal sound damping
• Over-sized ferrite magnet combined with very low carbon content iron plates, for low distortion at high power levels
• Aerodynamic thus acoustically transparent aluminum alloy basket eliminates rear wave reflections
• Anti-vibration rubber magnet cover damps spurious vibrations
• 28mm voice coil Neodymium Tetolon fiber dome tweeter, for undistorted mid-frequency reproduction
• 20mm voice coil Neodymium Tetolon fiber dome super tweeter, to naturally compensate for drop-off in frequency response due to speaker horizontal installation
