Specifications
General
Frequency Response
20 Hz - 20,000 Hz Hz
THD
0.02 %
Electronic Features
• Audio Resolution: 24 bit / 48 kHz
• Number of EQ Bands: 30 x 2 channels
• EQ Resolution: 1/3 octave (25 Hz - 20 kHz)
• Number of EQ Bands: 30 x 2 channels
• EQ Resolution: 1/3 octave (25 Hz - 20 kHz)
Additional Information
• Digital Output: Optical (Toslink) output (S/PDIF)
• With a powerful 24-bit DSP processor and dual 1/3 octave equalizers onboard, complex 2-way, 3-way and 4-way factory audio outputs are combined and level-matched automatically into a flat, full-range stereo signal.
• With a powerful 24-bit DSP processor and dual 1/3 octave equalizers onboard, complex 2-way, 3-way and 4-way factory audio outputs are combined and level-matched automatically into a flat, full-range stereo signal.

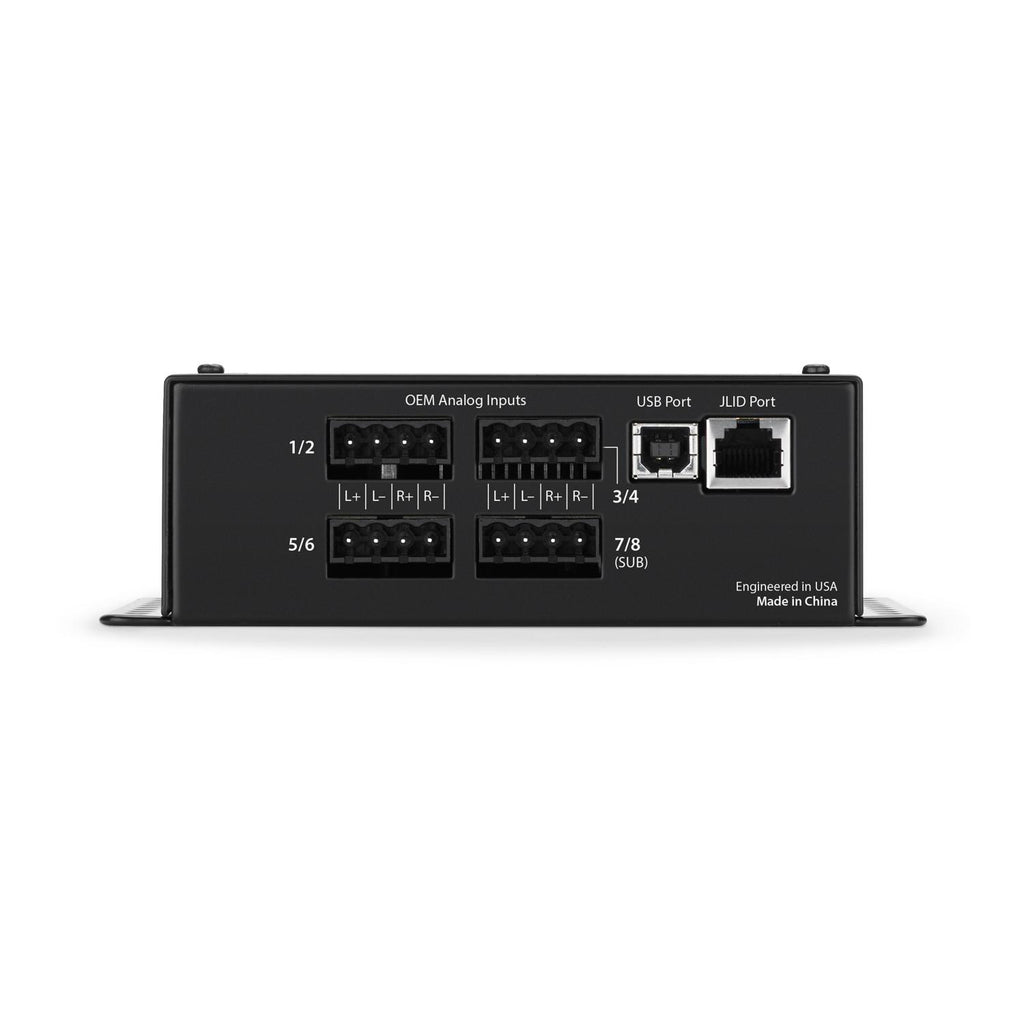

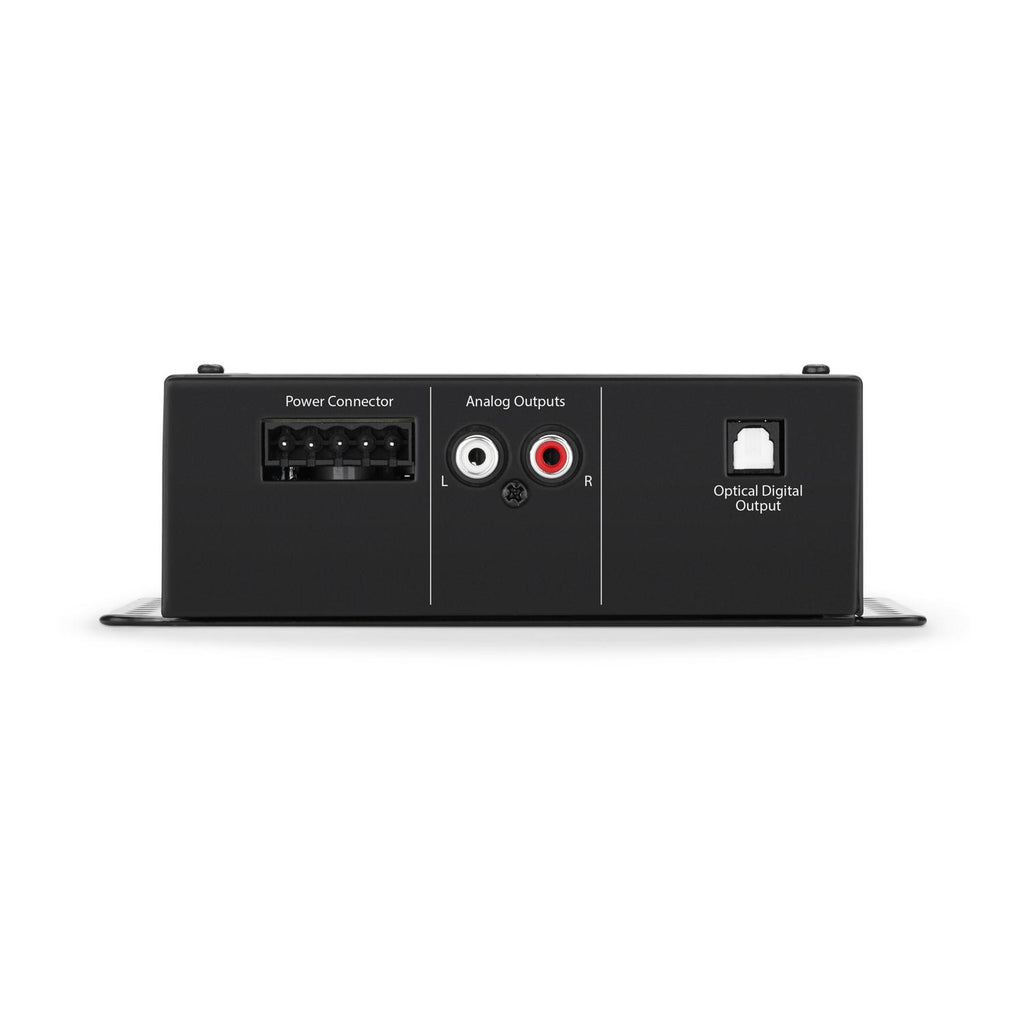

Inputs/Outputs
RCA Out
1
Dash Remote Out
No
USB
Yes
Dimensions
Width
4.29 inch(es) / 10.9 cm
Height
1.85 inch(es) / 4.7 cm
Depth
6.14 inch(es) / 15.6 cm
Weight
2.58 lb(s) / 1.17 kg
