Specifications
General
Frequency Response
20 - 20,000 Hz
THD
0.02 %
Electronic Features
• Audio Resolution: 24 bit / 48 kHz
• 8 Differential-balanced, line-level input jacks (RCA) accept most line-level signals up to 7.1V (RMS)
• Fully variable, high-pass and low-pass filters with selectable slopes from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
• Optical (Toslink) jack provides a pass-through digital audio (S/PDIF) output from assignable input channels, with no signal processing applied.
• 8 Differential-balanced, line-level input jacks (RCA) accept most line-level signals up to 7.1V (RMS)
• Fully variable, high-pass and low-pass filters with selectable slopes from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
• Optical (Toslink) jack provides a pass-through digital audio (S/PDIF) output from assignable input channels, with no signal processing applied.
Additional Information
• Individual level trim, linkable for tuning
• Individual polarity controls, linkable for tuning
• Powerful input mixing tools
• Comprehensive level controls, fully linkable with other channels
• Individual polarity controls, linkable for tuning
• Powerful input mixing tools
• Comprehensive level controls, fully linkable with other channels
Inputs/Outputs

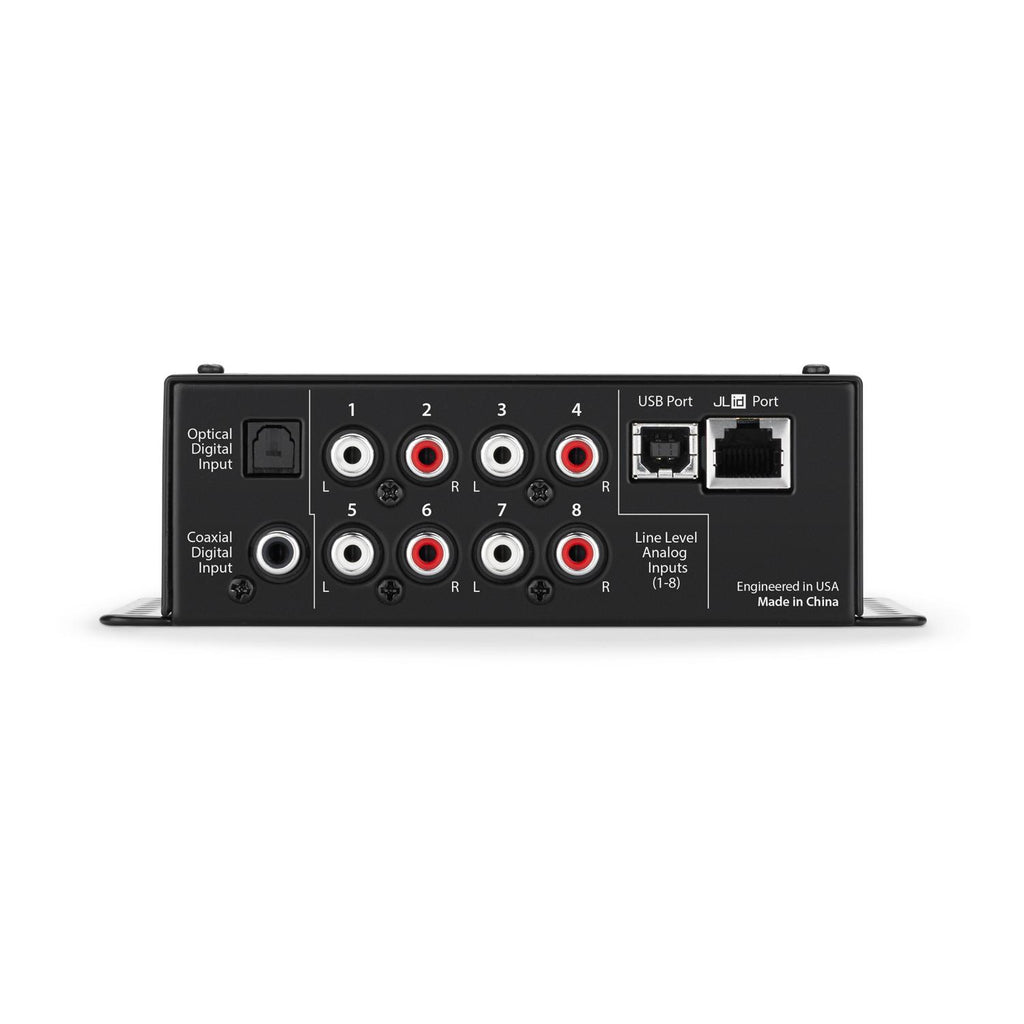

Coaxial In
1
Optical In
1
RCA In
8

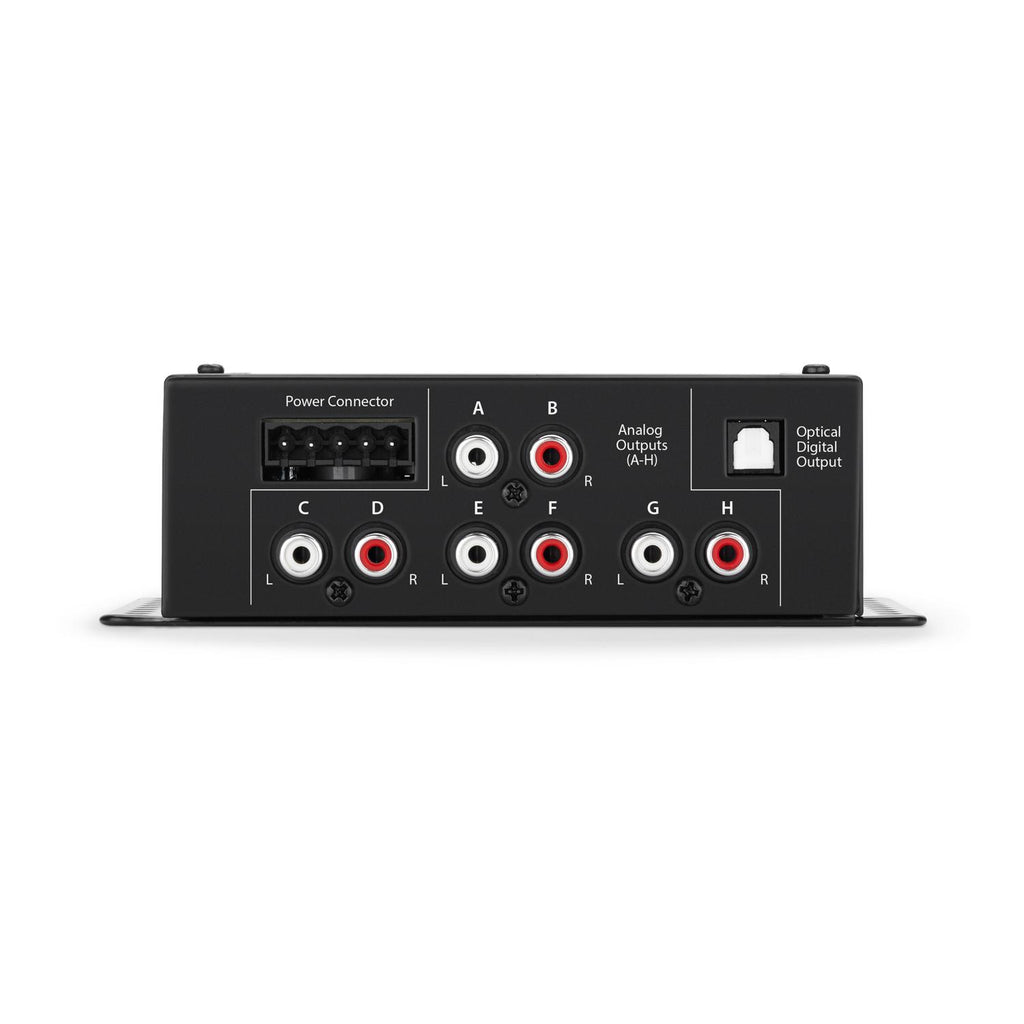

RCA Out
8
USB
Yes
Dimensions
Width
4.29 inch(es) / 10.9 cm
Height
1.85 inch(es) / 4.7 cm
Depth
6.14 inch(es) / 15.6 cm
Weight
2.58 lb(s) / 1.17 kg
