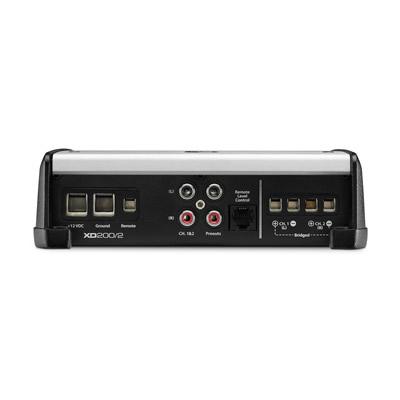

JL Audio Car Amplifiers 2-Channel XD200/2 IMAGE 1

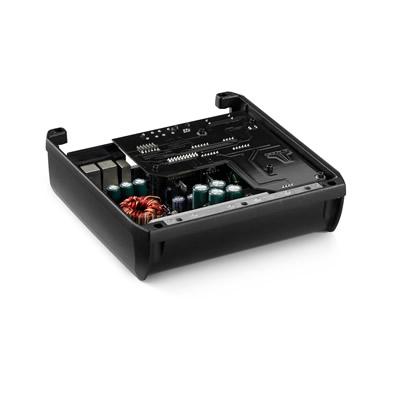

JL Audio Car Amplifiers 2-Channel XD200/2 IMAGE 2

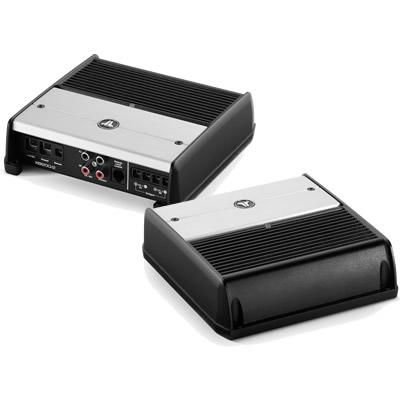

JL Audio Car Amplifiers 2-Channel XD200/2 IMAGE 3
Roll over image to zoom in Click on image to zoom
JL Audio Car Amplifiers 2-Channel XD200/2 IMAGE 1
JL Audio Car Amplifiers 2-Channel XD200/2 IMAGE 2
JL Audio Car Amplifiers 2-Channel XD200/2 IMAGE 3

JL Audio Car Amplifiers 2-Channel XD200/2

Store Only
JL AudioSKU: XD200/2
This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1%... This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency. The XD200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls. View more
Price:
$749.95
Specifications Documents
Specifications
General
Total Max Power
150 W
RMS Power
75 W
Number of Channels
2
Amplifier Class
D
Load Impedance Capability
4 ohms
4 ohm Output Power
150 W
2 ohm Output Power
200 W
Crossover Frequencies
50-500 Hz
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
Total Harmonic Distortion
<1% @ 2% per Ch.
Inputs/Outputs
RCA Inputs
Yes
RCA Outputs
Yes
Dimensions
Width
6.85 inch(es) / 17.4 cm
Height
2.05 inch(es) / 5.2 cm
Depth
7.09 inch(es) / 18 cm
Shipping Dimensions
Weight
3.75 lb(s) / 1.70 kg
Warranty
Warranty
1 Year
Documents
Owners Manual
