Specifications
General
RMS Power
400 W
Number of Channels
4
Amplifier Class
D
Load Impedance Capability
2 ohms
Power at 4 ohm
300 W
Power at 2 ohm
400 W
Frequency Response
12 Hz - 22,000 Hz
Total Harmonic Distortion
<1%
Additional Information

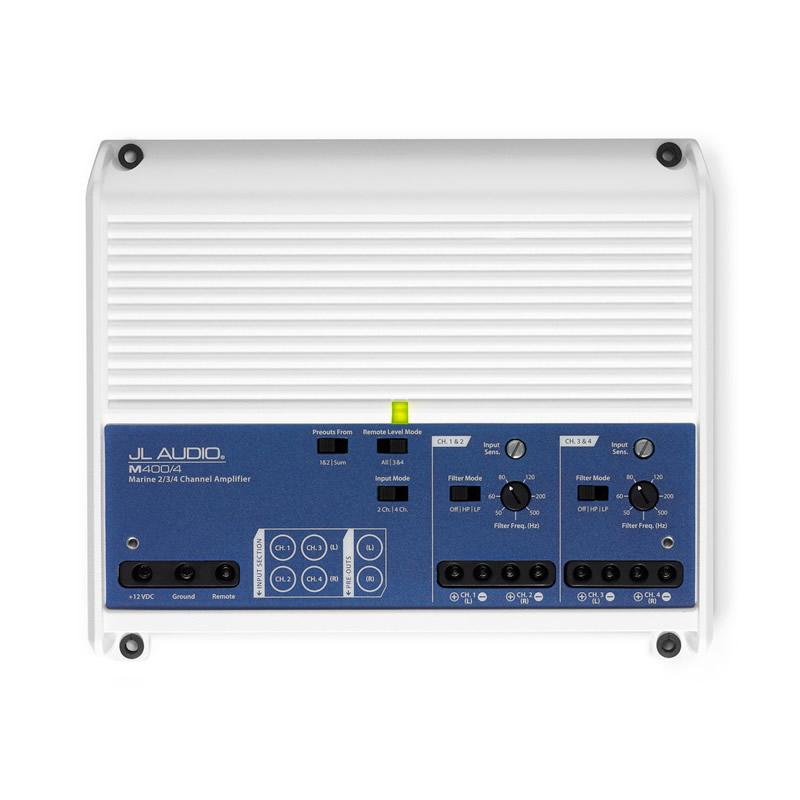

• The M400/4 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz
• With the addition of an HD-RLC remote level control (sold separately), the amplifier's Ch. 1 and 2 level or overall level can be directly controlled from a remote location
• With the addition of an HD-RLC remote level control (sold separately), the amplifier's Ch. 1 and 2 level or overall level can be directly controlled from a remote location

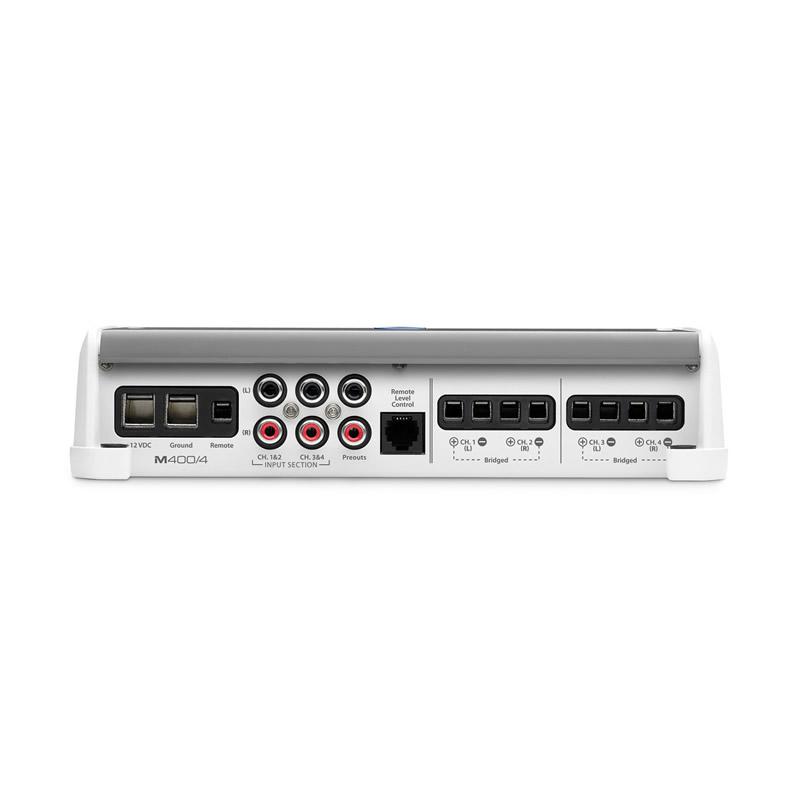

Inputs/Outputs
RCA Inputs
Yes
RCA Outputs
Yes
Highpass
Yes
Lowpass
Yes
Dimensions
Width
8.52 inch(es) / 21.64 cm
Height
2.05 inch(es) / 5.21 cm
Depth
7.09 inch(es) / 18.01 cm
Shipping Dimensions
Weight
4.74 lb(s) / 2.15 kg
