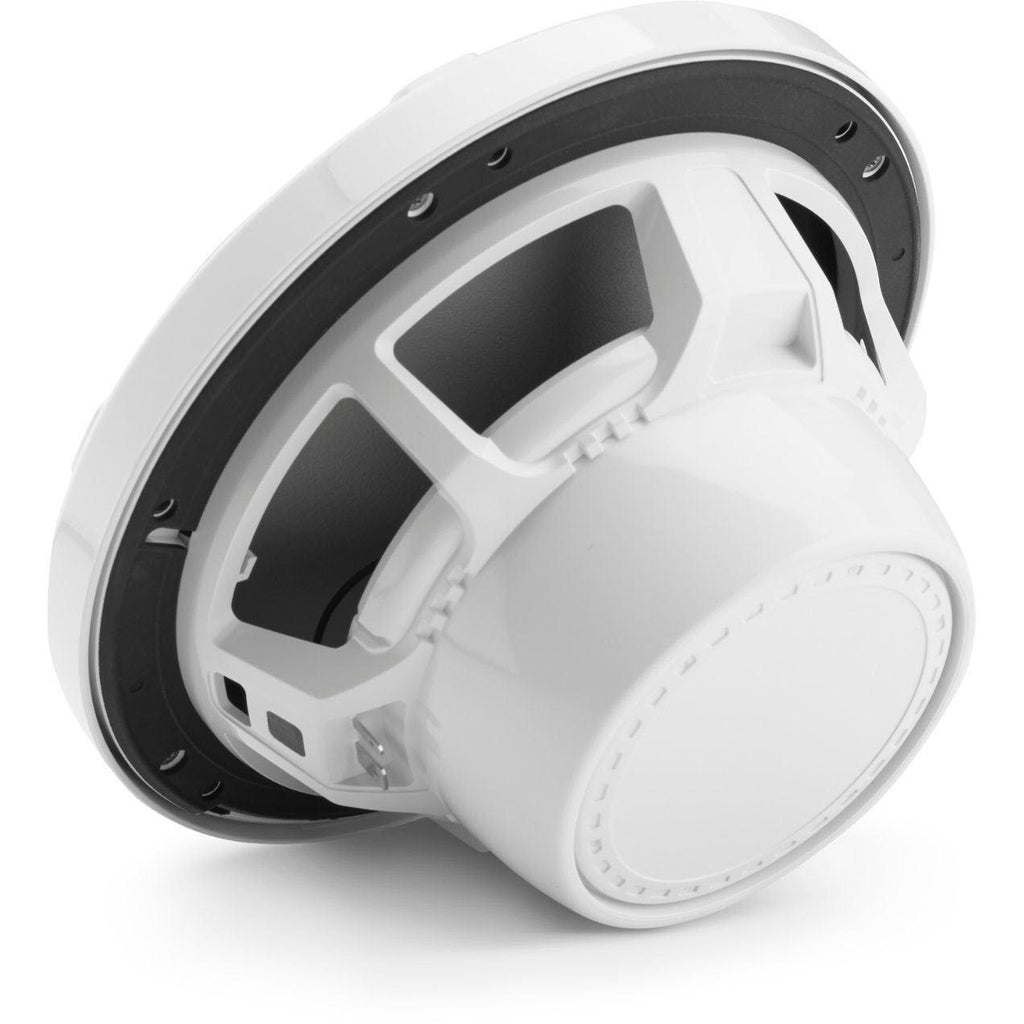

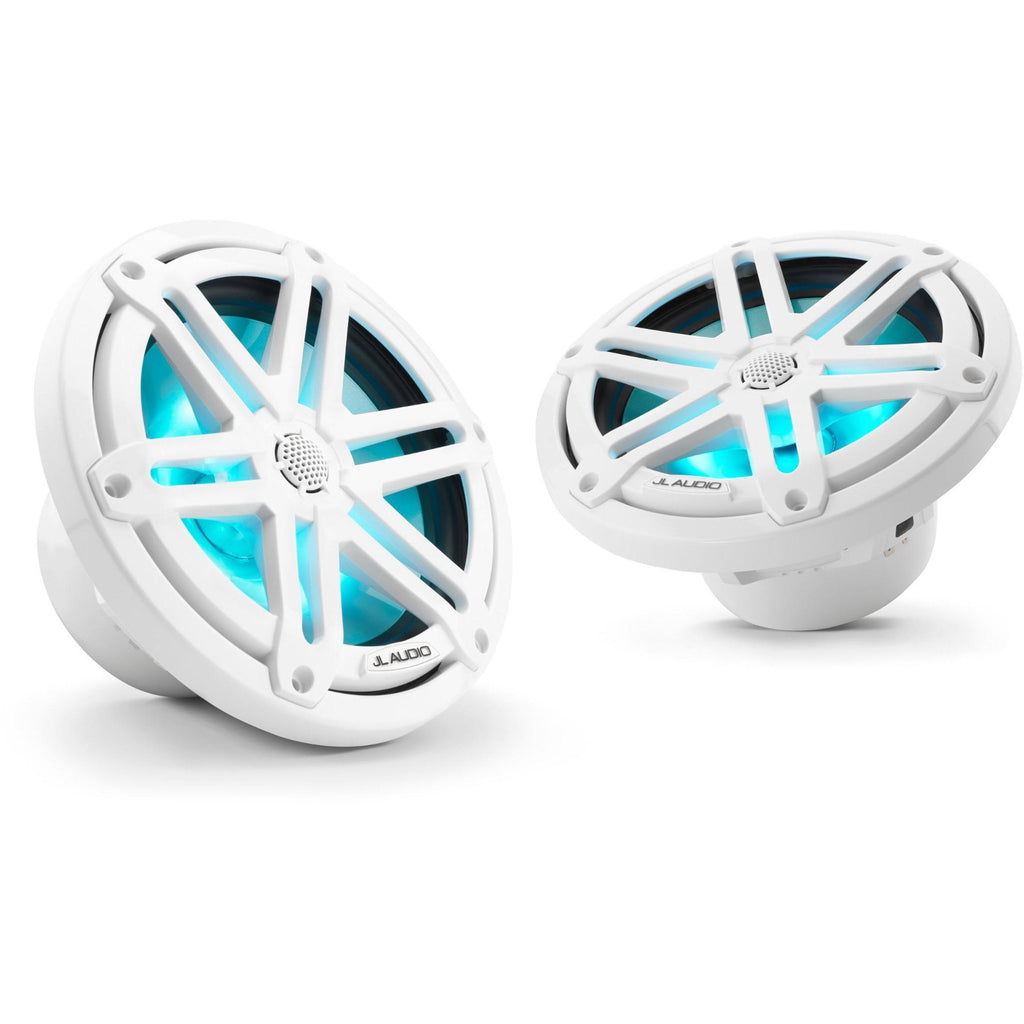

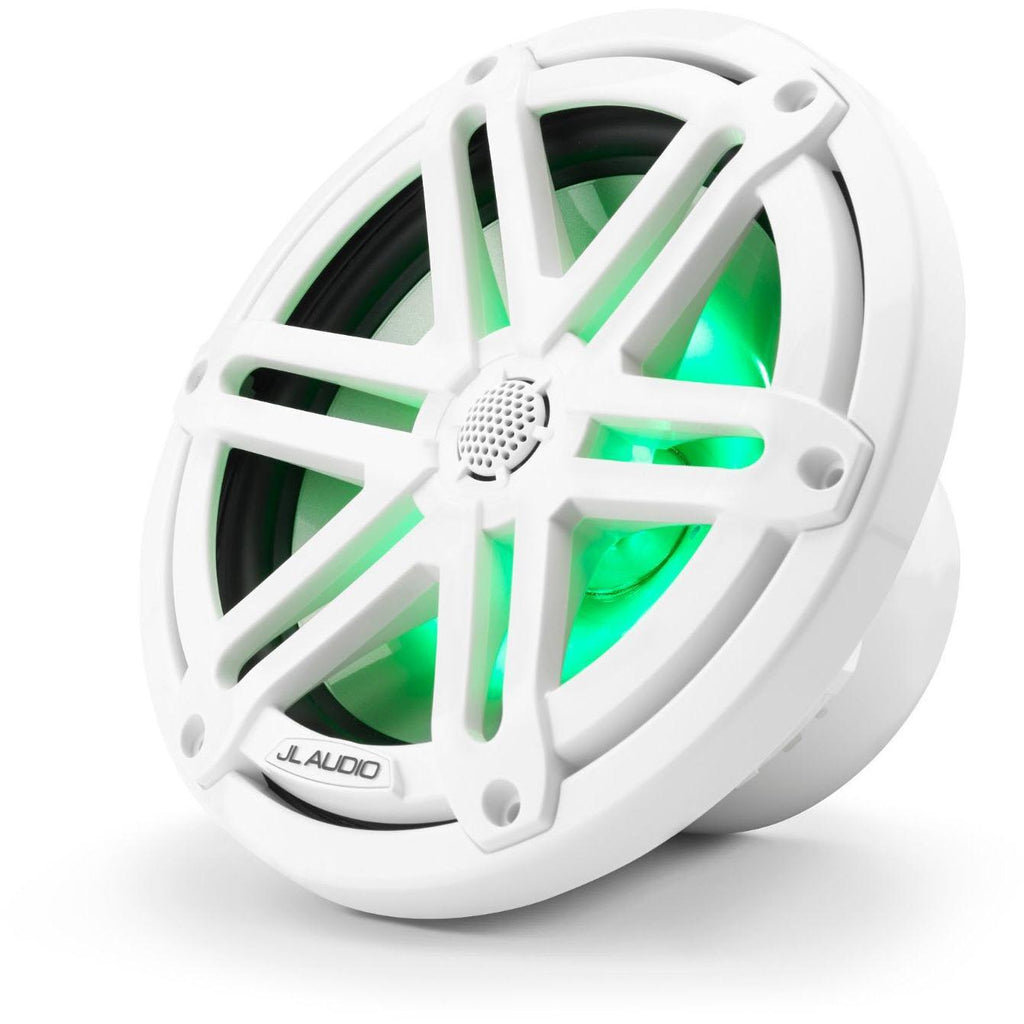

JL Audio Marine Speakers and Subwoofers 7.7" 2-Way Coaxial 93523

Store Only
JL AudioSKU: M3-770X-S-Gw-i

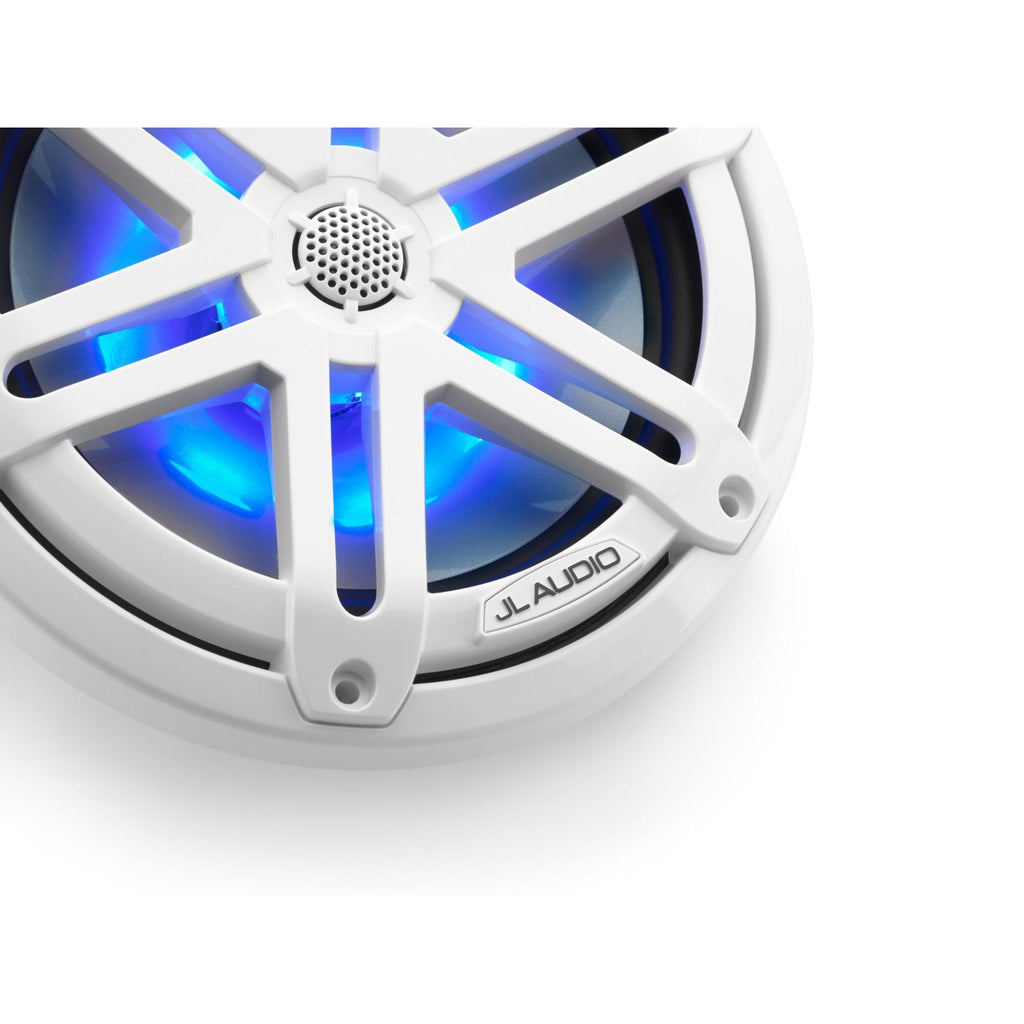

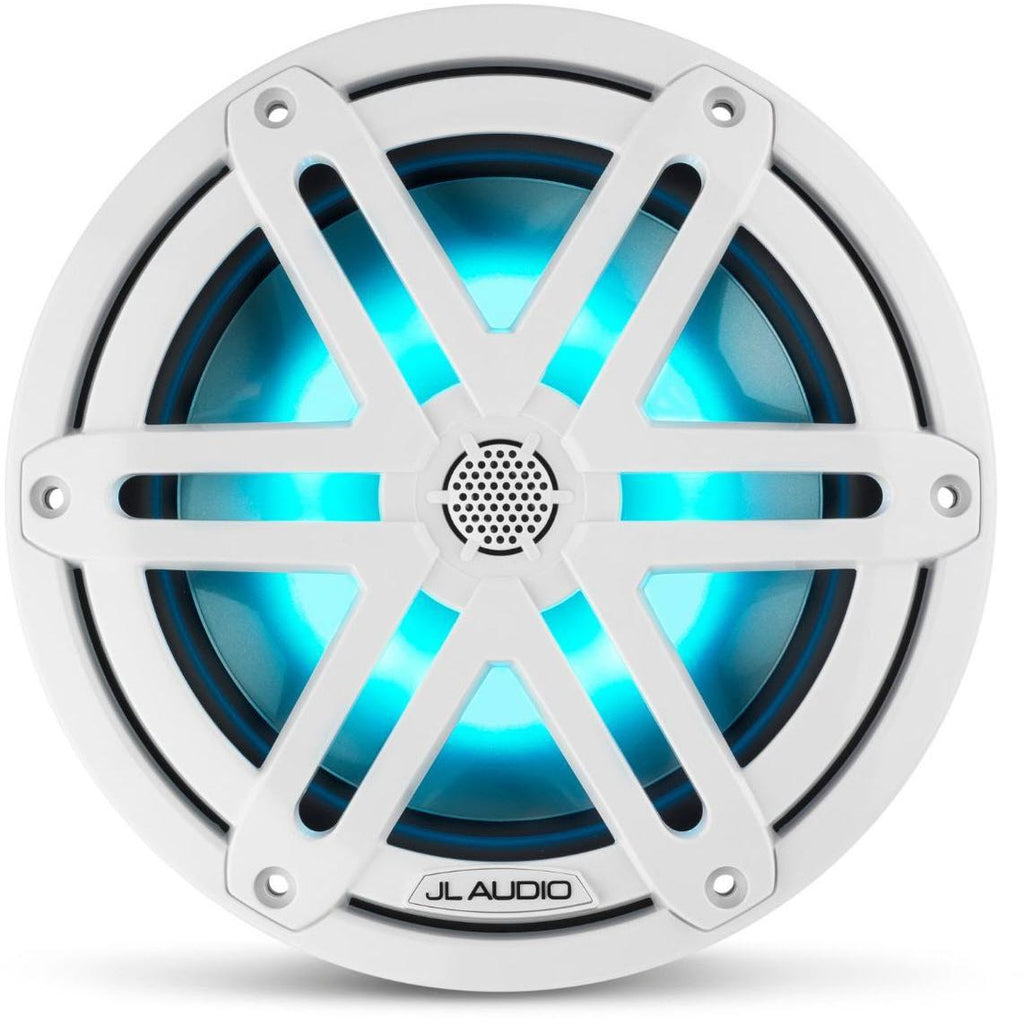

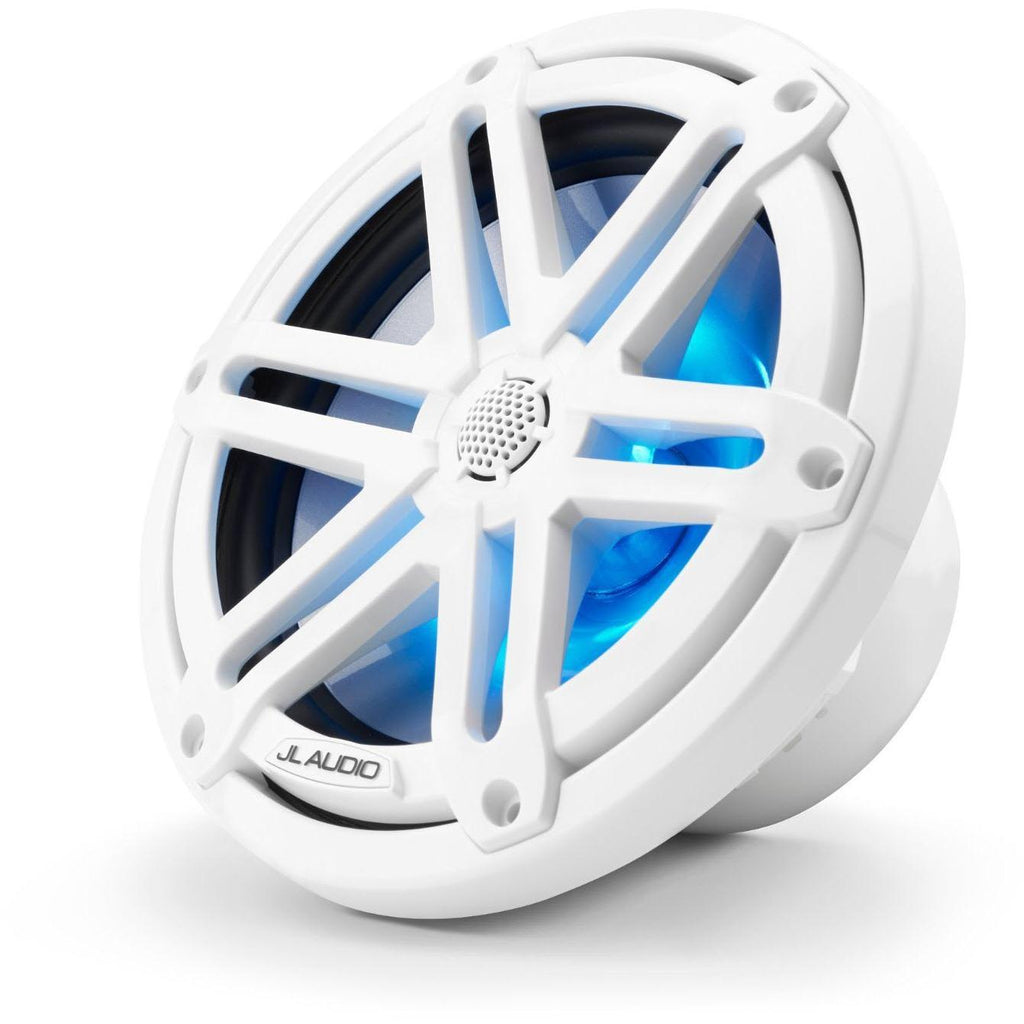

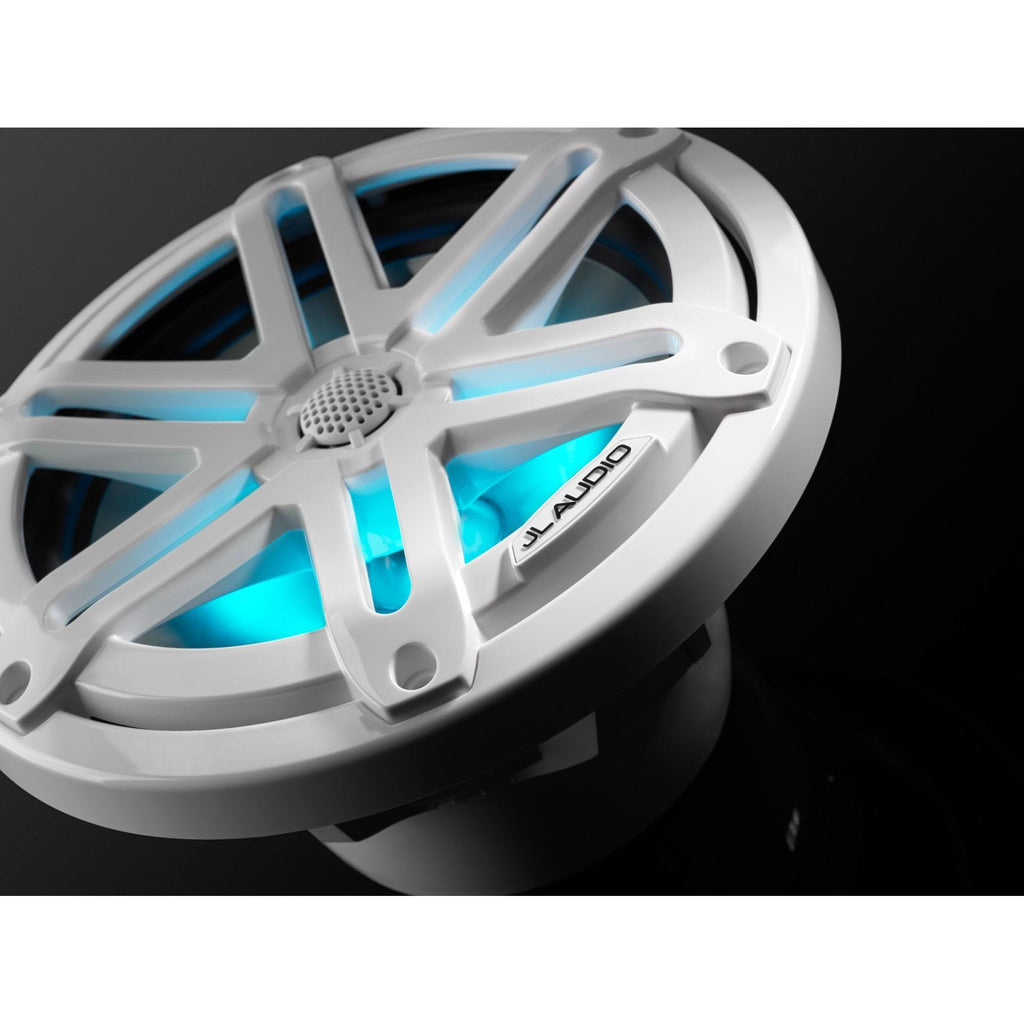

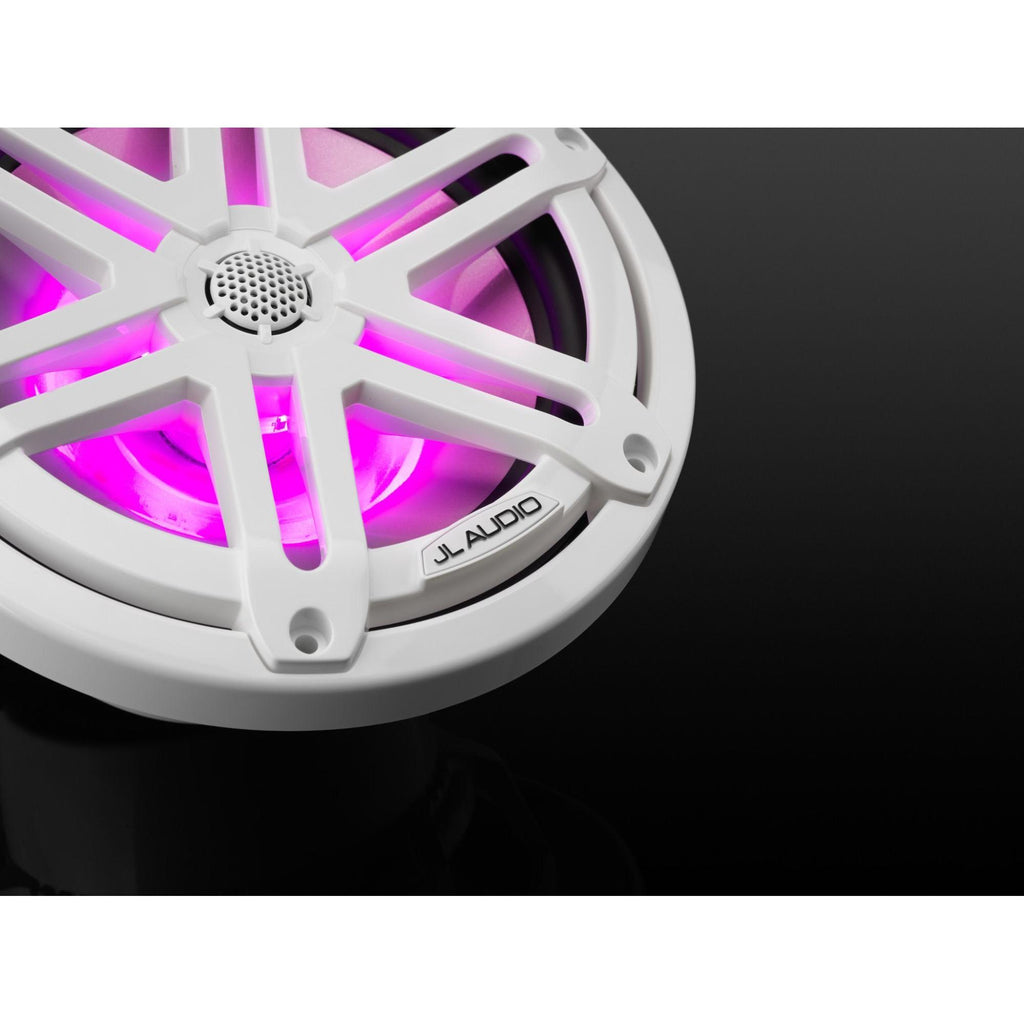

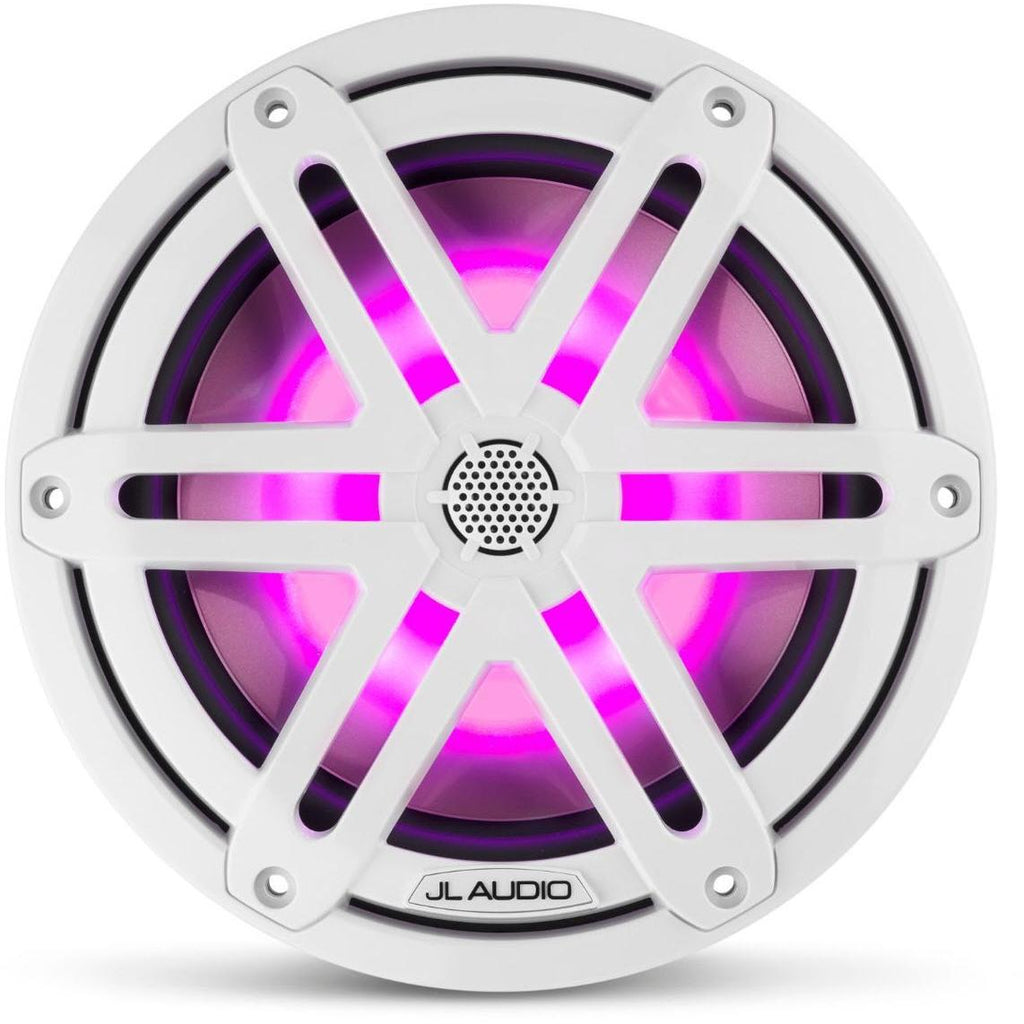

Purpose-engineered and built for real marine duty, M3 coaxial systems deliver excellent performance at a more affordable price than our... Purpose-engineered and built for real marine duty, M3 coaxial systems deliver excellent performance at a more affordable price than our maximum-performance M6 models.The oversized 7.7-inch design of the M3-770X results in increased efficiency (more output for a given amount of power). This gives them the ability to play louder and cleaner at high volumes than smaller speakers.The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance.A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics.Integrated into the Sport Grille's frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer's cone area with a lively glow, adding a dramatic visual experience to your high seas journey. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended. View more
Price:
$629.95
Specifications Documents
Specifications
General
Size
7.7 in
Maximum Power
225 W
RMS Power
70 W
Frequency Response
45 Hz - 25,000 Hz
Sensitivity
90.5 dB
Impedance
4 ohms
Type
2-way
Additional Information
Although M3-770X Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel.
Speakers
Midrange Speakers
1
High Frequency Drivers
1
Dimensions
Mounting Depth
3.15 inch(es) / 8 cm
Mounting Diameter
6.25 inch(es) / 15.88 cm
UPC
UPC#
699440935234
