Features
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Control the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
Playable USB Files
Compatible with a broad range of audio file formats such as FLAC and WAV, to MP3, WMA and AAC.
Drive Equalizer
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.
System EXPANSION Ready
The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.
Additional Features
13-Band EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Spanish and French Text Display
On-screen display menu now available in Spanish and French.
Specifications
General
THD and Frequency
• FM: Frequency Range(MHz) 87.9MHz to 107.9MHz
• FM: Frequency Response (±3.0dB) 30Hz to 15kHz
• AM: Frequency Range(kHz) 530kHz to 1700kHz
• CD: Frequency Response 20Hz to 20kHz(±1dB)
• CD: Total Harmonic Distortion 0.02%(1kHz)
• Aux Input: Frequency Response 20Hz to 20kHz ±3dB
• FM: Frequency Response (±3.0dB) 30Hz to 15kHz
• AM: Frequency Range(kHz) 530kHz to 1700kHz
• CD: Frequency Response 20Hz to 20kHz(±1dB)
• CD: Total Harmonic Distortion 0.02%(1kHz)
• Aux Input: Frequency Response 20Hz to 20kHz ±3dB
Volume Control
Rotary
Features
Technologies
• Bluetooth 4.2
• Dual Phone Connection
• Remote App
• Wireless Music Browsing (AVRCP 1.5 / 1.6)
• Graphic EQ / Digital Time Alignment
• Drive EQ
• FLAC Supported
• Android Rapid Charge
• Dual Phone Connection
• Remote App
• Wireless Music Browsing (AVRCP 1.5 / 1.6)
• Graphic EQ / Digital Time Alignment
• Drive EQ
• FLAC Supported
• Android Rapid Charge
Additional Information
• 12V DC car battery
• 204 Segment 1 Line Text Display
• Bluetooth Direct Access Button
• Blue/White Color Illumination
• 13Band EQ & DTA
• 204 Segment 1 Line Text Display
• Bluetooth Direct Access Button
• Blue/White Color Illumination
• 13Band EQ & DTA

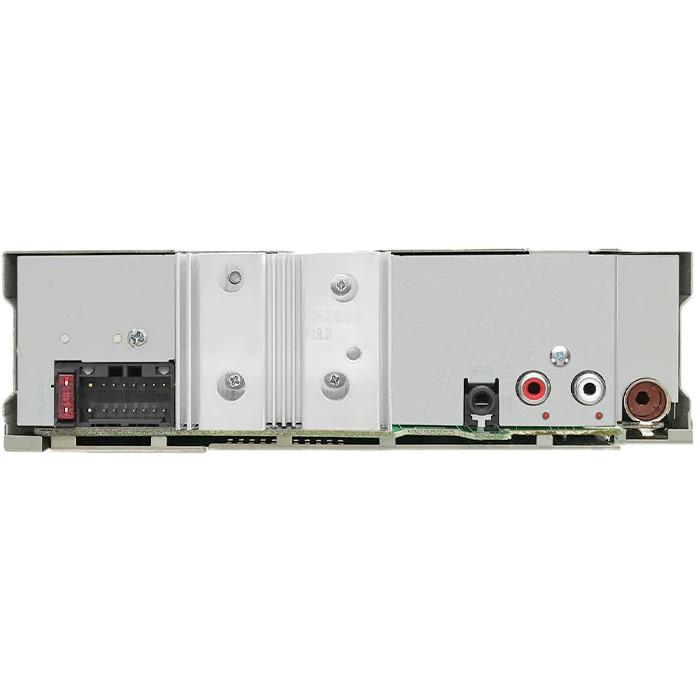

Inputs/Outputs
Pre-Outs Voltage
2.5 V
Auxiliary Input
Yes
USB Input
Yes
