Features

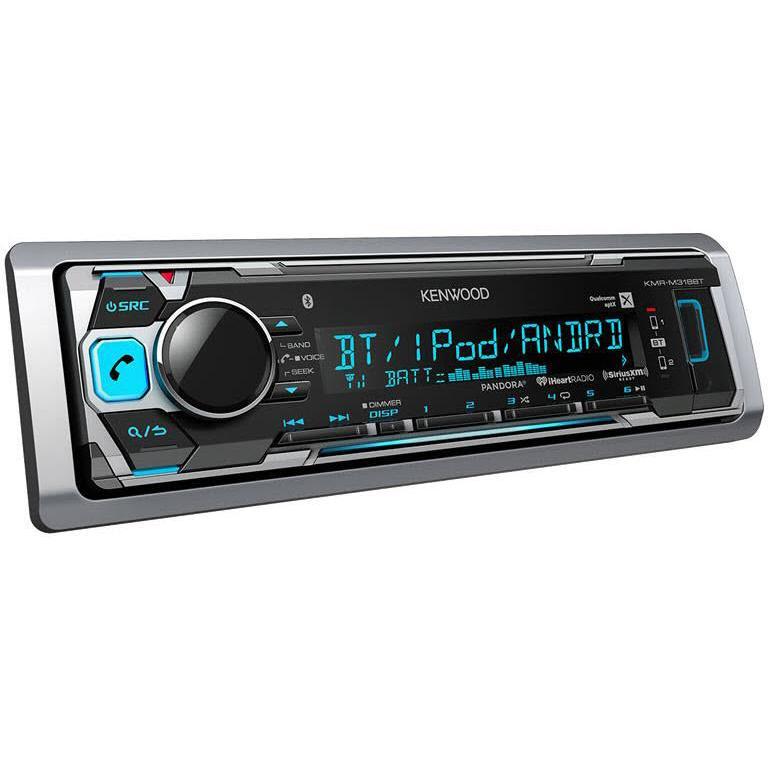

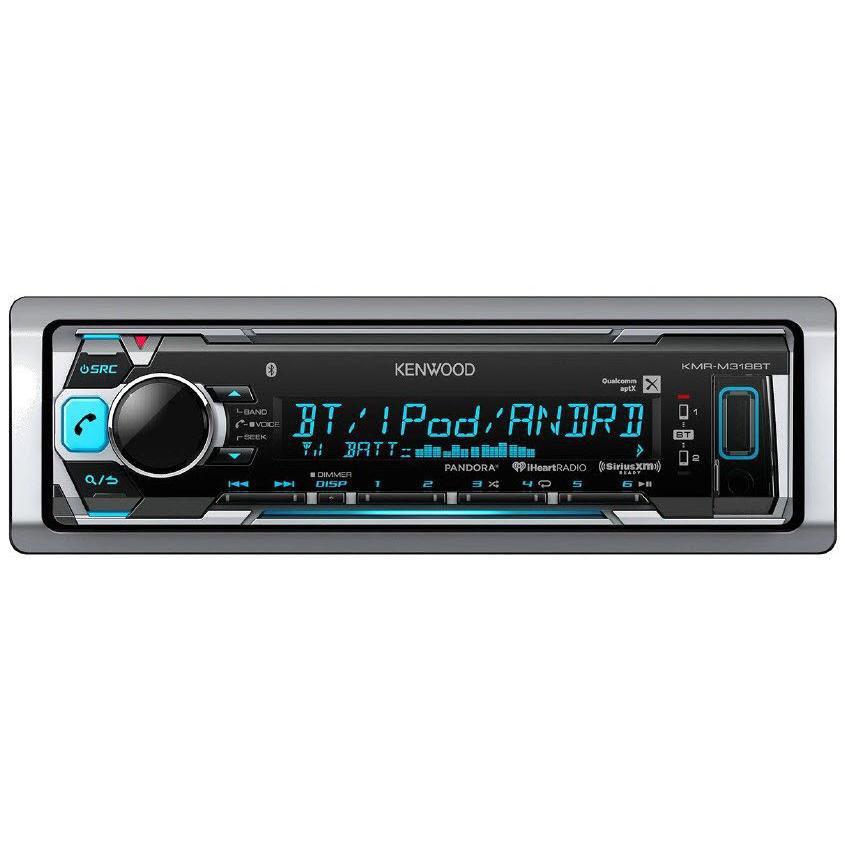

Clear Display
Bright variable color LED's can be adjusted to match any color dash lighting.
Easy Operation
A large volume knob and buttons are intuitively placed, reducing distraction and promoting safety.
Music Mix
Up to 5 Bluetooth® devices can be connected to the head unit at the same time, and you can enjoy audio streaming just by switching the devices with your friends or family.
Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Android Music Playback (AOA2)
Simply install the Kenwood Music Play application onto your Android smartphone, connect it to your KENWOOD receiver via USB, and control your music directly from the car audio receiver.
Android Rapid Charge
Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.
Wireless Music Browsing (AVRCP 1.5)
Search and select songs from your music collection through a Bluetooth connection.
Dual Phone Connection
Allows two phones to be connected for hands-free operation at any time. Easily switch between both phones with the touch of a button. Answering, calling or searching your phonebook on your phone is made simple through an intuitive GUI.
13 Band EQ
13-Bands of equalization offer detailed audio tuning to match your taste and listening environment.
High Quality Bluetooth Streaming
Compatible with high resolution audio, high quality codecs such as AAC and aptX, allow the listener to be entertained with superior music playback.
Specifications
General
Maximum Power
200 W
RMS Power
88 W
Number of Channels
4
DIN
1
Volume Control
Rotary
CD
No
DVD
No
USB Input
Yes
Tape Deck
No
Navigation
No
LCD Screen
No
Motorized LCD Screen
No
Additional Information
• Kenwood sound reconstruction restores musical to compressed music
• Android Rapid Charge
• Dual Phone Connection
• Android Rapid Charge
• Dual Phone Connection

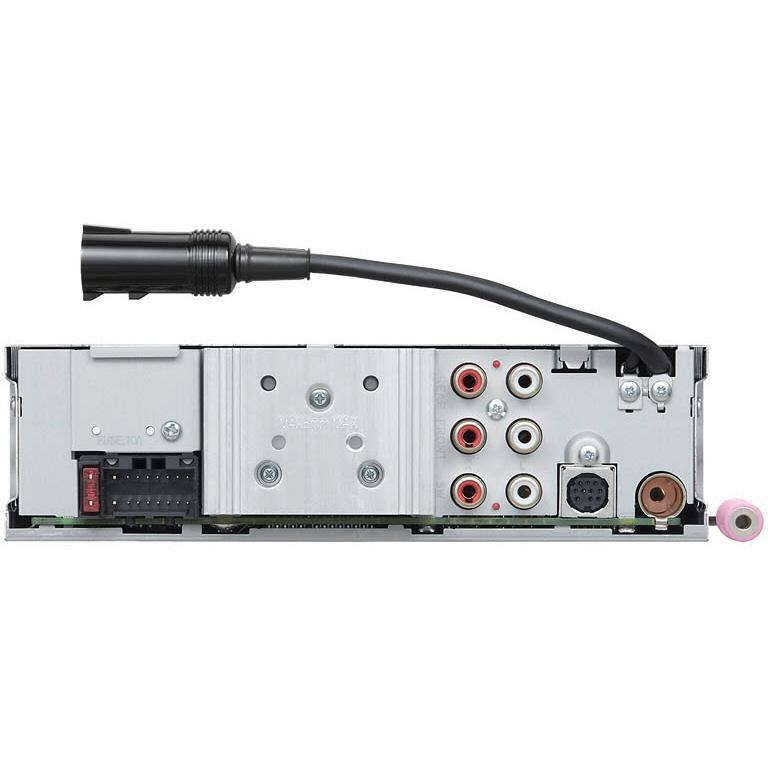

Inputs/Outputs
Front Speaker Preouts
Yes
Front Speaker Preouts Voltage
4 V
Back Speakers Pre-Outs
Yes
Back Speakers Preouts Voltage
4 V
Subwoofer Pre-Outs
Yes
Subwoofer Preouts Voltage
4 V
Compatibility
Bluetooth
Built-In
MP3
Yes
WMA
Yes
Other Audio/Video Formats
AAC, WAV, FLAC
XM/Sirius Radio
Yes
HD Radio Ready
Yes
iPod Connection
Yes
Accessories
Remote Control
Yes
Detachable Faceplate
Yes
Dimensions
Width
7.17 inch(es) / 18.2 cm
Height
2.09 inch(es) / 5.3 cm
Depth
4.49 inch(es) / 11.4 cm
Weight
1.54 lb(s) / 0.7 kg
