Features
TRACTRIX® HORN TECHNOLOGY
Klipsch exclusive 90x90º Tractrix® horn technology ensures that the speaker's high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
LINEAR TRAVEL SUSPENSION TWEETER WITH KAPTON® SUSPENSION
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
SPUN-COPPER IMG WOOFER
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion to give you the deepest, cleanest bass possible.
TRACTRIX PORT
The dual front Tractrix® ports are perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

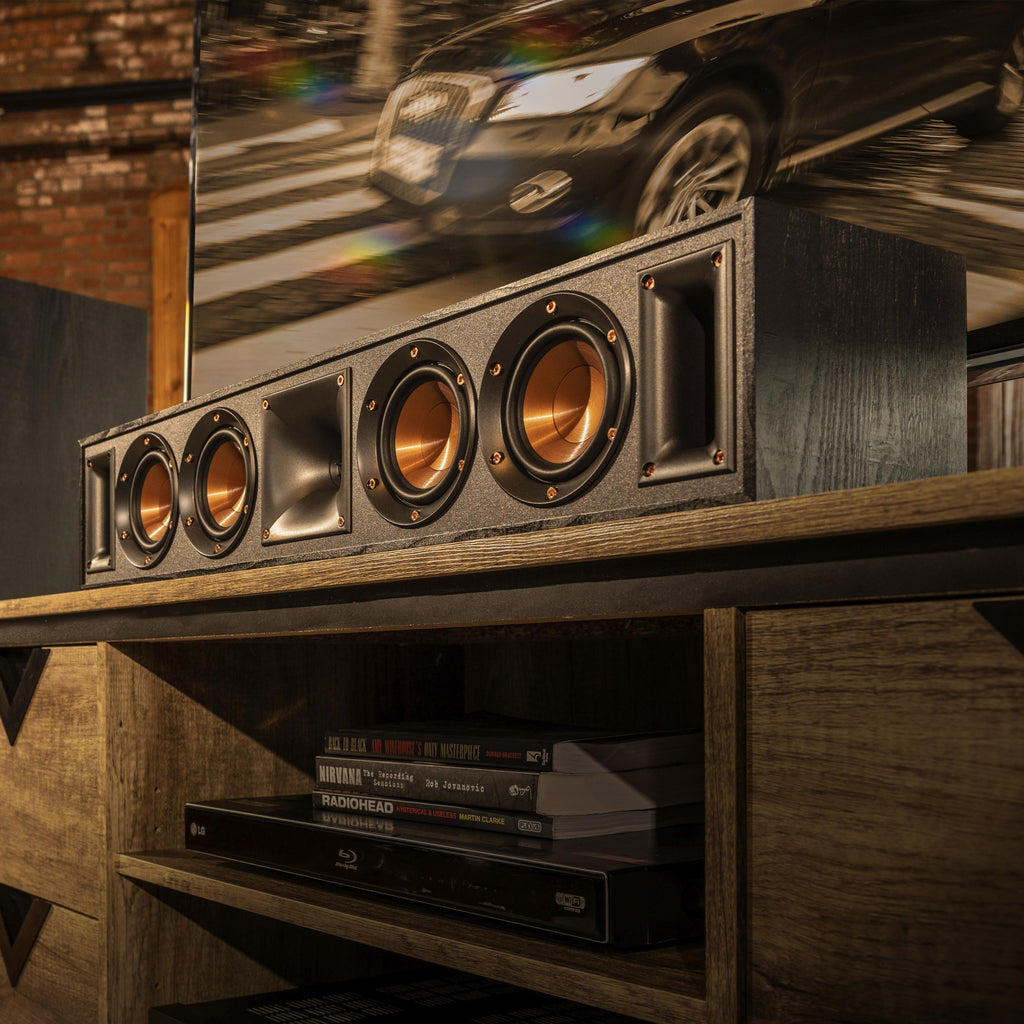

Front-firing ports allow the R-34C center speaker to be placed right against your wall or entertainment system without impacting the bass response.
Front-firing ports allow the R-34C center speaker to be placed right against your wall or entertainment system without impacting the bass response.
SLEEK DESIGN

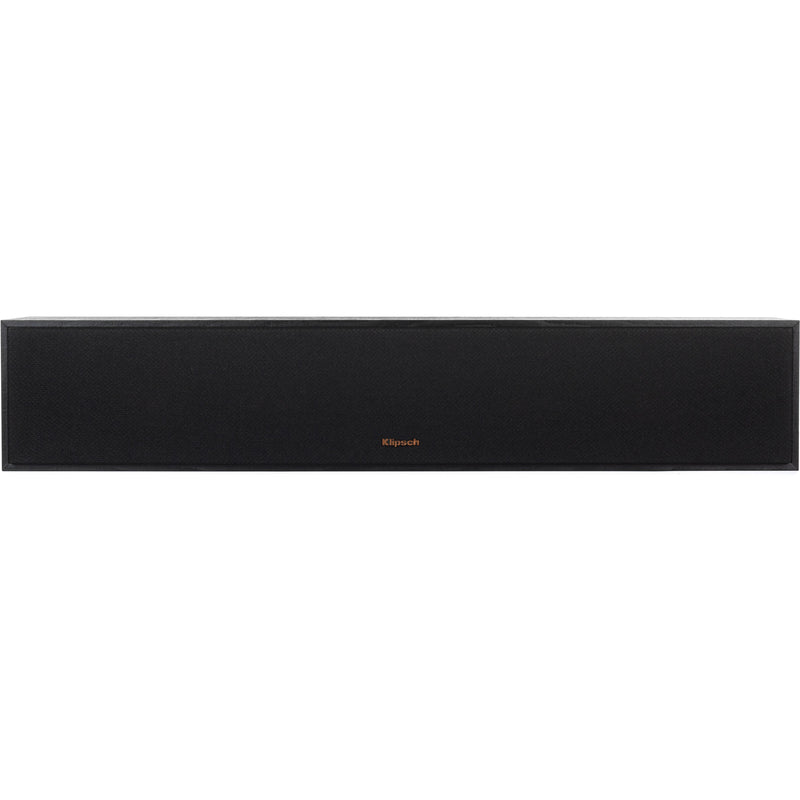

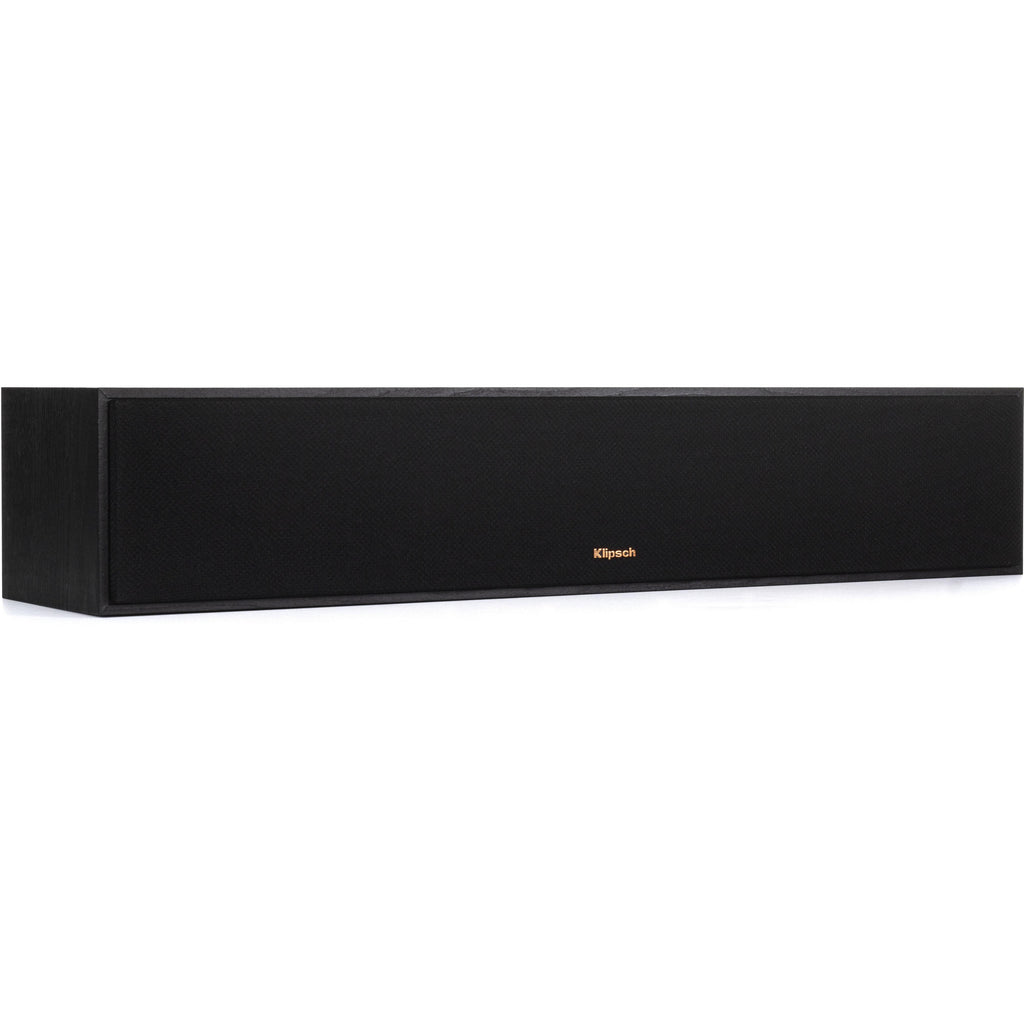

Exposed fasteners, low profile magnetic grilles and a scratch-resistant, textured wood grain vinyl give the speaker a polished, modern appearance that perfectly accents our entire Reference series speakers.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
Specifications
General
Speaker Type
Indoor
Color
Black
Frequency Response
82 Hz - 21,000 Hz
Sensitivity
96 dB @ 2.83V/1M
Impedance
8 ohms
Number of Drivers
5
Power Handling
100 W
Features
Additional Information

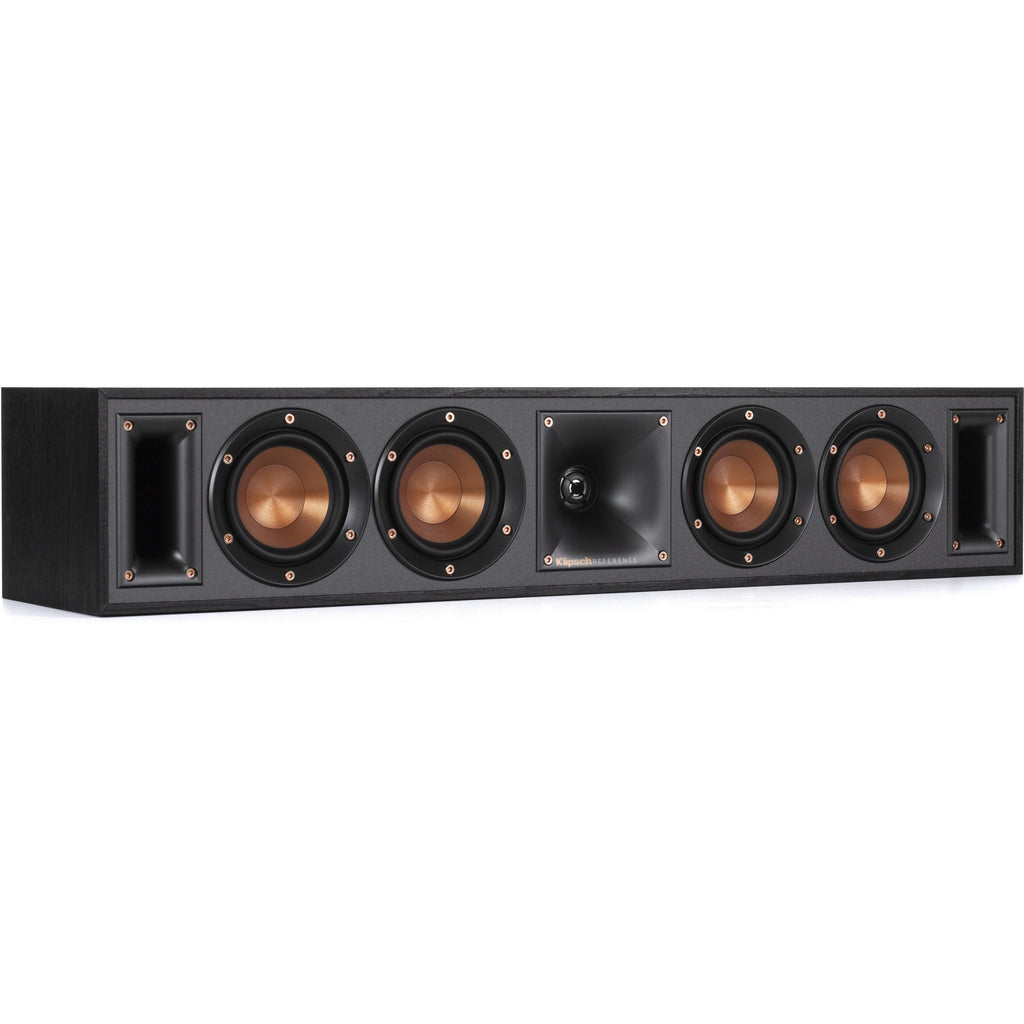

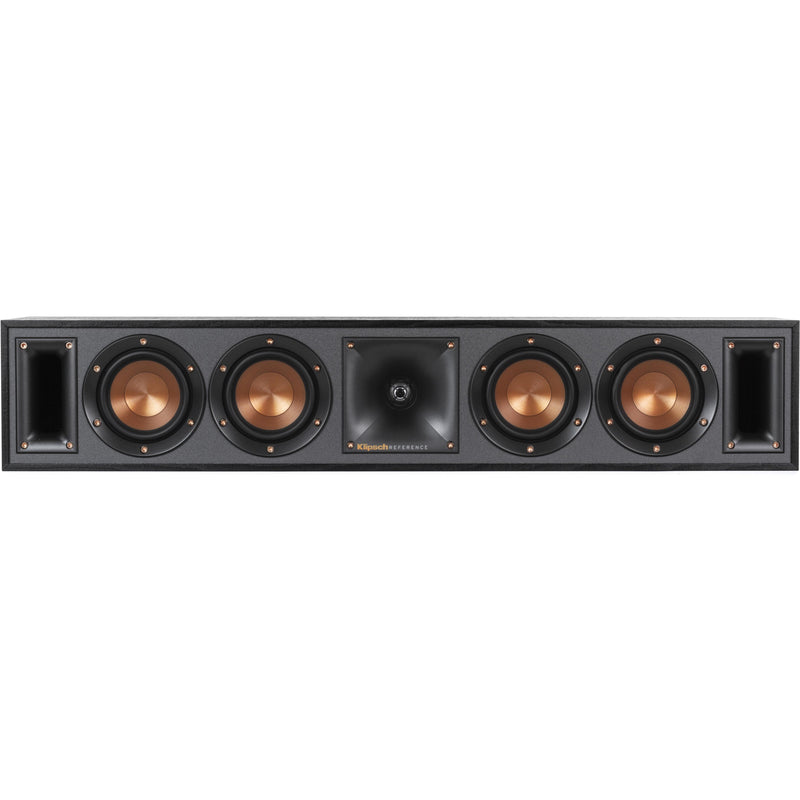

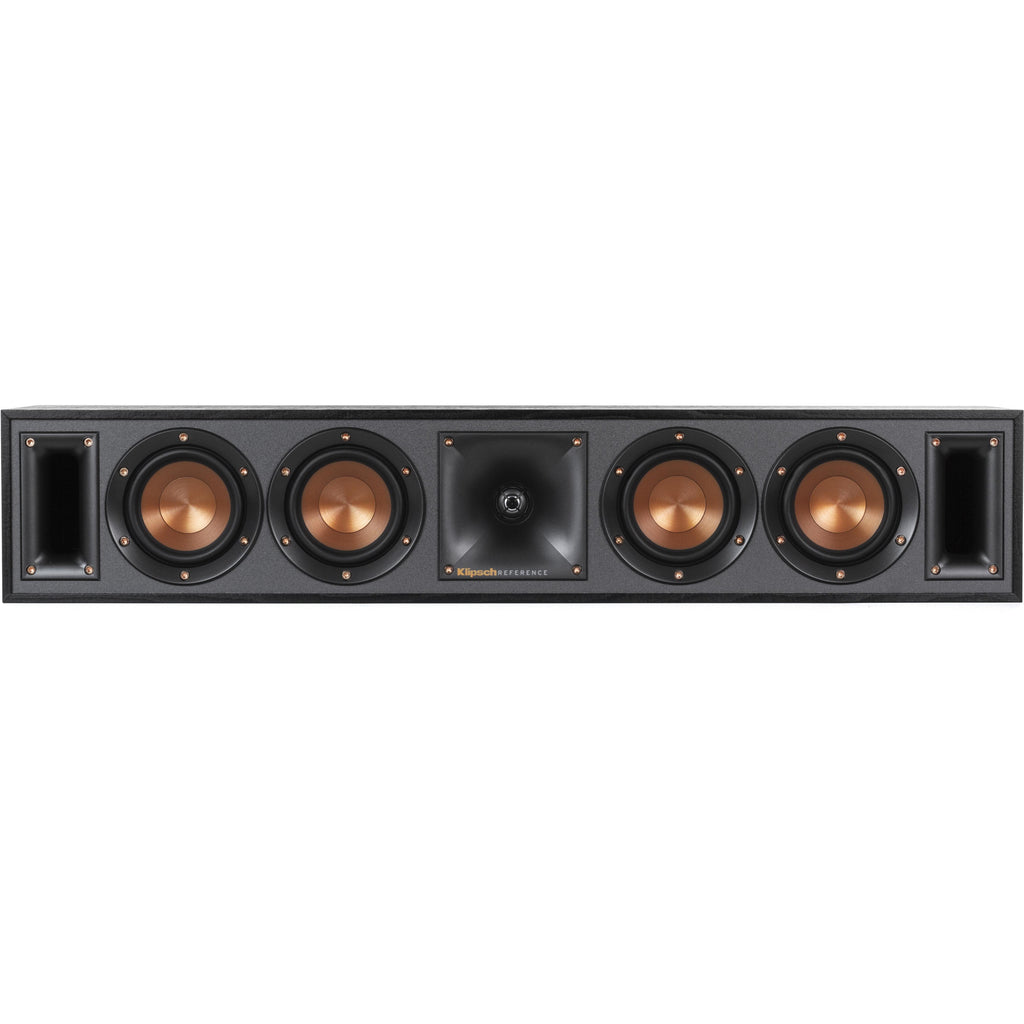

• 90x90 Square Tractrix® Horn
• Quad 3.5" Spun-Copper IMG Woofers
• Bass-Reflex via Dual Front-Firing Tractrix® Ports

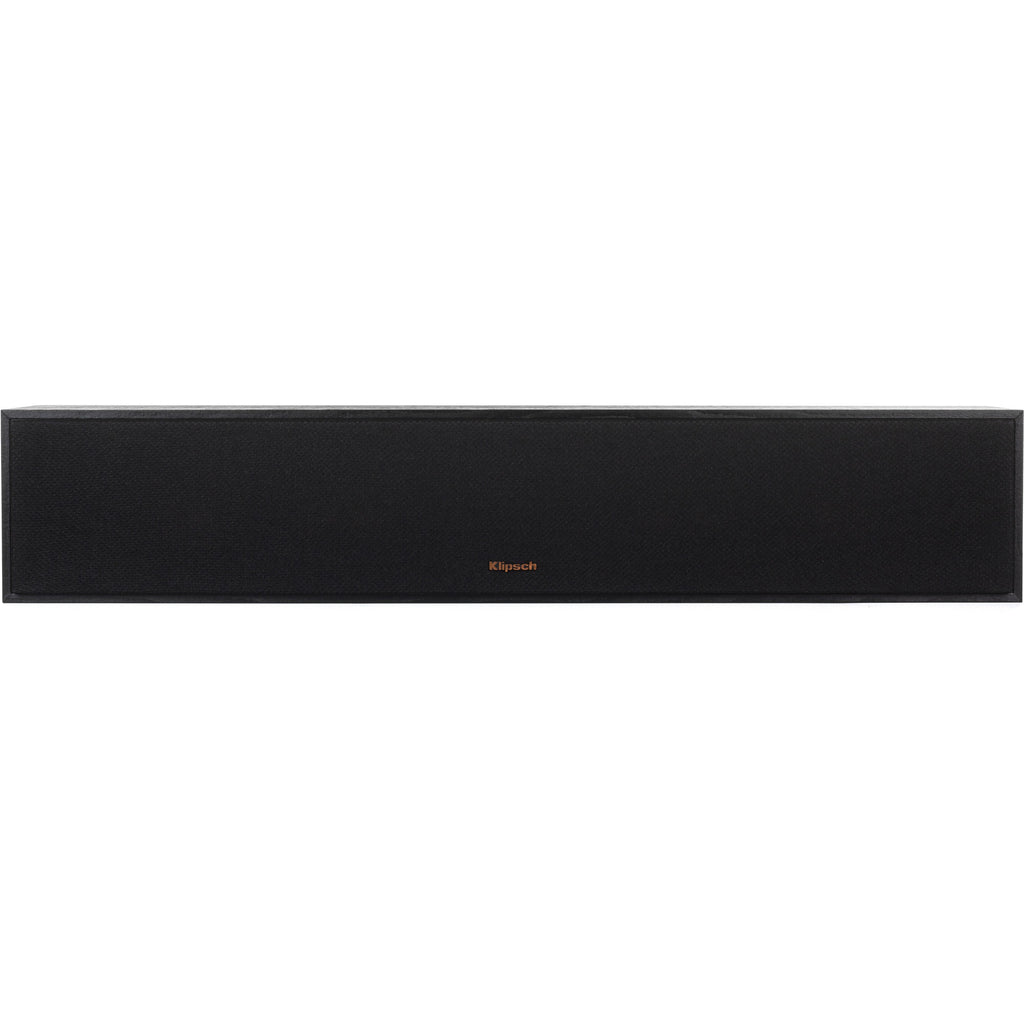

• Strong, Flexible Removable Magnetic Grille
• Quad 3.5" Spun-Copper IMG Woofers
• Bass-Reflex via Dual Front-Firing Tractrix® Ports
• Strong, Flexible Removable Magnetic Grille
Speakers
High-Frequency Drivers
1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
Bass Drivers
Quad 3.5" spun-copper IMG woofers
Crossover Information
1,600 Hz
Dimensions
Width
26 inch(es) / 66.04 cm
Height
5.2 inch(es) / 13.21 cm
Depth
6.2 inch(es) / 15.75 cm
Weight
5.9 kg (each)
UPC
UPC#
0743878035506
