Features
HIGH EFFICIENCY CLASS D AMPLIFIER
The built-in, high efficiency amplifier features an analog preamp design, which maintains the original signal path for cleaner, true-to-source reproduction. The Class D output stage ensures maximum efficiency for maximum output, detail, and low frequency power.
SPUN COPPER CERAMETALLIC WOOFERS
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix horn-loaded compression driver, it provides speaker efficiency highest in its class.
WOOFER ANATOMY
Klipsch Cerametallic™ cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity.
Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.
Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.
EXCLUSIVE PORT TECHNOLOGY
Klipsch SPL subwoofers leverages proprietary internal-flare geometry that minimizes port noise for clean undistorted low frequencies. The front-firing design allows for placement flexibility to reduce unwanted resonance from your walls or furniture behind the subwoofer.
TAKE CONTROL

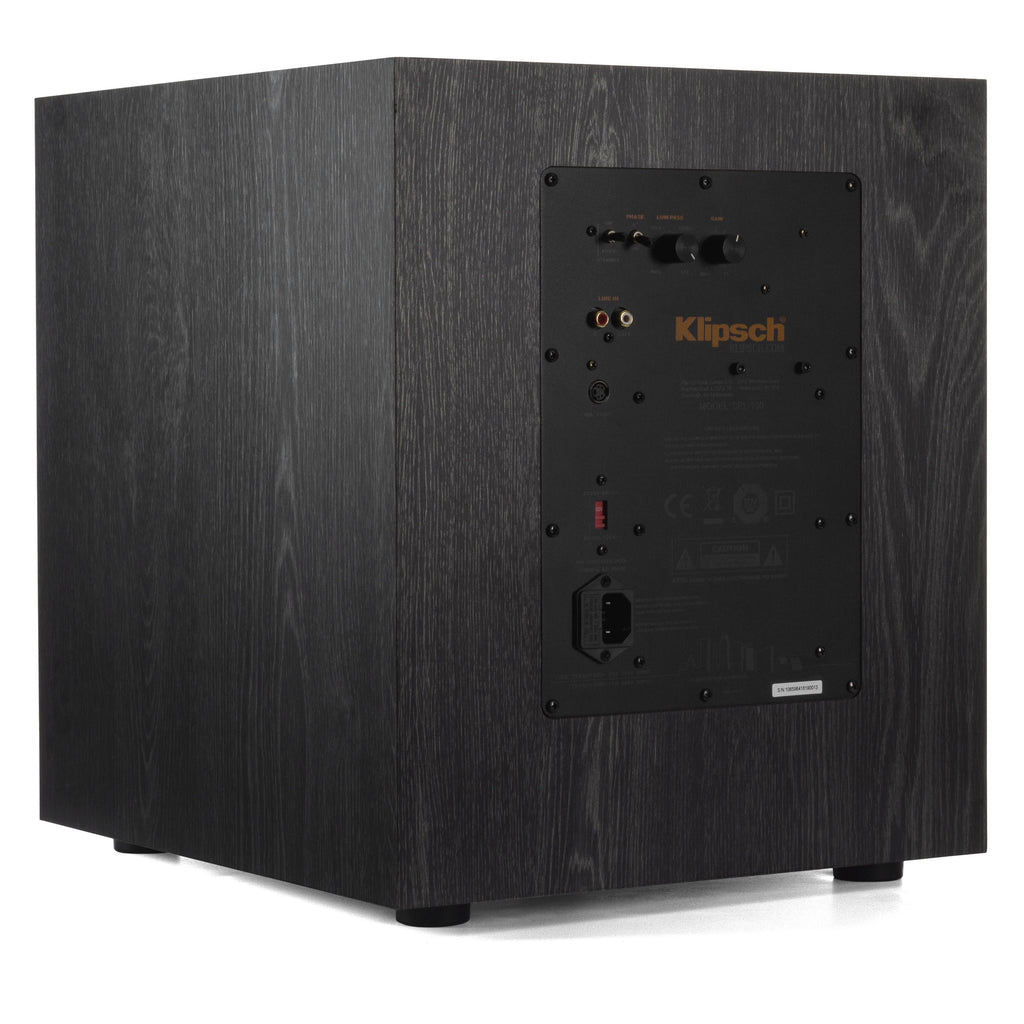

Low Pass Crossover and Variable Phase control allows you to tune the subwoofer to your Klipsch speakers and to your room, establishing the ideal level of bass. Line Level / LFE RCA inputs ensure compatibility with home theater receivers.
Both the RCA and wireless inputs can be utilized, giving you the ability to use a single subwoofer with multiple system in the same room. For example, you can use the wireless input for your home theater set up and the RCA input for your 2-channel system, without needing to switch inputs when changing between systems.
Both the RCA and wireless inputs can be utilized, giving you the ability to use a single subwoofer with multiple system in the same room. For example, you can use the wireless input for your home theater set up and the RCA input for your 2-channel system, without needing to switch inputs when changing between systems.
ULTRA-DURABLE DESIGN

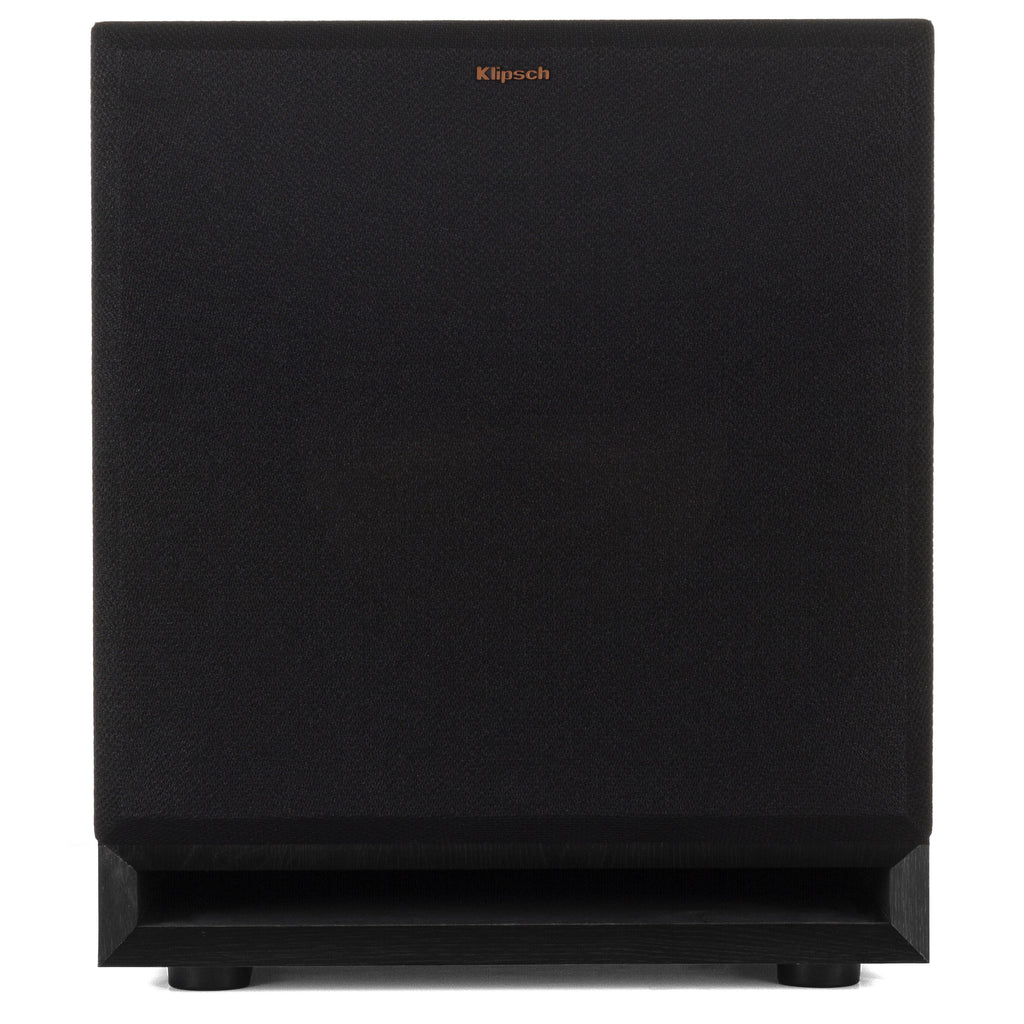

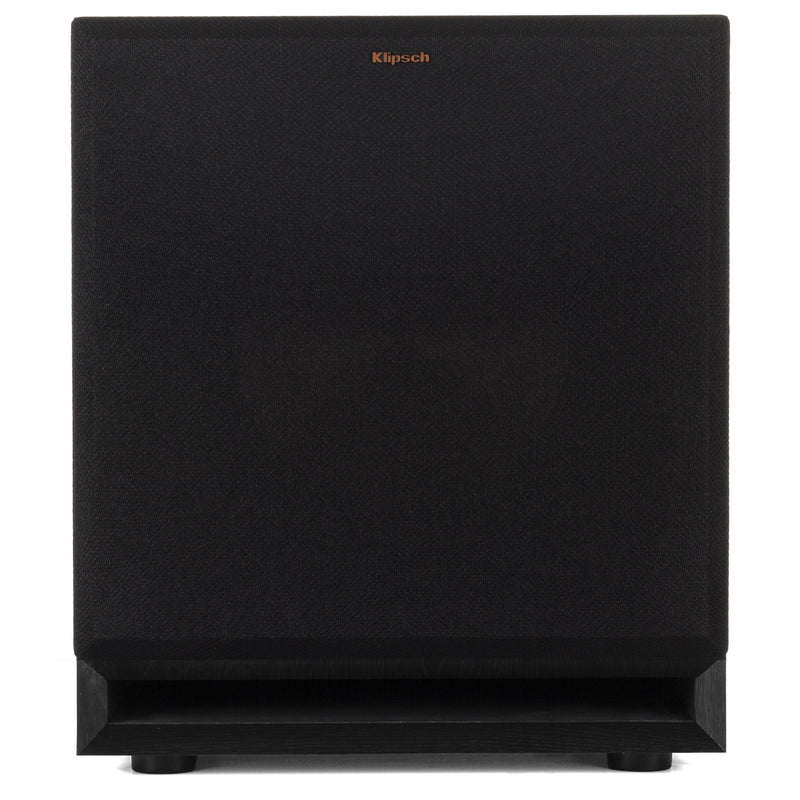

Klispsch SPL subwoofers feature a scratch resistant ebony finish that looks like real wood and covers the entire cabinet. Shock-absorbing rubber feet, steel grille posts and a woven cloth grille give the SPL subwoofers a premium look and feel.
Specifications
General
Speaker Type
Indoor
Color
Black
Frequency Response
27 Hz - 125 Hz
Number of Drivers
1
Features
Additional Information
• Amplifier type: Class D with Analog Preamp Stage
• Enclosure material: MDF
• Enclosure type: Bass Reflex via Front-Firing Slot Port
• Enclosure material: MDF
• Enclosure type: Bass Reflex via Front-Firing Slot Port
Speakers
Bass Drivers
10" Long-Throw Cerametallic
Subwoofer
Amplifier Power
200 W
Stereo
Yes
Dimensions
Width
14.02 inch(es) / 35.6 cm
Height
16.57 inch(es) / 42.1 cm
Depth
17.76 inch(es) / 45.1 cm
Weight
16.78 kg (each)
UPC
UPC#
743878036060
