Features

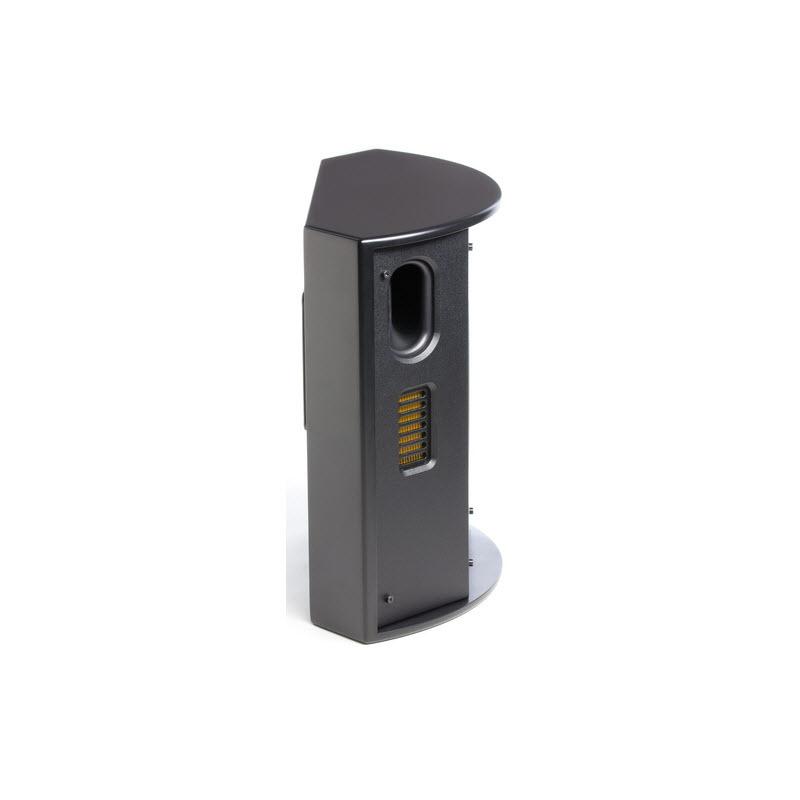

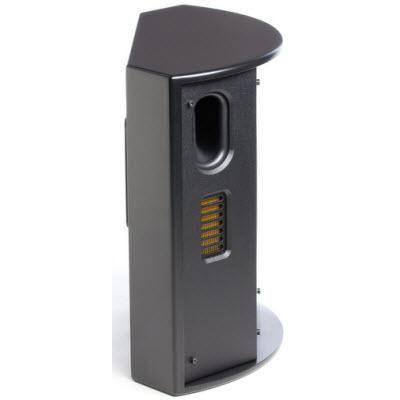

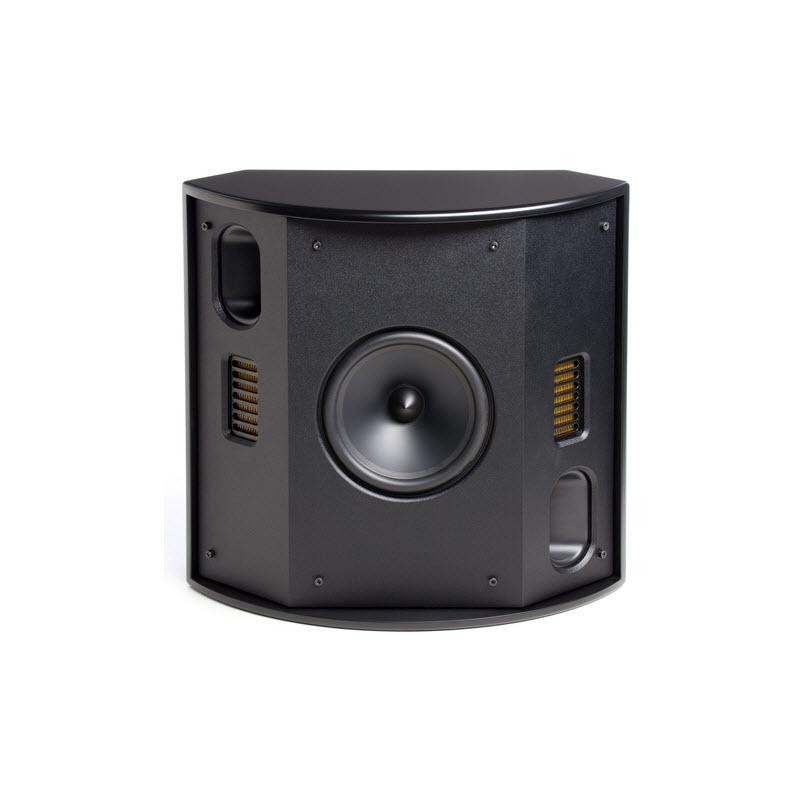

Folded Motion™ XT Tweeter
MartinLogan's larger, low distortion Folded Motion XT tweeter boasts a radiating surface 40% larger than those found in the award-winning Motion® Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless center channel performance.
Slender Profile
When mounted on a flat wall, the EM-FX2 protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction.
Specifications
General
Speaker Type
Indoor
Color
Black
Frequency Response
55 Hz - 25,000 Hz
Sensitivity
93 dB @ 2.83 volts/ meter
Amplifier Recommended Range
20 watts - 200 watts
Impedance
5 ohms
Number of Drivers
3
Features
Additional Information
• MartinLogan's larger, low distortion Folded Motion XT tweeter boasts a radiating surface 40% larger than those found in the award-winning Motion® Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless center channel performance.
• When mounted on a flat wall, the EM-FX2 protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction.
• When mounted on a flat wall, the EM-FX2 protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction.
Speakers
High-Frequency Drivers

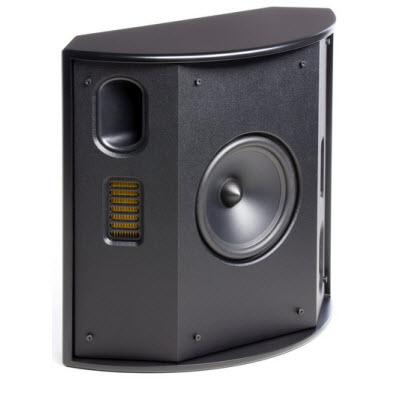

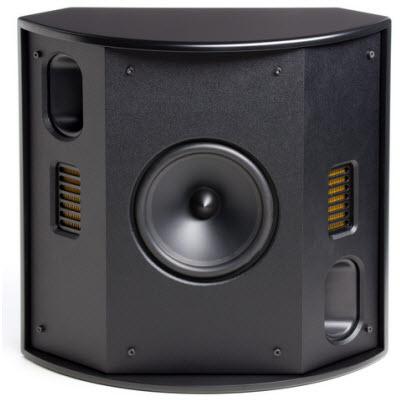

Two 1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion Transducers with 4.5" × 2.75" (11.4cm × 7cm) diaphragm
Bass Drivers
6.5" (16.5cm) paper cone with cast aluminum basket. Ported.
Crossover Information
2,300 Hz
Dimensions
Width
13.98 inch(es) / 35.5 cm
Height
14.92 inch(es) / 37.9 cm
Depth
6.77 inch(es) / 17.2 cm
Weight
7.3 kg (each)
Warranty
Warranty
5 years
UPC
UPC#
877929006204
