Features

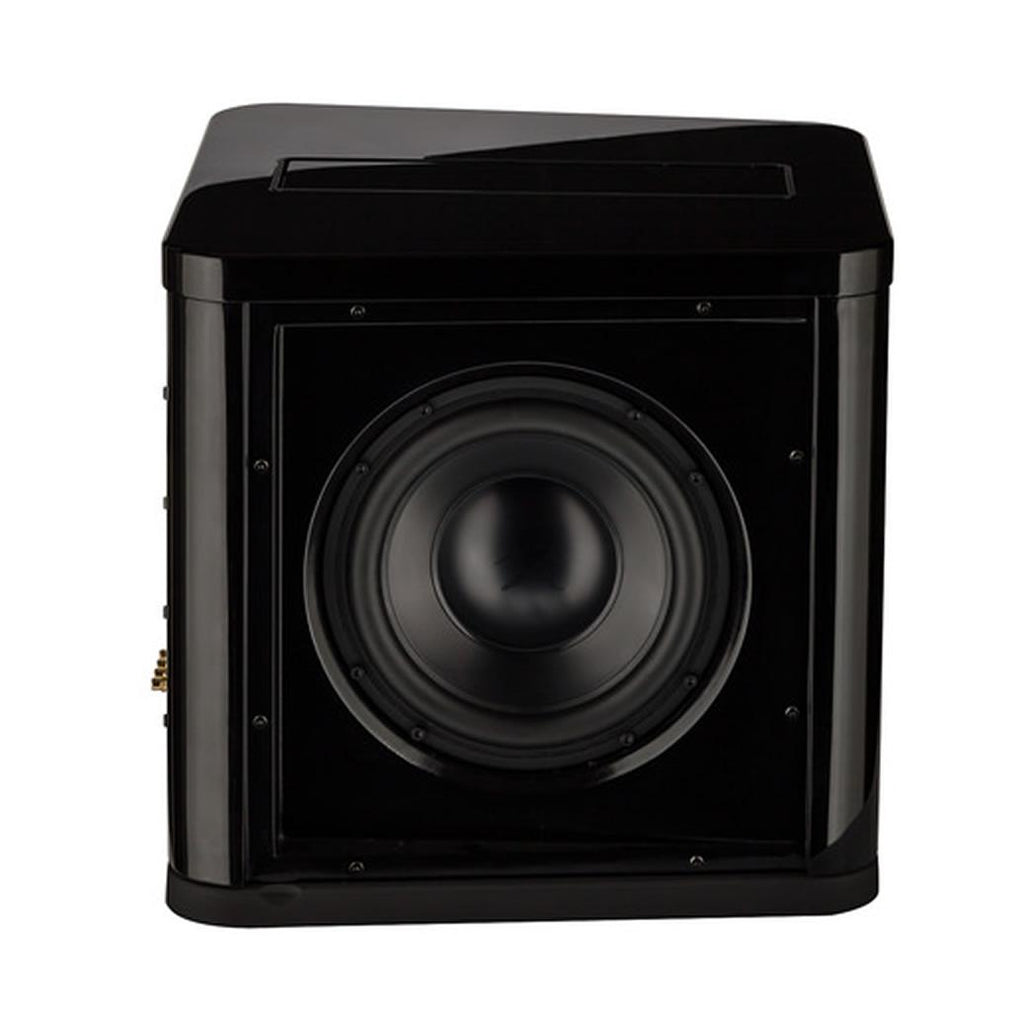

BalancedForce® Alignment - Opposing Aluminum Element Woofers for Deep, Clean Bass
Dual low-distortion woofers pair a high-power magnet structure with 10- and 12-inch aluminum cone diaphragms to deliver huge excursion and sound output while preserving minute bass details, all without a hint of distortion. The cone material's exceptional damping properties ensure the smooth, non-resonant response necessary for seamless blending with high-resolution full-range loudspeakers.
These woofers, spaced 180 degrees apart in a 'BalancedForce' configuration, operate in exact opposition, to nullify distortion causing cabinet vibrations and deliver pure bass energy. Traditional subwoofer enclosures suffer from an equal and opposite reaction to the cone's movement, generating acoustic vibrations within the cabinet. You feel this by touching the cabinet. Although the "physics" of this phenomenon actually cause a subwoofer cabinet to resonate or even dance, most subwoofer designers apply weight or mass to the cabinet to minimize such disturbances, but still leave one byproduct—"smeared bass". BalancedForce is an elegantly simple solution that removes the variable of cabinet vibration contributions from the acoustic equation.
Amplifier Design - Advanced Ultra-Efficient D-Class Amplifier
Advanced Ultra-Efficient D-Class Amplifier
BalancedForce subs match powerful proprietary switching amps with incredible woofer drivers resulting in tightly defined bass while keeping distortion at the lowest possible levels. The BalancedForce 210 features an 850-watt class-D switching amplifier capable of a 1700-watt peak operating at over 90% efficiency. BalancedForce 212 features dual 850-watt amplifiers (one for each woofer) with a total system power of 1700-watts (3400-watts system peak).
Low-noise, high-power transformers and switching power supplies feature high-quality MOSFET transistors, noise-suppression networks, and control circuitry to provide tremendous levels of current with extremely low levels of distortion. Split power supply rails minimize distortion while maximizing switching efficiency. Military grade glass epoxy circuit boards, temperature sensors, and protection circuitry guarantee quality sound and reliable trouble-free operation.
Amplifier Design - PBK Room Correction & 25Hz Level Control
Advanced Ultra-Efficient D-Class Amplifier
BalancedForce subs match powerful proprietary switching amps with incredible woofer drivers resulting in tightly defined bass while keeping distortion at the lowest possible levels. The BalancedForce 210 features an 850-watt class-D switching amplifier capable of a 1700-watt peak operating at over 90% efficiency. BalancedForce 212 features dual 850-watt amplifiers (one for each woofer) with a total system power of 1700-watts (3400-watts system peak).
Low-noise, high-power transformers and switching power supplies feature high-quality MOSFET transistors, noise-suppression networks, and control circuitry to provide tremendous levels of current with extremely low levels of distortion. Split power supply rails minimize distortion while maximizing switching efficiency. Military grade glass epoxy circuit boards, temperature sensors, and protection circuitry guarantee quality sound and reliable trouble-free operation.
Custom Low-Pass Filters for Individual Loudspeaker Models
Custom tailored low pass filters are available for nearly every floor standing MartinLogan loudspeaker released in the last 30 years. These optional custom filters adjust the subwoofer's low pass settings to seamlessly blend with the roll-off characteristics of individual loudspeaker models. Filters are easily installed via a user-friendly process involving a USB thumb drive and are available for free download from MartinLogan.com/filters. 46 unique filters are currently available and additional filters will be added as new speakers are released.

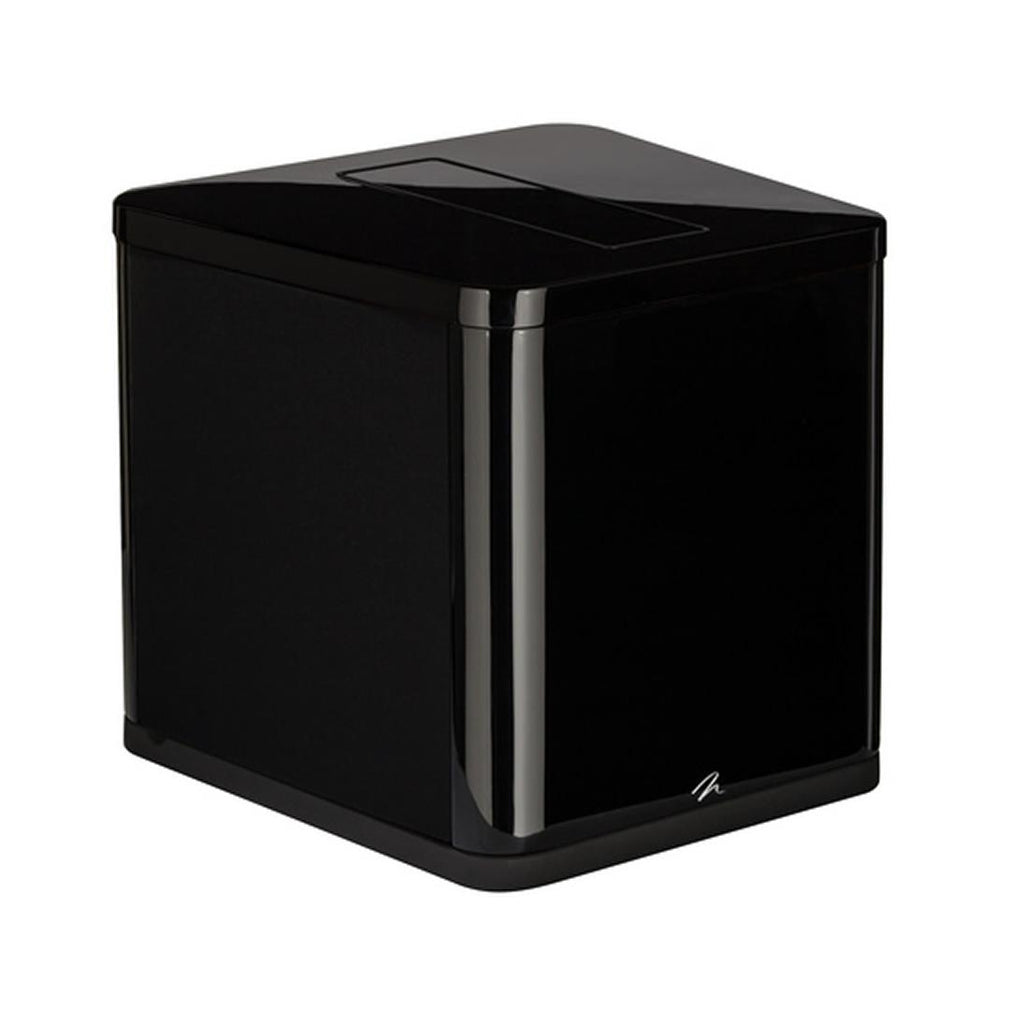

Beautiful Finishes - Sealed Cabinets
Although ports are a convenient and cost-effective way of increasing low-frequency output, their reliance on resonant energy impairs bass quality. The BalancedForce subwoofer's sealed system exhibits less transient-blurring group delay while maintaining smooth, consistent response, regardless of music or movie source material.
Multiple Input Options - Simultaneous LFE and 2-Channel Connections for Seamless System Integration

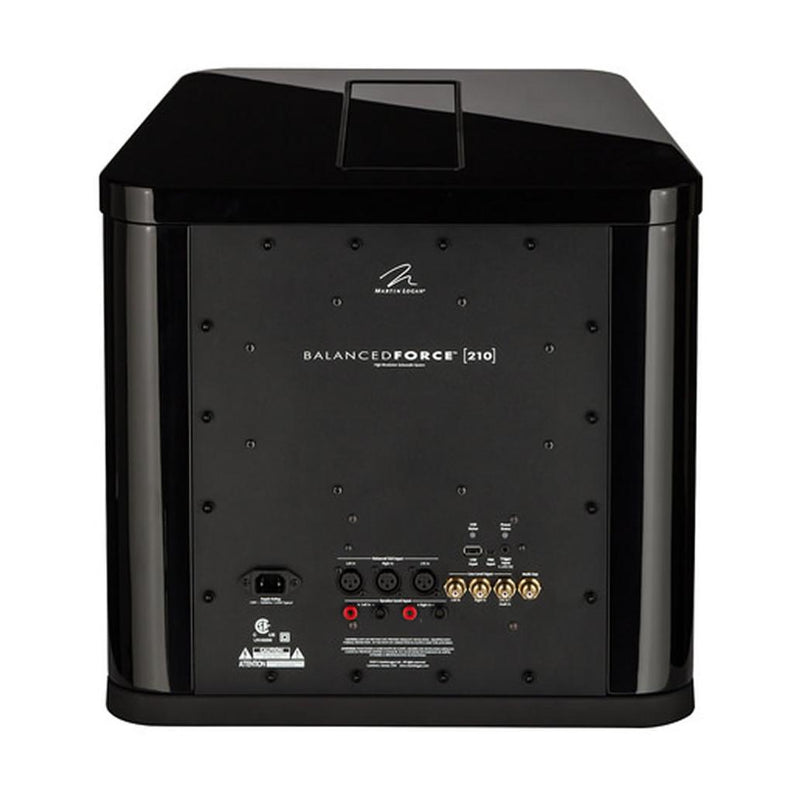

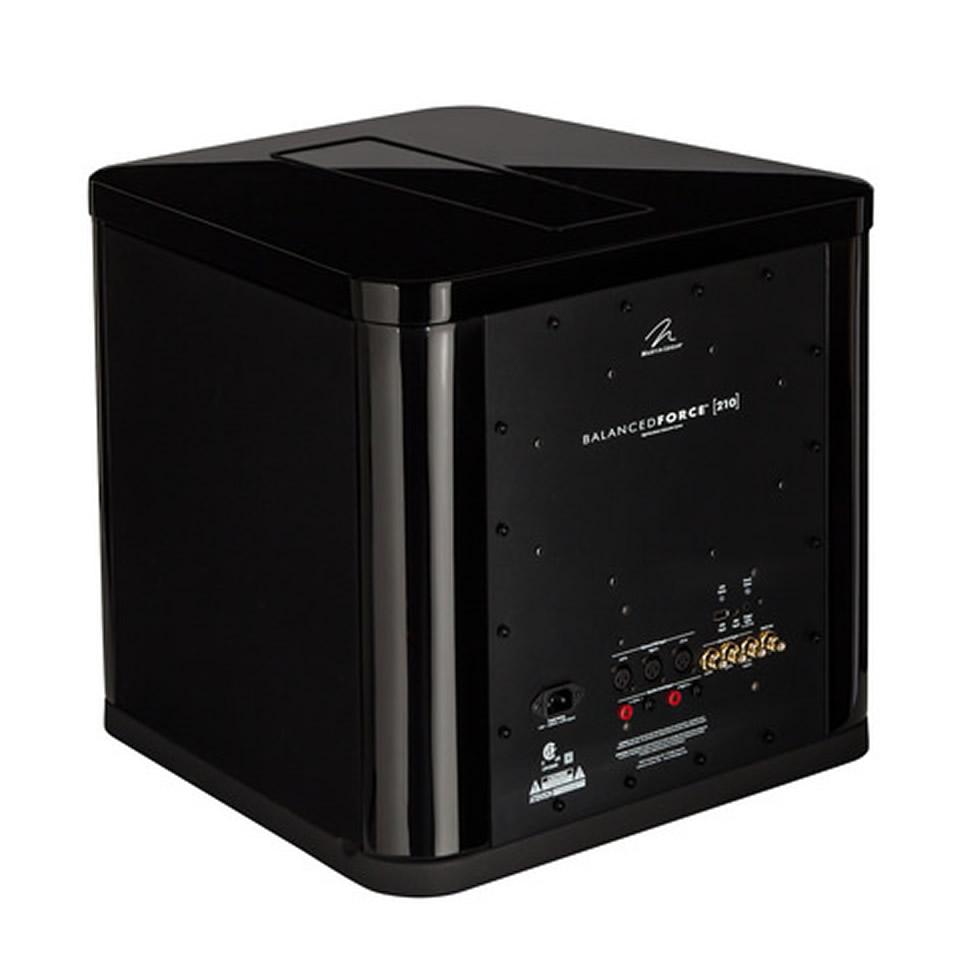

Robust connection and control systems allow simultaneous connection of both 2-channel stereo music and multi-channel home theater and allow each source to have individual crossover and level settings, giving listeners a perfect performance in every application. LFE input via RCA or XLR effectively uses no low-pass filter, leaving crossover control to the processor. Left and right RCA, XLR, and speaker level inputs integrate discrete user-adjustable or speaker specific custom-installed audiophile grade low-pass filters allowing different level and crossover points when playing back two-channel music.
Top Mounted Controls
Top mounted controls are discretely hidden beneath a smoked glass accent panel allowing easy access to fine tune the subwoofer's settings.
Additional Features
Unlimited Adjustements
Access the top-mounted control panel by pushing firmly on the smoked glass panel. You'll find all of your standard subwoofer controls like Level, Low-Pass Filter, and Phase, plus some that are unique to MartinLogan.
A unique tone sweep feature assists users in locating areas in listening rooms where troublesome rattles or resonances may occur. A single press of a button allows listeners to initiate a tone sweep from 120–20Hz. If a rattle or resonance occurs in the room a second press of the button holds the current frequency allowing the listener to investigate and identify the source.
An 'On/Auto (Trigger)/Off' switch controls the subwoofer's energy saving feature. The 'On' setting prevents the sub from entering energy saving mode. When set to 'Auto (Trigger)', the sub will turn on when a music signal is detected and off after several minutes without a signal. If a 12-volt trigger is connected, the triggering device will turn the subwoofer on and off.
Further flexibility is afforded by custom energy transfer coupler (ETC™) spikes, which can enhance stability on thick carpets, or create tighter coupling between subwoofer and floor to enhance overall sound quality.
Specifications
General
Speaker Type
Indoor
Color
Black
Frequency Response
20 Hz - 120 Hz
Number of Drivers
2
Features
Additional Information
• Mini USB (for PBK),
• USB (for crossover & firmware updates)
• 3.5mm input
•
• USB (for crossover & firmware updates)
• 3.5mm input
•
Speakers
Midrange Drivers
2 x 10" (25.4cm) cast-basket, high excursion, aluminum cone with extended throw driver assembly, sealed non-resonant asymmetrical chamber format
Subwoofer
Amplifier Power
850 W
Stereo
Yes
Dimensions
Width
19.1 inch(es) / 48.51 cm
Height
19.1 inch(es) / 48.51 cm
Depth
19.4 inch(es) / 49.28 cm
Weight
43.54 kg (each)
Warranty
Warranty
• 90 Day Warranty coverage
• 3-year Limited warranty in option** **You have the option, at no additional charge, to receive Limited 3-Year Warranty coverage. To obtain the Limited 3-Year Warranty coverage you need to complete and return the Certificate of Registration, included with your subwoofer, and provide a copy of your dealer receipt, to MartinLogan within 30 days of purchase.
• 3-year Limited warranty in option** **You have the option, at no additional charge, to receive Limited 3-Year Warranty coverage. To obtain the Limited 3-Year Warranty coverage you need to complete and return the Certificate of Registration, included with your subwoofer, and provide a copy of your dealer receipt, to MartinLogan within 30 days of purchase.
