Features
MDR2.0 - Source Type
AM/FM/Bluetooth® Radio allows all access to radio stations and content from Bluetooth enabled devices.
Bluetooth® Connect
Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
Additional Features
Marine Grade Protection / IPX Rating
Meets or exceeds IPX5 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors.
Apple® Control
Quick control and access of iTunes collection with iPhone, iPod and iPad.
Secure Simple Pairing™
Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.
Quick-Pair™
No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY.
Built-In Power
Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.
Specifications
General
Maximum Power
• Source Unit RMS Power Output (watts): 4 x 20
• Source Unit Peak Power Output (watts): 4 x 40
• Source Unit Peak Power Output (watts): 4 x 40
RMS Power
20 W
Volume Control
Button Press
Compatibility
Bluetooth
Yes
Features
Technologies
• Marine Grade Protection / IPX Rating
• Apple® Control
• Bluetooth
• Secure Simple Pairing™
• Quick-Pair™
• Apple® Control
• Bluetooth
• Secure Simple Pairing™
• Quick-Pair™
Additional Information
• IPX Rating: IPX5

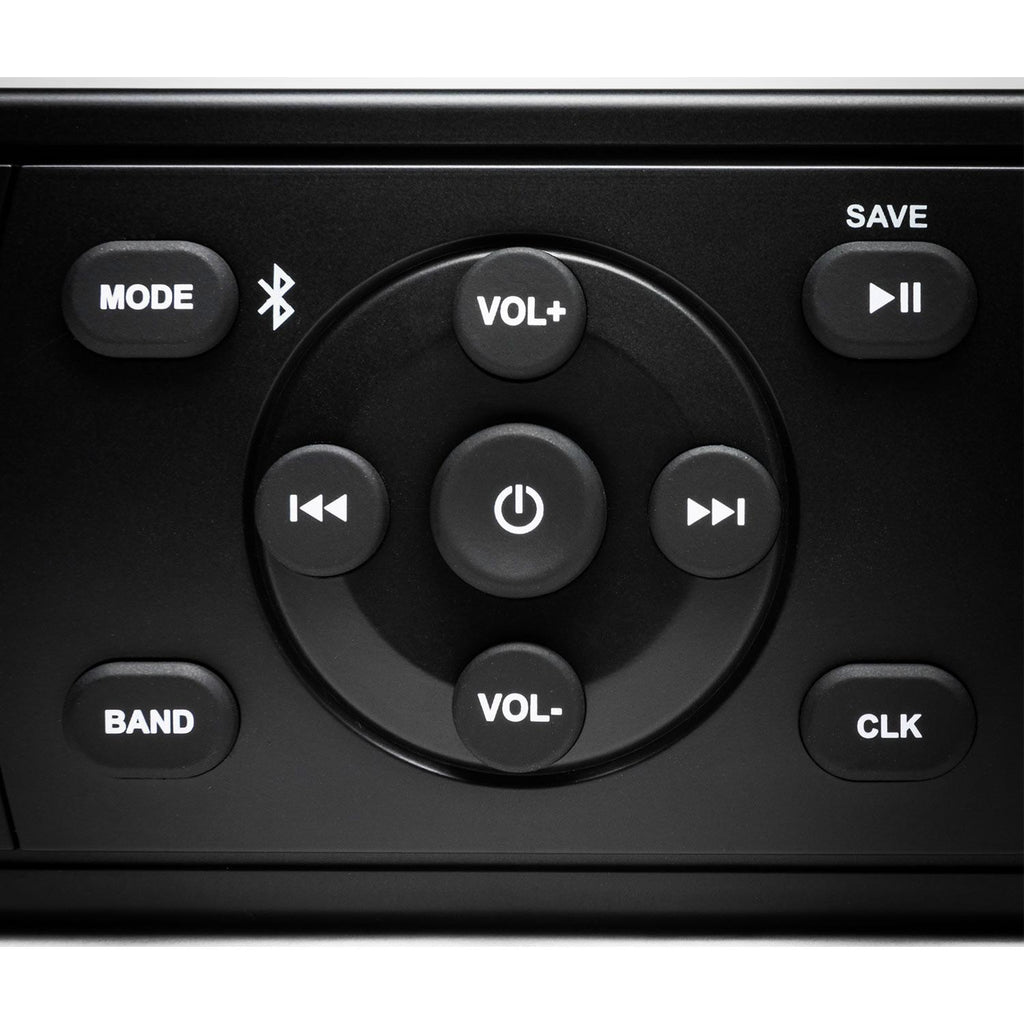

• 9 control buttons on faceplate
• Source Unit Tuner Section FM Stereo Frequency Range: 87.5MHz-108MHz
• Source Unit Tuner Section S/N Ratio: > 55dB
• Source Unit Bluetooth Range (ft): 32
• Source Unit S/N @1W: 81.2dBA
• 4 ohms
• Source Unit Display Type: LCD
• Source Unit Dimensions Mounting Hole (in): 7.0 x 2.0
• Source Unit Dimensions Total Mounting Depth (in): 4.0
• 9 control buttons on faceplate
• Source Unit Tuner Section FM Stereo Frequency Range: 87.5MHz-108MHz
• Source Unit Tuner Section S/N Ratio: > 55dB
• Source Unit Bluetooth Range (ft): 32
• Source Unit S/N @1W: 81.2dBA
• 4 ohms
• Source Unit Display Type: LCD
• Source Unit Dimensions Mounting Hole (in): 7.0 x 2.0
• Source Unit Dimensions Total Mounting Depth (in): 4.0

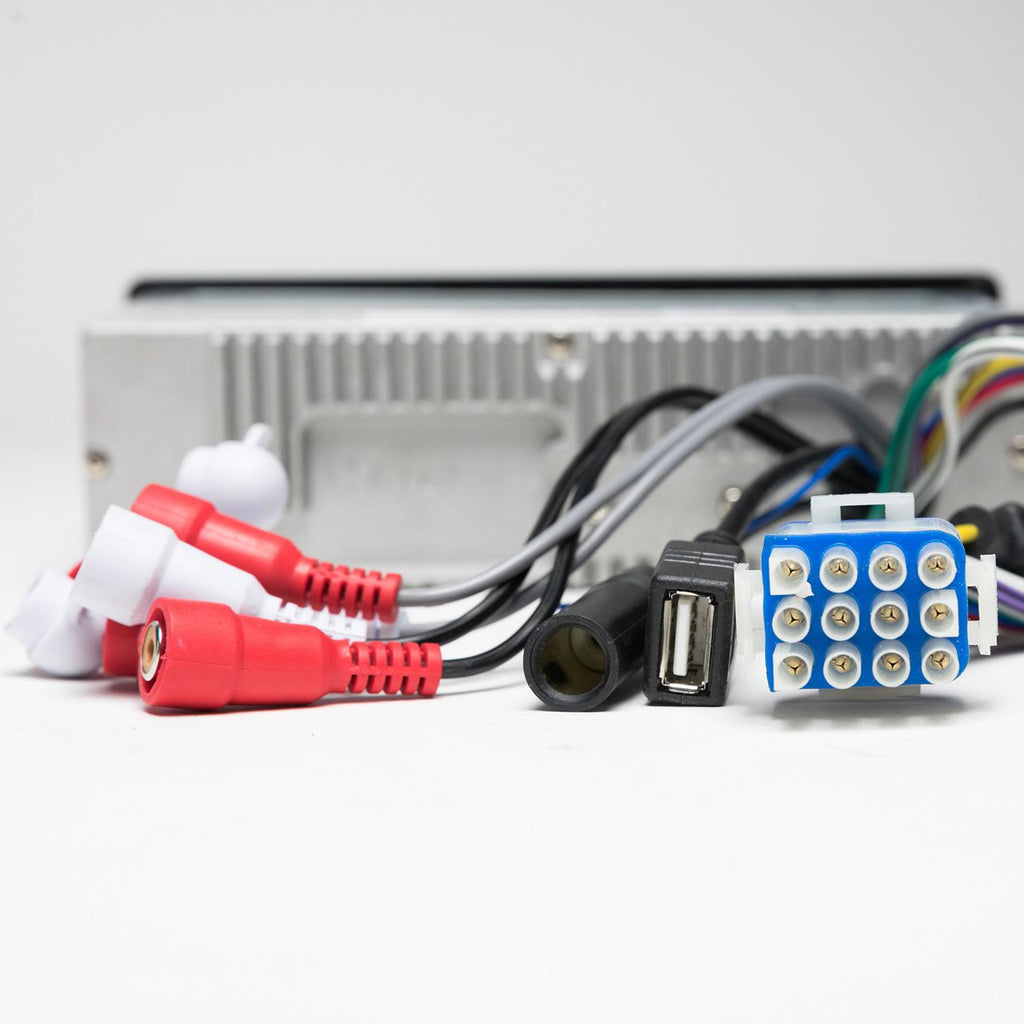

Inputs/Outputs
Pre-Outs Voltage
4.0 V
Pre-Out(s)
Source Unit Pre-amp Outputs: 1 Pair
USB Input
Yes
Warranty
Warranty
1 Year
