Features
DCS-208IW3 Easy to Install, Anywhere

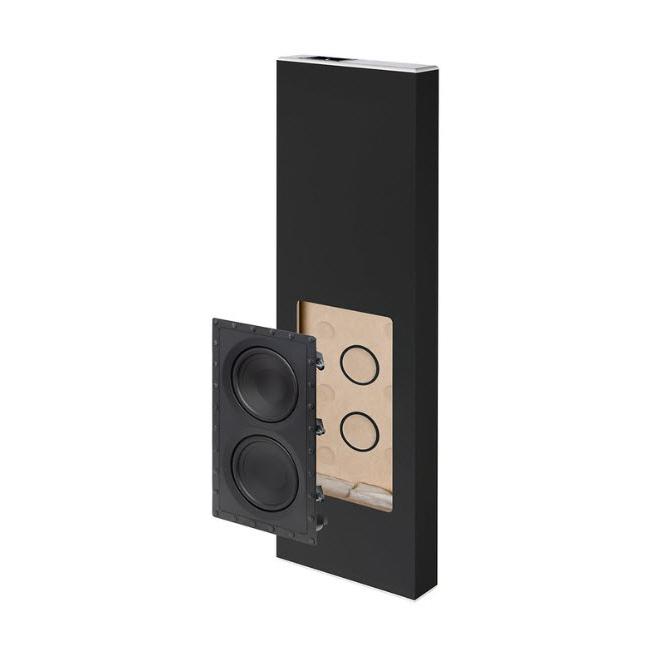

DCS-208IW3 gives you flexible installation options. Opt to use it in its default open wall cavity configuration and you have an affordable, easily retrofittable subwoofer solution. For those desiring increased control, the optional BX-208 acoustic backbox provides a large enclosure volume to let the DCS-208IW3 stretch its legs while providing acoustic control to reduce sound transmission through the wall.
DCS-208IW3 Proven Paradigm Performance

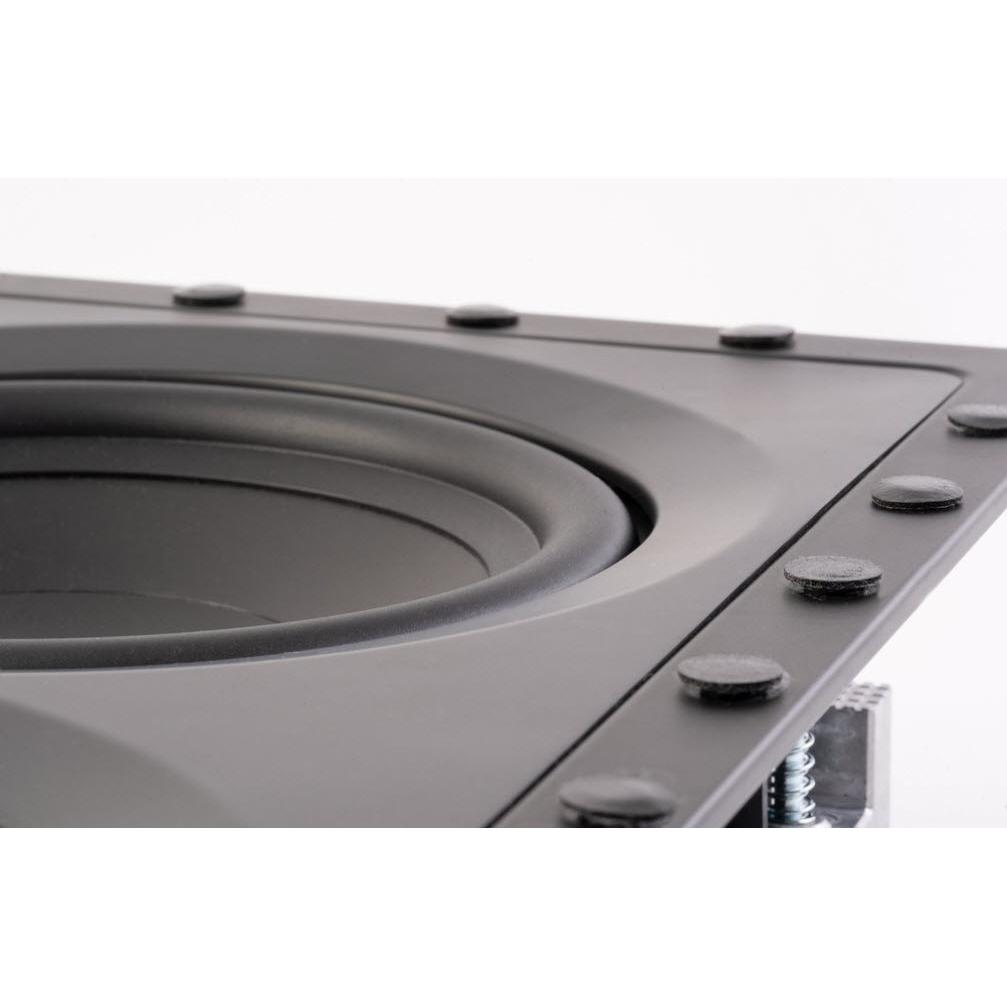

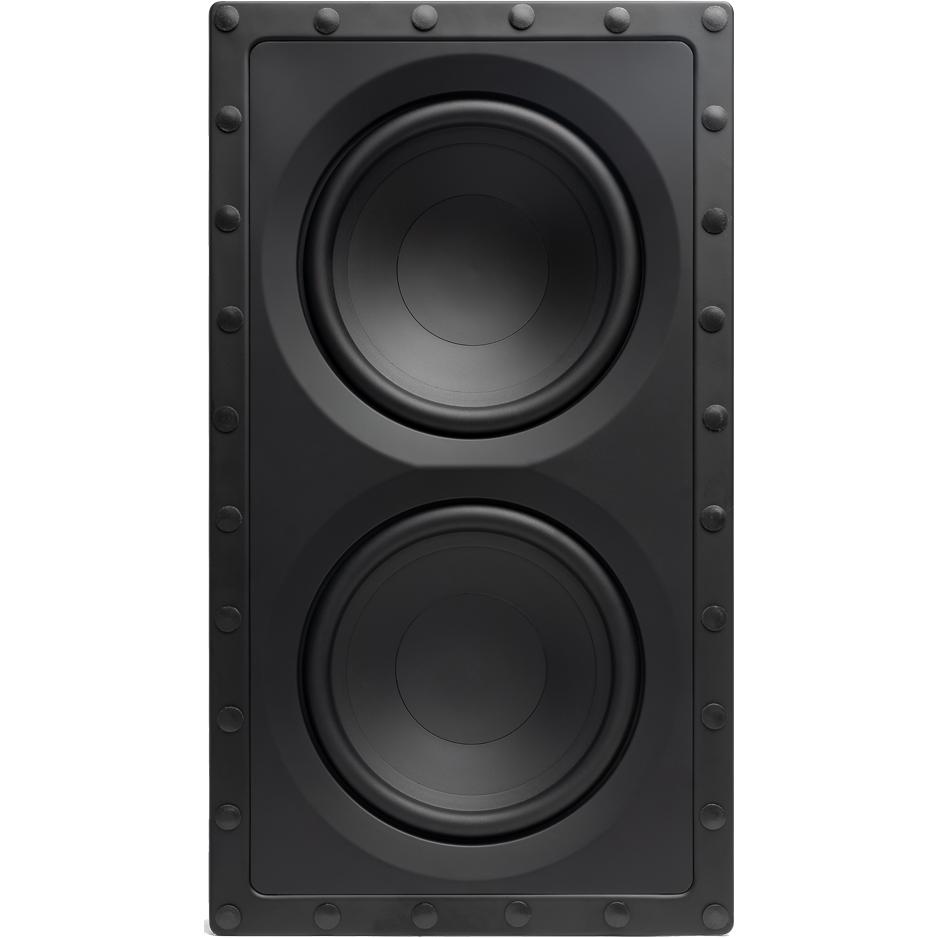

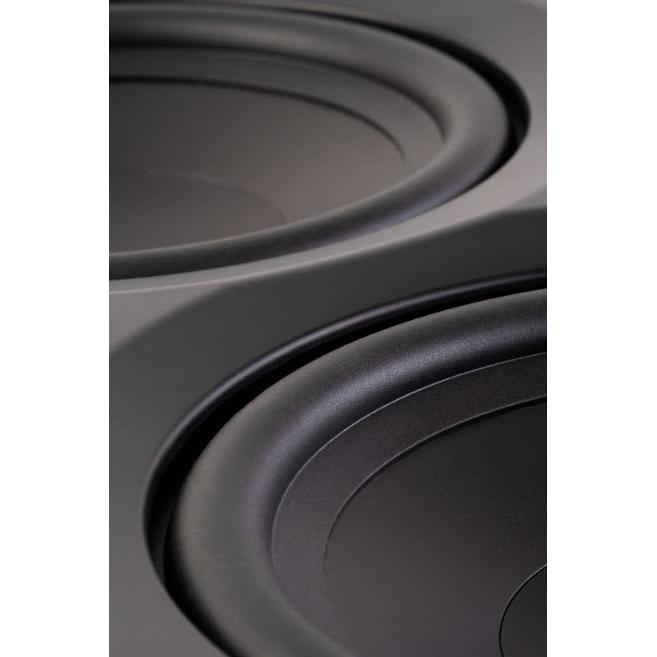

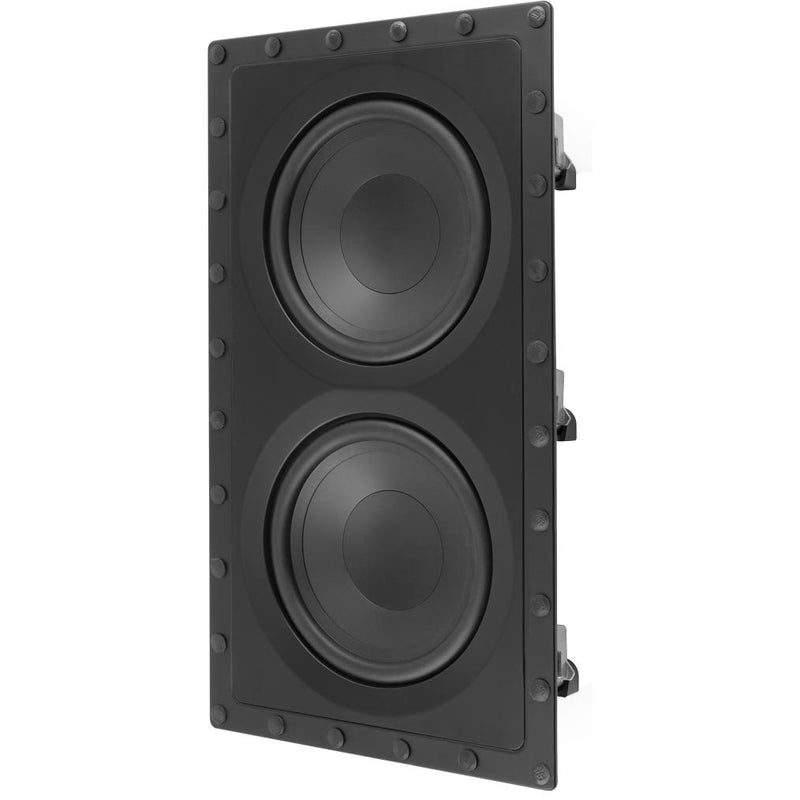

Purpose-built for high output from a compact enclosure, with high-efficiency and low distortion. The dual, 8” High-Excursion Carbon-Fiber-Reinforced Polypropylene woofers have a larger surface area than a 10” sub for powerful, accurate bass. The optional enclosure ensures consistent performance in any application while reducing sound transmission to other areas of the home.
DCS-208IW3 Distributed Audio Meets Its Match
The DCS-208IW3 can easily be driven off the bridged output of an Anthem® MDX for distributed audio systems, allowing you to take advantage of the MDX’s robust bass management, DSP profiles, and advanced ARC Genesis room correction for optimized performance in any environment.
DCS-208IW3 Performance and Practicality All-In-One

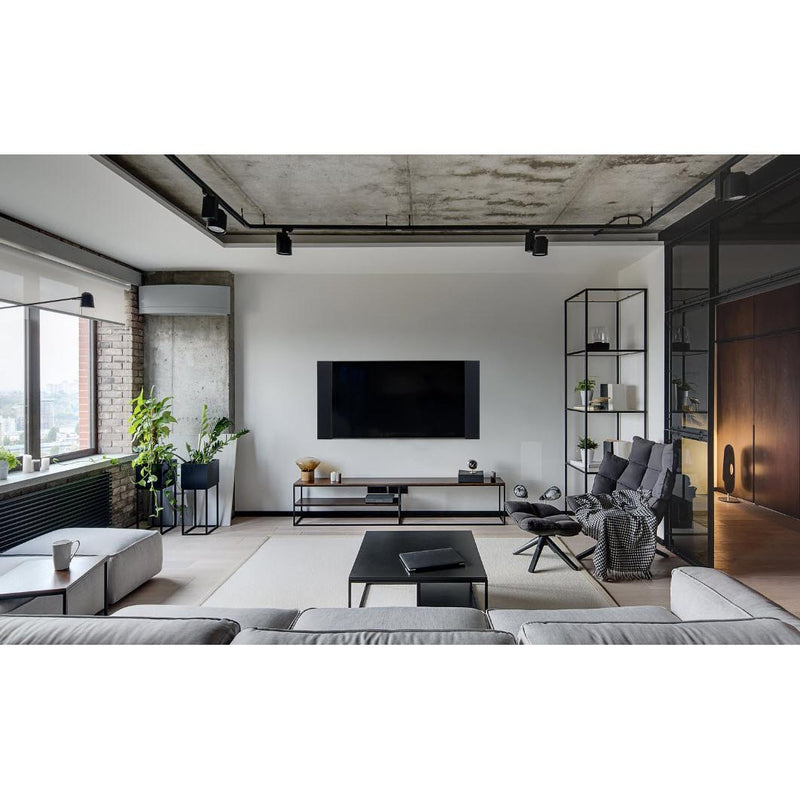

• The Paradigm DCS-208IW3, the perfect blend of performance and practicality. With powerful bass and zero-footprint, you get the best of both worlds, allowing you to add bass to any room without taking up valuable floor space.
• Other Features:

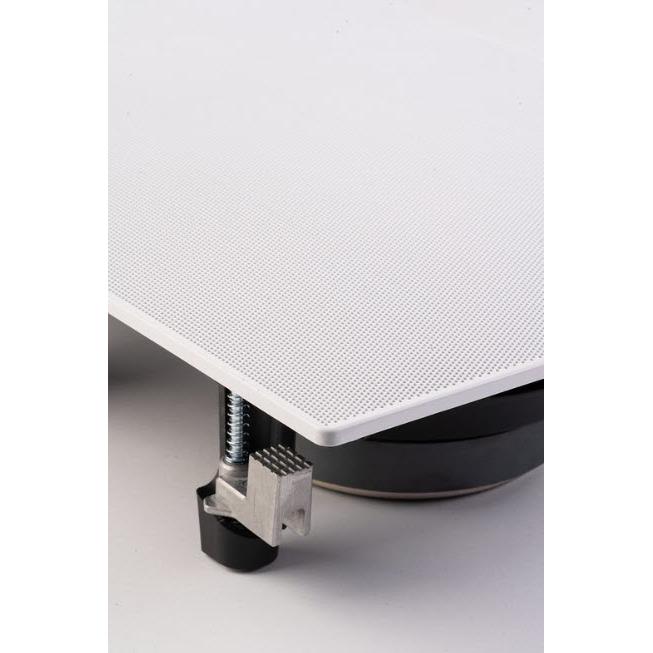

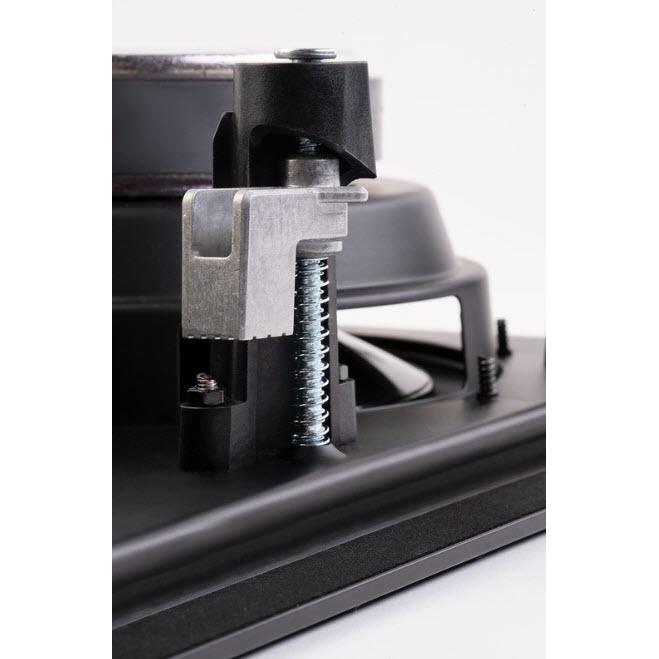

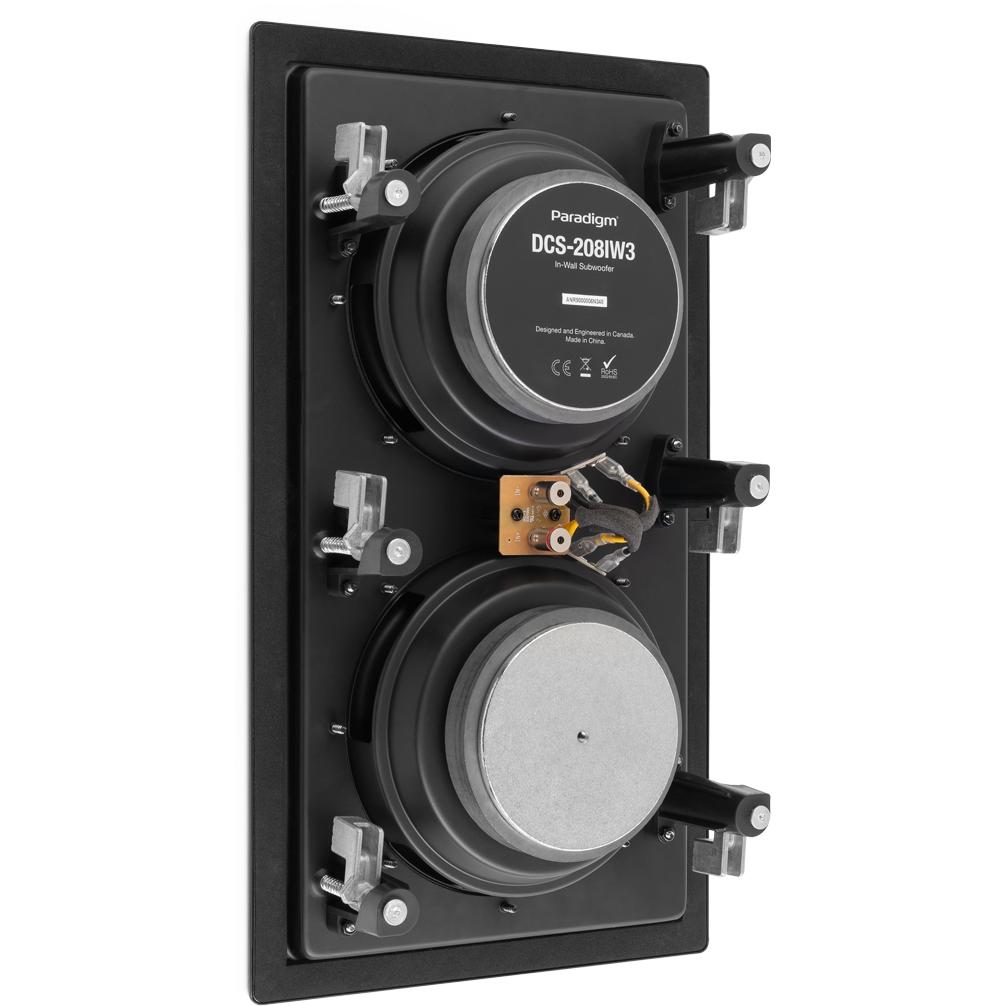

• Ultra Rigid Stamped Steel chassis and baffles and die-cast aluminum clamps add strength and rigidity for better bass performance, along with a more durable installation.

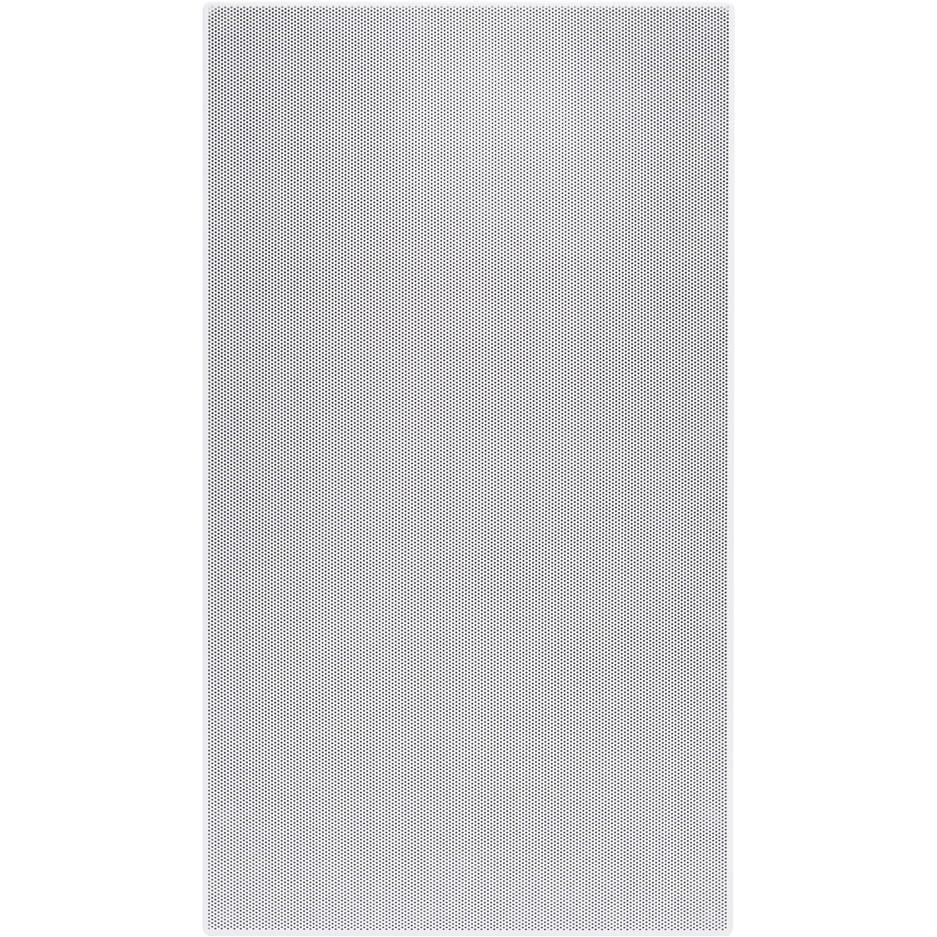

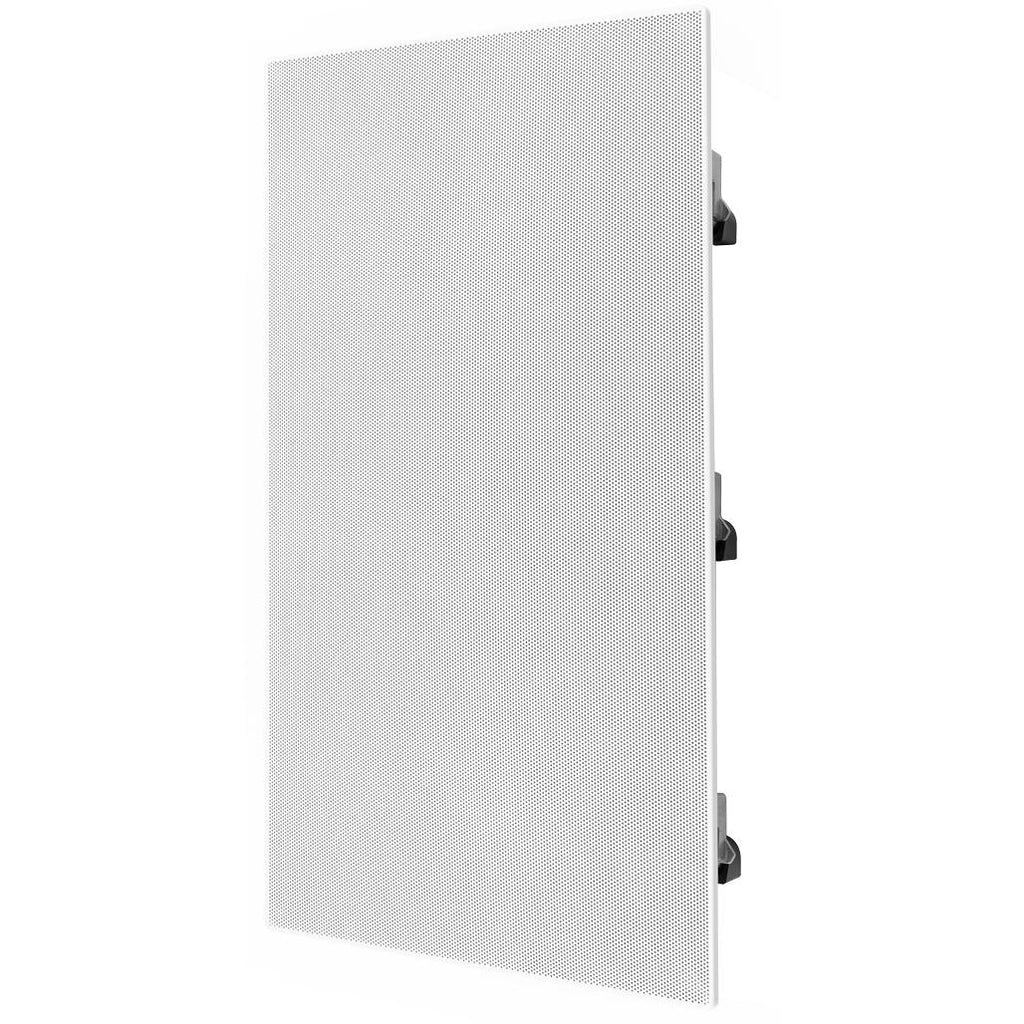

• Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

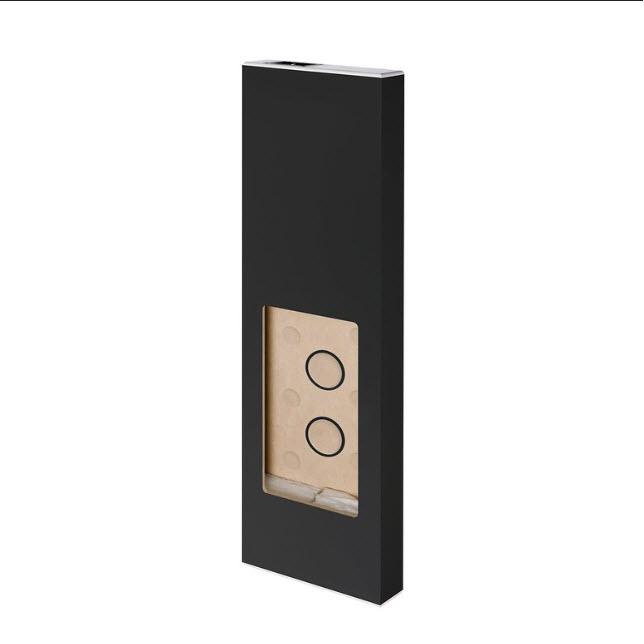

• Optional Acoustic Back-box Enclosure for an easy and predictable performance install safeguards internal parts from debris while preventing added sound ‘spillage’ to adjacent rooms. The optional back-box enclosure also ensures consistent and reliable performance from application to application.

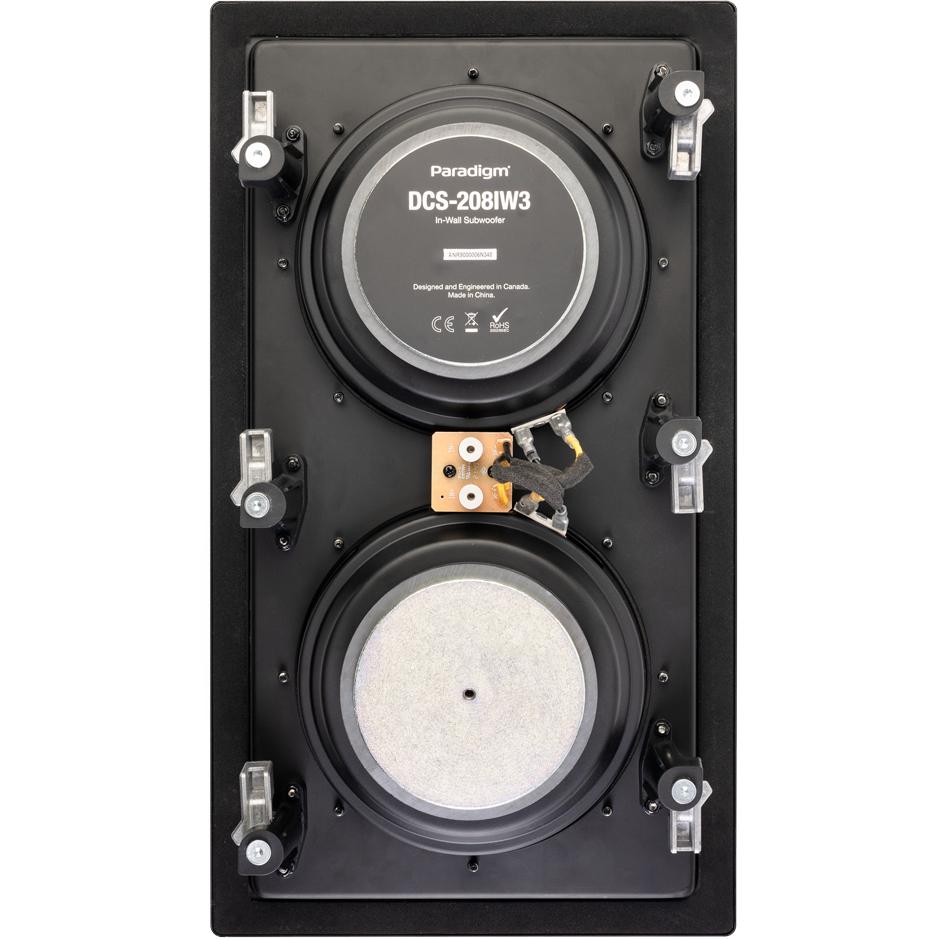

• Nickel-plated, spring-loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.
• Other Features:
• Ultra Rigid Stamped Steel chassis and baffles and die-cast aluminum clamps add strength and rigidity for better bass performance, along with a more durable installation.
• Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
• Optional Acoustic Back-box Enclosure for an easy and predictable performance install safeguards internal parts from debris while preventing added sound ‘spillage’ to adjacent rooms. The optional back-box enclosure also ensures consistent and reliable performance from application to application.
• Nickel-plated, spring-loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.
DCS-208IW3 In-Room or In-Wall, How about both?

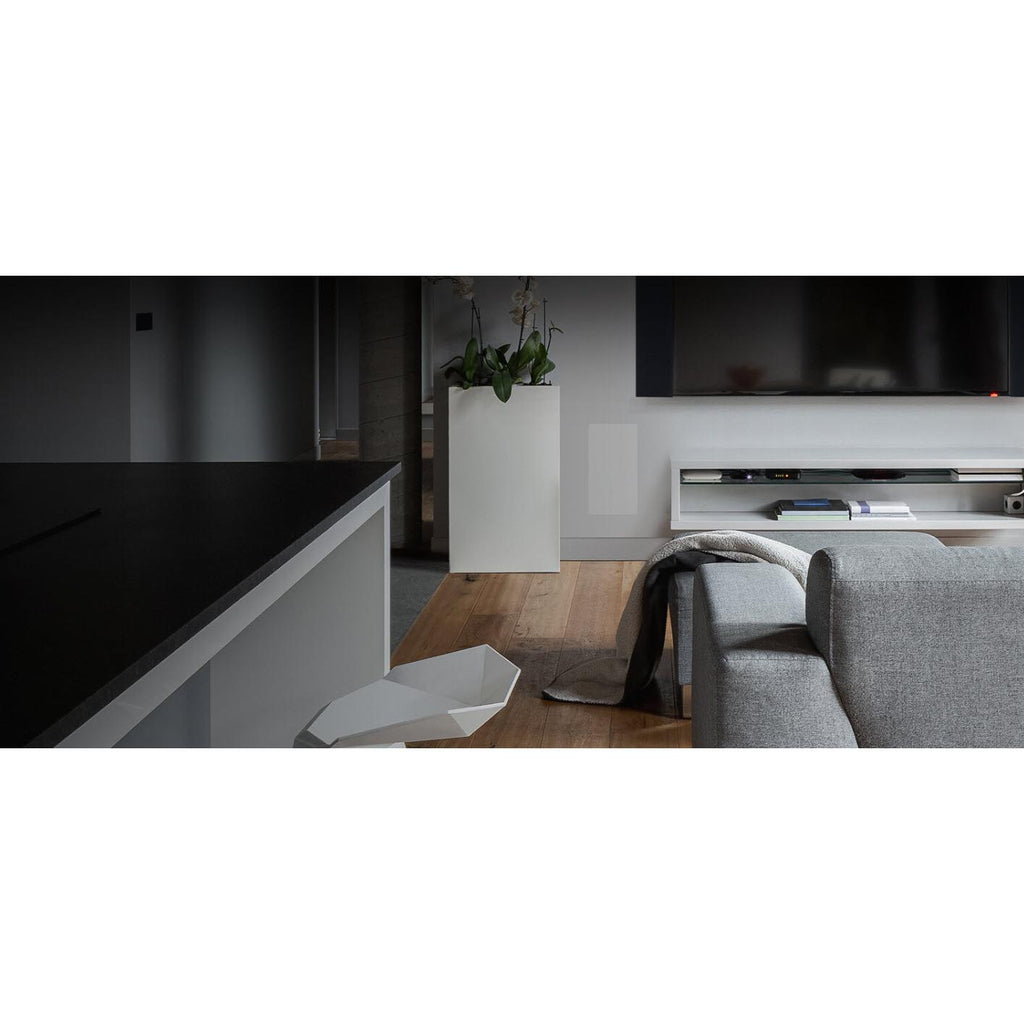

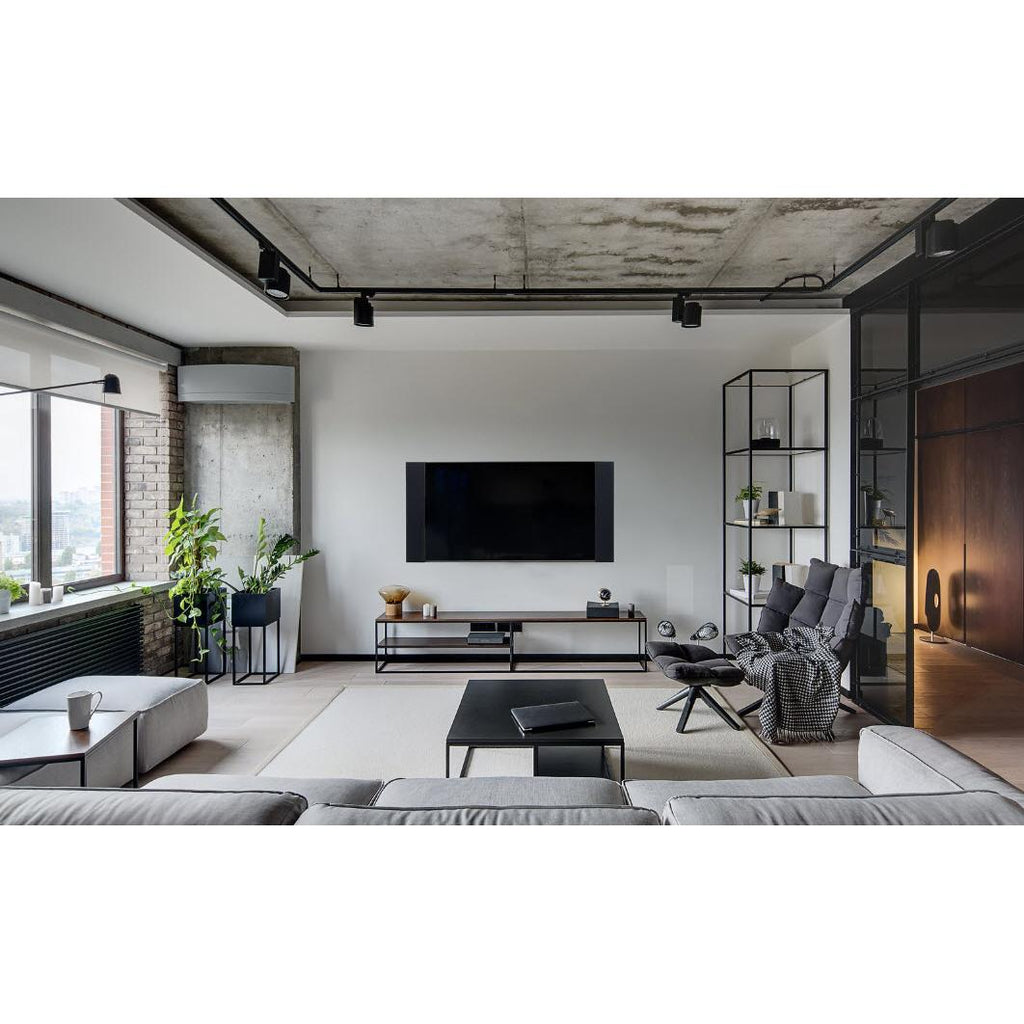

The DCS-208IW3 is the first in-wall model in the highly acclaimed Defiance series. The latest Defiance in-wall brings the performance of Defiance subs to more rooms than ever before. With a minimalist look, the Paradigm DCS-208IW3 is the perfect way to bring home proven Paradigm bass performance without compromise. Bass they’ll remember, with a look they’ll forget.
DCS-208IW3 Flexibility is Everything
The DCS-208IW3 is compatible with the Paradigm X-300 subwoofer amplifiers. Custom DSP profiles maximize subwoofer performance, while onboard Anthem Room Correction (ARC®) optimizes the response for any environment. Whatever the application, you can be sure the DCS-208 will deliver.
PARTNERED WITH THE NRC
Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.
Specifications
General
Series
Performance
Speaker Type
Indoor
Color
White
Manufacturer Color
White, Paintable
Frequency Response
=+/-3dB from 30->190 Hz
Amplifier Recommended Range
50-800W
Power Handling
400 W
Features
Additional Information
• Low Frequency Extension: 25 Hz (DIN)
• Internal Volume: 88L "standard" wall cavity (26L when installed in optional backbox)
• Cut-Out Dimensions: 18" x 9-5/8" (45.7cm x 24.5cm)
• Minimum Mounting Depth: 3-1/2" (8.9cm)
• Mounting Dimensions: 19-1/8" x 10-3/4" x 3-1/2" (48.5cm x 27.2cm x 8.9cm)
• Internal Volume: 88L "standard" wall cavity (26L when installed in optional backbox)
• Cut-Out Dimensions: 18" x 9-5/8" (45.7cm x 24.5cm)
• Minimum Mounting Depth: 3-1/2" (8.9cm)
• Mounting Dimensions: 19-1/8" x 10-3/4" x 3-1/2" (48.5cm x 27.2cm x 8.9cm)
Speakers
Bass Drivers
Two 8" (210-mm) CFP™ carbon-fiber-reinforced polypro- pylene cones, 1-1/2" (38-mm) voice coils, over-molded TPRTM surrounds, 1-1/2" (38-mm) 8-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures
Dimensions
Width
10.73 inch(es) / 27.25 cm
Height
19.11 inch(es) / 48.54 cm
Depth
3.5 inch(es) / 8.89 cm
Weight
12.11 kg (each)
