Features
AL-MAC™ High-Frequency Driver
The Founder’s tweeter is a 1" (25mm) Aluminum Magnesium Ceramic (AL-MAC™) dome with a proprietary Oblate Spherical Waveguide (OSW™) and a Perforated Phase-Aligning (PPA™) Lens.
AL-MAG™ Midrange Driver
The Founder’s midrange is a 6" (152mm) Aluminum Magnesium (AL-MAG™) cone with Perforated Phase-Aligning (PPA™) Lens, Advanced SHOCK-MOUNT™ Isolation Mounting System, and a 2” high-temp multi-layered voice coil with ventilated Apical™ former.
Ultra-High-Excursion CARBON-X Unibody Bass Driver
The Founder’s Bass driver is a 6” (152mm), 7” (177mm) or 8” (215mm) Ultra-High-Excursion Unibody CARBON-X™ Cone, over-molded Gen3 Active Ridge Technology (ART™) Surround with Vertical Mounting System, Advanced SHOCK-MOUNT™ Isolation and a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former.
ADVANCED Shock-Mount™ Feet
Founder Floorstanding Speakers include Advanced Shock-Mount™ Feet which decouple the cabinet from the floor, not just once, but twice, for extremely effective vibration decoupling. Interchangeable hardware is included for both carpet and hard surfaces. The feet can be adjusted from above to level the cabinet with ease.
ADVANCED Shock-Mount™ System
The Founder Series midrange and bass drivers are mechanically decoupled from the front baffle by our Advanced SHOCK-MOUNT™ Isolation Mounting System. This special mounting hardware uses an elastomer suspension to prevent any transfer of vibration from the driver to the cabinet, and from the cabinet to the driver. By eliminating resonance, the driver is free to render sound purely and efficiently with no audible distortion and maximum clarity.
Dual-Sync™ Continuous Flux Motor
The Founder’s new coaxial midrange driver found on the center channel models, employs OSW™’s oblate spheroid shape with a coaxially mounted tweeter. It maintains detail and sonic focus within the broad and deep sound stage by acting as the waveguide for the tweeter, making its dispersion characteristics ideal for any listening space. Our patented Dual-Sync™ Continuous Flux Motor has taken away the limitations of combined magnet structures as well as having a full-sized, low-distortion and higher output midrange tweeter combination while maintaining a relatively low height for the center channel cabinet, allowing for greater placement flexibility.

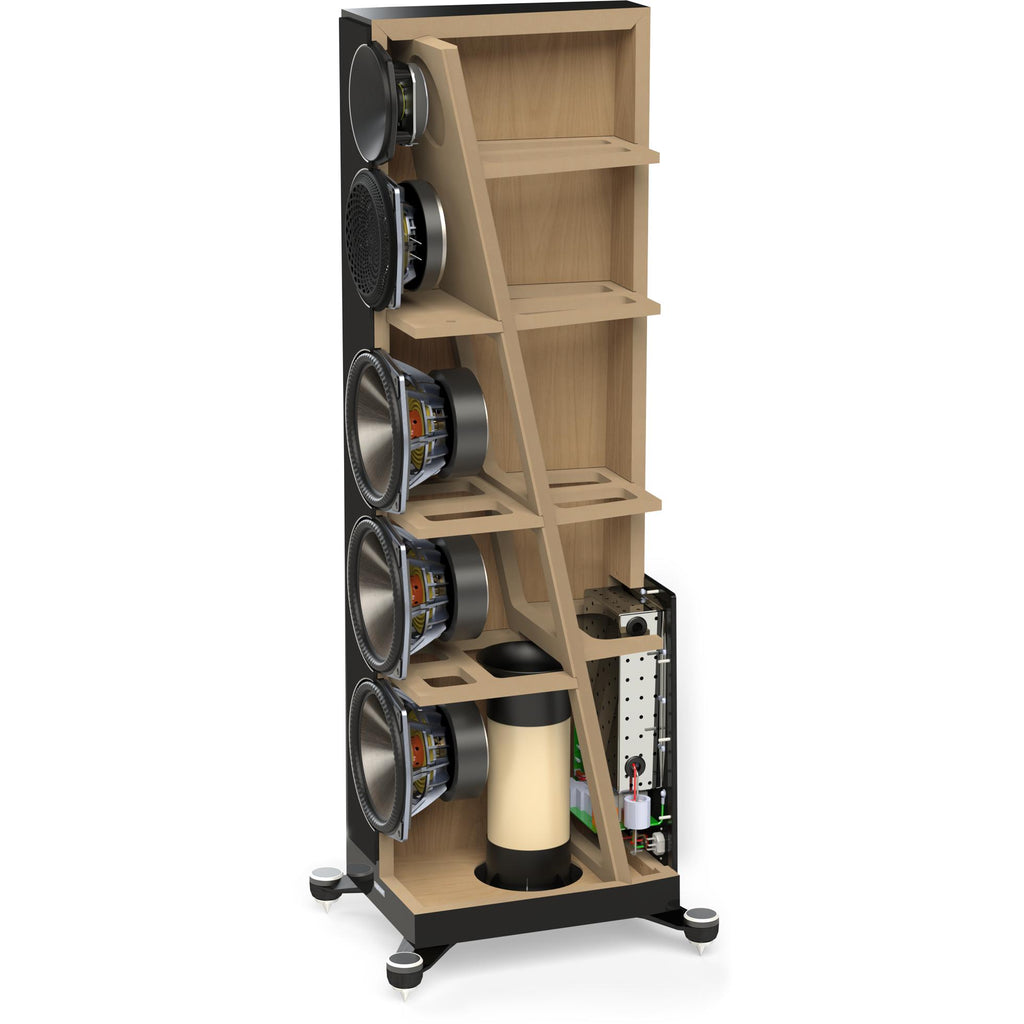

Cascade-Fusion Bracing
Cascade-Fusion Bracing inside Founder Series’ faceted cabinets increase rigidity and break up standing low-frequency waves. This delivers much tighter bass with greater clarity and accuracy. All bracing is extensively reinforced, making the cabinet into a monolith stronger than the sum of its parts. The inherent strength of the geometric cabinet profile distributes the load points across a larger cabinet area providing greater support and rigidity than can be achieved with traditional square cabinet geometry.
Specifications
General
Series
Founder
Speaker Type
Indoor
Color
Cherry
Manufacturer Color
Midnight Cherry
Frequency Response
• On-Axis: ±2dB from 42 Hz - 23 kHz
• 30° Off-Axis: ±2dB from 42 Hz - 20 kHz
• 30° Off-Axis: ±2dB from 42 Hz - 20 kHz
Sensitivity
• Room: 93 dB
• Anechoic: 90 dB
• Anechoic: 90 dB
Amplifier Recommended Range
15 watts - 350 watts
Impedance
8 ohms
Number of Drivers
5
Speakers
High-Frequency Drivers
1" (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled
Midrange Drivers
6" (152mm) AL-MAG™ Cone with Perforated Phase-Aligning (PPA™) Lens, SHOCKMOUNT ™ Isolation Mounting System, and a 2" high-temp multi-layered voice coil with ventilated Apical™ former
Bass Drivers
Three 7" (177mm) Ultra-High- Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, Advanced SHOCK-MOUNT™ Isolation, and a 1.5" high-temp multi-layered voice coil with ventilated Apical™ former
Crossover Information
2nd order electro-acoustic at 2.1 kHz (tweeter), 2nd order @ 500 Hz (bass)
Dimensions
Width
12.9 inch(es) / 32.77 cm
Height
41.9 inch(es) / 106.43 cm
Depth
16.1 inch(es) / 40.89 cm
Weight
32.66 kg (each)
Warranty
Warranty
5 Years
