Features

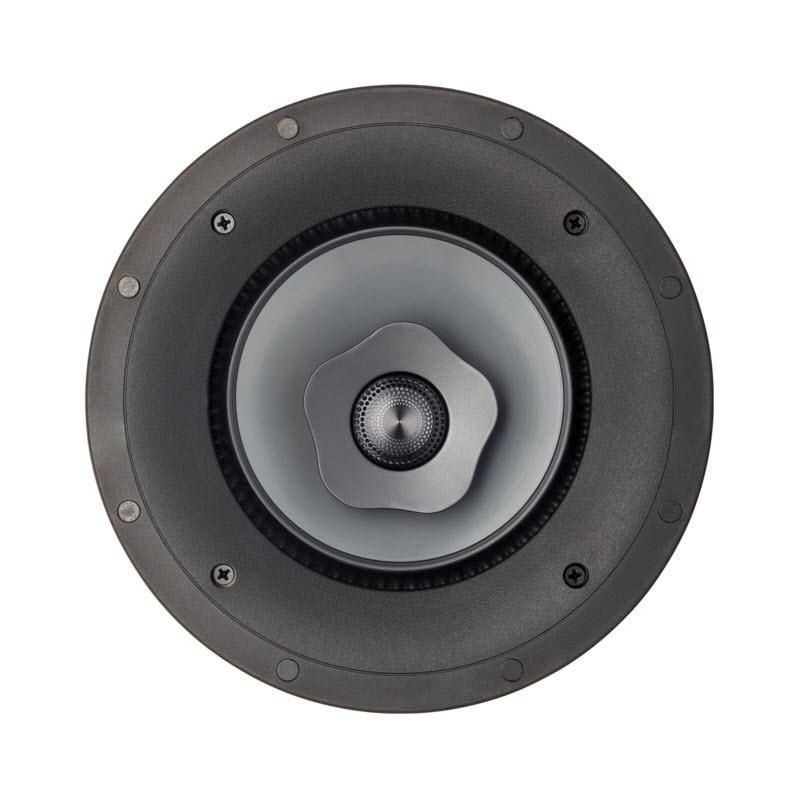

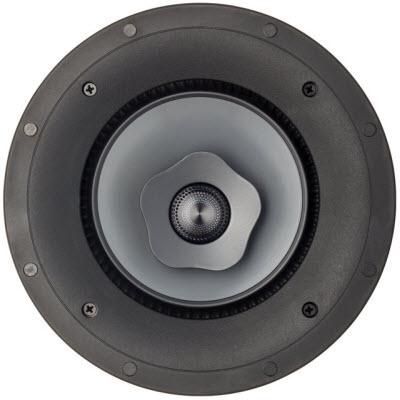

REDUCED EDGE DIFFRACTION (RED™) TECHNOLOGY
RED™ Technology (patent pending) is a die-cast aluminum tweeter housing that significantly reduces negative effects of diffraction while improving critical midrange frequencies. The irregular edges and off-center placement break up standing waves typically found around the woofer cone and tweeter housing of traditional designs. Additionally, the aluminum structure dissipates unwanted heat which increases power handling and allows a lower crossover frequency, improving sound and reducing distortion
Advanced Features for a Solid and Secure Installation

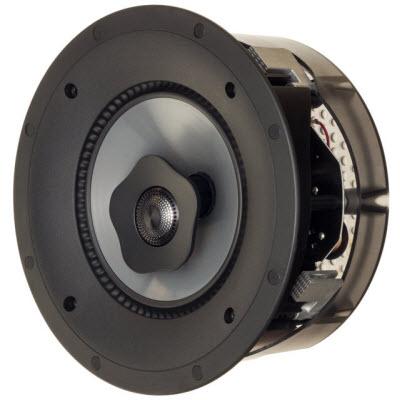

Die-cast aluminum chassis, baffles and clamps
Die-cast aluminum chassis, baffles and clamps add strength and rigidity for better bass and midrange, along with a more durable installation.

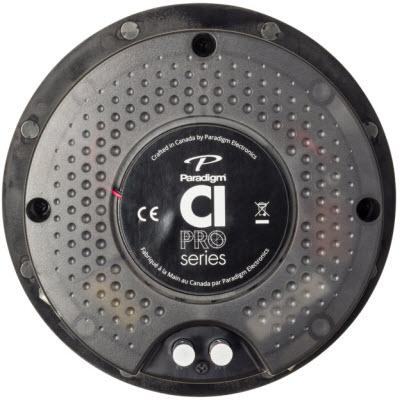

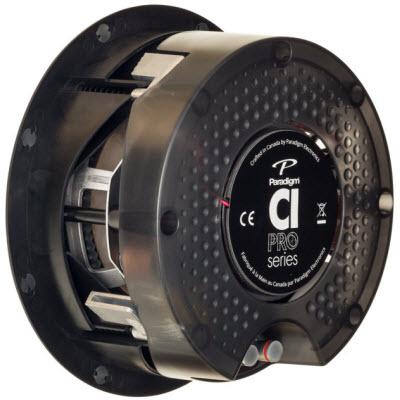

Rear Component Shielding
Rear Component Shielding protects internal parts from debris. The translucent polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.

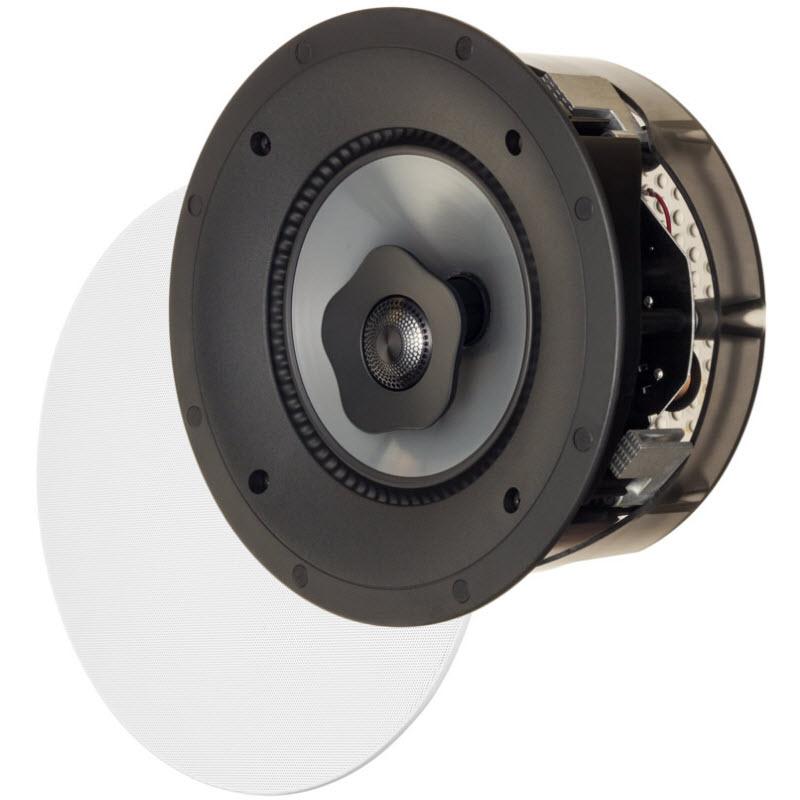

Bezel-Free Micro-Perf Grilles.
• Pocketed screw holes help to hold the drill steady, making installation a snap
• Magnetically attached grilles: neodymium magnets hold grilles firmly in place

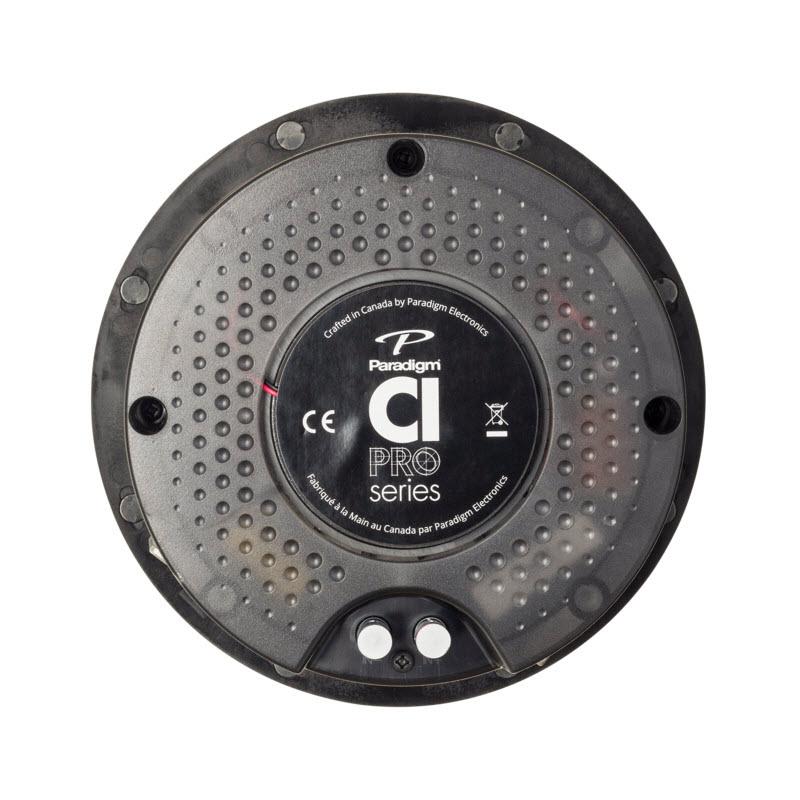

Nickel-plated, spring loaded binding posts
Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs
Premium-grade components
Premium-grade components include high-power rated resistors capacitors and heavy gauge wire inductors.
Die-cast aluminum chassis, baffles and clamps add strength and rigidity for better bass and midrange, along with a more durable installation.
Rear Component Shielding
Rear Component Shielding protects internal parts from debris. The translucent polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.
Bezel-Free Micro-Perf Grilles.
• Pocketed screw holes help to hold the drill steady, making installation a snap
• Magnetically attached grilles: neodymium magnets hold grilles firmly in place
Nickel-plated, spring loaded binding posts
Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs
Premium-grade components
Premium-grade components include high-power rated resistors capacitors and heavy gauge wire inductors.
A Behind-the-Ceiling Look at the Die-Cast Aluminum Clamps
Without any unnecessary pressure or force, each turn of the screwdriver turns the clamp. We show the starting point, we show the screwdriver working to turn the clamp, and finally, we show the speaker locked into place inside the wall or ceiling. It doesn't get simpler or easier!
A Solid Installation
The high-strength die-cast aluminum chassis and clamp system address the flexibility problem that plagues all walls and ceilings. Chassis stiffness combats unwanted resonances and vibrations, and equally important, the new clamp design makes the installer's job easier and faster! Simply push the speaker into the ceiling or wall and screw it in.
Specifications
General
Speaker Type
Indoor
Color
Paintable
Frequency Response
75 Hz - 22,000 Hz
Sensitivity
91.5 dB
Amplifier Recommended Range
15 watts - 100 watts
Impedance
8 ohms
Number of Drivers
2
Features
Additional Information
• In-ceiling round
• 2-driver, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
• Pocketed screw holes help to hold the drill steady, making installation a snap
• Magnetically attached grilles: neodymium magnets hold grilles firmly in place
• 2-driver, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
• Pocketed screw holes help to hold the drill steady, making installation a snap
• Magnetically attached grilles: neodymium magnets hold grilles firmly in place
Speakers
High-Frequency Drivers
1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Midrange Drivers
6.5" (16.5cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis
Crossover Information
2nd-order electro-acoustic at 2,500 Hz
Dimensions
Width
8.75 inch(es) / 22.23 cm
Depth
3.5 inch(es) / 8.89 cm
Weight
2.59 kg (each)
Warranty
Warranty
5 years
