Features
High-Quality Components Make An Audible Difference
Superior PTD™ Pure-Titanium Tweeter Domes
Superior PTD™ Pure-Titanium Tweeter Domes are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area
• Pocketed screw holes help to hold the drill steady, making installation a snap
• Easy-access Binding Posts feature a larger wire access hole and connect via banana plug, pin or bare wire
Rigid ABS clamps
Rigid ABS clamps cut down on installation time and simplifying installation
Superior Mineral-Filled Polypropylene Bass/Midrange Cones
Superior Mineral-Filled Polypropylene Bass/Midrange Cones with oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass. Even movie dialog is incredibly clean and clear
Bezel-Free Micro-Perf Grilles.
• Magnetically attached grilles: neodymium magnets hold grilles firmly in place
No masking required
No masking required—this makes the grilles faster and easier to paint, if painting is desired
Superior PTD™ Pure-Titanium Tweeter Domes are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area
• Pocketed screw holes help to hold the drill steady, making installation a snap
• Easy-access Binding Posts feature a larger wire access hole and connect via banana plug, pin or bare wire
Rigid ABS clamps
Rigid ABS clamps cut down on installation time and simplifying installation
Superior Mineral-Filled Polypropylene Bass/Midrange Cones
Superior Mineral-Filled Polypropylene Bass/Midrange Cones with oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass. Even movie dialog is incredibly clean and clear
Bezel-Free Micro-Perf Grilles.
• Magnetically attached grilles: neodymium magnets hold grilles firmly in place
No masking required
No masking required—this makes the grilles faster and easier to paint, if painting is desired

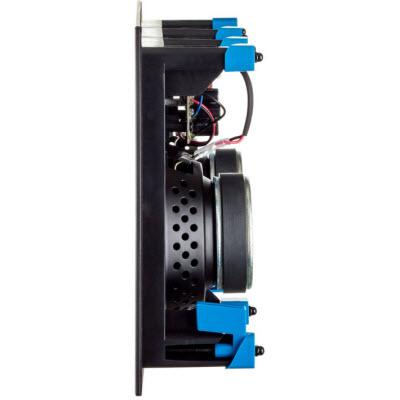

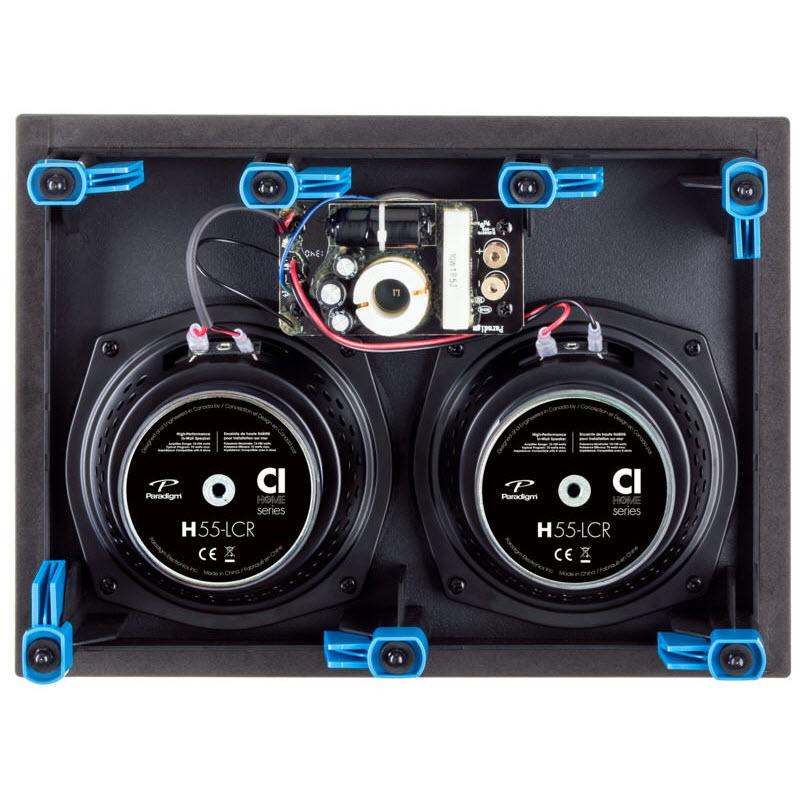

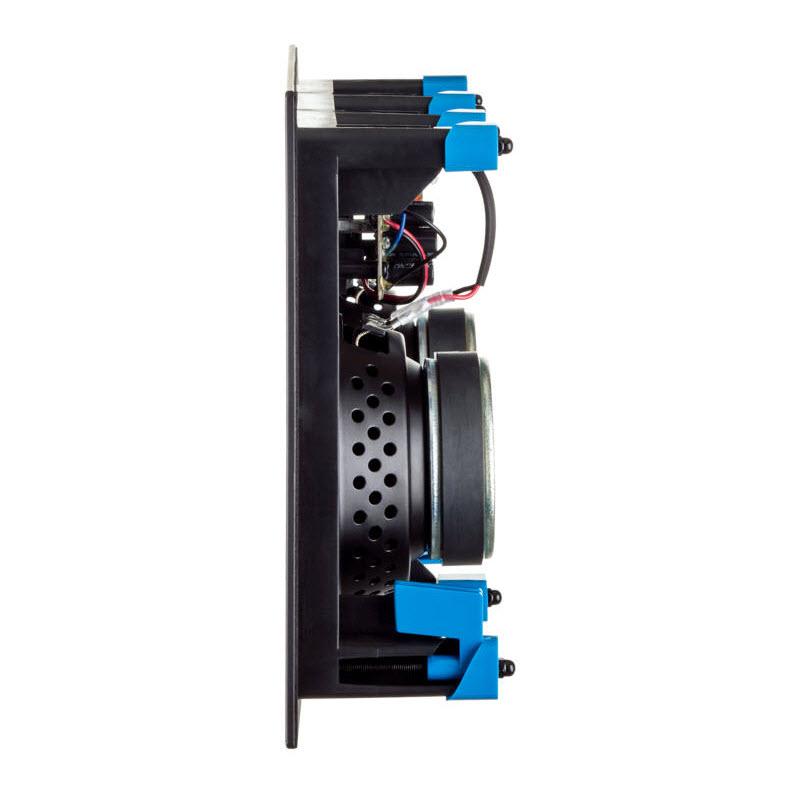

A Behind-the-Ceiling Look at the ABS Clamps
Without any unnecessary pressure or force, each turn of the screwdriver turns the clamp. We show the starting point, we show the screwdriver working to turn the clamp, and finally, we show the speaker locked into place inside the wall or ceiling. It doesn't get simpler or easier!
A Solid Installation!
The High-Strength ABS Chassis and Clamp System addresses the flexibility problem that plagues all walls and ceilings. ABS stiffness combats unwanted resonances and vibrations and equally important, the new clamp design makes the installer's job easier and faster!
Specifications
General
Speaker Type
Indoor/Outdoor
Color
Paintable
Frequency Response
75 Hz - 20,000 Hz
Sensitivity
89 dB
Amplifier Recommended Range
15 watts - 100 watts
Impedance
8 ohms
Number of Drivers
3
Features
Additional Information
• In-wall left / center / right applications
• Bezel-Free Micro-Perf Grille
• Rigid ABS clamps cut down on installation time and simplifying installation
• No masking required—this makes the grilles faster and easier to paint, if painting is desired
• Bezel-Free Micro-Perf Grille
• Rigid ABS clamps cut down on installation time and simplifying installation
• No masking required—this makes the grilles faster and easier to paint, if painting is desired
Speakers
High-Frequency Drivers
3/4" (1.9cm) PTD™ dome
Midrange Drivers
2 x 5.5" (14cm) mineral-filled polypropylene cones
Crossover Information
2nd-order electro-acoustic at 2,500 Hz
Dimensions
Width
9.25 inch(es) / 23.5 cm
Height
12.63 inch(es) / 32.07 cm
Depth
3.13 inch(es) / 7.94 cm
Weight
2.68 kg (each)
Warranty
Warranty
5 years
