Features
ALUMINUM MAGNESIUM CERAMIC (AL-MAC™) TWEETER WITH EXCLUSIVE PERFORATED PHASE-ALIGNING (PPA™) TWEETER LENS AL-MAC™
Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.
ADVANCED SHOCK-MOUNT™ SYSTEM.

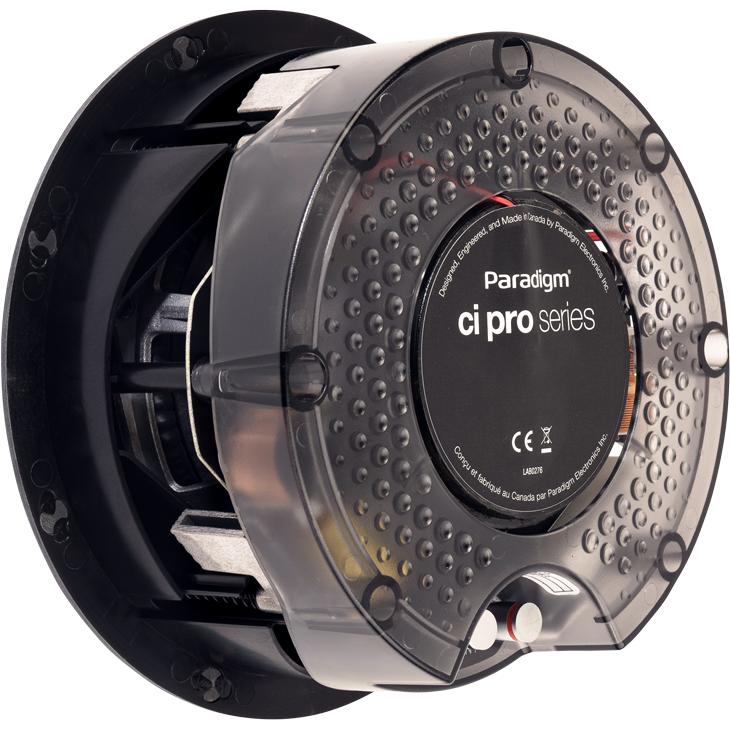

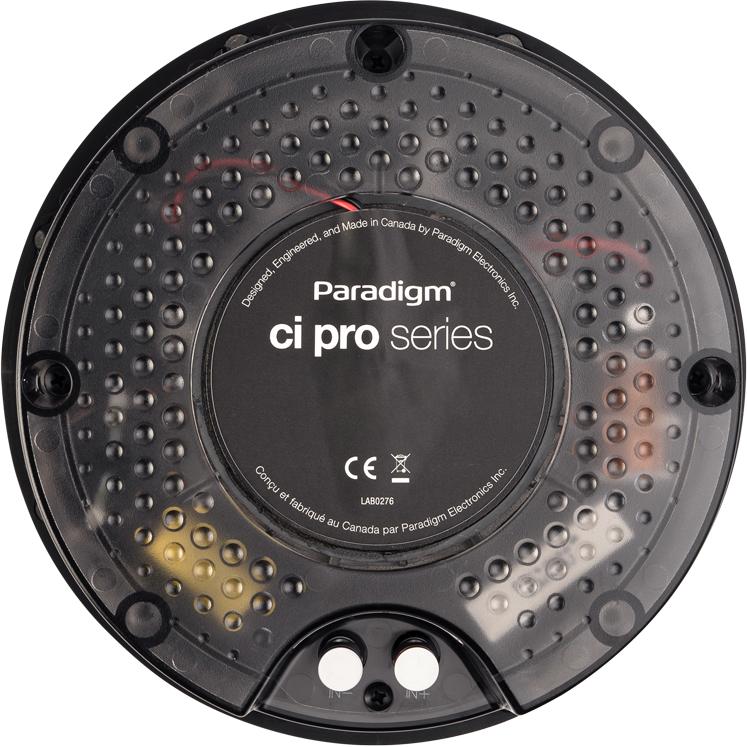

Advanced Shock-Mount™ System (baffle/basket isolation) mechanically decouples the die-cast aluminum baskets from the specially formulated CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.
PREMIUM-GRADE COMPONENTS
Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.
REDUCED EDGE DIFFRACTION (RED™) TECHNOLOGY
RED™ Technology (patent pending) is a die-cast aluminum tweeter housing that significantly reduces negative effects of diffraction while improving critical midrange frequencies. The irregular edges and off-center placement break up standing waves typically found around the woofer cone and tweeter housing of traditional designs. Additionally, the aluminum structure dissipates unwanted heat which increases power handling and allows a lower crossover frequency, improving sound and reducing distortion
PATENTED† ACTIVE RIDGE TECHNOLOGY (ART™) SURROUNDS
Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.
PARTNERED WITH THE NRC
Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.
CARBON-X™ CONES
Paradigm’s exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.
Specifications
General
Series
CI Pro
Speaker Type
Indoor
Color
Black
Manufacturer Color

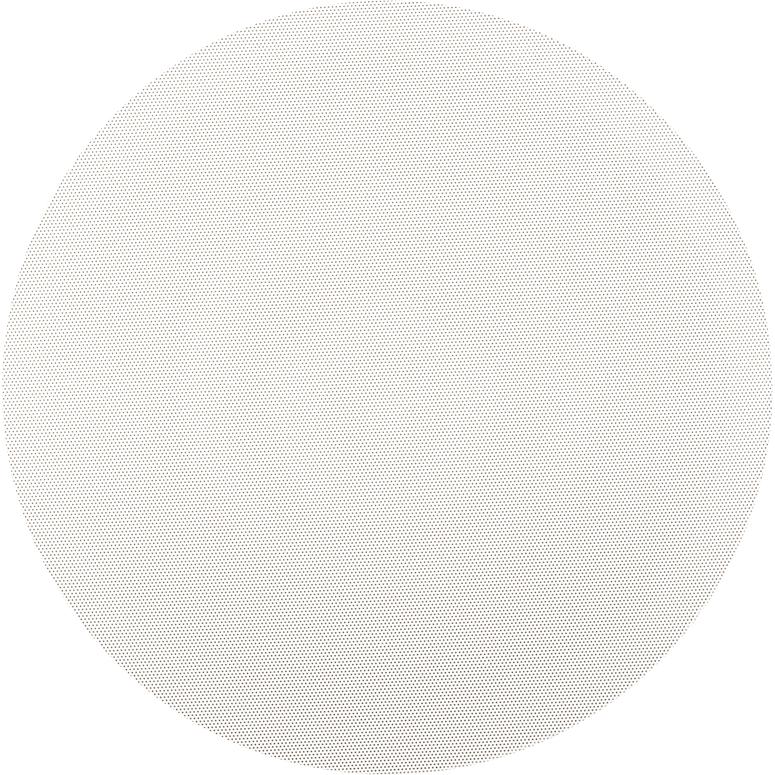

White, paintable grille, black speaker
Frequency Response
±3 dB from 75 Hz - 22 kHz
Sensitivity
91.5 dB / 87.5 dB
Amplifier Recommended Range
15-100 W
Impedance
8 ohms
Power Handling
80 W
Features
Technologies
• Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
• CARBON-X™ Cones
• Advanced Shock-Mount™ System
• Patented† Active Ridge Technology (ART3™) surrounds
• Reduced Edge Diffraction (RED™) Technology
• CARBON-X™ Cones
• Advanced Shock-Mount™ System
• Patented† Active Ridge Technology (ART3™) surrounds
• Reduced Edge Diffraction (RED™) Technology
Additional Information

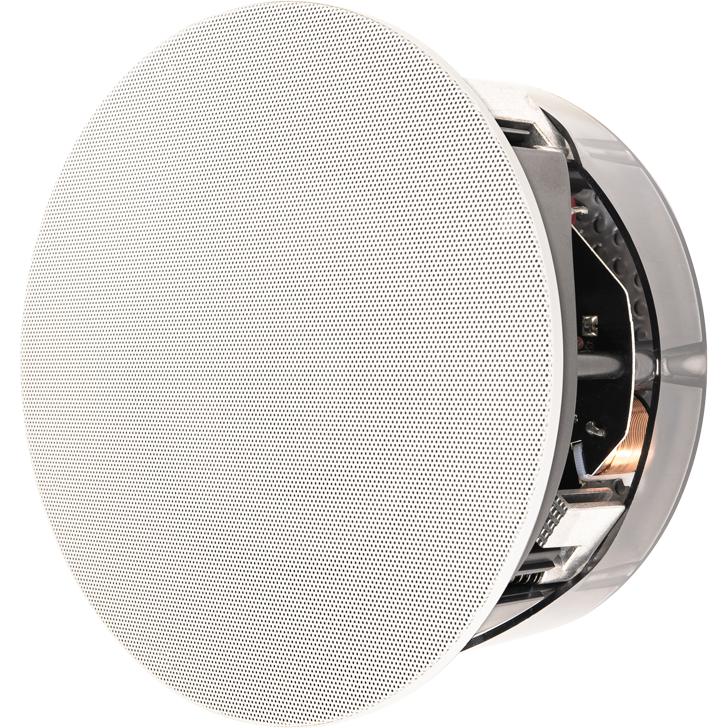

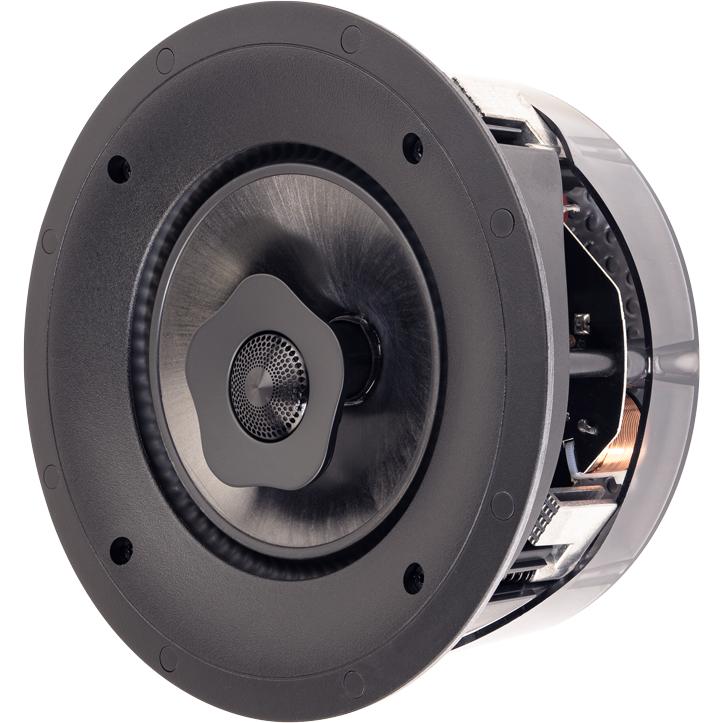

2-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT™ System, Nylon Reinforced Baffle
Speakers
High-Frequency Drivers

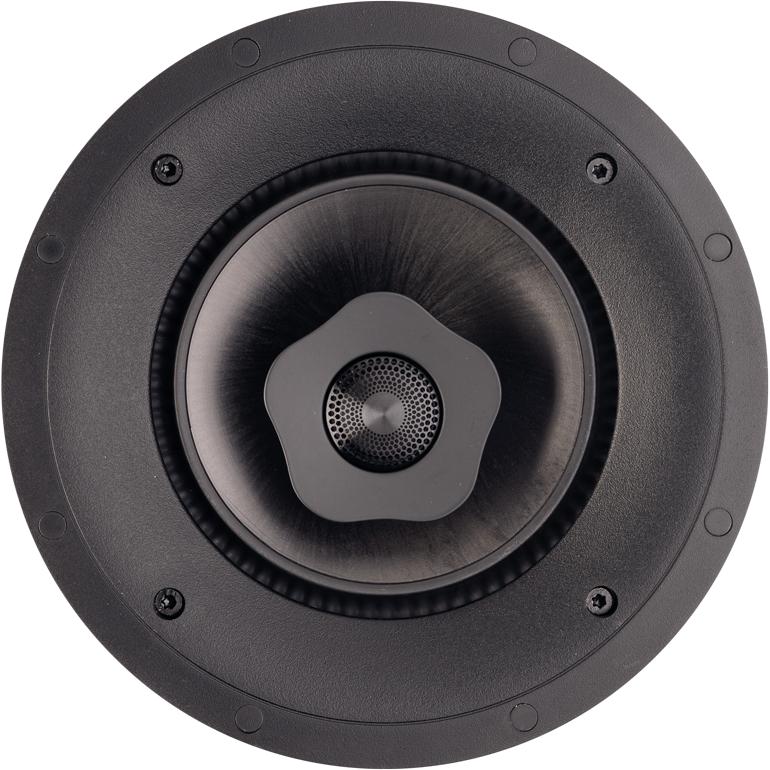

1" (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
Midrange Drivers
6.5" (16.5cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets
Crossover Information
2nd-order electro- acoustic at 2.5 kHz
Subwoofer
Crossover
Yes
Dimensions
Width
8.9 inch(es) / 22.6 cm
Height
8.9 inch(es) / 22.6 cm
Depth
4.21 inch(es) / 10.7 cm
Weight
2.59 kg (each)
Shipping Dimensions
Width
11 inch(es) / 27.94 cm
Height
7.5 inch(es) / 19.05 cm
Depth
14 inch(es) / 35.56 cm
Weight
7.01 lb(s) / 3.18 kg
