Features
Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Superior Mineral-filled Polypropylene Bass/ Midrange Cones
Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass
Magnetically attached grilles
Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
Easy-access binding posts
Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models
Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.
Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.
PARTNERED WITH THE NRC
Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

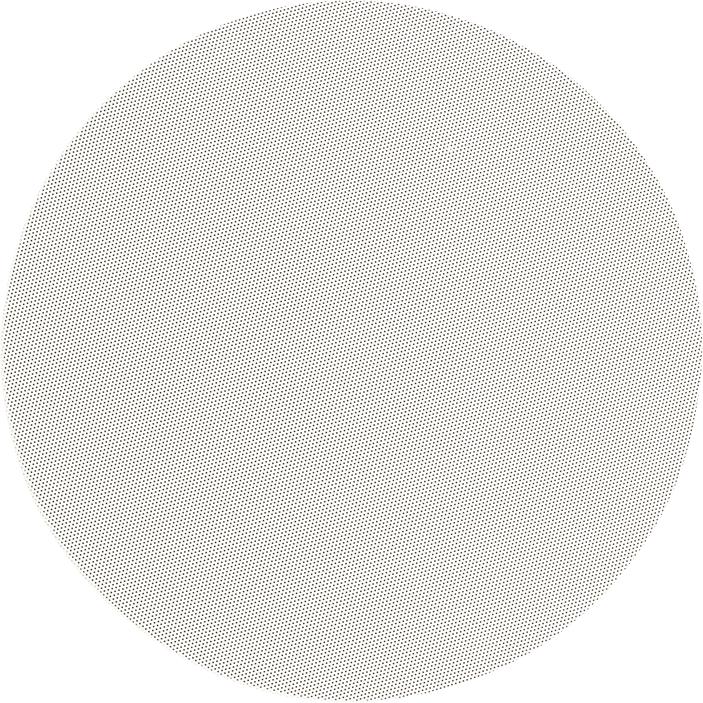

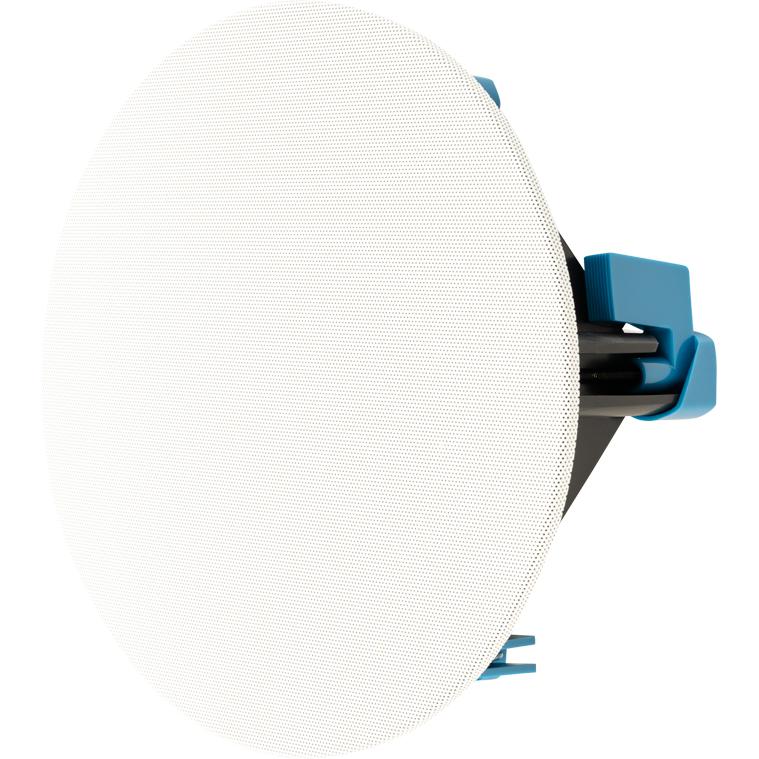

BEZEL-FREE, MICRO-PERF GRILLES
Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room to room!
Additional Features
Pocketed screw holes
Pocketed screw holes help to hold the drill steady, making installation a snap. In addition, exclusive TORX-guided clamps protect against screw cam out and stripping.
Specifications
General
Series
CI Home
Speaker Type
Indoor
Color
Black
Manufacturer Color
White, paintable grille, black speaker
Frequency Response
±2 dB from 75 Hz - 20 kHz
Sensitivity
88 dB / 84 dB
Amplifier Recommended Range
15-70 W
Impedance
8 ohms
Power Handling
40 W
Features
Technologies
• 30°-Angled Guided Soundfield™
• Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
• Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
Additional Information
Included Accessory: PB-7RN
Speakers
High-Frequency Drivers
3/4" (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
Midrange Drivers
5.5" (13.9cm) Mineral-filled Polypropylene Cone
Crossover Information
2nd-order electro- acoustic at 3.0 kHz
Subwoofer
Crossover
Yes
Dimensions
Width
7.76 inch(es) / 19.7 cm
Height
7.76 inch(es) / 19.7 cm
Depth
3.43 inch(es) / 8.7 cm
Weight
1.13 kg (each)
Shipping Dimensions
Width
9 inch(es) / 22.86 cm
Height
9 inch(es) / 22.86 cm
Depth
12.5 inch(es) / 31.75 cm
Weight
3 lb(s) / 1.36 kg
