Features
Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Superior Mineral-filled Polypropylene Bass/ Midrange Cones
Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass

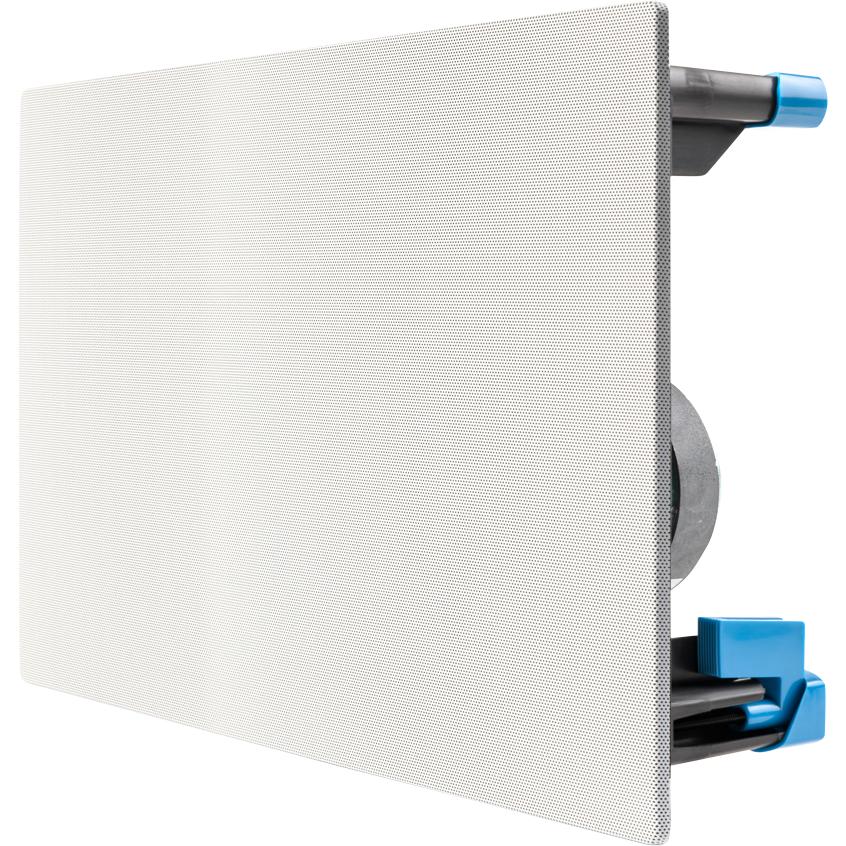

Magnetically attached grilles
Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
Easy-access binding posts
Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
PARTNERED WITH THE NRC
Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

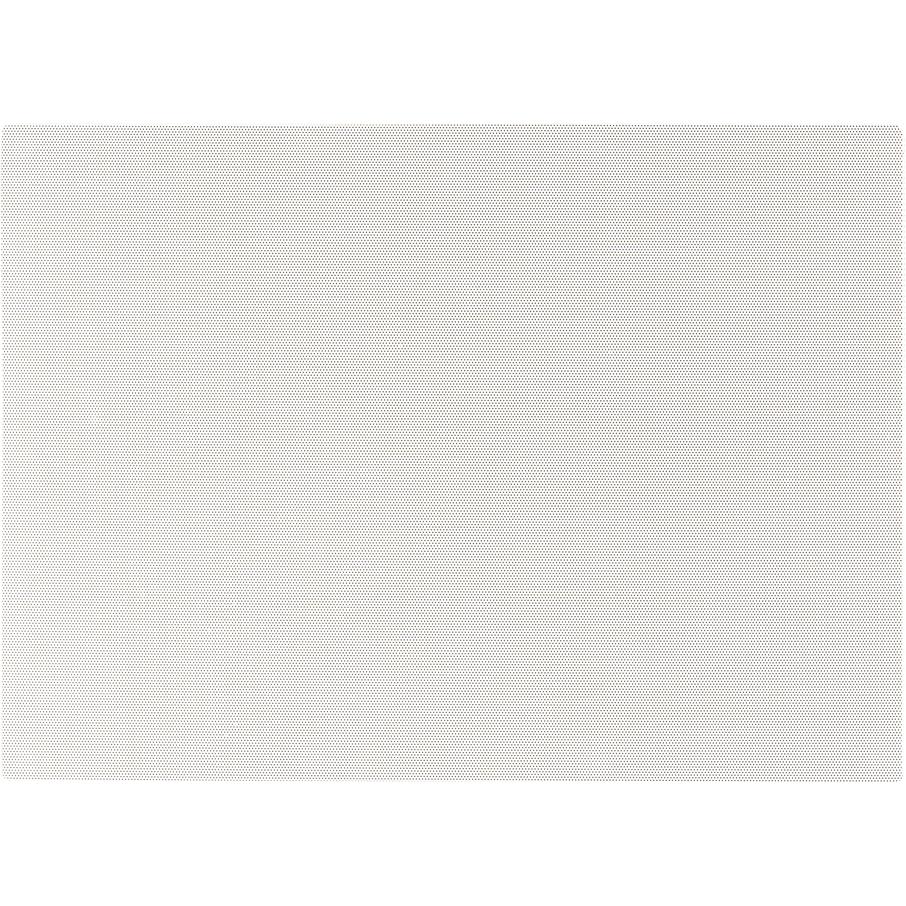

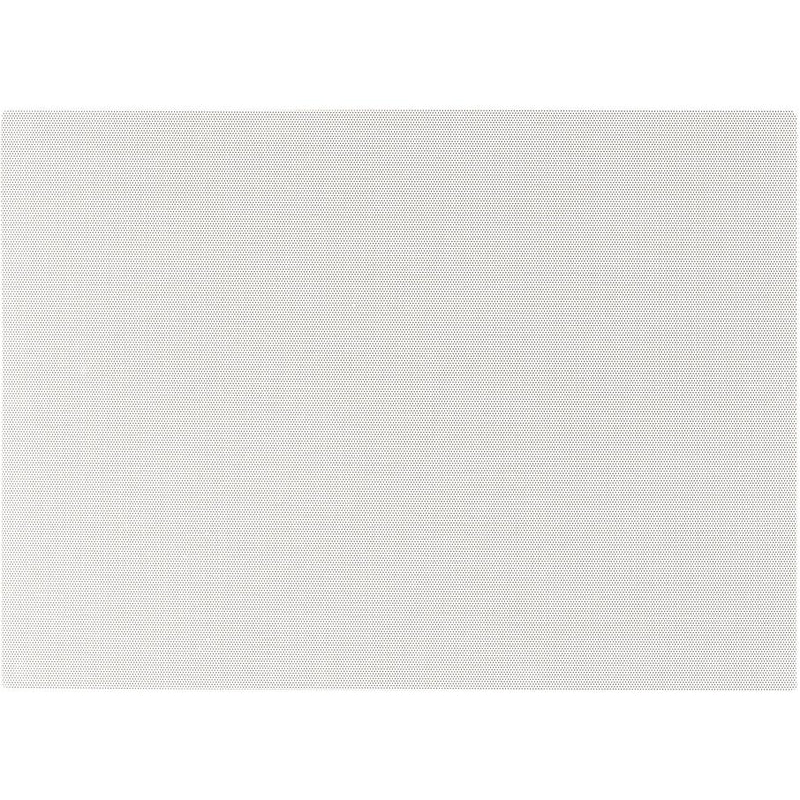

BEZEL-FREE, MICRO-PERF GRILLES
Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room to room!
Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models
Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.
Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.
Additional Features

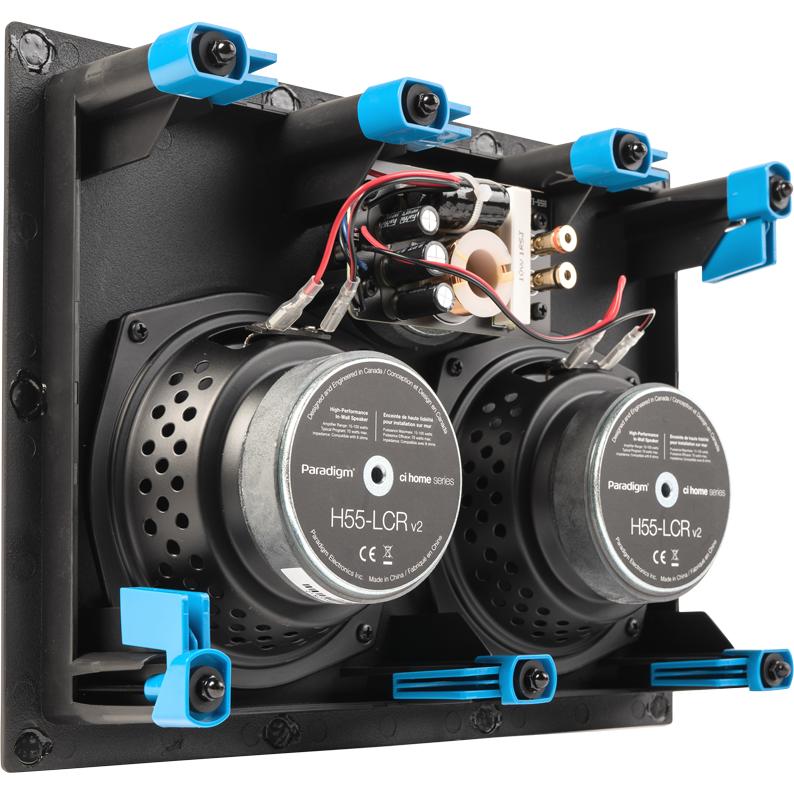

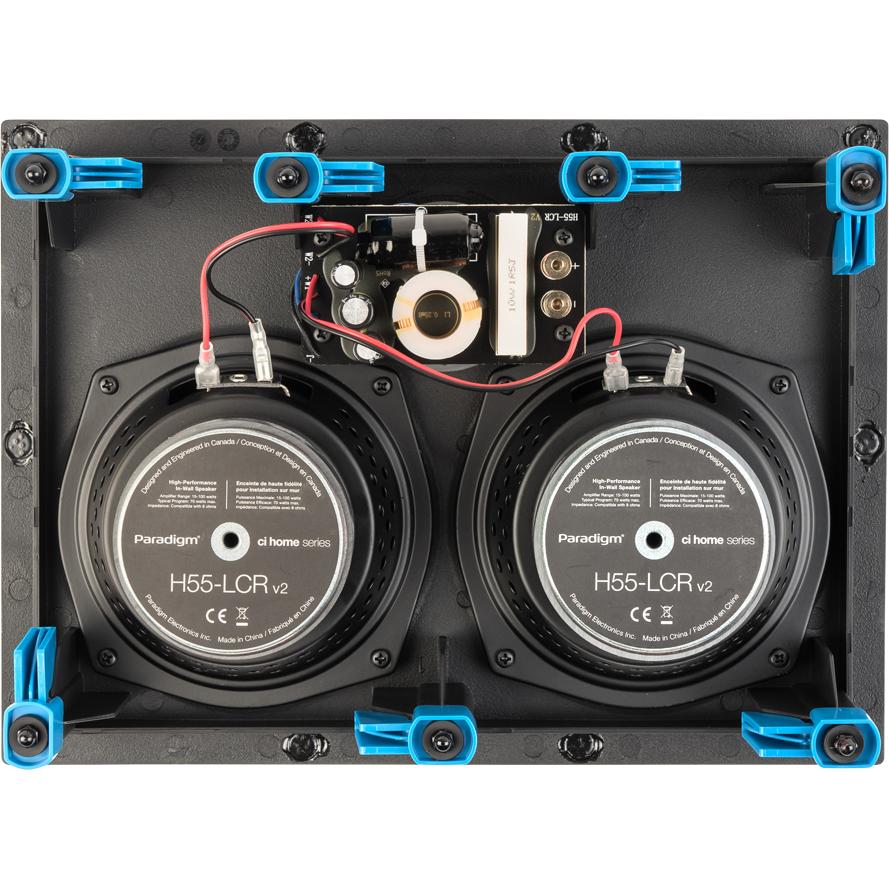

Pocketed screw holes
Pocketed screw holes help to hold the drill steady, making installation a snap. In addition, exclusive TORX-guided clamps protect against screw cam out and stripping.
Specifications
General
Series
CI Home
Speaker Type
Indoor
Color
Black
Manufacturer Color
White, paintable grille, black speaker
Frequency Response
±2 dB from 75 Hz - 20 kHz
Sensitivity
89 dB / 85 dB
Amplifier Recommended Range
15-100 W
Impedance
8 ohms
Power Handling
70 W
Features
Technologies
• Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
• Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™
• Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™
Additional Information

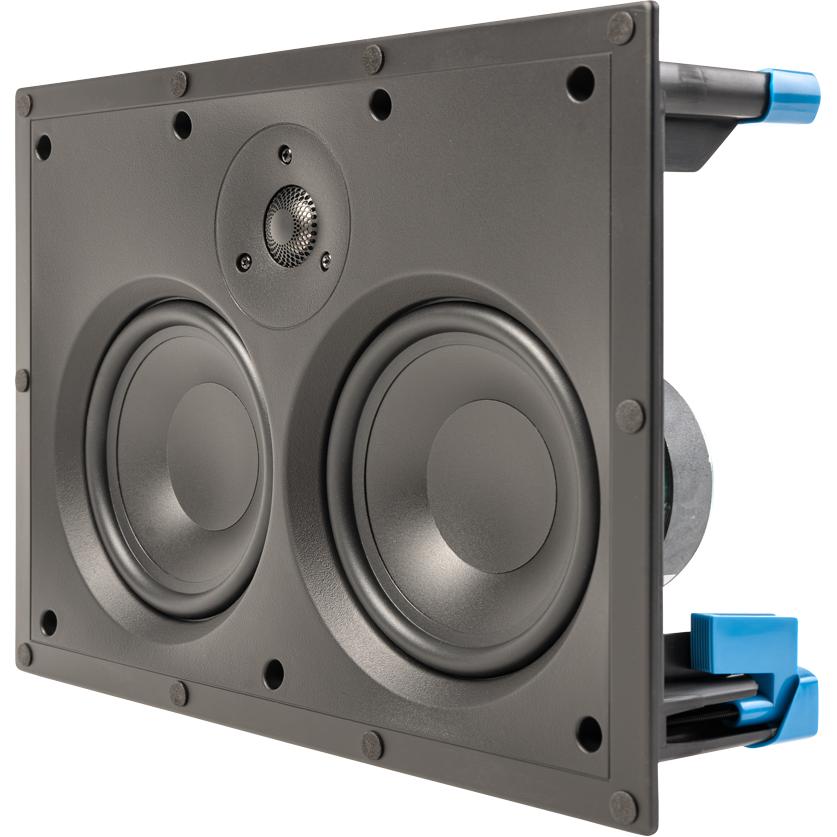

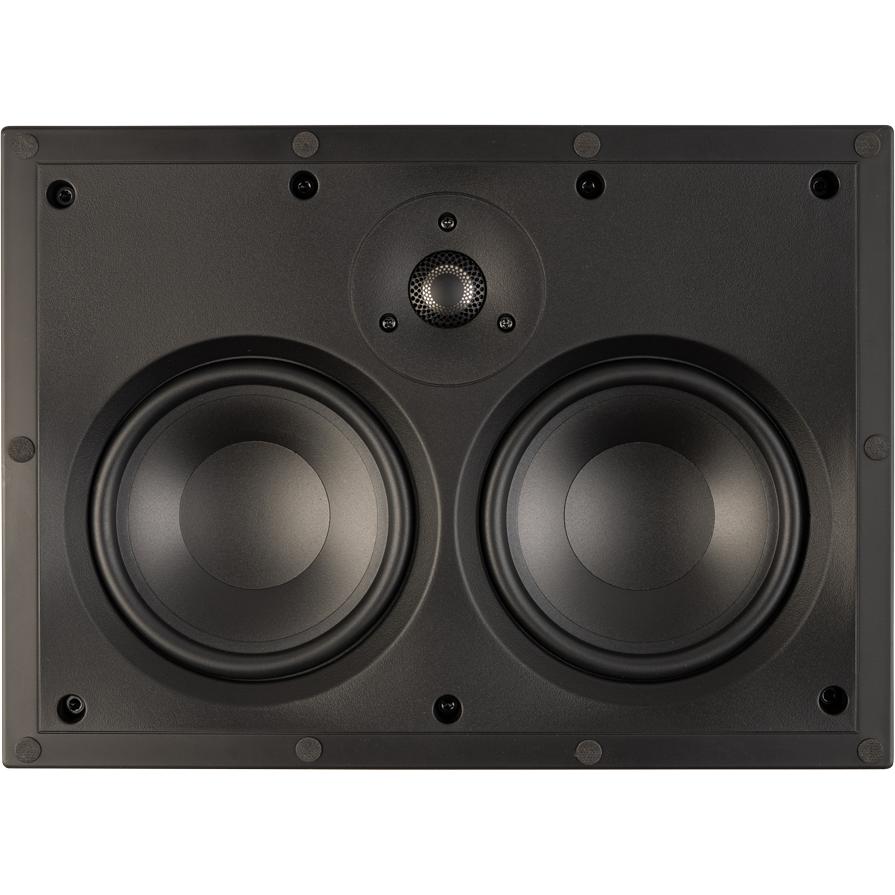

• 3-driver, 2-way in-wall left/center/right, ABS chassis & mounting clamps
• Accessory Included: PB-8X12N
• Accessory Included: PB-8X12N
Speakers
High-Frequency Drivers
3/4" (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
Midrange Drivers
Two 5.5" (13.9cm) Mineral-filled Polypropylene Cone
Crossover Information
2nd-order electro- acoustic at 2.5 kHz
Subwoofer
Crossover
Yes
Dimensions
Width
9.25 inch(es) / 23.5 cm
Height
12.64 inch(es) / 32.1 cm
Depth
3.46 inch(es) / 8.8 cm
Weight
2.68 kg (each)
Shipping Dimensions
Width
11 inch(es) / 27.94 cm
Height
7 inch(es) / 17.78 cm
Depth
14.5 inch(es) / 36.83 cm
Weight
7.01 lb(s) / 3.18 kg
