Features
Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Superior Mineral-filled Polypropylene Bass/ Midrange Cones
Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass
Magnetically attached grilles
Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
Easy-access binding posts
Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.

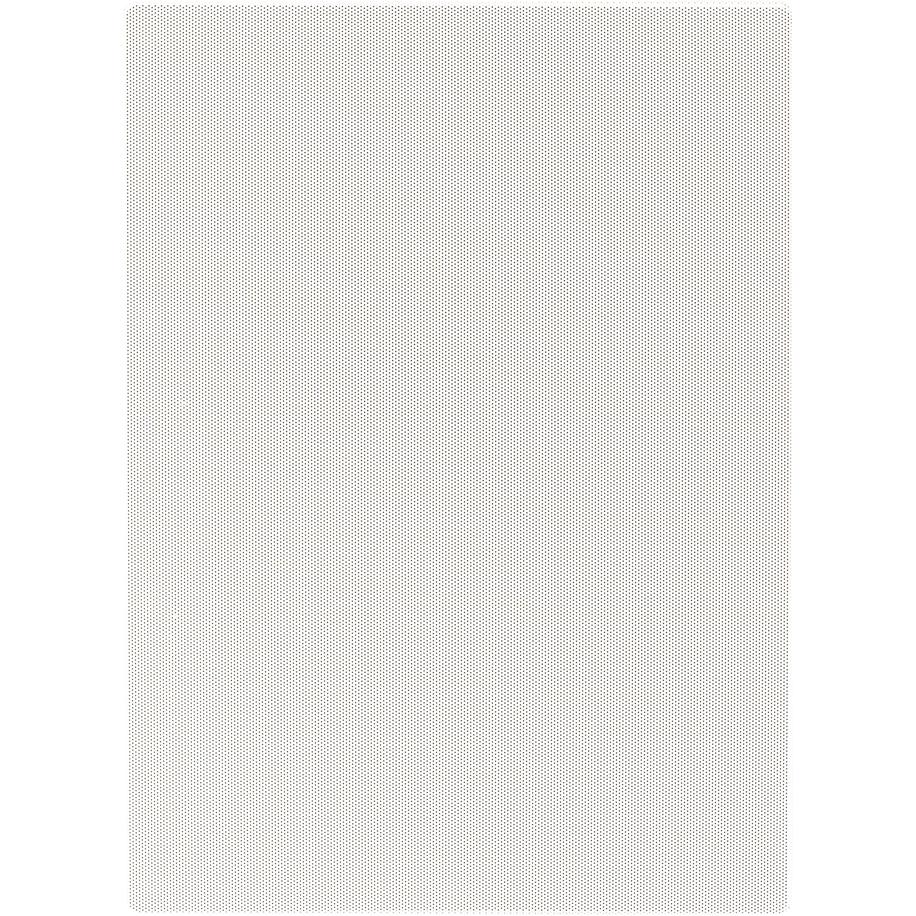

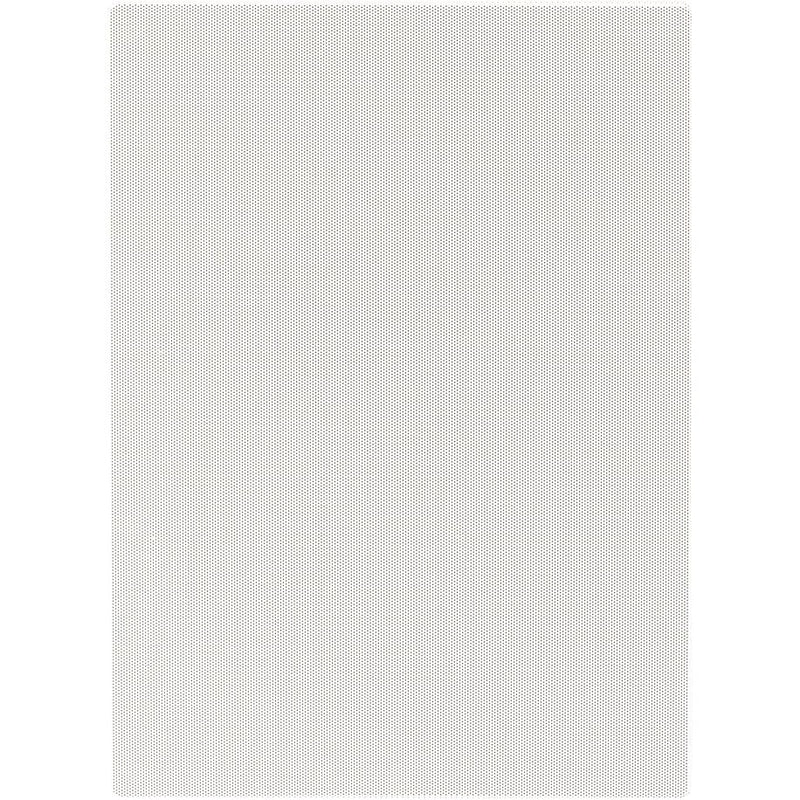

BEZEL-FREE, MICRO-PERF GRILLES
Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room to room!
PARTNERED WITH THE NRC
Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.
Additional Features
Pocketed screw holes
Pocketed screw holes help to hold the drill steady, making installation a snap. In addition, exclusive TORX-guided clamps protect against screw cam out and stripping.
Specifications
General
Series
CI Home
Speaker Type
Indoor
Color
Black
Manufacturer Color
White, paintable grille, black speaker
Frequency Response
±2 dB from 70 Hz - 20 kHz
Sensitivity
89 dB / 85 dB
Amplifier Recommended Range
15-90 W
Impedance
8 ohms
Power Handling
60 W
Features
Technologies
Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
Additional Information
• 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
• Accessory Included: PB-7X10N
• Accessory Included: PB-7X10N
Speakers
High-Frequency Drivers
3/4" (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
Midrange Drivers
6.5" (16.5cm) Mineral-filled Polypropylene Cone
Crossover Information
2nd-order electro- acoustic at 2.5 kHz
Subwoofer
Crossover
Yes
Dimensions
Width
8.11 inch(es) / 20.6 cm
Height
11.14 inch(es) / 28.3 cm
Depth
3.43 inch(es) / 8.7 cm
Weight
1.59 kg (each)
Shipping Dimensions
Width
12.5 inch(es) / 31.75 cm
Height
9.5 inch(es) / 24.13 cm
Depth
12.5 inch(es) / 31.75 cm
Weight
5 lb(s) / 2.27 kg
