Features
DCS-208FR3 - DISTRIBUTED AUDIO MEETS ITS MATCH PROVEN PARADIGM PERFORMANCE
The DCS-208FR3 can easily be driven off the bridged output of an Anthem® MDX for distributed audio systems, allowing you to take advantage of the MDX’s robust bass management, DSP profiles, and advanced ARC Genesis room correction for optimized performance in any environment.
PROVEN PARADIGM PERFORMANCE
Purpose-built for high output from a compact enclosure, with high efficiency and low distortion. The dual, 8" High-Excursion CarbonFiber-Reinforced Polypropylene woofers have a larger surface area than a 10” sub for powerful, accurate bass. The integrated enclosure ensures consistent performance in any application while reducing sound transmission to other areas of the home.

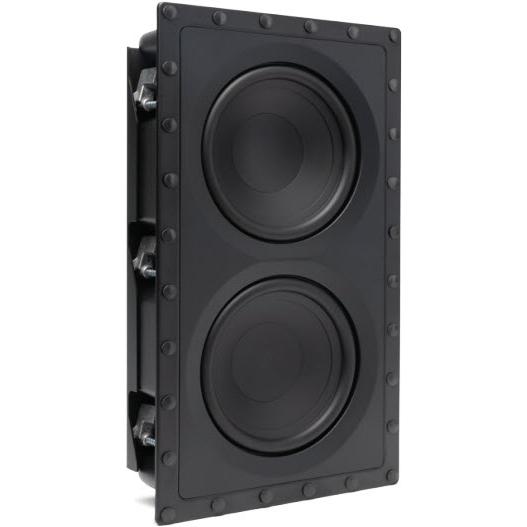

DCS-208 - IN-ROOM OR IN-WALL, HOW ABOUT BOTH?
The DCS-208 is the first in-wall model in the highly acclaimed Defiance series. The first Defiance in-wall brings the performance of Defiance subs to more rooms than ever before. With a minimalist look, the Paradigm DCS-208 is the perfect way to bring home proven Paradigm bass performance without compromise. Bass they’ll remember, with a look they’ll forget.
DCS-208 - FLEXIBILITY IS EVERYTHING
The DCS-208 is compatible with the Paradigm X-300 subwoofer amplifier. Custom DSP profiles maximize subwoofer performance, while onboard Anthem Room Correction (ARC®) optimizes the response for any environment. Whatever the application, you can be sure the DCS-208 will deliver.
DCS-208 - EASY TO INSTALL, ANYWHERE

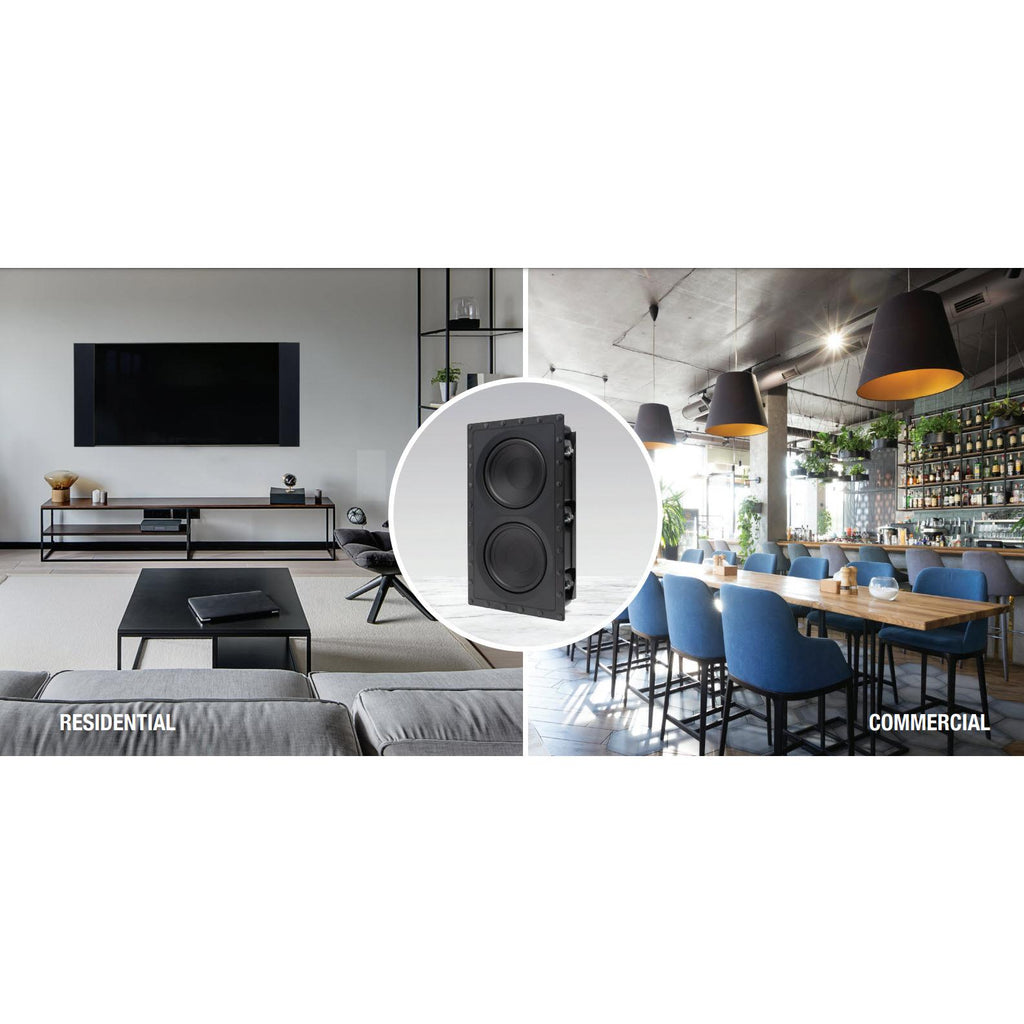

A Fire Rated integrated enclosure makes the DCS-208 suitable for residential and commercial applications. Designed for fast installation into existing rooms without the need for expensive and time-consuming drywall repairs. Simple installation, no footprint, Paradigm performance.
NICKEL-PLATED, SPRINGLOADED BINDING POSTS
Nickel-plated, springloaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

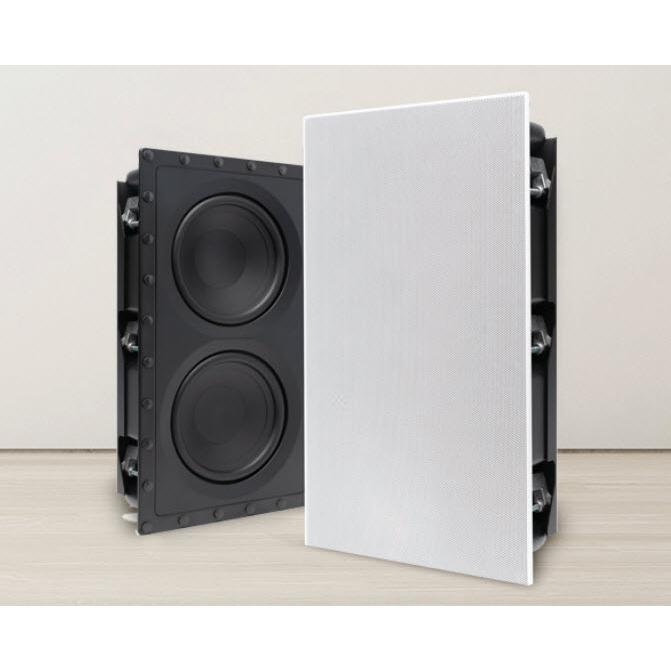

Magnetically attached grilles
Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
PREMIUM-GRADE COMPONENTS
Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.
CONSISTENCY & FLEXIBILITY
Sealed, Fire Rated Enclosure for predictable performance in consumer or commercial installations.

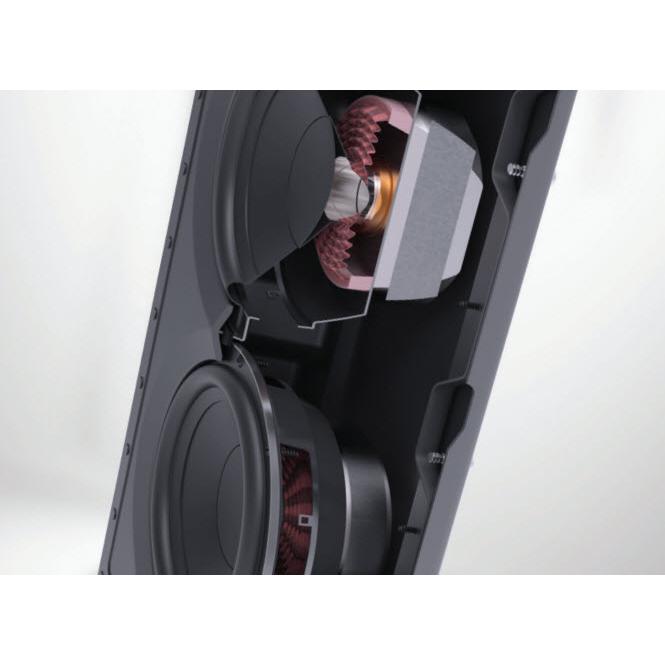

DUAL 8" - PROVEN PARADIGM PERFORMANCE
Dual, 8” High-Excursion Carbon-Fiber-Reinforced Polypropylene woofers for powerful, accurate bass.
EASY TO DRIVE, EASY TO HIDE, HARD TO FORGET
Purpose-built for high output from a compact enclosure, with high efficiency and low distortion.
Additional Features
ULTRA RIGID STAMPED STEEL CHASSIS
Ultra Rigid Stamped Steel chassis and baffles and die-cast aluminum clamps add strength and rigidity for better bass performance, along with a more durable installation.
INTEGRATED FIRE-RATED BACK-BOX ENCLOSURE FOR AN EASY AND RELIABLE INSTALL
Integrated Fire-Rated Back-box Enclosure for an Easy and Reliable Install safeguards internal parts from debris while preventing added sound ‘spillage’ to adjacent rooms. The integrated backer box enclosure also ensures consistent and reliable performance from application to application.
Specifications
General
Speaker Type
Indoor
Color
Paintable
Manufacturer Color
White, Paintable
Frequency Response
=+/-3dB from 77->190 Hz
Amplifier Recommended Range
50-600 W
Features
Additional Information
• Cut-Out Dimensions: 18" x 9-5/8" (45.7cm x 24.5cm)
• Internal Volume: 7.5L
• Dual 8" high-excursion drivers, in-wall, GRIP™ chassis/mounting bracket with custom steel enclosure, amplifier required (sold sep.)
• Two 8" (210-mm) CFP™ carbon-fiber-reinforced polypropylene cones, 1-1/2" (38-mm) voice coils, over-molded TPR™ surrounds, 1-1/2" (38-mm)
• 8-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures
• Internal Volume: 7.5L
• Dual 8" high-excursion drivers, in-wall, GRIP™ chassis/mounting bracket with custom steel enclosure, amplifier required (sold sep.)
• Two 8" (210-mm) CFP™ carbon-fiber-reinforced polypropylene cones, 1-1/2" (38-mm) voice coils, over-molded TPR™ surrounds, 1-1/2" (38-mm)
• 8-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures
Subwoofer
Amplifier Power
300 W
Dimensions
Width
10.71 inch(es) / 27.2 cm
Height
19.09 inch(es) / 48.5 cm
Depth
3.86 inch(es) / 9.8 cm
Weight
12.5 kg (each)
Warranty
Warranty
3 Years
UPC
UPC#
809918025989
