Features
Big Power, Small Size

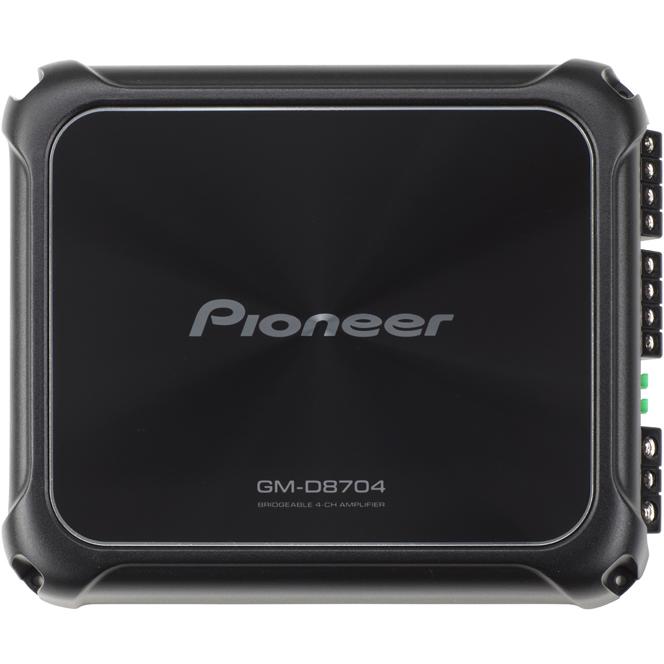

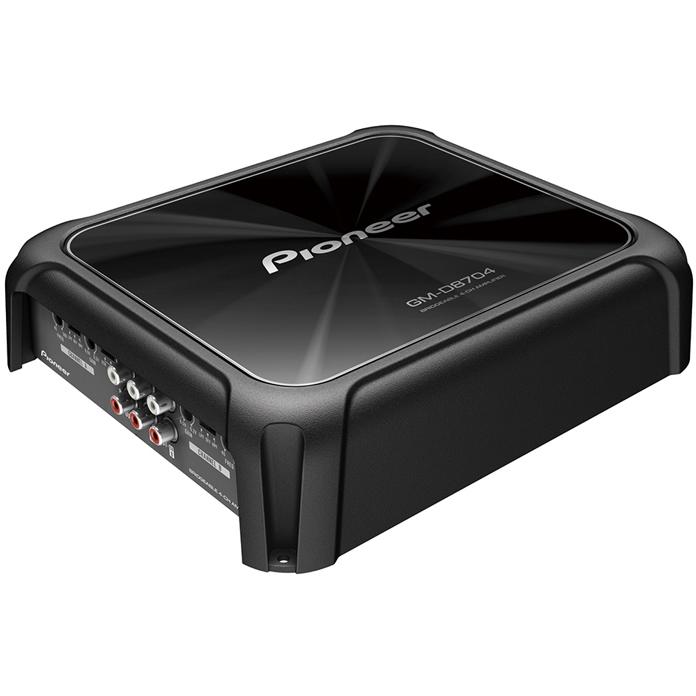

Pioneer’s new extra-efficient Class-D digital amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.
Improved Circuit Design
To prevent circuit shutdown, Pioneer's new digital amplifier circuit "Protection Control System" senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve 1 ohm connection. This design enhances the flexibility to connect multiple subwoofers to a system.

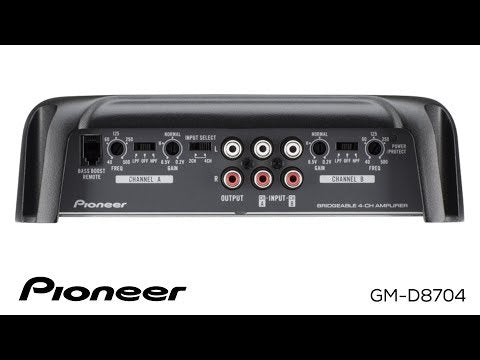

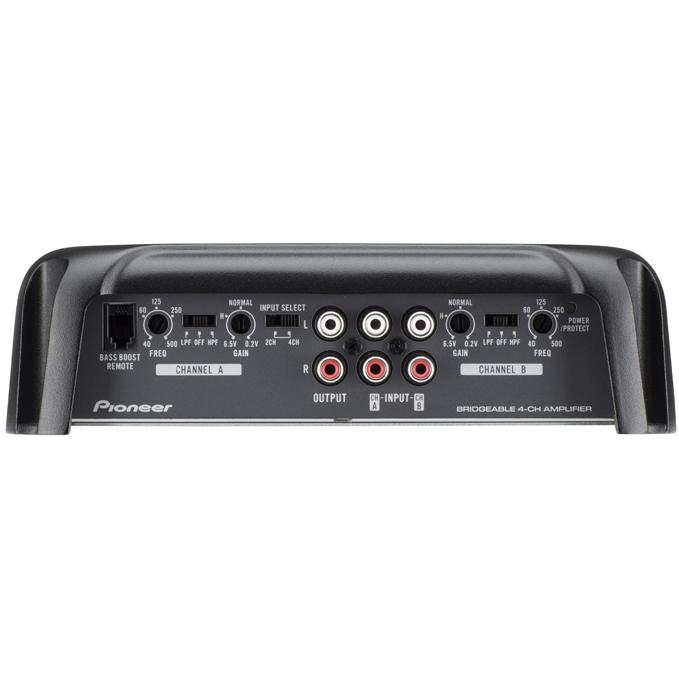

Variable Low-Pass and High-Pass Filter
For extra flexibility, variable LPF and HPF make audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. These amplifier's LPF and HPF are adjustable from 40 Hz to 500 Hz.
Specifications
General
Total Max Power
1200 W
Number of Channels
4
Amplifier Class
D
Load Impedance Capability
1 ohm
4 ohm Output Power
400 W
2 ohm Output Power
1200 W
1 ohm Output Power
500 W
Crossover Frequencies
• Low-Pass: 40 Hz
• High-Pass: 500 Hz
• High-Pass: 500 Hz
Frequency Response
10 Hz - 50,000 Hz
Total Harmonic Distortion
< 0.05% (1 kHz)

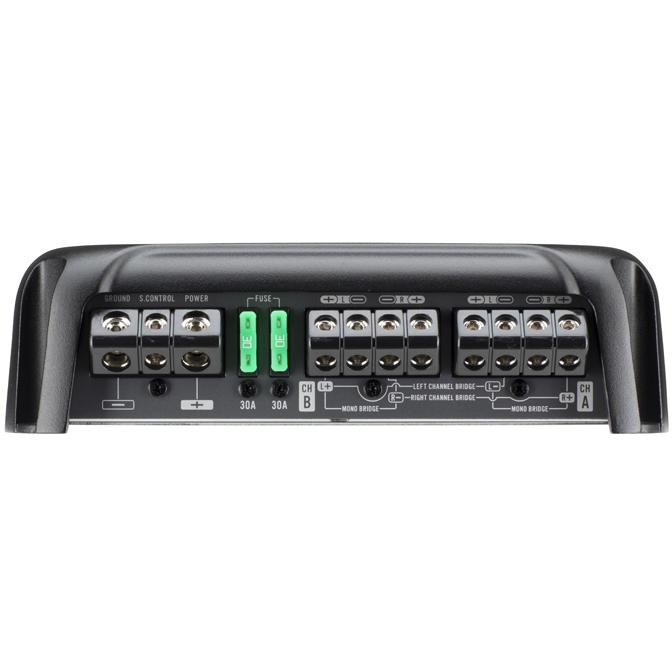

Inputs/Outputs
RCA Inputs
Yes
Speaker Level Inputs
Yes
Dimensions
Width
10.37 inch(es) / 26.35 cm
Height
2.37 inch(es) / 6.03 cm
Depth
7.87 inch(es) / 20 cm
UPC
UPC#
884938421928
