Features
What is “Open & Smooth” Sound?
The "Open & Smooth" sound concept of our industry-leading speakers delivers both sonic excellence and performance. The open-staging and smooth transition of driver response makes for an immersive experience that is truly the ultimate in-car sound.

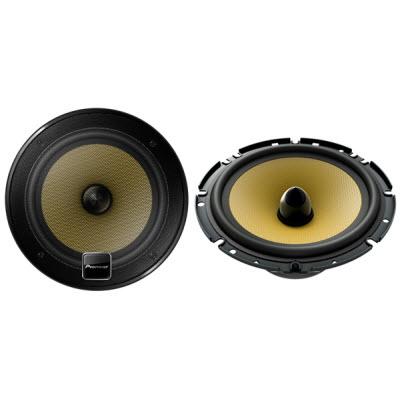

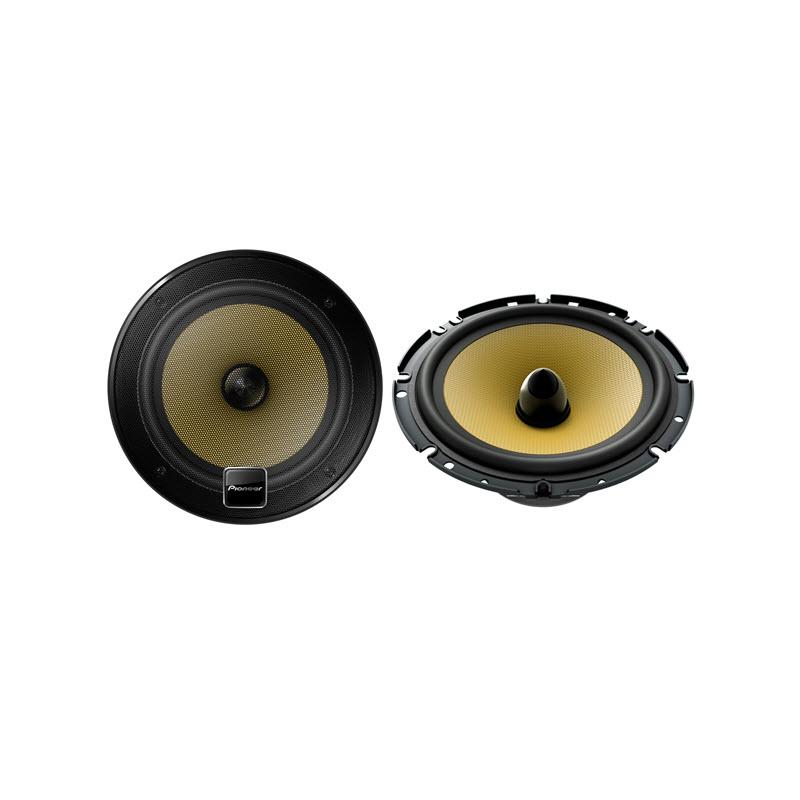

Twaron Aramid Fiber Cone and Elastic Polymer Surround
The cone and surround on the Pioneer TS-D are constructed from Twaron woven cloth that is hardened and shaped to produce a rigid, yet low mass cone with excellent dampening characteristics. Twaron is a synthetic aramid fiber which is very strong, heat resistant, and rigid when woven into a cloth material. Strength and rigidity are important to maintain cone shape at higher powers. Damping is critical to improving the responsiveness and accuracy. Maintaining low mass improves sensitivity or efficiency.

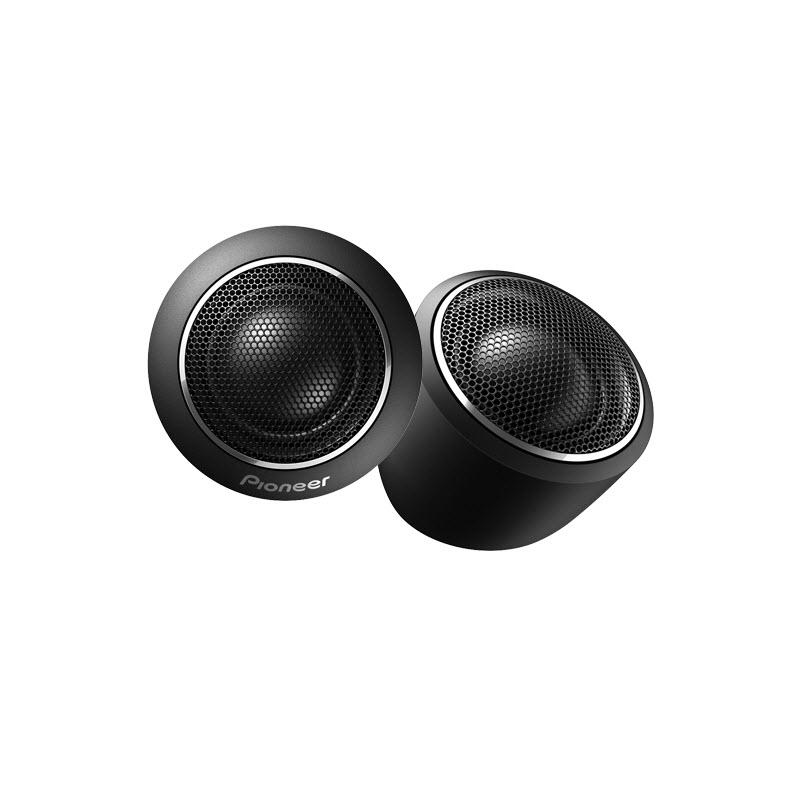

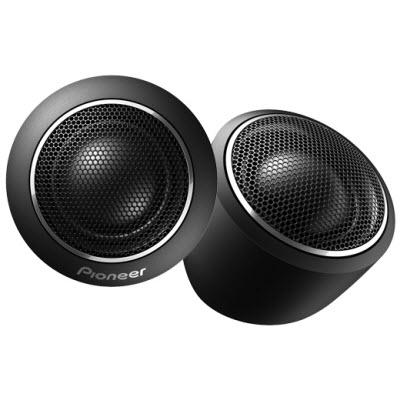

Tweeter – Small size, Big Sound
The 0.9 inch tweeters on the TS-D components maintain an exceptionally open and smooth sound quality with silky reproduction of higher frequencies. The design of the TS-D tweeters include a soft dome diaphragm and surround constructed out of lightweight woven fibers, for increased sensitivity and improved response. In addition, the tweeter is designed with a larger rear chamber and rounded over flange, for extended frequency range and wider dispersion. To fit in the various tweeter locations found in vehicle doors and dashboards, the tweeters have a compact 1-1/2 inch outside mounting diameter and a mounting depth of only 7/8ths of an inch. The tweeters also feature an integrated grille to aid installation behind vehicle OE (Original Equipment) tweeter locations.

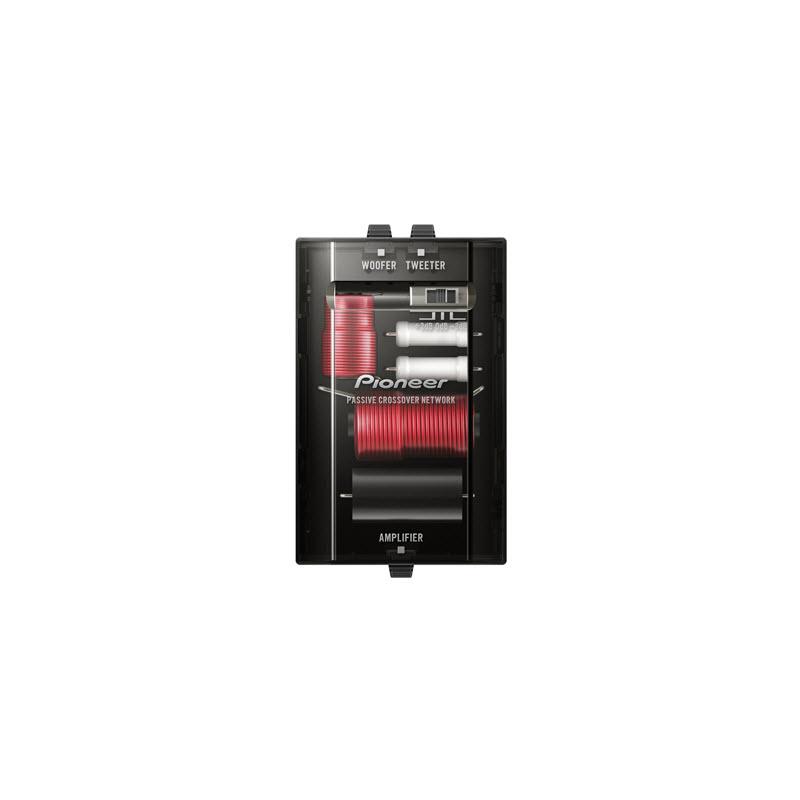

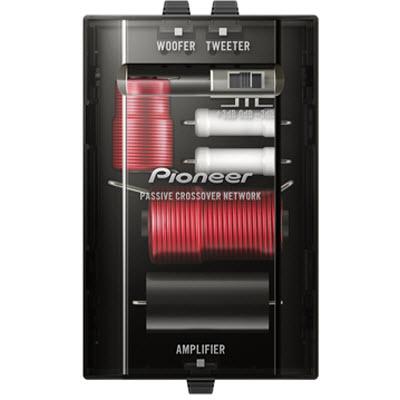

Installation Friendly Crossover
The crossover network on the TS-D components has been redesigned to significantly reduce the chassis size while maintaining the use of high quality capacitors, inductors and resistors. The compact size improves installation flexibility, allowing the crossover to easily fit inconspicuously inside a door, under the dash or behind a panel. A selectable tweeter level switch (-3dB, 0dB, +3dB) also allows the output of the tweeter and woofer to be closely matched.
Specifications
General
Maximum Power
260 W
RMS Power
60 W
Sensitivity
88 dB
Frequency Response
27 Hz - 44,000 Hz
Impedance
4 ohms
Components
Yes
Mounting Depth
2.87 inch(es) / 7.30 cm
Features
Additional Information
• The cone and surround on the Pioneer TS-D are constructed from Twaron woven cloth that is hardened and shaped to produce a rigid, yet low mass cone with excellent dampening characteristics. Twaron is a synthetic aramid fiber which is very strong, heat resistant, and rigid when woven into a cloth material
• The 0.9 inch tweeters on the TS-D components maintain an exceptionally open and smooth sound quality with silky reproduction of higher frequencies. The design of the TS-D tweeters include a soft dome diaphragm and surround constructed out of lightweight woven fibers, for increased sensitivity and improved response. In addition, the tweeter is designed with a larger rear chamber and rounded over flange, for extended frequency range and wider dispersion.
• The crossover network on the TS-D components has been redesigned to significantly reduce the chassis size while maintaining the use of high quality capacitors, inductors and resistors.
• The 0.9 inch tweeters on the TS-D components maintain an exceptionally open and smooth sound quality with silky reproduction of higher frequencies. The design of the TS-D tweeters include a soft dome diaphragm and surround constructed out of lightweight woven fibers, for increased sensitivity and improved response. In addition, the tweeter is designed with a larger rear chamber and rounded over flange, for extended frequency range and wider dispersion.
• The crossover network on the TS-D components has been redesigned to significantly reduce the chassis size while maintaining the use of high quality capacitors, inductors and resistors.
Warranty
Warranty
1 Year
UPC
UPC#
884938292610
