Features
Pandora
Pandora is personalized internet radio that is designed to help you discover new music that you'll love mixed in with music that you already know. You can enjoy superior sound quality and full control of the Pandora experience in your car directly from the touchscreen display of the receiver. You are able to give tracks "thumbs up" or "thumbs down," bookmark a song so you can purchase it later, easily switch between your personalized radio stations, and view full track data and album art.
Built-in Bluetooth
Pioneer's Audio receivers feature built-in Bluetooth enabling both hands-free calling and audio streaming with the latest Hands-Free Profile (HFP 1.6) and Wideband Speech capability. This allows you to experience the more natural sound quality and details during calls. When streaming music, AVRCP 1.5 lets you browse and select the media stored on your smartphone.
Spotify
With Spotify being a dedicated A/V source on the receiver, you now have the ability to control content from the Spotify app on iPhone and Android devices. You can play, pause and skip tracks, browse playlists, albums and radio stations on the go using the Pioneer controls. If you are a Spotify premium user (requires a monthly paid subscription), you can enjoy ad-free, high quality music even when there is no internet connection.
Pioneer ARC App
Command your radio in a whole new way with the Pioneer ARC App. Control basic functions on your receiver including presets, volume, fast forwards, track back, and more. Browse music files or access music apps directly from the app.
Smartphone Control
Access music on your smartphone directly from the Pioneer receiver. Search for Artist, Albums and Songs using Pioneer's intuitive interface. With Pioneer receivers you can also access and control select music and radio apps on your smartphone.
MIXTRAX
Keep the party going with MIXTRAX, an innovative Pioneer technology that creates a non-stop mix of your music library complete with a range of DJ-inspired effects. Drawing from Pioneer’s rich DJ heritage and our passion for music, MIXTRAX delivers a unique DJ infused listening experience to those in the car. MIXTRAX takes the music from an iPhone, iPod, USB device, or certain Android devices and plays it back with added transitions and effects, creating a virtual DJ inside the Pioneer receiver.
Android Music Support
Users of Android devices running operating system 4.0 or later can connect and listen to music stored on their device to the receiver without the need for an app. The process is made possible using Media Transfer Protocol (MTP). MTP allows the receiver to recognize the Android smartphone as a music storage device. Users can now access music via USB stored on an Android device and operate basic operations like FF, REW, Play, Pause, Random Play, and Repeat. Metadata information such as track, artist, and album name can be displayed.
Customize Your Colors
Select among five colors (blue/red/amber/green/violet) for the display and 112 different colors to match unit illumination to your vehicle's interior lighting. Also choose from several background images to suit your mood.
FLAC Codec Support
Pioneer Car Stereo Receivers upgrade in-car audio with amazing sound reproduction with their ability to play FLAC (Free Lossless Audio Codec) files, which are 50-60% smaller than WAV files yet retain the integrity of the original sound sources. FLAC playback at up to 44.1khz sampling frequency and 16-bit bitrate for files stored on a USB thumb drive.
Additional Features
SiriusXM
SiriusXM Ready allows you to listen to commercial-free music, all your favorite sports, exclusive talk and entertainment, comedy, news, traffic, weather, and more! Simply connect the SiriusXM Connect Vehicle Tuner to the dedicated port on the rear of the receiver and control and enjoy satellite radio without additional translators or cables. Features like Tune Start, Tune Scan, Replay, and iTunes® Tagging will be available on the receiver. The SiriusXM Connect Vehicle Tuner is sold separately. Also, a subscription to SiriusXM Radio is required.
AOA 2.0 Support for Android
AOA 2.0 enables Android owners to play music streaming apps and control basic functionally, Play/Pause and Skip Song, using the buttons of the receiver. The new feature requires the Android device to be running Android 4.1 or newer and be plugged into the receiver via the USB connection on the front of the unit.
USB Auto Switch
The receiver also includes the USB Auto Switch feature so when the phone is connected via USB the listener has the option to choose whether the receiver uses the phone as a source, or just charges the device.
Specifications
General
Maximum Power
200
RMS Power
88 W
THD and Frequency
• 1% (THD)
• 20 Hz - 20,000 Hz
• 20 Hz - 20,000 Hz
Number of Channels
4
Din Connector
2
Rear View Camera Compatibility
None
Volume Control
Rotary
Compatibility
Satellite Radio
Yes
Pandora
Yes
Direct Control for iPod®/iPhone®
Yes
Bluetooth
Yes
Features
Remote Control
Yes
Motorized LCD Screen
No
Touchscreen
No
Additional Information
• Apple iOS (8.0+)
• Android (4.1+)
• Multiple choices of color for the LCD screen display (Over 210,000 colors are available, 12 preset colors)
• Android and Siri remote controle enabled
• Android (4.1+)
• Multiple choices of color for the LCD screen display (Over 210,000 colors are available, 12 preset colors)
• Android and Siri remote controle enabled

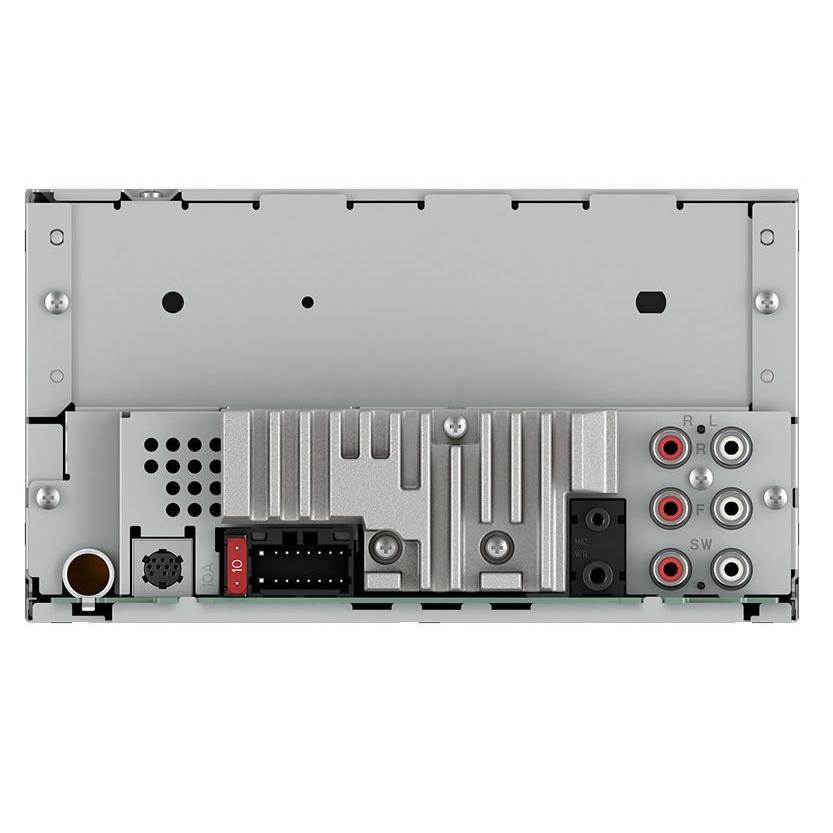

Inputs/Outputs
Subwoofer Pre-Outs
Yes
Front Speaker Pre-Outs
Yes
Back Speakers Pre-Outs
No
Pre-Outs Voltage
4 V
Memory Cards
USB memory slot
Accessories
Included
• Wiring harness

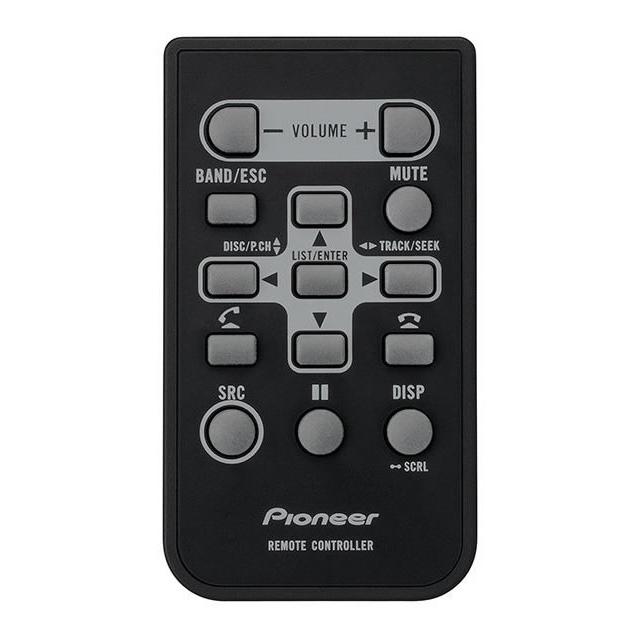

• Wireless remote control (CXE9605)
• CR2025 Lithium battery (installed)
• Microphone w/ removable visor clip (attached 9.5' cable terminated by a right-angle male mono 2.5mm connector)
• Two-sided tape
• 2 Extraction keys
• 6 Pan head ISO-mount screws (M5 x 8mm)
• 6 Flat-head ISO-mount screws (M5 x 9mm)
• Owner's Manual (En/Fr/Sp)
• Limited Warranty Information (US/CA)
• Wireless remote control (CXE9605)
• CR2025 Lithium battery (installed)
• Microphone w/ removable visor clip (attached 9.5' cable terminated by a right-angle male mono 2.5mm connector)
• Two-sided tape
• 2 Extraction keys
• 6 Pan head ISO-mount screws (M5 x 8mm)
• 6 Flat-head ISO-mount screws (M5 x 9mm)
• Owner's Manual (En/Fr/Sp)
• Limited Warranty Information (US/CA)
UPC
UPC#
884938369268
