Features
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
Full Range Class-D
A full-range version of the Class-D topology which is a high efficiency amplifier design that reduces current consumption from the charging system.
C.L.E.A.N. Set-Up
Patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
Maximum Efficiency Heat Sink Application (4th Generation)
MEHSA 4 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
Rollback Protection
During demanding musical conditions, the amplifier can dynamically reduce demand to prevent stress on the output devices.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Specifications
General
Power
• 250 Watts x 1 @ 4 ohm
• 500 Watts x 1 @ 2 ohm
• 750 Watts x 1 @ 1 ohm
• 500 Watts x 1 @ 2 ohm
• 750 Watts x 1 @ 1 ohm
Number of Channels
1
Amplifier Class
D
Load Impedance Capability
1 ohm
4 ohm Output Power
300 W
2 ohm Output Power
545 W
1 ohm Output Power
830 W
Crossover Frequencies
• Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
• Sub Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
• Sub Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
Frequency Response
20 Hz - 250 Hz
Total Harmonic Distortion
• 4 ohm: <1.0%
• 2 ohm: <1.0%
• 1 ohm: <1.0%
• 2 ohm: <1.0%
• 1 ohm: <1.0%
Additional Information

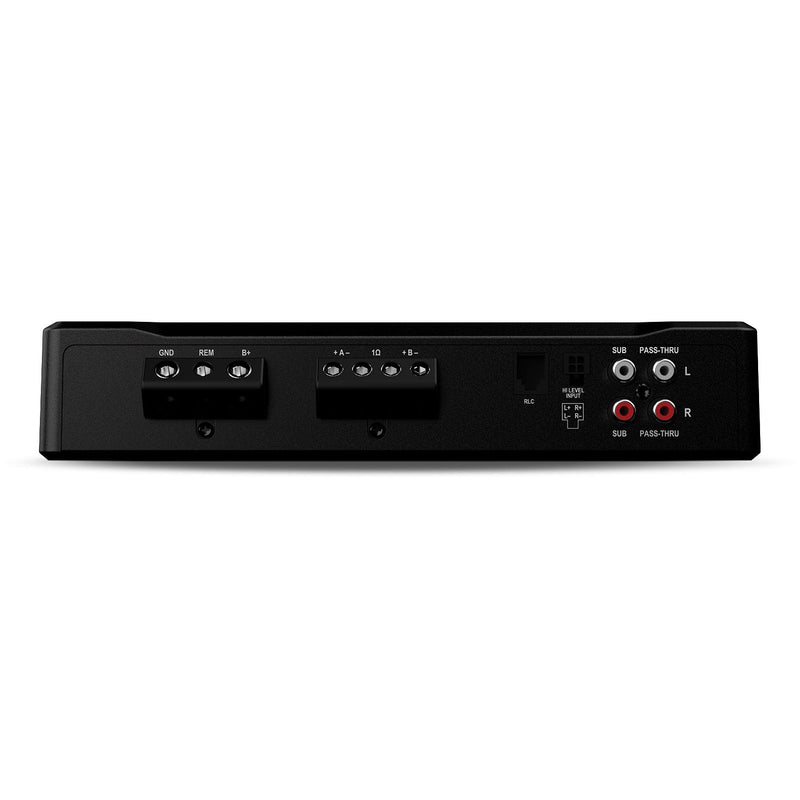

• Balanced Differential Inputs with RCA Pass Through Outputs
• High Level Input Capable
• Defeat able Auto Turn On Circuit
• Features C.L.E.A.N. Set-up
• Variable Input Gain adjustment level

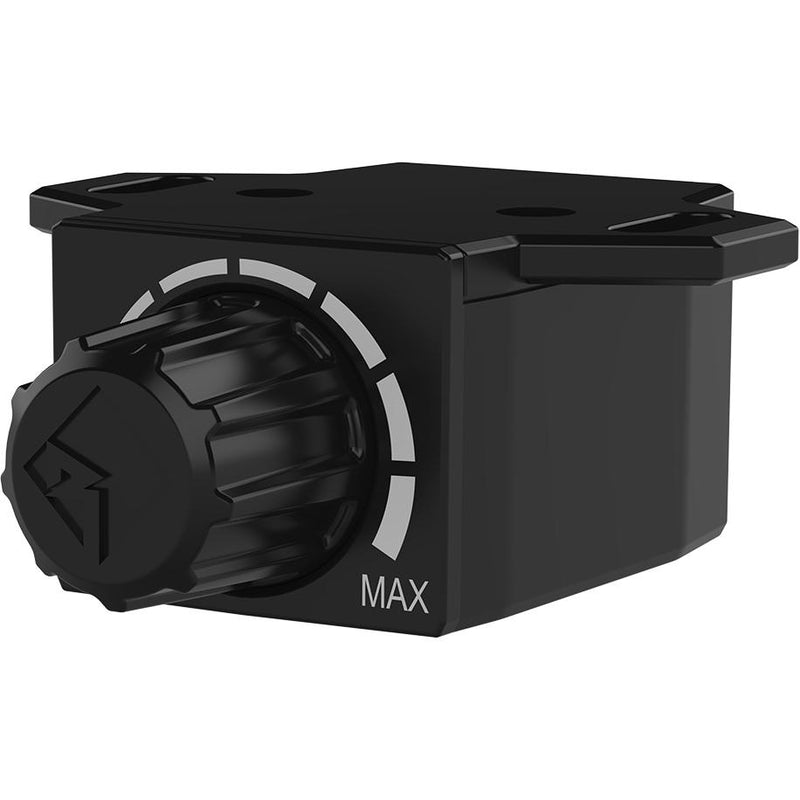

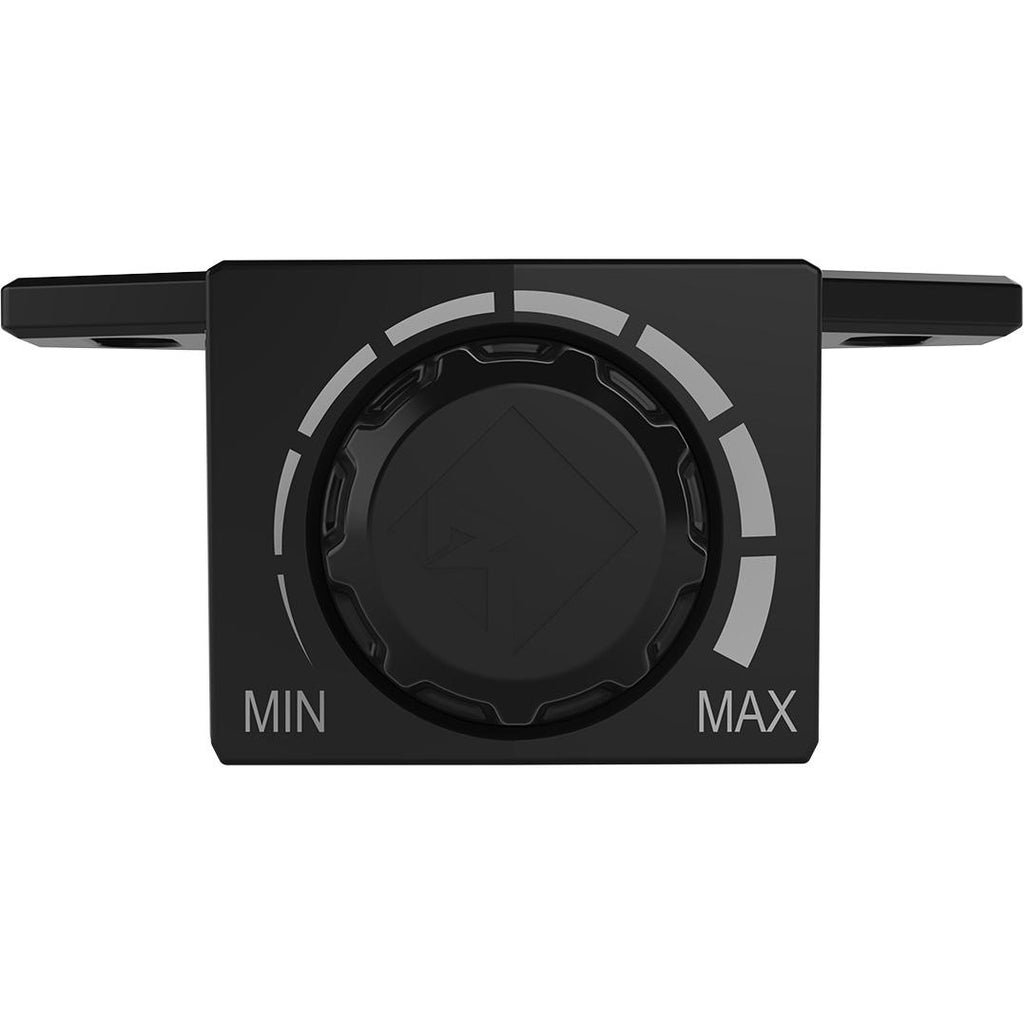

• R.L.C. Remote Level Control
• Variable Infrasonic Filter
• Continuously Variable On Board Punch EQ

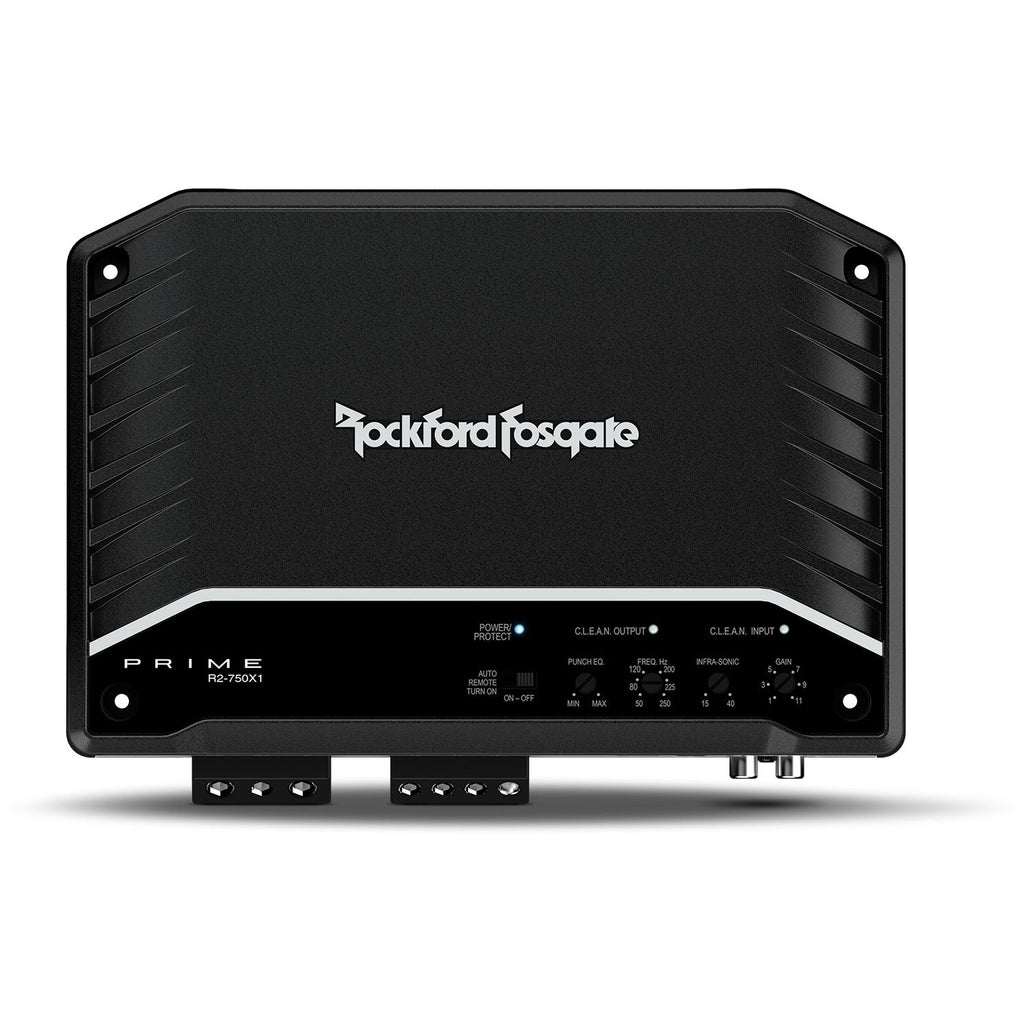

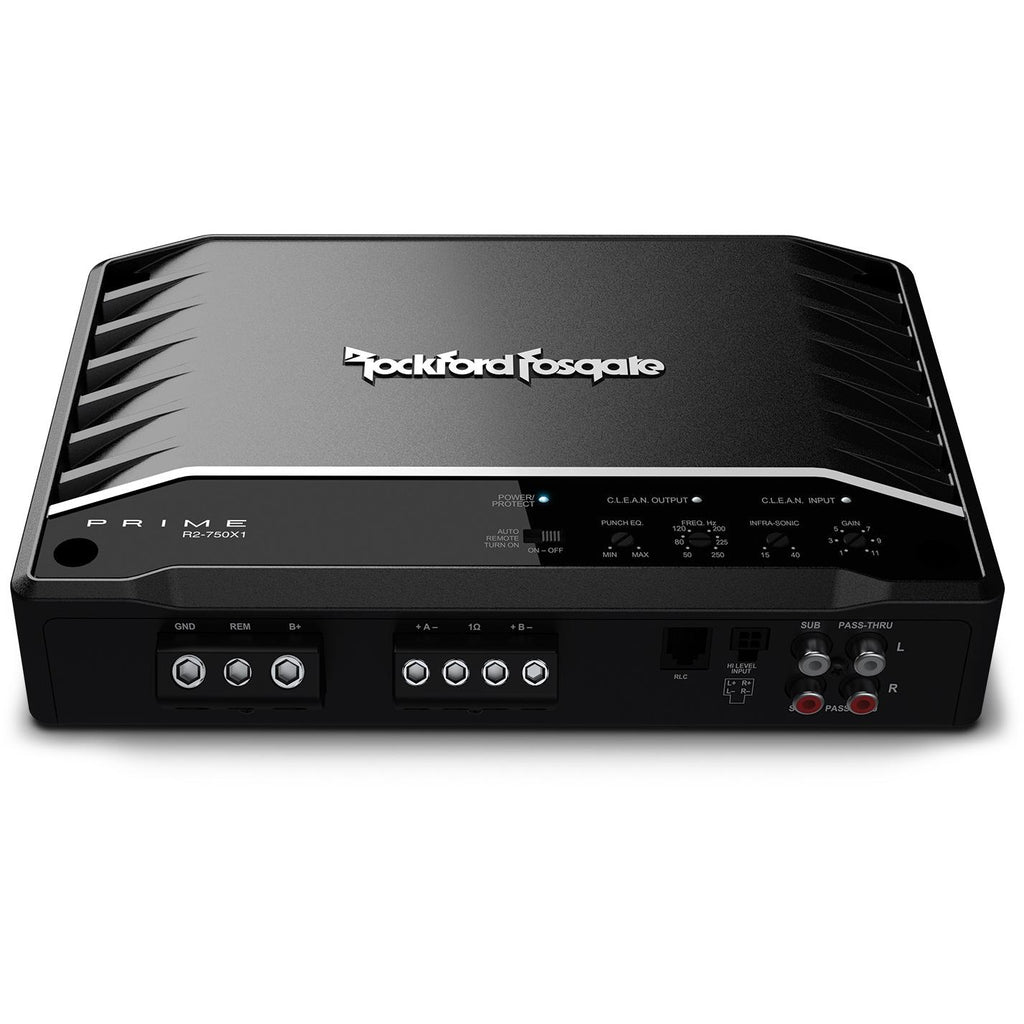

• Top Mounted Control Panel
• Short Circuit & Over Current Protection
• CEA-2006 Compliant & CE Compliant
• Cast aluminum heat sink
• Full Range Class D
• Rollback Protection
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• High Level Input Capable
• Defeat able Auto Turn On Circuit
• Features C.L.E.A.N. Set-up
• Variable Input Gain adjustment level
• R.L.C. Remote Level Control
• Variable Infrasonic Filter
• Continuously Variable On Board Punch EQ
• Top Mounted Control Panel
• Short Circuit & Over Current Protection
• CEA-2006 Compliant & CE Compliant
• Cast aluminum heat sink
• Full Range Class D
• Rollback Protection
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
Inputs/Outputs
RCA Inputs
Yes
RCA Outputs
Yes
Dimensions
Width
6.8 inch(es) / 17.27 cm
Height
1.9 inch(es) / 4.83 cm
Depth
10.1 inch(es) / 25.65 cm
Weight
4.98 lb(s) / 2.26 kg
Warranty
Warranty
1 year
