Specifications
General
Sound Channels
2
Power Output
Maximum Power Output: 150 watts/ch (4 ohms)
Continuous Power Output: 80 watts/ch (8 ohms)
Power Consumption (Max)
280 W
Total Harmonic Distortion
0.018 %
Frequency Range (Hz)
• Phono Input: 20 Hz - 20k Hz (0 ± 0.5 dB)
• Line Level Inputs: 10 Hz - 100k Hz (0 ± 0.5 dB)
• Line Level Inputs: 10 Hz - 100k Hz (0 ± 0.5 dB)
Technologies
• Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
• Wireless aptX™ and AAC Bluetooth
• Supports MQA and MQA Studio
• Certified Roon Tested
• Wireless aptX™ and AAC Bluetooth
• Supports MQA and MQA Studio
• Certified Roon Tested
Network
Bluetooth
Built-In

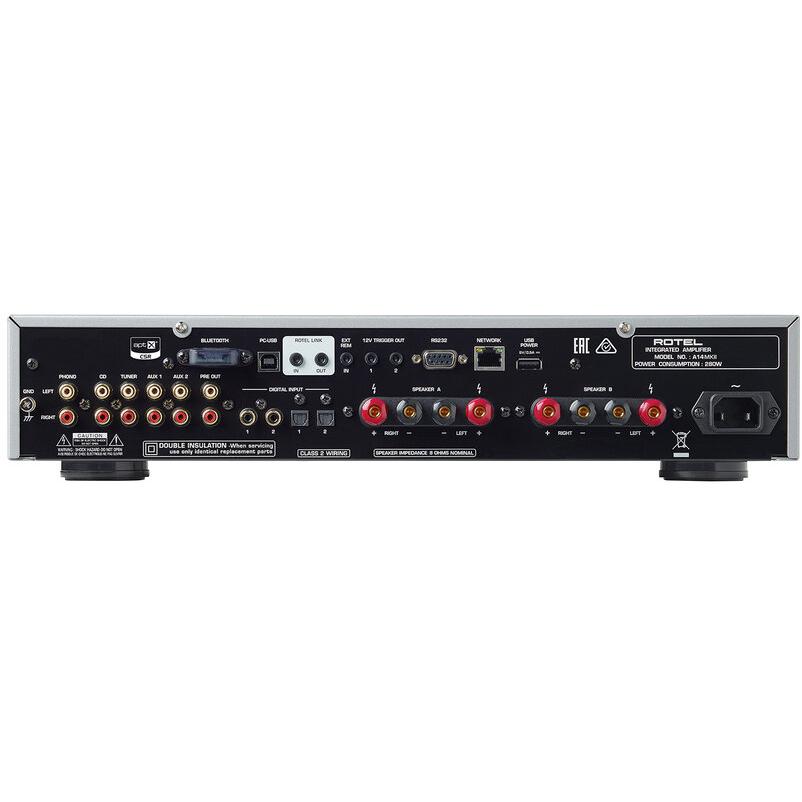

Inputs/Outputs
Information
• Analog Inputs:
• 4x RCA (Unbalanced)
• 1x RCA Phono (Unbalanced, MM)
• Digital Inputs:
• 2x Optical
• 2x Coaxial
• Bluetooth with AptX
• PC-USB
• Front USB (iOS Devices Only)
• Outputs:
• 1x RCA (Unbalanced)
• 1x 3.5mm Headphone Jack (Front)
• 4x RCA (Unbalanced)
• 1x RCA Phono (Unbalanced, MM)
• Digital Inputs:
• 2x Optical
• 2x Coaxial
• Bluetooth with AptX
• PC-USB
• Front USB (iOS Devices Only)
• Outputs:
• 1x RCA (Unbalanced)
• 1x 3.5mm Headphone Jack (Front)
Dimensions
Width
16.93 inch(es) / 43.0 cm
Height
3.66 inch(es) / 9.3 cm
Depth
13.58 inch(es) / 34.5 cm
Weight
19.71 lb(s) / 8.94 kg
