Specifications
General
Sound Channels
2
Power Output
• 50 Watts / ch (8 Ohms)
• 60 Watts / ch (4 Ohms)
• 60 Watts / ch (4 Ohms)
Power Consumption (Max)
150 W
Total Harmonic Distortion
0.03 %
Frequency Range (Hz)
• Phono input: 20 Hz - 20 kHz, -0.5 dB, +0.3 dB
• Line Level Inputs: 10 Hz - 100 kHz, -0.5 dB, +0.05 dB
• Line Level Inputs: 10 Hz - 100 kHz, -0.5 dB, +0.05 dB
Additional Information
• Phono input: 85 dB
• Line Level Inputs: 90 dB (Max)
• Line Level Inputs: 98 dB (Min
• Standby Power Consumption: < 0.5 Watts
• BTU (4 Ohms, 1/8 power): 450 BTU/h
• Class AB amplifier design
• Input Overload: Phono input 50 mV, Line Level Inputs 4 V
• Tone Controls - Bass / Treble: ± 6 dB at 100 Hz / 10 kHz
• 20 V, 60 Hz
• BTU (4 Ohms, 1/8 power): 450 BTU/h
• Line Level Inputs: 90 dB (Max)
• Line Level Inputs: 98 dB (Min
• Standby Power Consumption: < 0.5 Watts
• BTU (4 Ohms, 1/8 power): 450 BTU/h
• Class AB amplifier design
• Input Overload: Phono input 50 mV, Line Level Inputs 4 V
• Tone Controls - Bass / Treble: ± 6 dB at 100 Hz / 10 kHz
• 20 V, 60 Hz
• BTU (4 Ohms, 1/8 power): 450 BTU/h

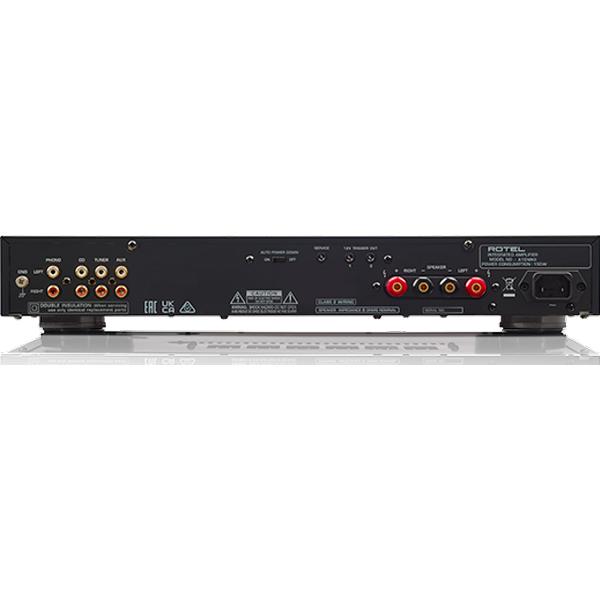

Inputs/Outputs
Information
• Phono input: RCA x 2
• 3 x audio line-in: RCA x 2
• Headphones: mini-phone stereo 3.5 mm
• 2 x speaker output: banana/spade x 2
• 3 x audio line-in: RCA x 2
• Headphones: mini-phone stereo 3.5 mm
• 2 x speaker output: banana/spade x 2
Accessories
Included
Remote Control
Dimensions
Width
16.93 inch(es) / 43.0 cm
Height
2.87 inch(es) / 7.3 cm
Depth
13.66 inch(es) / 34.7 cm
Weight
14.55 lb(s) / 6.6 kg
