Specifications
General
Sound Channels
2
Power Consumption (Max)
25 W
Total Harmonic Distortion
0.004 %
Frequency Range (Hz)
• Phono Input: 20Hz - 20,000 Hz, 0 ±0.2 dB
• Line Level Inputs: 10Hz - 100kHz, 0 ±0.1 dB
• Line Level Inputs: 10Hz - 100kHz, 0 ±0.1 dB

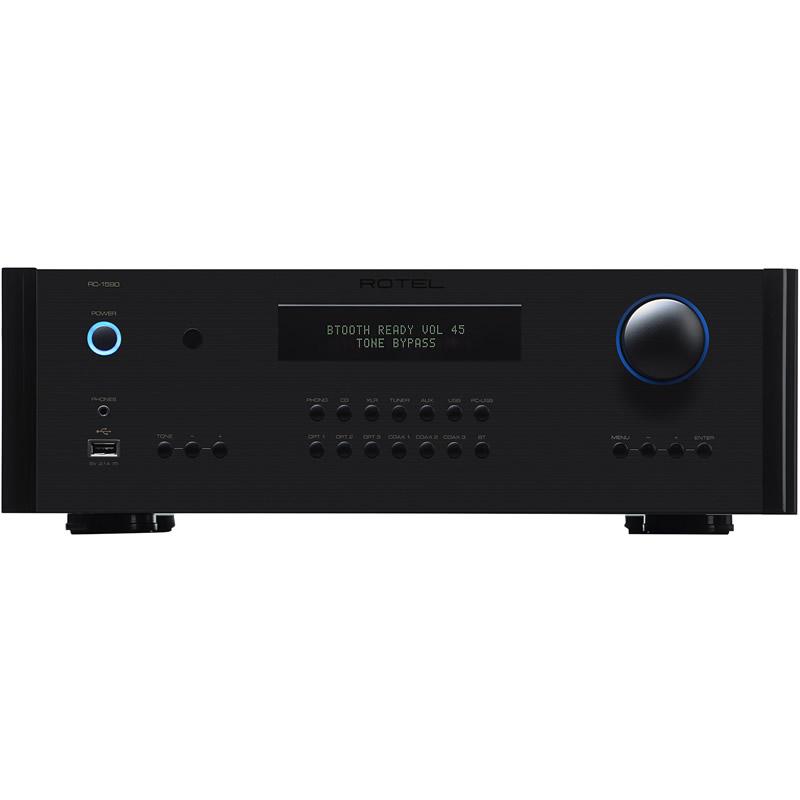

User Interface
On the receiver
Additional Information
• The RC-1590 is fully feature-laden with Balanced XLR and Unbalanced RCA inputs and outputs
• TI precision volume control IC
• Fixed volume line output
• Dual mono subwoofer outputs
• Tuner analog inputs
• Internal APTX Bluetooth (supports APTX and standard Bluetooth) with rear mounted external antenna
• Front USB iPod with 2.1A charging input
• Rear panel PC-USB 24bit 192KHz input supporting DSD (Windows) and DoP (MAC computers DSD over PCM).
• Remote control
• 2 x 12-volt trigger outputs
• Dimmable display
• Automatic power off function (configurable)
• RS232 and IP control for automation system integration
• Internet based software updates
• Rotel Link connection
• Detachable IEC power cord
• External IR remote input
• Front mounted 3.5mm headphone output jack
• TI precision volume control IC
• Fixed volume line output
• Dual mono subwoofer outputs
• Tuner analog inputs
• Internal APTX Bluetooth (supports APTX and standard Bluetooth) with rear mounted external antenna
• Front USB iPod with 2.1A charging input
• Rear panel PC-USB 24bit 192KHz input supporting DSD (Windows) and DoP (MAC computers DSD over PCM).
• Remote control
• 2 x 12-volt trigger outputs
• Dimmable display
• Automatic power off function (configurable)
• RS232 and IP control for automation system integration
• Internet based software updates
• Rotel Link connection
• Detachable IEC power cord
• External IR remote input
• Front mounted 3.5mm headphone output jack
Network
Bluetooth
Built-In

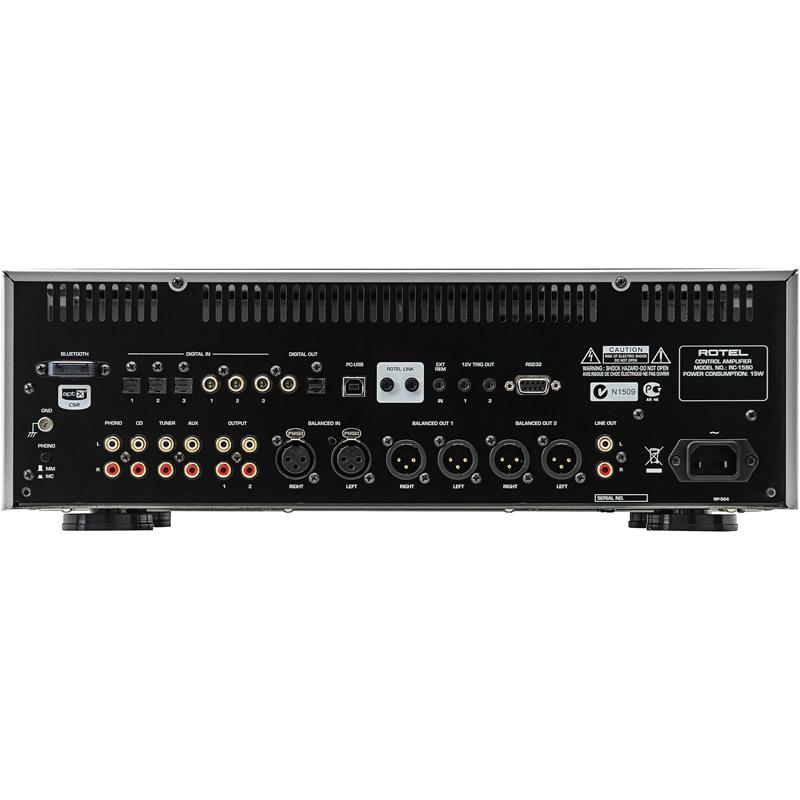

Inputs/Outputs
Composites Audio Inputs (Analog)
5
Composites Audio Outputs (Analog)
2
Optical Digital Inputs
3
Optical Digital Outputs
1
Coaxial Digital Input
3
Coaxial Digital Outputs
1
XLR Inputs
1
XLR Outputs
2
Headphone Output
Yes
Network
Yes
RS-232
Yes
USB
Yes
Dimensions
Width
16.97 inch(es) / 43.1 cm
Height
5.67 inch(es) / 14.4 cm
Depth
13.7 inch(es) / 34.8 cm
Weight
20.28 lb(s) / 9.2 kg
