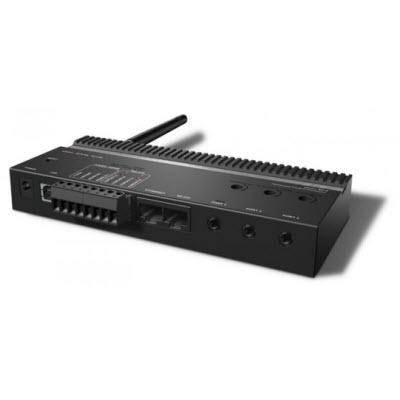

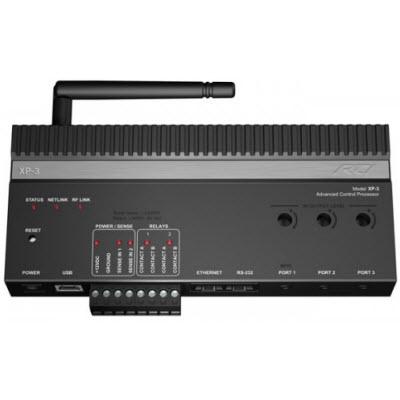

RTI Home Automation Components Control Processors XP-3

RTISKU: XP-3
When the XP-3 is incorporated into an RTI control solution, the result is nothing short of exceptional. Boasting a powerful... When the XP-3 is incorporated into an RTI control solution, the result is nothing short of exceptional. Boasting a powerful 533MHz CPU and 128MB of non-volatile flash memory, the processor packs a big punch and easy expansion capabilities. With a built-in RF transceiver and support for wireless bi-directional communications utilizing robust ZigBee® technology, the XP-3 can provide the user with real-time feedback from supported third-party devices such as music servers, lighting, security, and much more. Now, important data from these devices is available to the user with a simple touch – from current song information to the status of a security system - even the weather forecast! The XP-3 is loaded with features normally reserved for higher-priced processors, such as a built-in astronomical clock and control via Ethernet, RS-232, and relays.  View more
Price:
$649.00
Specifications
Specifications
General
Finish
Black
Networking
• IEEE802.15.4 Zigbee network compliant
• Integrated 10/100Base-T Ethernet port for programming, control and two-way communication with compatible devices
• Integrated 10/100Base-T Ethernet port supports Power-over-Ethernet (POE) Class 3.
• Built-in 2.4GHz ZigBee® RF transceiver module and removable antenna
Additional Information
• Supports Virtual Panel and RTiPanel Apps.
• Supports same two-way drivers used by XP6/XP8.
• Powerful 32bit, 533MHz CPU.
• 128Mb of non-volatile Flash memory stores your system configuration even when power is not present
• Two IR output ports with variable output
• Two assignable voltage sense inputs
• Two programmable relay outputs
• USB 2.0 and Ethernet programming
• Field upgradable firmware
Dimensions
Width
7 inch(es) / 17.78 cm
Height
3 inch(es) / 7.62 cm
Depth
1 inch(es) / 2.54 cm
Weight
0.4 lb(s) / 0.18 kg
Warranty
Warranty
1 year
