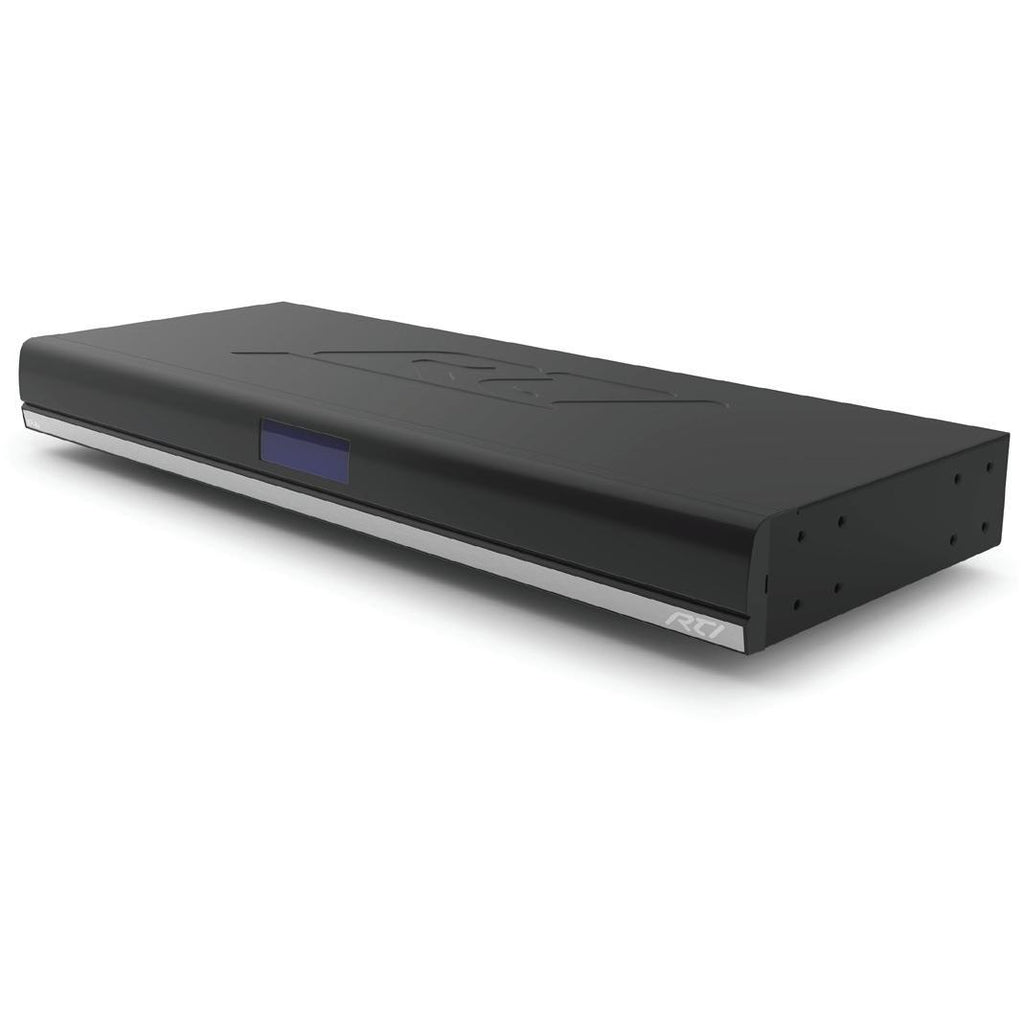

RTI Home Automation Components Control Processors XP-8v

RTISKU: XP-8v
The XP-8v is a high-end remote control processor for automating the operation of electronic systems such as A/V, lighting, security... The XP-8v is a high-end remote control processor for automating the operation of electronic systems such as A/V, lighting, security and HVAC in homes and office buildings. The third generation of the popular XP-8v advanced control processor, the accelerated XP-8v kicks control into highgear with even more processing power, additional memory and an HDMI output for an OSD (on-screen-display) interface. Increased performance combined with a real time/multitasking operating system, tremendous expandability and compatibility with any RTI controller or app, make the XP-8v the perfect solution for large-scale and complex projects.The XP-8v offers an abundance of control interface options such as two-way RS-232, routable IR, Ethernet and relay control. For expanded integration capabilities eight multi-purpose I/O ports support optional modules for voltage sensing and RS-232 control. The XP-8v also features eight programmable relay input/outputs and eight sense inputs (voltage or contact closure). Eight two-way RS-232 ports and an Ethernet port provides even more advanced control with feedback. Additionally, the XP-8v incorporates an astronomical clock, allowing for time based events and timers to trigger commands and macros. With all these interface and control options, the XP-8v provides a nearly unlimited arsenal of control capabilities. View more
Price:
$3,250.00
Specifications Documents
Specifications
General
Finish
Black
Networking
Two-way Zigbee® Communication Port, RJ45 Connection
Additional Information
• Powerful 1GHz i.MX CPU.
• 1GB of RAM memory and 512MB of non-volatile Flash memory.
• HDMI output for OSD provides bidirectional control interface on a TV.
• Eight two-way RS-232 ports.
• Eight relays can be programmed as a contact closure or voltage trigger.
• Eight multi-purpose I/O ports are compatible with industry standard IR emitters and optional RTI power sensing and communications modules.
• Eight sense inputs can trigger events based on contact closure or voltage.
• Astronomical clock allows time-based events.
• SD/MM Card Slot for Memory Expansion.
• Front panel controls/display (11 Buttons for front panel control).
• Variable IR output on all ports.
• Programmed using the Integration Designer® Software.
• Field upgradable firmware.
• USB and Ethernet programming.
• Input for connection of both 433MHz and 2.4GHz Zigbee® RF modules.
• Rack mountable or free standing.
Documents
Product Specifications
