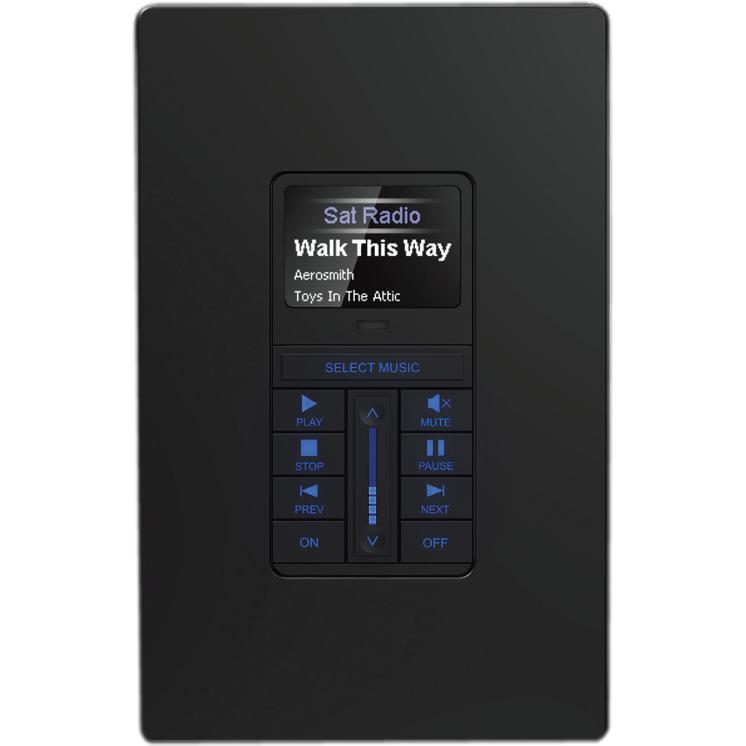

RTI Panel Controls Wall-mounted KX1-BK

New
RTISKU: KX1-BK
The KX1 in-wall keypad is designed for intuitive multi-room audio control via the RTI control system. A 1.2" color OLED... The KX1 in-wall keypad is designed for intuitive multi-room audio control via the RTI control system. A 1.2" color OLED display, eleven fully-programmable hard buttons and an open architecture, provide simple control over media streamers, AV receivers and more. When integrated with an RTI XP control processor and supported distributed audio systems, the customizable LED display provides two-way feedback from the selected source while a backlit bar displays the current volume level. View more
Specifications Documents
Specifications
General
LCD Screen
1.2 in
LCD Resolution
128x96 pixels
Controls
Button Press
Connection
RJ45,USB
Additional Information
• Assignable/programmable hard buttons for common functions
• Backlit volume level indicator bar
• IR output for direct control of devices up to 1000 feet away
• Ethernet port enables communication with RTI control system
• Ambient light sensor adjusts the backlight brightness automatically
• Software and firmware updates via USB and Ethernet
Dimensions
Width
1.78 inch(es) / 4.52 cm
Height
4.1 inch(es) / 10.41 cm
Depth
1.02 inch(es) / 2.59 cm
Weight
0.25 lb(s) / 0.113 kg
Warranty
Warranty
3 years
Documents
Product Specifications
