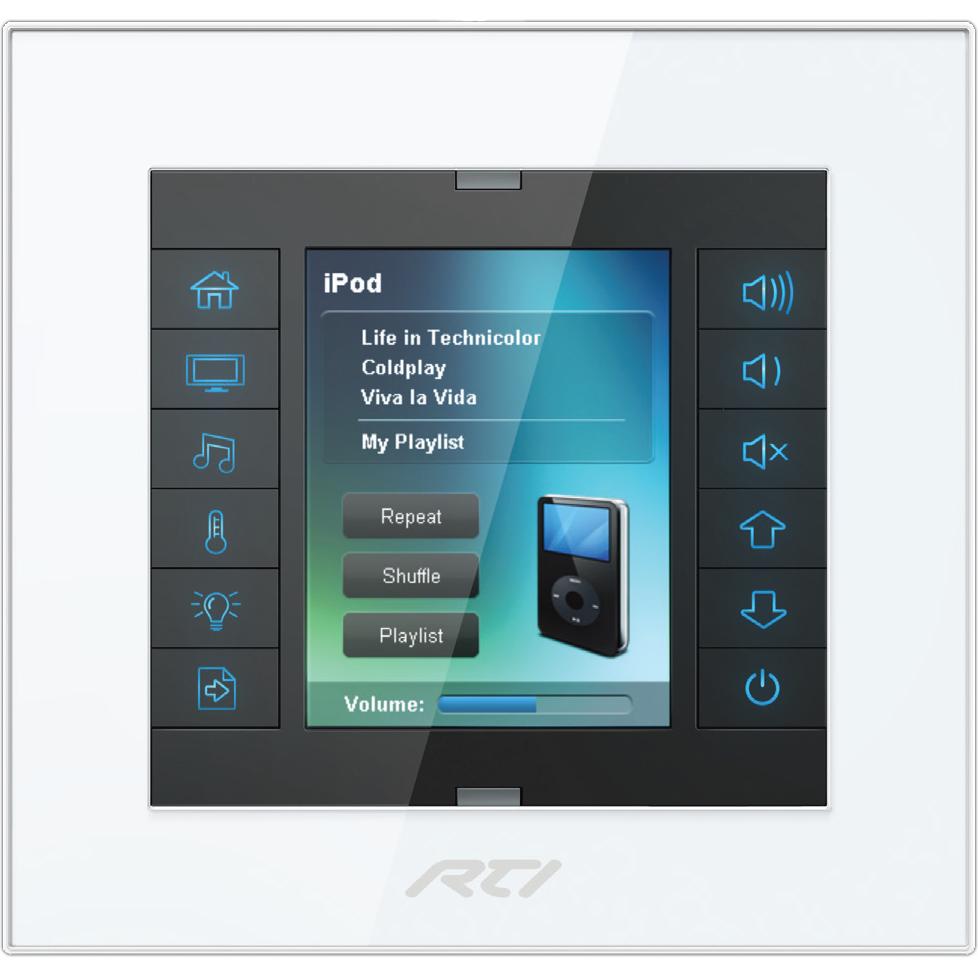

RTI Panel Controls Wall-mounted KX2 (W)

New
RTISKU: KX2 (W)
The KX2 in-wall controller has a clean, sleek design with twelve programmable hard buttons and a 2.8" color touchscreen. The... The KX2 in-wall controller has a clean, sleek design with twelve programmable hard buttons and a 2.8" color touchscreen. The hard buttons and graphic interface are fully programmable using RTI's Integration Designer® software for full control of electronics throughout the building. A built-in infrared output port allows direct control or get two-way control when used with an RTI XP series control processor. In addition, the unit's integrated 10/100Base-T Ethernet port with Power-over-Ethernet (POE) provides the flexibility to accommodate any installation. View more
Specifications Documents
Specifications
General
LCD Screen
2.8 in
LCD Resolution
320x240 pixels
Controls
Touchscreen
Connection
RJ45,USB
Additional Information
• Fully customizable 2.8" touchscreen display and twelve assignable/programmable buttons
• QVGA resolution (240w x 320h) TFT LCD to display custom buttons, text and graphics.
• Integrated 10/100Base-T Ethernet port with Power-over-Ethernet.
• IR output drives up to 1000 feet of wire
• Proximity sensor automatically wakes the unit up when approached by the user and an ambient light sensor adjusts the brightness.
• Integrated mounting wings for easy installation in retrofit installs.
• USB and Ethernet programming.
Dimensions
Width
4.6 inch(es) / 11.68 cm
Height
4.4 inch(es) / 11.18 cm
Weight
0.47 lb(s) / 0.212 kg
Documents
Product Specifications
