Features
2-WAY
Get status feedback from controlled devices on your remote such as on/off or arm/disarm status, dimming value of lights, music playlists, available radio stations.
HARD BUTTONS
16 programmable hard buttons provide easy access to control functions.
ZIGBEE
Standard wireless Zigbee IEEE802.15.4 connection for bidirectional control communication with RTI processors.
RF 433 MHZ
Wireless unidirectional RF communication on the 433 MHz band for control communication with RTI processors.
ELECTRONIC PAPER DISPLAY
Intuitive control menu and feedback from devices or systems on the easy-to-read electronic paper display, even in bright sunlight.
U3 WEATHER RESISTANT/IP66 RATED
Perfect for hot tubs, pools, bathrooms, and decks, this remote is designed for reliable wireless control in environments that are too harsh for standard controllers. The U3 is completely sealed, is dust tight and water repellent.

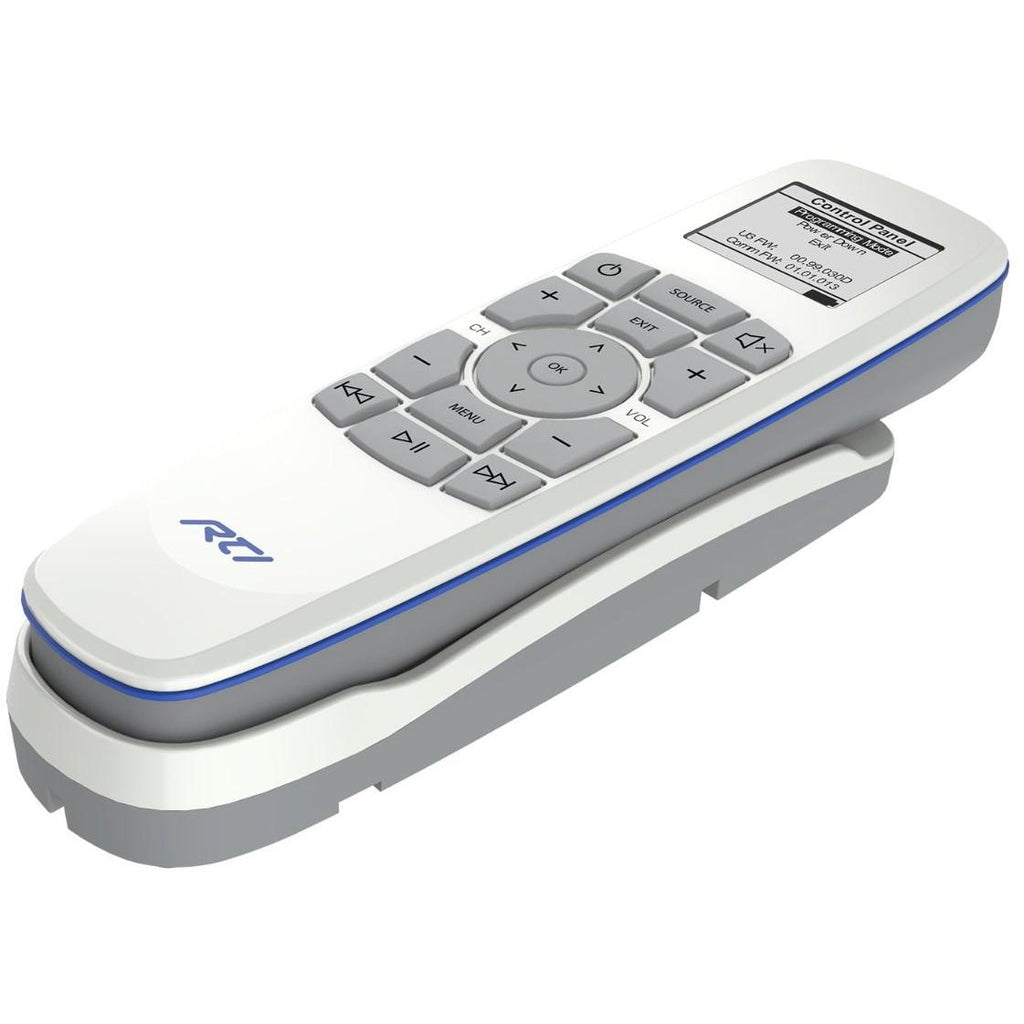

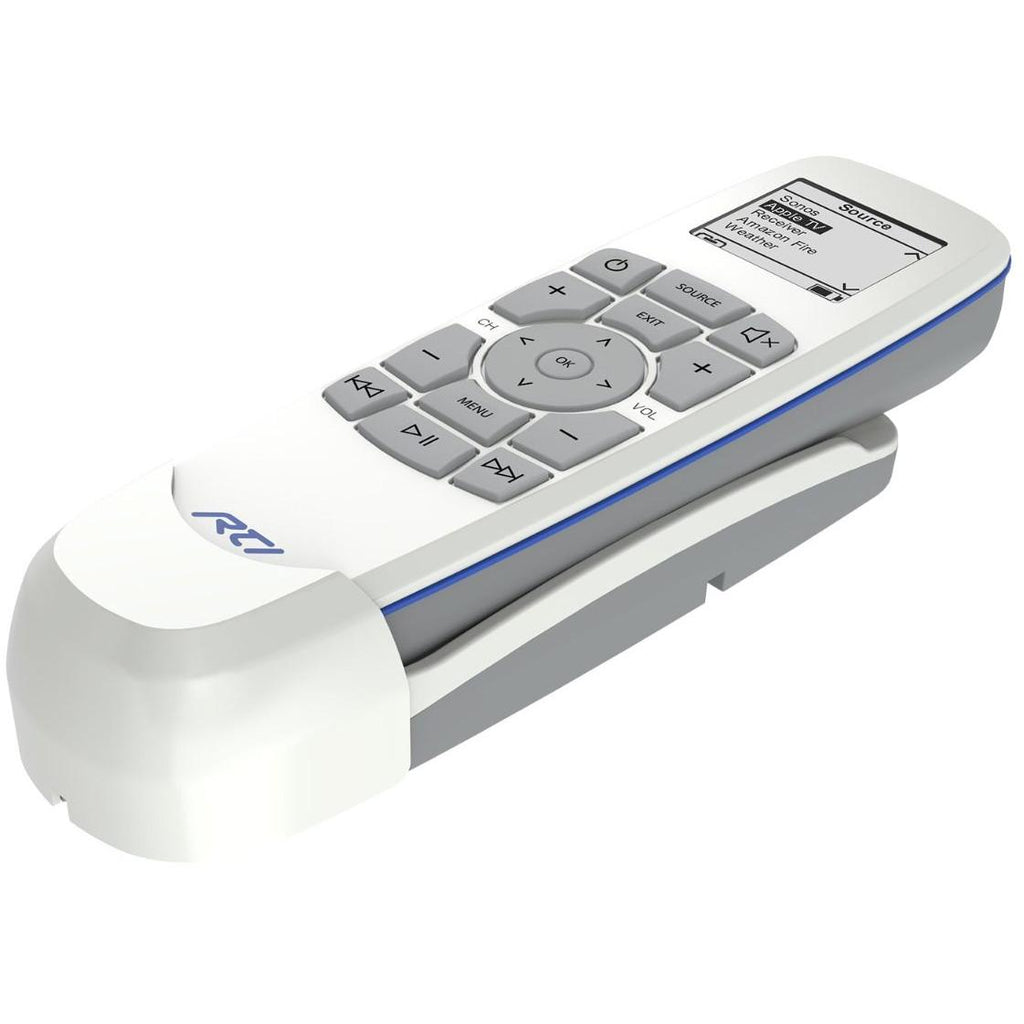

LITHIUM ION BATTERY/INDUCTIVE CHARGING CRADLE
Your remote can operate 2 to 3 months on average use. Charge it conveniently with the included inductive charging cradle.
Specifications
General
Type
Zigbee
LCD Screen Size
1.9" (48mm) diagonal
Power
3.6 VDC, 900 mAh Lithium-Ion Battery Pac
List of Devices
Total number of devices is limited only by memory
Remote Control Memory
256KB Flash (non-volatile) memory
Macros
• Unlimited steps in a single macro
• Total number of macros is limited only by memory
• Macro capability on 16 buttons
• Total number of macros is limited only by memory
• Macro capability on 16 buttons
Additional Information
• Durable design is weather-resistant
• Ergonomic design permits effortless, one-handed operation
• Completely sealed and floats.*
• Water, chlorine and fungus resistant
• Dual RF capability uses 433MHz or 2.4GHz (utilizing Zigbee® technology)
• Sixteen programmable keypad buttons
• Electronic paper display is easy to read in bright light
• Wireless programming.**
• Inductive wireless charging
• Three different screen text size selections
• *Not intended for exposure to water for extended periods of time
• **The U3 requires the RTI ZB-Pro Zigbee Programming Tool to download system file and firmware updates
• Ergonomic design permits effortless, one-handed operation
• Completely sealed and floats.*
• Water, chlorine and fungus resistant
• Dual RF capability uses 433MHz or 2.4GHz (utilizing Zigbee® technology)
• Sixteen programmable keypad buttons
• Electronic paper display is easy to read in bright light
• Wireless programming.**
• Inductive wireless charging
• Three different screen text size selections
• *Not intended for exposure to water for extended periods of time
• **The U3 requires the RTI ZB-Pro Zigbee Programming Tool to download system file and firmware updates
Accessories
Included
• Includes charging dock and weather-resistant cradle
• Includes wall mount holsters
• Includes wall mount holsters
Dimensions
Width
2.28 inch(es) / 5.8 cm
Height
1.1 inch(es) / 2.8 cm
Depth
7.91 inch(es) / 20.1 cm
Warranty
Warranty
Three Years (Parts & Labor) / 1 year on the battery
