Features
Built-in Bluetooth® transmitter
This product delivers the sound wirelessly via built-in Bluetooth® transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the right-front side of the cabinet, and pairing indicator tells you the speakers/headphone is successfully connected.
Authentic 2-speed Turntable
The high inertia Aluminum die-cast platter is driven by a high torque DC motor for stable rotation for both 33-? and 45 rpm. A soft felt mat further reduces vibration effectively. The high accuracy of the spindle is maintained by a polished Stainless steel Spindle and highly durable bronze spindle holder.
High-density MDF cabinet construction
Unlike others with plastic chassis, a single wooden board with high-density MDF minimizes vibrations and resonance to playback of your vinyl record library with clearer sound.
Built-in MM-type Phono EQ amplifier
Enjoy vinyl playback with any amplifier. The TN-280BT-A3 supports both Phono and Line outputs that allow you to enjoy vinyl records with or without phono equalizer.
Anti-skating adjustment for accurate tracking
Same as upper models, the TN-280BT-A3’s anti-skating mechanism ensures accurate tracking.
Additional Features
A new way of record playing
Unlike other turntable units, the TN-280BT-A3 provides you the simplest way of listening to vinyl records via Bluetooth® wireless technology.
If you already have a Bluetooth-enable speakers or headphone for your iPhone/Android phone, all you have to do is to install the TN-280BT-A3 in your room – no pricy hi-fi system and complicated wiring are required –. The connection is as simple as ABC, just press the BT pairing button when the Bluetooth® speakers/headphones are ready to the pairing, and once the connection is established, you don't need to repeat the same process every time you listening to vinyl records.

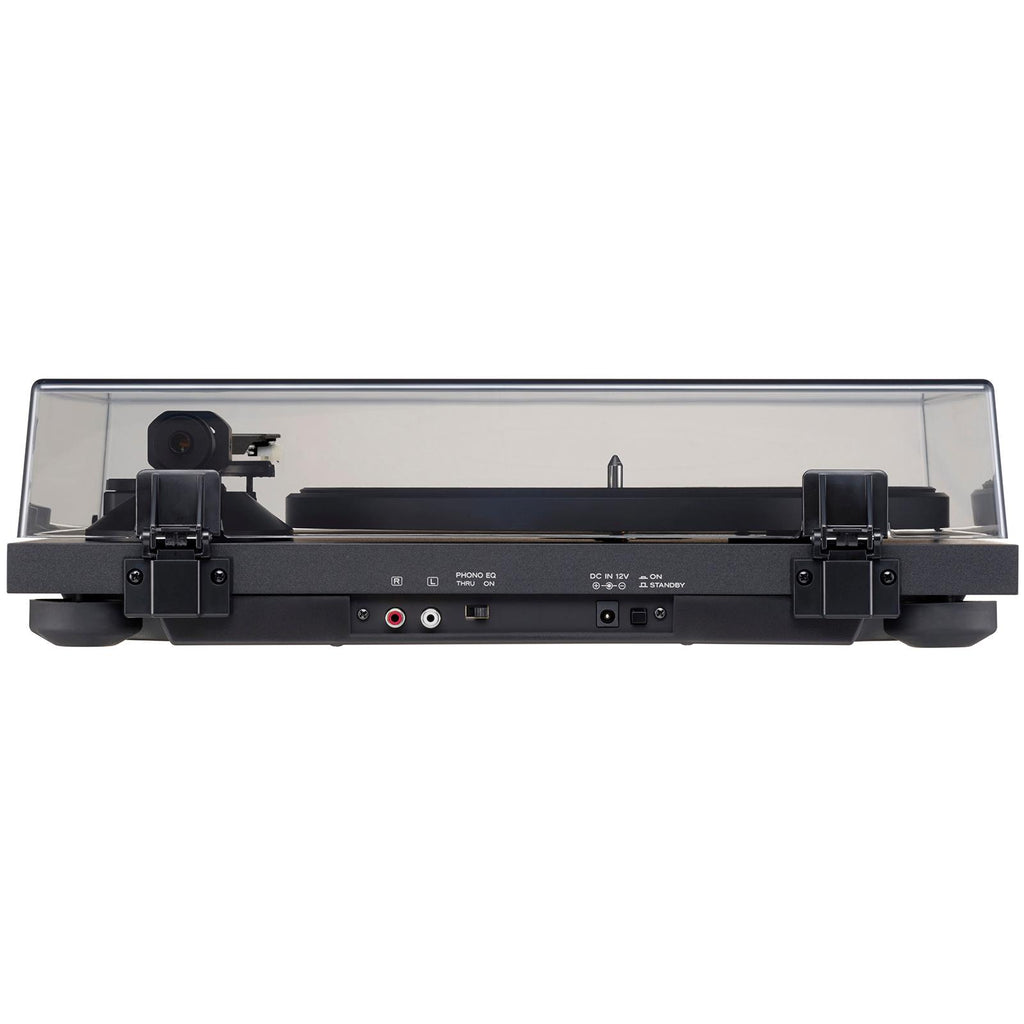

The TN-280BT-A3 also provides conventional ways of connection to hi-fi system with or without PHONO input via cable, and an RCA audio cable comes with the TN-280BT-A3.
VM-type cartridge pre-installed for quick start
A straight tone-arm is employed for high tracking accuracy. The anti-skating mechanism also ensures accurate tracking of vinyl records. An VM-type (equivalent to MM-type) cartridge audio-technica AT3600L is installed at the factory.
Specifications
General
Color
Black
Bluetooth
Yes
Features
Dust Cover
Yes
Additional Information
• Motor: DC Motor
• Speed: 33 1/3 RPM, 45 RPM RPM
• Wow and Flutter: 0.2%
• Signal-to-Noise Ratio: 67dB or higher (A-weighted, 20kHz LPF), 60dB (unweighted, 20kHz, LPF)
• Platter: Aluminum Die-cast
• Diameter of Platter: 12", 30cm
• Tonearm section: Type - Static Balance, Straight, Effective Arm Length - 8.8", 223mm, Stylus Pressure Range - 0 to 5g, Compatible Cartridge Range - 2.5 to 5.5g, Anti-skating Adjustment - Supported
• Cartridge section:
• Type - VM-type, Stylus Shape - Conical, Frequency Response - 20Hz to 20kHz, Channel Separation - 24dB at 1kHz, 15dB at 10kHz, Channel Balance - 1.5dB, Tracking Forcee - 3.5g±0.5 g, Output Impedance - 47k ohms, Output Voltage - 3.5mV, Cartridge Weight - 5.0g±0.3 g, Head-shell Weight - 11g (including nuts, screws and wires), Stylus Replacement - audio-technica ATN3600L
• Analog Output section: Connectors - RCA Pin x 1 pair (Chrome-plated), Output - Voltage PHONO - 4.2mV, LINE - 120mV (–13dBV)
• Bluetooth® section: Range - Approx. 30ft. / 10 meters, Supported Codec - SBC
• Power: AC 100 to 240V, 50/60Hz
• Power Consumption: < 1.5W (< 0.5W at Standby)
• Speed: 33 1/3 RPM, 45 RPM RPM
• Wow and Flutter: 0.2%
• Signal-to-Noise Ratio: 67dB or higher (A-weighted, 20kHz LPF), 60dB (unweighted, 20kHz, LPF)
• Platter: Aluminum Die-cast
• Diameter of Platter: 12", 30cm
• Tonearm section: Type - Static Balance, Straight, Effective Arm Length - 8.8", 223mm, Stylus Pressure Range - 0 to 5g, Compatible Cartridge Range - 2.5 to 5.5g, Anti-skating Adjustment - Supported
• Cartridge section:
• Type - VM-type, Stylus Shape - Conical, Frequency Response - 20Hz to 20kHz, Channel Separation - 24dB at 1kHz, 15dB at 10kHz, Channel Balance - 1.5dB, Tracking Forcee - 3.5g±0.5 g, Output Impedance - 47k ohms, Output Voltage - 3.5mV, Cartridge Weight - 5.0g±0.3 g, Head-shell Weight - 11g (including nuts, screws and wires), Stylus Replacement - audio-technica ATN3600L
• Analog Output section: Connectors - RCA Pin x 1 pair (Chrome-plated), Output - Voltage PHONO - 4.2mV, LINE - 120mV (–13dBV)
• Bluetooth® section: Range - Approx. 30ft. / 10 meters, Supported Codec - SBC
• Power: AC 100 to 240V, 50/60Hz
• Power Consumption: < 1.5W (< 0.5W at Standby)
Accessories
Included
• Rubber Sheet
• EP Adapter
• Counter Weight
• Head-shell (MM-type Cartridge audio-technica AT3600L installed)
• Turntable (Platter)
• Dust Cover
• Rubber Feet fro Dust Cover x2
• Hinge x2
• RCA Audio Cable
• AC Adapter (GPE053A-120050-Z)
• Owner's Manual (including Warranty Card)
• EP Adapter
• Counter Weight
• Head-shell (MM-type Cartridge audio-technica AT3600L installed)
• Turntable (Platter)
• Dust Cover
• Rubber Feet fro Dust Cover x2
• Hinge x2
• RCA Audio Cable
• AC Adapter (GPE053A-120050-Z)
• Owner's Manual (including Warranty Card)
Dimensions
Width
16.5 inch(es) / 41.91 cm
Height
4.6 inch(es) / 11.68 cm
Depth
14 inch(es) / 35.56 cm
Weight
10.8 lb(s) / 4.9 kg
Documents
