Specifications
General
Number of Channels
6
Amplifier Class
D
Load Impedance Capability
2 ohms
Frequency Response
8 Hz - 35,000 Hz
Total Harmonic Distortion
1% THD
Additional Information
Output Power (RMS) @ 1% 1000Hz 14.4V CEA 2006:
• Stereo @ 4 Ohms - 6 x 185 Watts @ 95A
• Stereo @ 2 Ohms - 6 x 290 Watts @ 168A
• Mono @ 4 Ohms - 3 x 585 Watts @ 168A
• Stereo @ 4 Ohms - 6 x 185 Watts @ 95A
• Stereo @ 2 Ohms - 6 x 290 Watts @ 168A
• Mono @ 4 Ohms - 3 x 585 Watts @ 168A

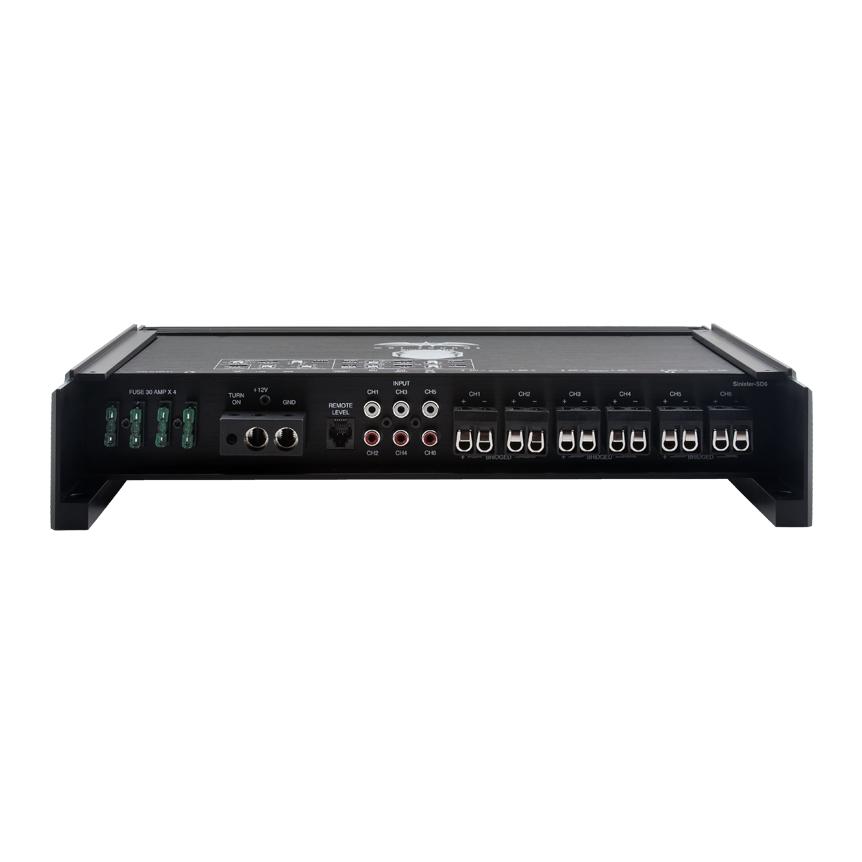

Inputs/Outputs
RCA Inputs
Yes
Speaker Level Inputs
Yes
Highpass
Yes
Lowpass
Yes
Cutoff Frequencies for (HP/LP)
Crossover Range High and Low Pass - 30Hz - 300Hz 12dB/Octave
Warranty
Warranty
2-Year limited warranty
