Features
Double Bottom Chassis
The enclosing structure is further strengthened by a double-bottom chassis and a thick iron damping plate of 1 mm added to the chassis bottom. This eliminates various vibrations that would adversely affect the sound and enhances the expressiveness of the lower frequencies—conveying both the profound power and supple grace of even the performance of a full concert orchestra.
Anti-Resonance Feet
The R-N800A also employs anti-resonance feet designed under a concept of vibration absorption. By arranging thin curved reinforcing bars on the outer periphery and thick straight reinforcing bars in the center, the vibration energy transmitted from the outside of the leg is effectively dispersed and diminished, while maintaining high central rigidity. These make it possible to reproduce a focused sound that lets you fully feel the rhythm and dynamics of the music.
High Quality Parts for Outstanding Audio Performance
Custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one-point grounding system, aluminium-extruded heat sinks and other top-quality parts effortlessly handle demanding audio signal conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.
High Precision, High Performance
The R-N803 uses the renowned SABRE 9006AS 192 kHz/24-bit DAC (from ESS technology) to deliver superior signal-to-noise ratio performance. Combined with the Yamaha original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.
Gold-plated Terminals
This model has gold-plated terminals ensure a high quality connection that prevents signal loss.
HDMI ARC TERMINAL
Get true Hi-Fi sound on your TV. This model is compatible with HDMI ARC (Audio Return Channel), allowing you to connect to your TV with just a single cable meaning that you can enjoy not only audio but also TV audio content such as live performance broadcasts and music programs, with excellent sound quality.
Enjoy your records, too
The comprehensive connectors of the R-N303 include special phono input terminals, letting you easily connect a turntable and enjoy music from your vinyl record collection.
USB DAC FUNCTION
A stable transmission method throught a stable transmission method through asynchronous transmission has been adopted. Moreover, an ultra-precision dedicated crystal clock has been installed to improve signal accuracy. It also supports DSD 11.2MHz native playback and 384kHz playback, letting you enjoy exceptionally high-quality sound that takes full advantage of high-resolution audio sources.
DAB/DAB+ Tuner
DAB and DAB+ are Digital Audio Broadcasting formats that offer a large selection of radio stations with high sound quality. Other benefits include automatic tuning to available stations with a list to choose from, and display of information such as station name. You can preset 40 DAB / DAB+ stations.
*Availability of DAB / DAB+ tuner varies by region
Maximum Sound Purity
Pure Direct mode enables the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation, for the purest sound quality.
Multi-room Audio - MusicCast
Imagine sharing all the music you love throughout the home – no matter the format. From your favorite vinyl to AirPlay®, Bluetooth® to music streaming services* and even sound from your TV, MusicCast has it covered.
Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 384 kHz are supported.
*Music streaming service availability varies by region.
Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 384 kHz are supported.
*Music streaming service availability varies by region.
Low Impendance
In order to thoroughly eliminate energy loss and degradation of the audio signal, the R-N800A features thick wires for the ground connection a critical feature that establishes the componentry as being truly premium Hi-Fi. In addition, a screw connection is adopted for the output from the power amplifier section in order to strengthen the ground, which is important for audio quality. This gives the R-N800A increased signal-to-noise performance, making it possible to reproduce sound with full clarity.
Specifications
General
Sound Channels
2
Power Output
Rated Output Power: [20 Hz-20 kHz 0.07 % THD] 100 W+100 W (8 ohms) 120 W + 120 W (6 ohms)
Additional Information
• External Controls: Bass, Track Control, Treble, Volume control
• Audio Formats: MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD
• High Dynamic Power/Channel (8/6/4/2 ohms): 140 / 170 / 220 / 290 W
• Frequency Response: 10 Hz-100 kHz 0±1.0 dB, 20-20 kHz 0±0.5 (Pure Direct ON)
• Signal-to-Noise Ratio (CD): 100 dB (Pure Direct ON)
• HDMI(ARC)
• USB Input: USB DAC (USB B-type)
• Ethernet
• FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono): 3 µV (20.8 dBf)
• FM Signal-to-Noise Ratio (Mono/Stereo): 69 dB / 68 dB
• Pure Direct
• ToP-ART
• Standby Power Consumption: 0.1 W (Network standby on/ Wi-Fi connection 1.8 W)
• Dimensions (W x H x D): 435 x 151 x 395 (with antenna up: 435 x 232 x 395)+ 17-1/8" x 6" x 15-1/2" (with antenna up: 17-1/8" x 9-1/8" x 15-1/2")
• Audio Formats: MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD
• High Dynamic Power/Channel (8/6/4/2 ohms): 140 / 170 / 220 / 290 W
• Frequency Response: 10 Hz-100 kHz 0±1.0 dB, 20-20 kHz 0±0.5 (Pure Direct ON)
• Signal-to-Noise Ratio (CD): 100 dB (Pure Direct ON)
• HDMI(ARC)
• USB Input: USB DAC (USB B-type)
• Ethernet
• FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono): 3 µV (20.8 dBf)
• FM Signal-to-Noise Ratio (Mono/Stereo): 69 dB / 68 dB
• Pure Direct
• ToP-ART
• Standby Power Consumption: 0.1 W (Network standby on/ Wi-Fi connection 1.8 W)
• Dimensions (W x H x D): 435 x 151 x 395 (with antenna up: 435 x 232 x 395)+ 17-1/8" x 6" x 15-1/2" (with antenna up: 17-1/8" x 9-1/8" x 15-1/2")
Network
Bluetooth
Built-In
Wi-Fi
Yes
Information
Wireless Connectivity: Wi-Fi, Bluetooth: SBC / AAC, AirPlay

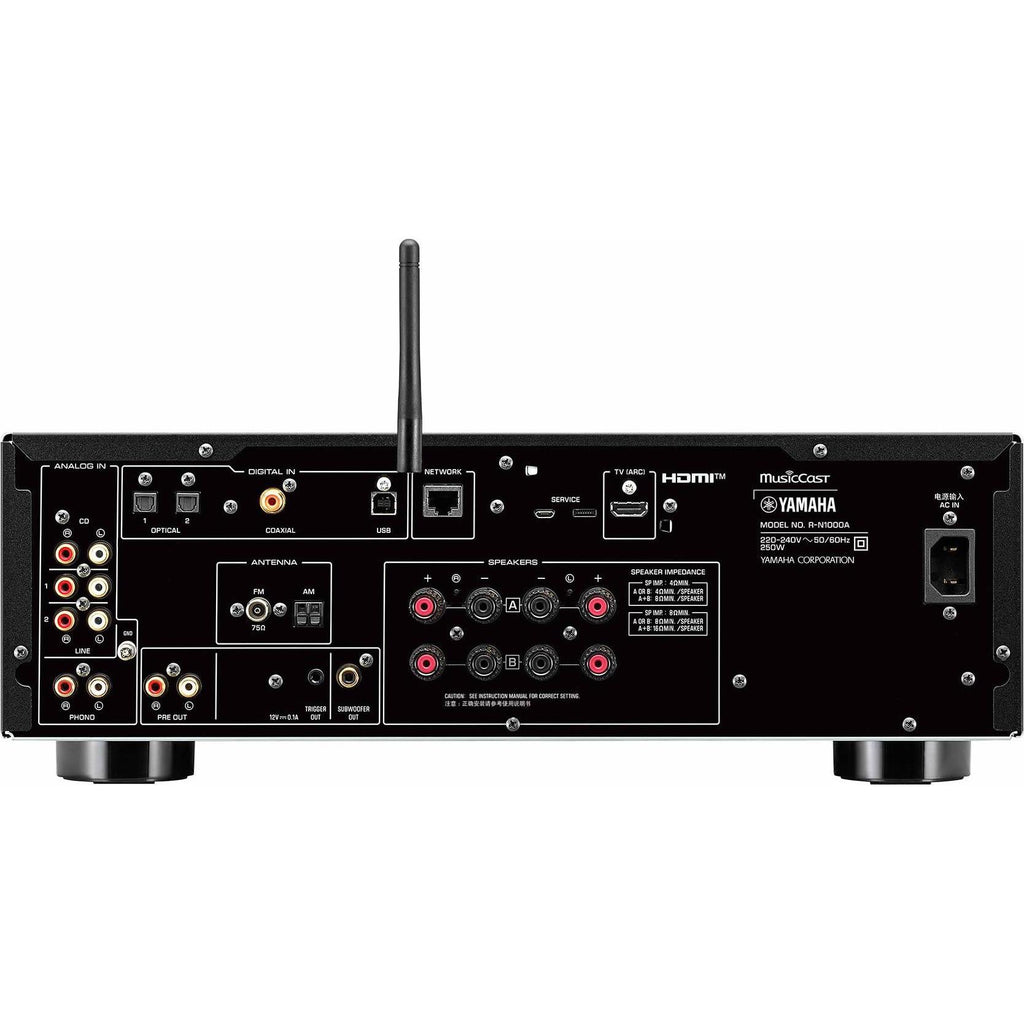

Inputs/Outputs
Information
• Input: Coaxial, Optical, Phono
• Output: Subwoofer
• Audio In / Out: Phono, CD, line1, line2 / Pre out, Subwoofer out
• Digital Input: Optical1, Optical2, Coaxial
• Headphone Out
• Control (Trigger) Out
• Output: Subwoofer
• Audio In / Out: Phono, CD, line1, line2 / Pre out, Subwoofer out
• Digital Input: Optical1, Optical2, Coaxial
• Headphone Out
• Control (Trigger) Out
Accessories
Included

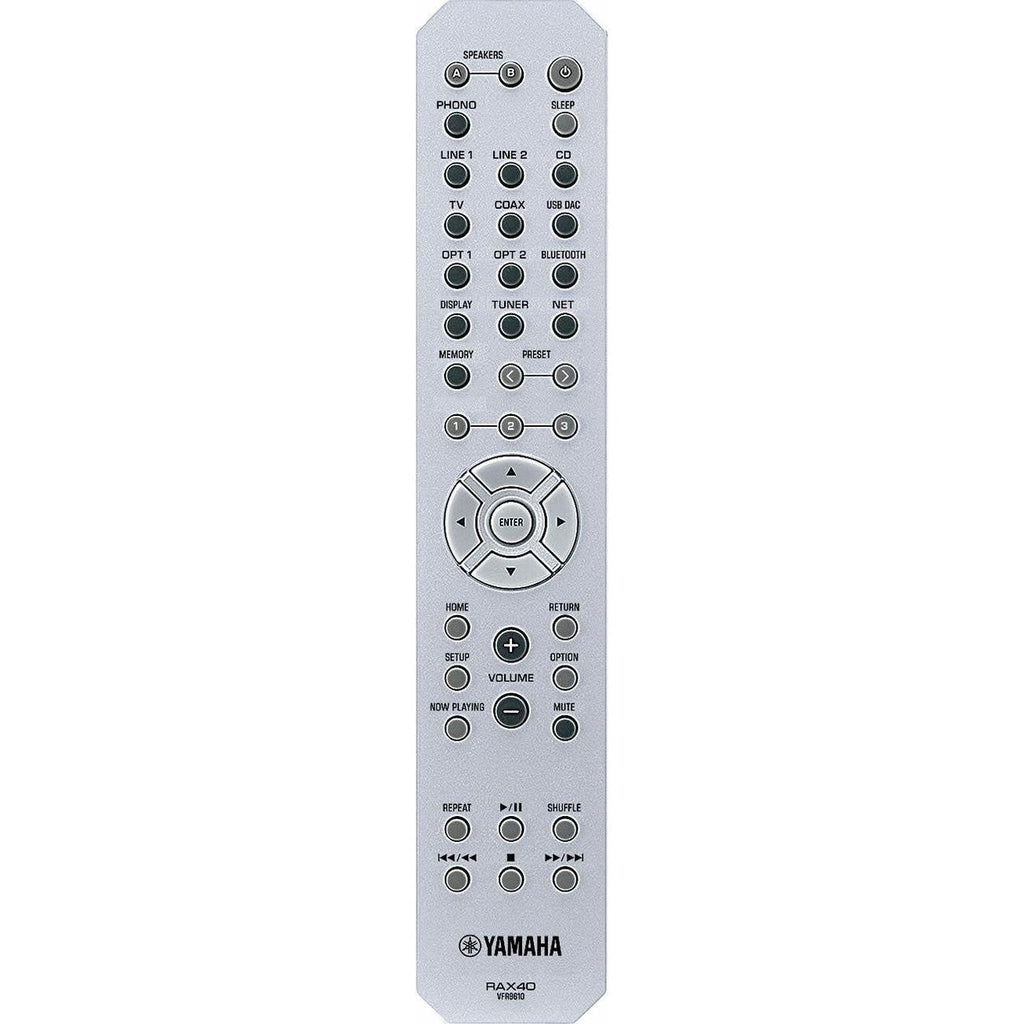

Remote control
Dimensions
Weight
27.12 lb(s) / 12.3 kg
